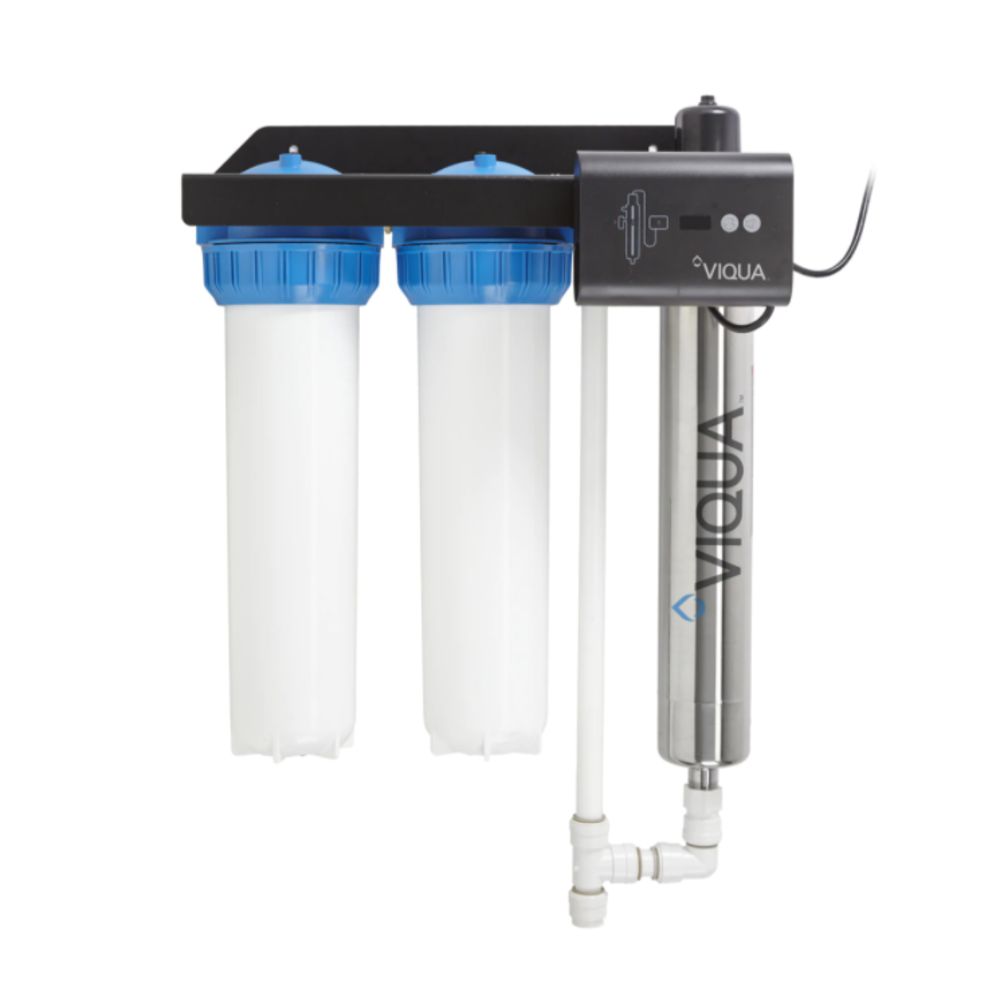

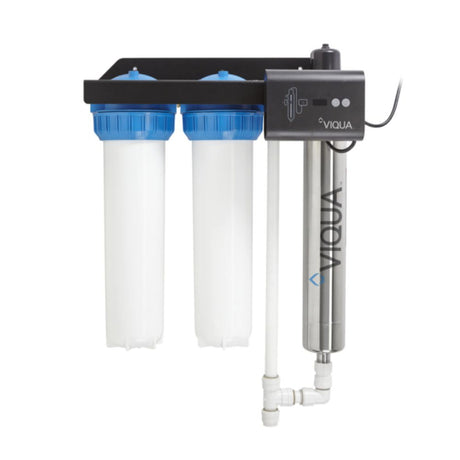

The Viqua IHS22-E4 UV System is an ultraviolet water system that provides a point-of-entry water treatment system with both disinfection and filtration. The Viqua IHS22-E4 is a compact unit that incorporates the Viqua E4 disinfection system and two filter housings, all on the same installation bracket. Viqua™-HO coated, high-output, low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.
The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.
Viqua UV Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the over-molded connector can be removed without any additional tools.
Features & Advantages Advanced Prefiltration The Viqua IHS22-E4 System features two stages of prefiltration to prepare your water for UV disinfection. 20" BB 5 Mic Sediment Filter:
DNA of viruses and bacteria, making
them unable to reproduce or cause
harm and illness. You can count
on this system to keep you and
your family safe from:

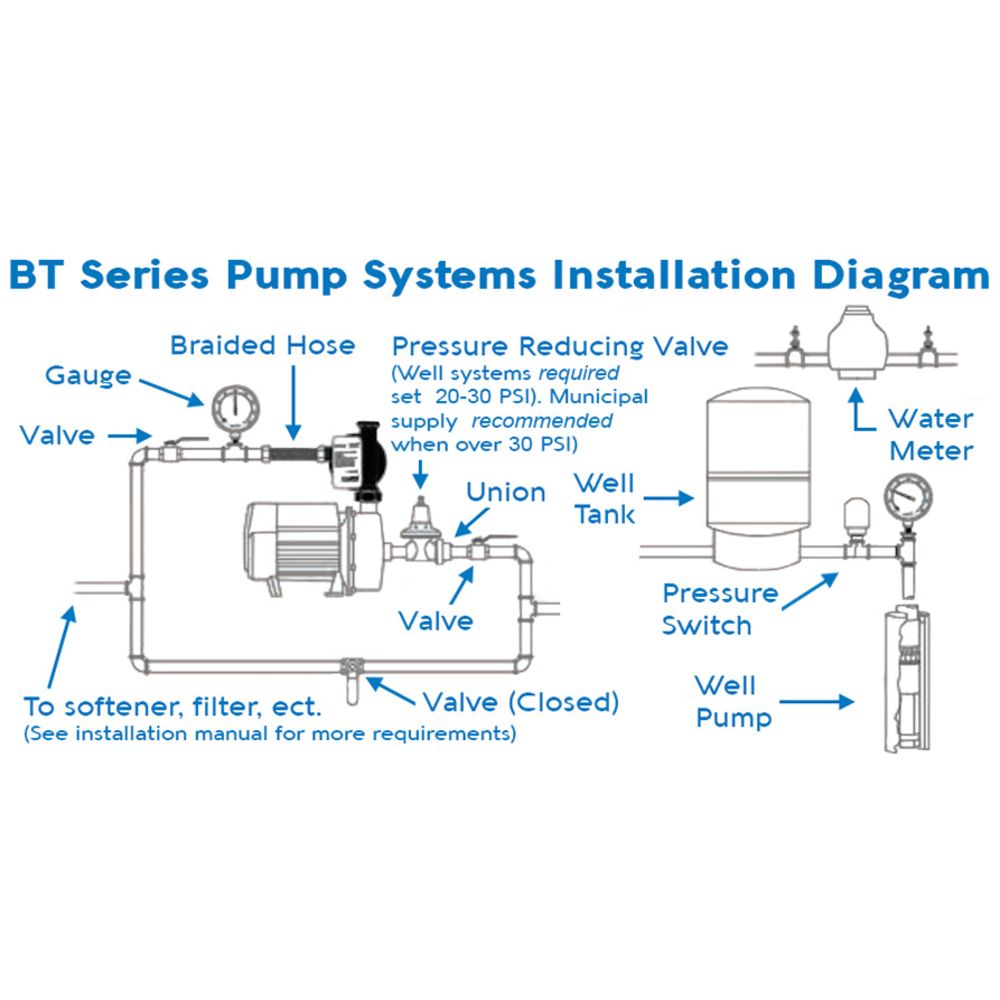

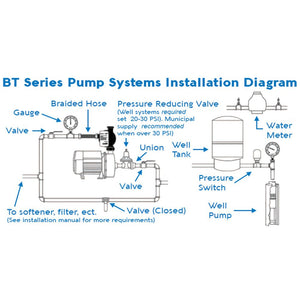

This is a sample setup for your Viqua IHS22-E4 System. Many of these components are optional add-ons, and are not included with this ultraviolet system.
The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.
Viqua UV Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the over-molded connector can be removed without any additional tools.

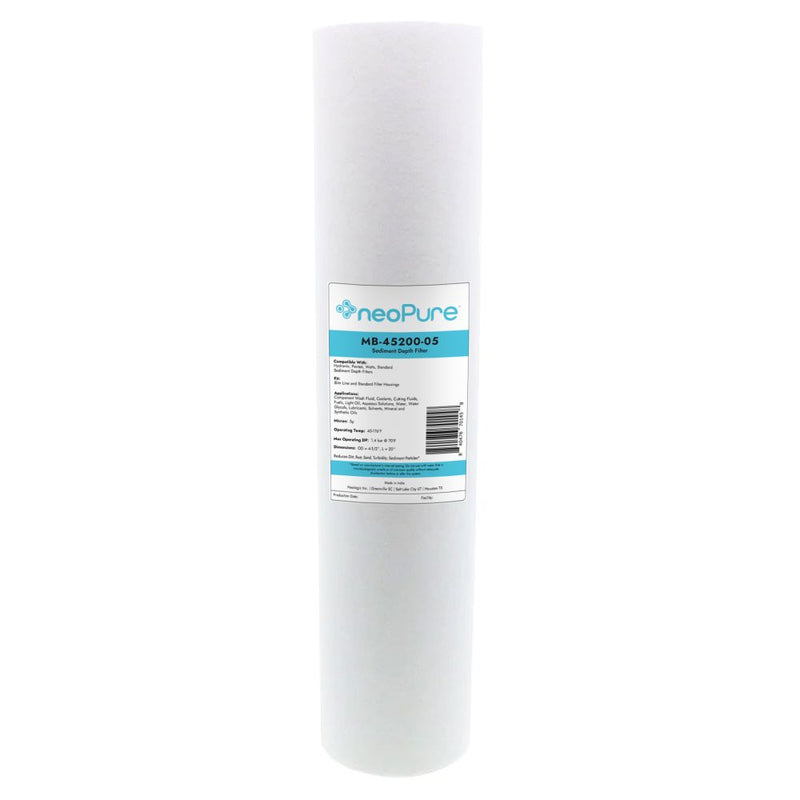

Features & Advantages Advanced Prefiltration The Viqua IHS22-E4 System features two stages of prefiltration to prepare your water for UV disinfection. 20" BB 5 Mic Sediment Filter:
- Graded density polypropylene
- Removes sediment & rust up to 5 mic
- High dirt-holding capacity
- Coconut shell carbon block
- Removes chlorine, taste, and odor
- Makes water clear & great-tasting
- The Power Of Ultraviolet Rays
DNA of viruses and bacteria, making
them unable to reproduce or cause
harm and illness. You can count
on this system to keep you and
your family safe from:
- Cryptosporidium
- Giardia
- E. Coli
This is a sample setup for your Viqua IHS22-E4 System. Many of these components are optional add-ons, and are not included with this ultraviolet system.
Details
Ambient Temperature Range | 36-104 °F |
Body Material | 316 Stainless Steel |
Features | Audible Lamp Failure, Visual Power On, Lamp Timer |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1" FPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 4 |
Number Of Lamps | 1 |
Power | 83 W |
Size | 1" |
System Class | Residential Systems |
Connection Type | Female (FPT) |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Flow Rate | 22 GPM (30mJ/cm2 Dose), 16 GPM (40mJ/cm2 Dose) |
Type | Multi-Stage UV System |
Voltage | 120 V |
The Viqua IHS22-E4 UV System is an ultraviolet water system that provides a point-of-entry water treatment system with both disinfection and filtration. The Viqua IHS22-E4 is a compact unit that incorporates the Viqua E4 disinfection system and two filter housings, all on the same installation bracket. Viqua™-HO coated, high-output, low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.
The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.
Viqua UV Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the over-molded connector can be removed without any additional tools.
Features & Advantages Advanced Prefiltration The Viqua IHS22-E4 System features two stages of prefiltration to prepare your water for UV disinfection. 20" BB 5 Mic Sediment Filter:
- Graded density polypropylene
- Removes sediment & rust up to 5 mic
- High dirt-holding capacity
- Coconut shell carbon block
- Removes chlorine, taste, and odor
- Makes water clear & great-tasting
- The Power Of Ultraviolet Rays
DNA of viruses and bacteria, making
them unable to reproduce or cause
harm and illness. You can count
on this system to keep you and
your family safe from:
- Cryptosporidium
- Giardia
- E. Coli
This is a sample setup for your Viqua IHS22-E4 System. Many of these components are optional add-ons, and are not included with this ultraviolet system.
Details
Ambient Temperature Range | 36-104 °F |
Body Material | 316 Stainless Steel |
Features | Audible Lamp Failure, Visual Power On, Lamp Timer |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 1" FPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 4 |
Number Of Lamps | 1 |
Power | 83 W |
Size | 1" |
System Class | Residential Systems |
Connection Type | Female (FPT) |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Flow Rate | 22 GPM (30mJ/cm2 Dose), 16 GPM (40mJ/cm2 Dose) |
Type | Multi-Stage UV System |
Voltage | 120 V |
