Viqua

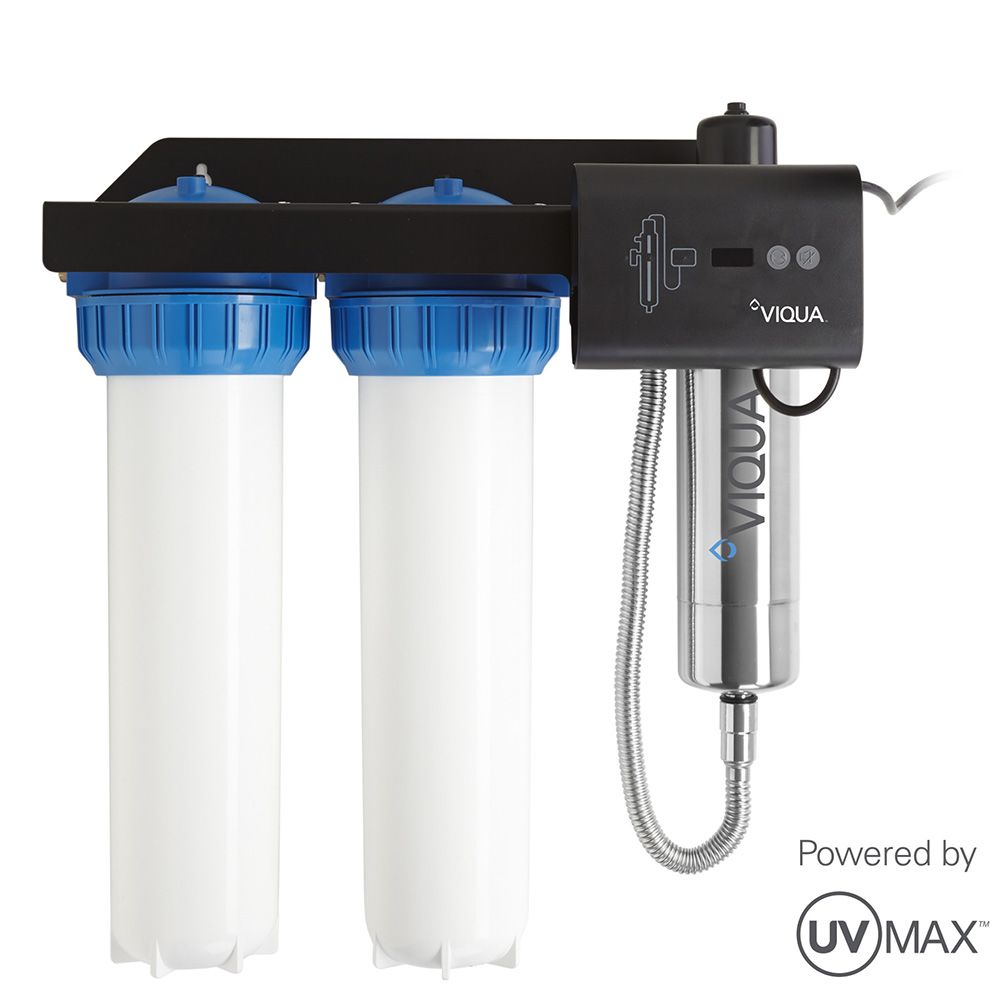

Viqua IHS22-D4 UV Water Purification and Filter System Powered by UVMax

Part Number: IHS22-D4

Alt. Part Number: SPV410-IHS22

In Stock

out of stock

In Stock

$1,320.00

The Viqua IHS22-D4 UV System is an ultraviolet disinfection system that adds integral prefiltration technology for the reduction of chlorine, unpleasant taste and odor, and dirt and sediment. This model is ideal for homeowners who are on a municipal water supply and have concerns about chlorine and bacteria in their water.

The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.

Replacement Parts:

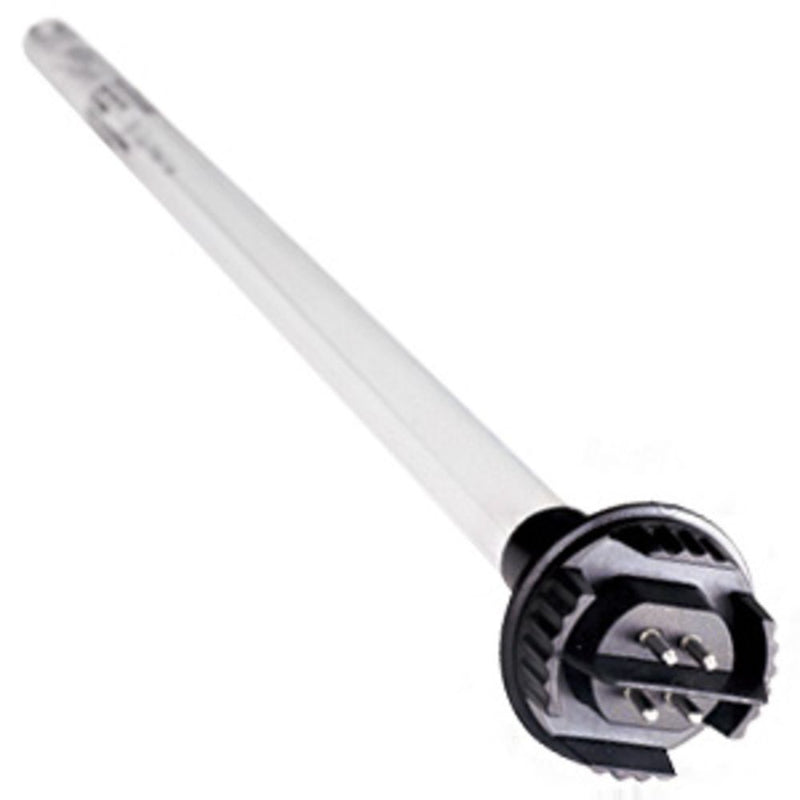

  • UV Lamp: 602805
  • Quartz Sleeve: 602732
  • Ballast: 650713-007




Details

Ambient Temperature Range

36-104 °F

Body Material

304 Stainless Steel

Features

Audible Lamp Failure, Visual Power On, Lamp Timer

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 3/4" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

4

Number Of Lamps

1

Power

50 W

Size

3/4"

System Class

Residential Systems

Connection Type

Female (FPT), Male (MPT)

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Flow Rate

12 GPM (30mJ/cm2 Dose), 9 GPM (40mJ/cm2 Dose)

Type

Multi-Stage UV System

Voltage

120 V


Viqua

Viqua

Viqua




The Viqua IHS22-D4 UV System is an ultraviolet disinfection system that adds integral prefiltration technology for the reduction of chlorine, unpleasant taste and odor, and dirt and sediment. This model is ideal for homeowners who are on a municipal water supply and have concerns about chlorine and bacteria in their water.

The Viqua controller provides constant output current and a universal power input (100-240V/50-60Hz), as well as visually displaying remaining lamp life and total days of operation.

Replacement Parts:
  • UV Lamp: 602805
  • Quartz Sleeve: 602732
  • Ballast: 650713-007



Details

Ambient Temperature Range

36-104 °F

Body Material

304 Stainless Steel

Features

Audible Lamp Failure, Visual Power On, Lamp Timer

Frequency

50/60 Hz

Inlet/Outlet Connection

3/4" FPT, 3/4" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

4

Number Of Lamps

1

Power

50 W

Size

3/4"

System Class

Residential Systems

Connection Type

Female (FPT), Male (MPT)

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Flow Rate

12 GPM (30mJ/cm2 Dose), 9 GPM (40mJ/cm2 Dose)

Type

Multi-Stage UV System

Voltage

120 V
