Trojan

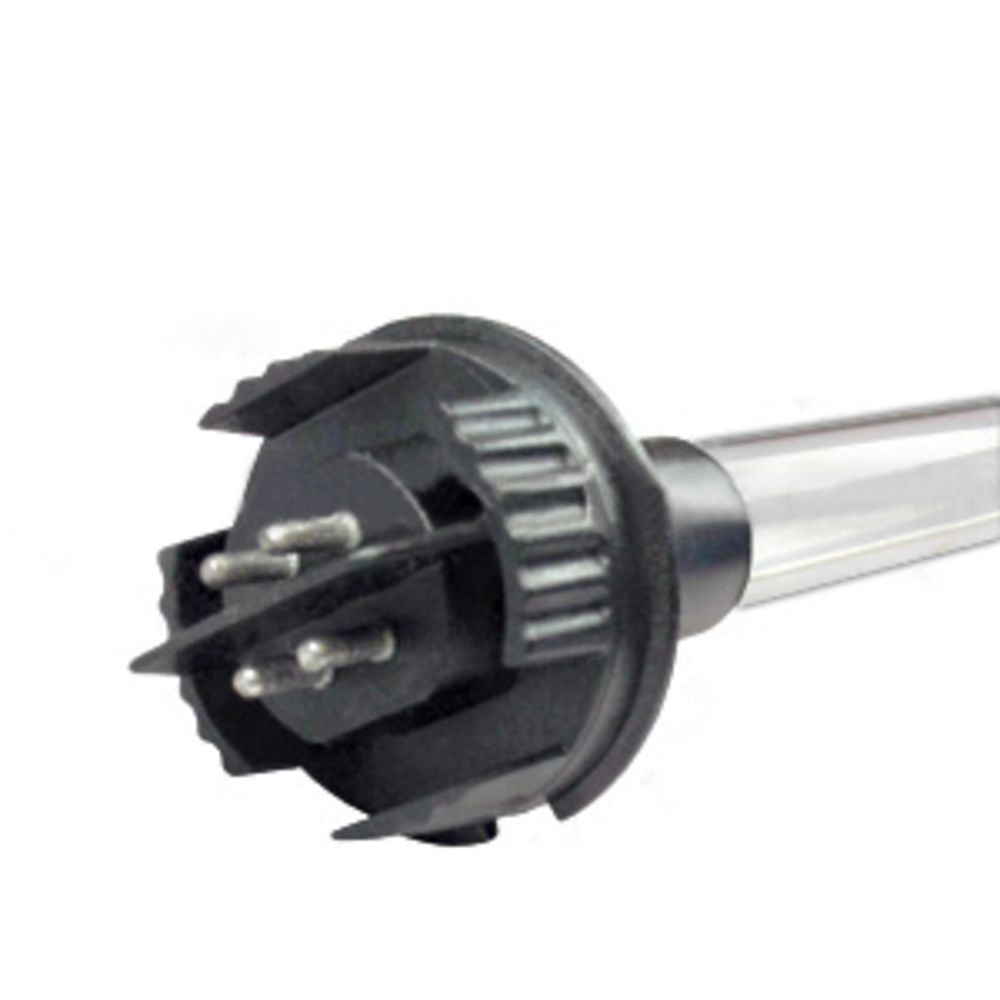

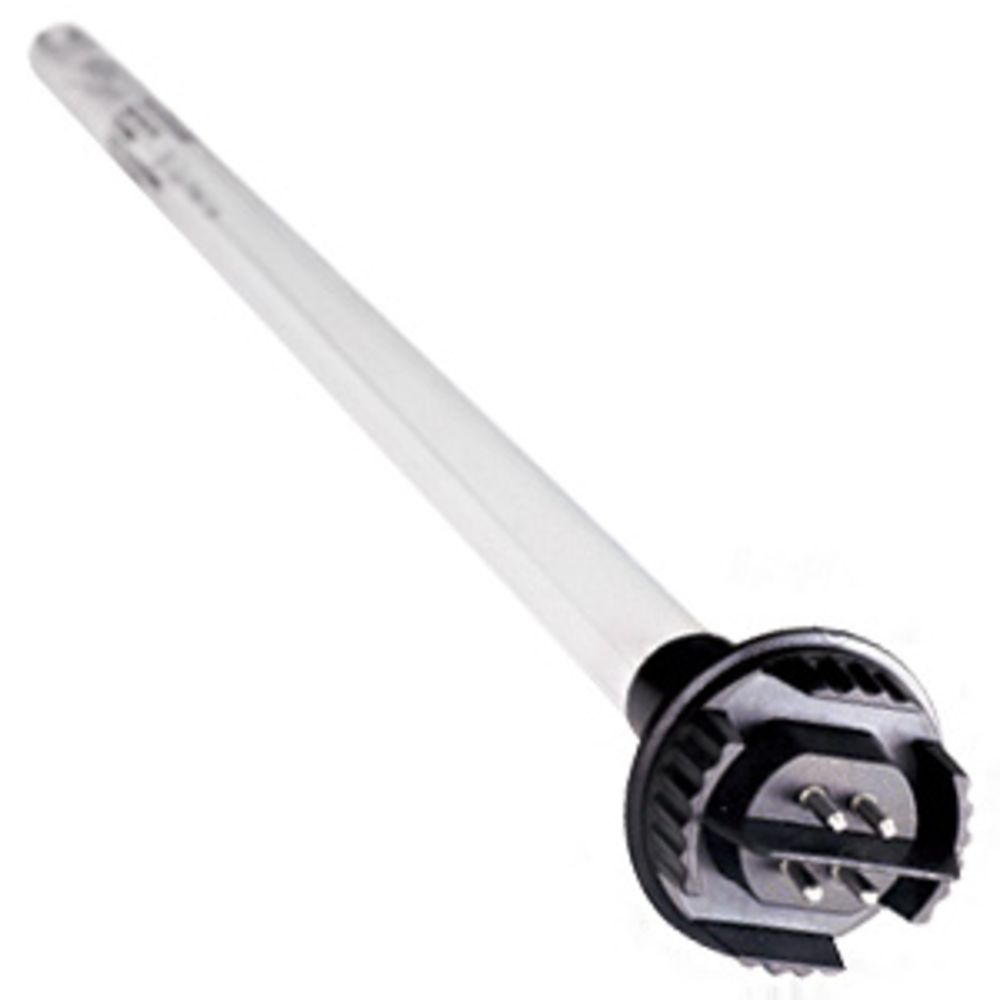

Trojan UV Lamp 602805 for UVMax C, D, D Plus

Part Number: 602805

Alt. Part Number: 602727, 602880, 602810-002LPHO

In Stock

out of stock

In Stock

$95.00

Intended Use:

The Trojan 602805 Lamp is an original replacement UV bulb for use with Trojan C, C4, D, D Plus, D4, D4 Plus, and IHS12-D4 water UV disinfection systems. When you buy a Genuine Trojan 602805 UV lamp you can be assured of the performance, safety, and warranty of your system.

Specifications:

  • 602805 UV Lamp is compatible with the Viqua C, D, D Plus, IHS22-D4, UVMAX C4, D4, D4 Plus, IHS12-D4, UVMAX C4-V, UVMAX D4-V, and the UVMAX D4-V Plus systems.
  • 2 O-rings included with lamp
  • Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours
  • Low pressure high output lamp with a black base
  • Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps

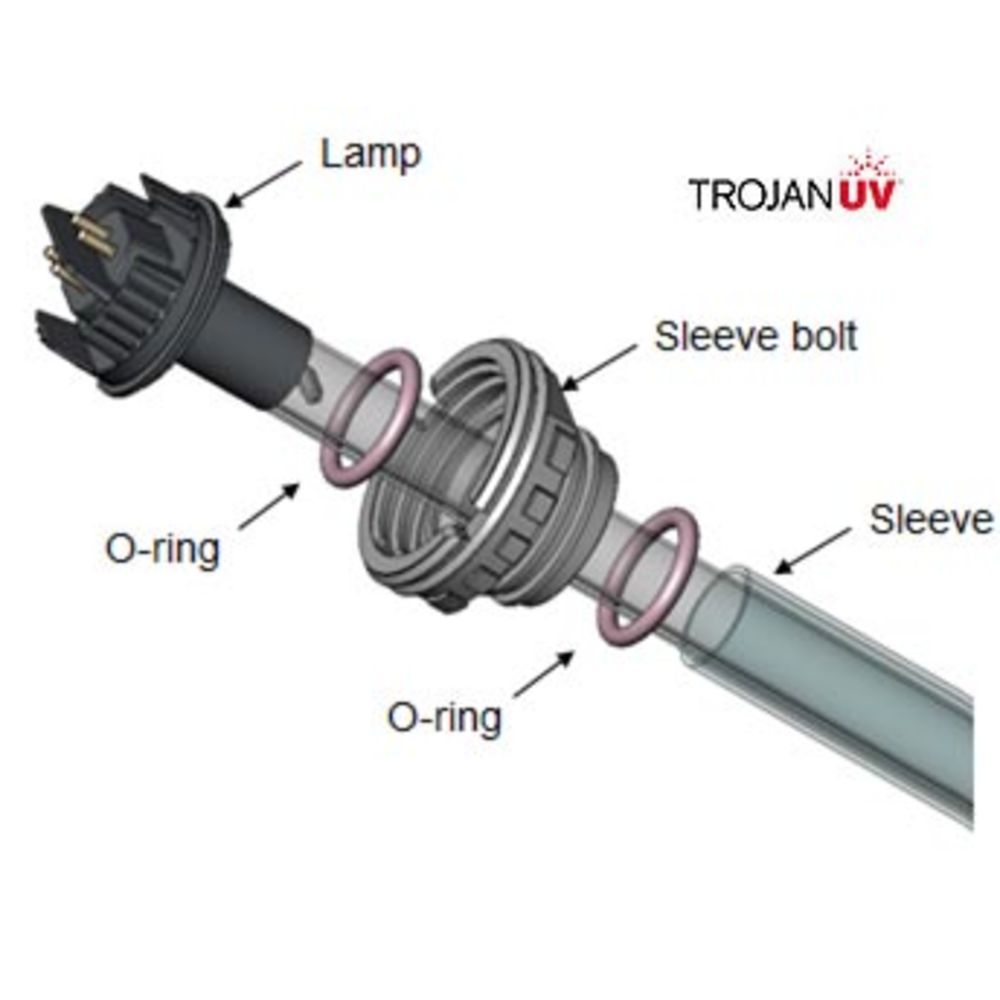

Trojan UV Lamp 602805 Replacement Diagram Replacing your 602805 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.


Note: If you are replacing discontinued lamp part # 602727 you will also need adapter part # 602980.

Compatible with: Trojan UVMax Lamps & Accessories | 602880, V1416, 602727, 602810-002LPHO


Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Power

43 Watts

Pin Configuration

4 Pin


Trojan

Trojan




Intended Use:

The Trojan 602805 Lamp is an original replacement UV bulb for use with Trojan C, C4, D, D Plus, D4, D4 Plus, and IHS12-D4 water UV disinfection systems. When you buy a Genuine Trojan 602805 UV lamp you can be assured of the performance, safety, and warranty of your system.

Specifications:

  • 602805 UV Lamp is compatible with the Viqua C, D, D Plus, IHS22-D4, UVMAX C4, D4, D4 Plus, IHS12-D4, UVMAX C4-V, UVMAX D4-V, and the UVMAX D4-V Plus systems.
  • 2 O-rings included with lamp
  • Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours
  • Low pressure high output lamp with a black base
  • Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps
Trojan UV Lamp 602805 Replacement Diagram Replacing your 602805 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.


Note: If you are replacing discontinued lamp part # 602727 you will also need adapter part # 602980.

Compatible with: Trojan UVMax Lamps & Accessories | 602880, V1416, 602727, 602810-002LPHO

Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Power

43 Watts

Pin Configuration

4 Pin
