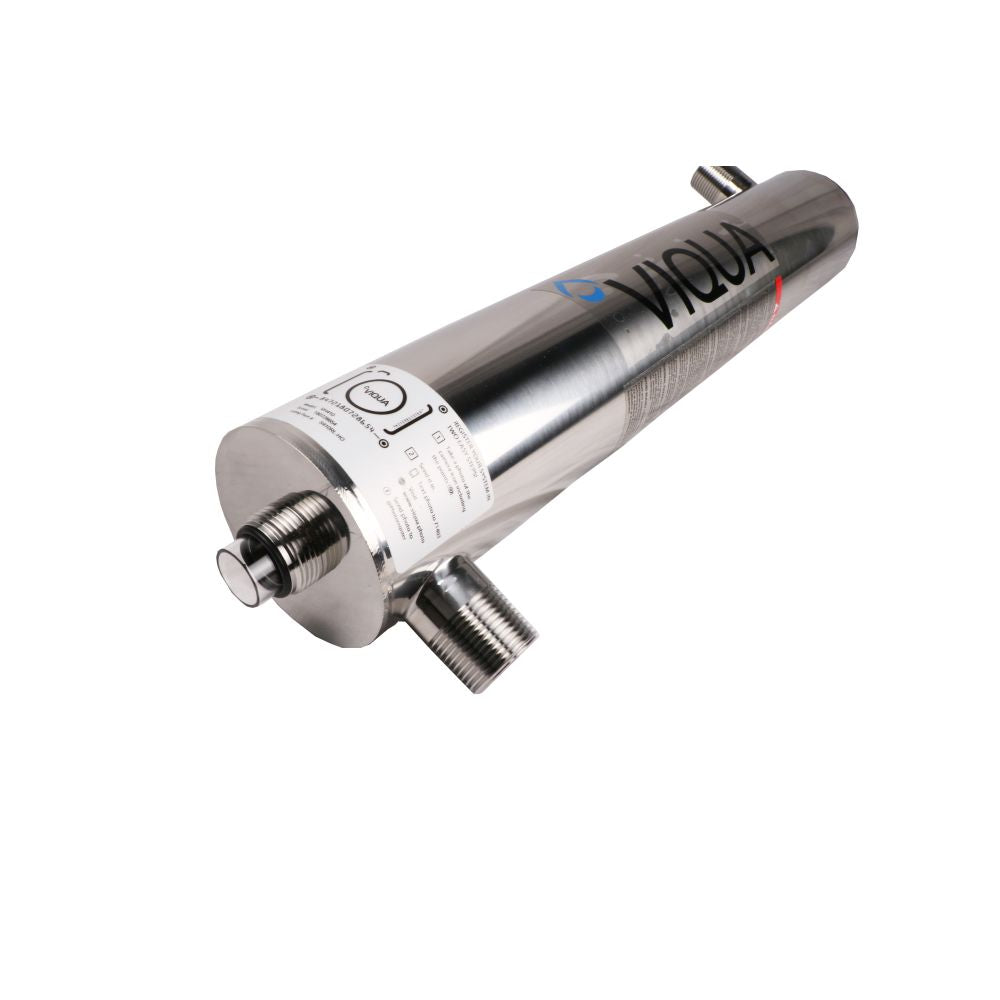

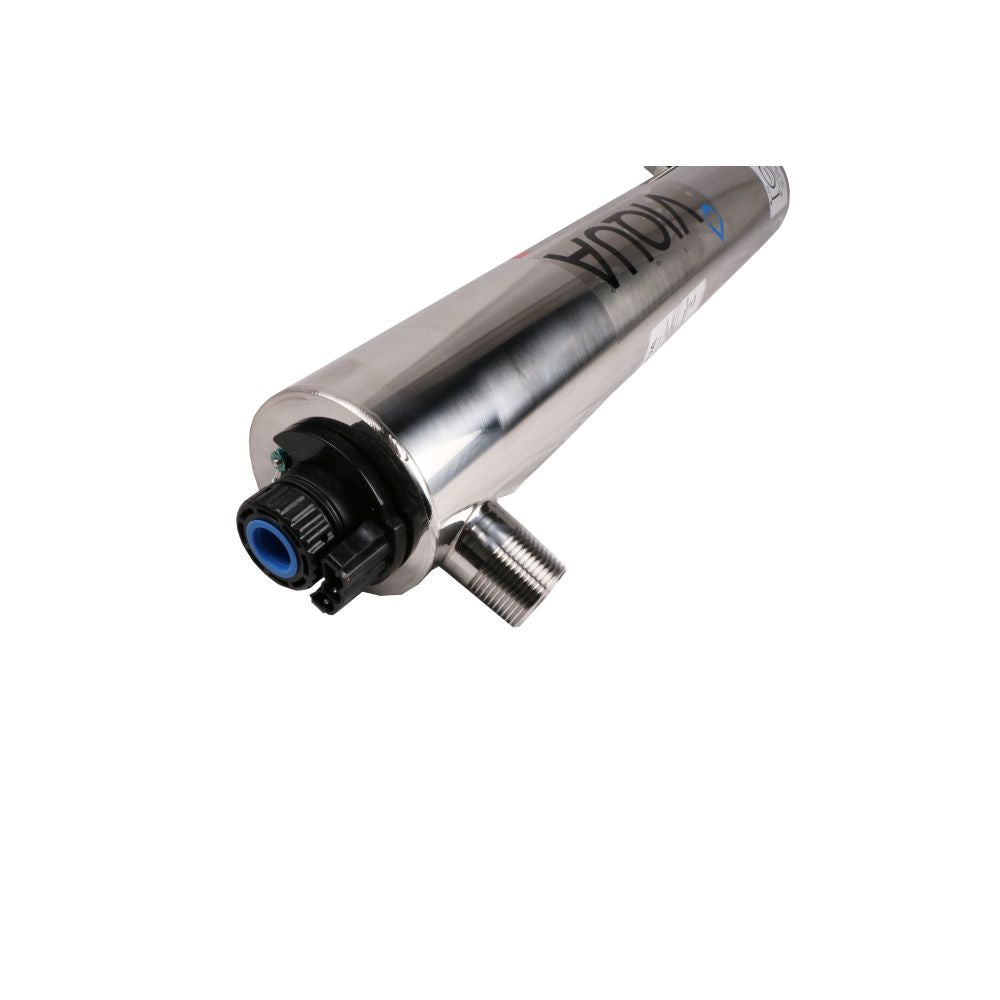

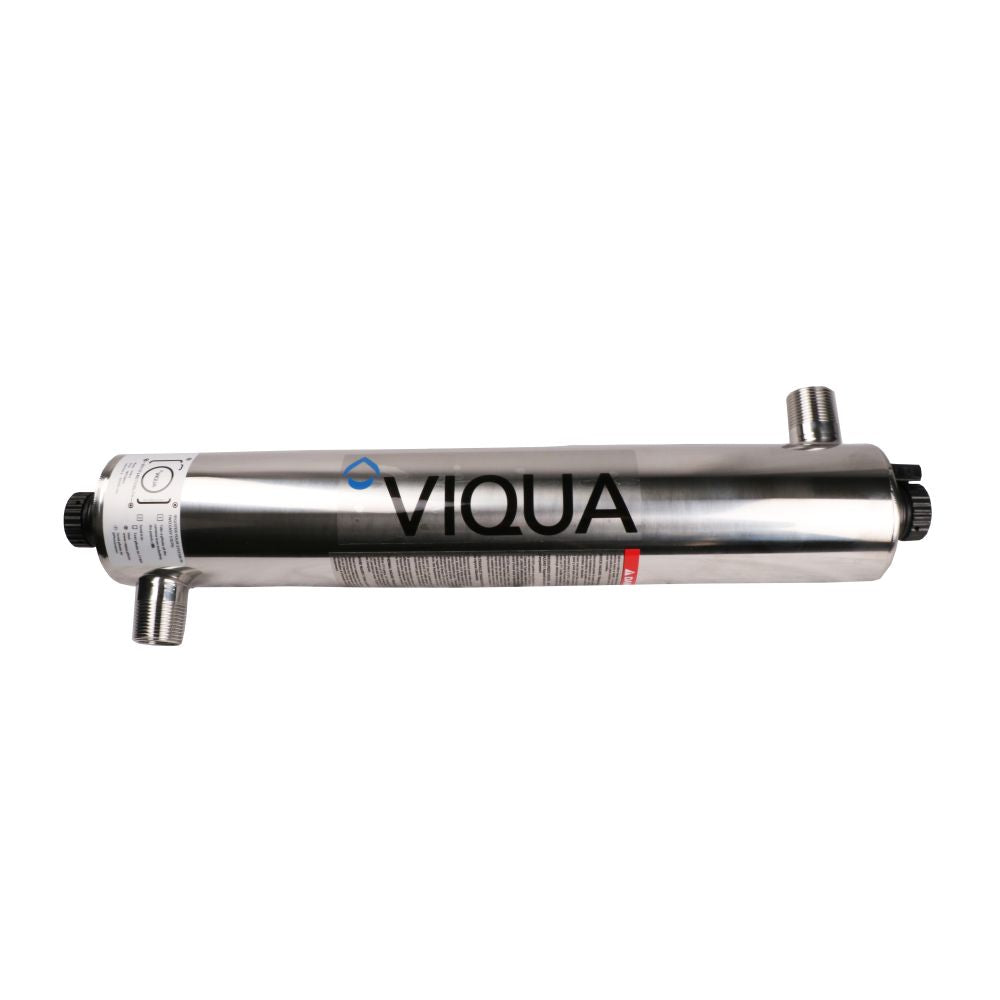

Viqua VH410-F20 UV System Powered By Sterilight 18 gpm

Part Number: VH410-F20

In Stock

out of stock

In Stock

$869.00

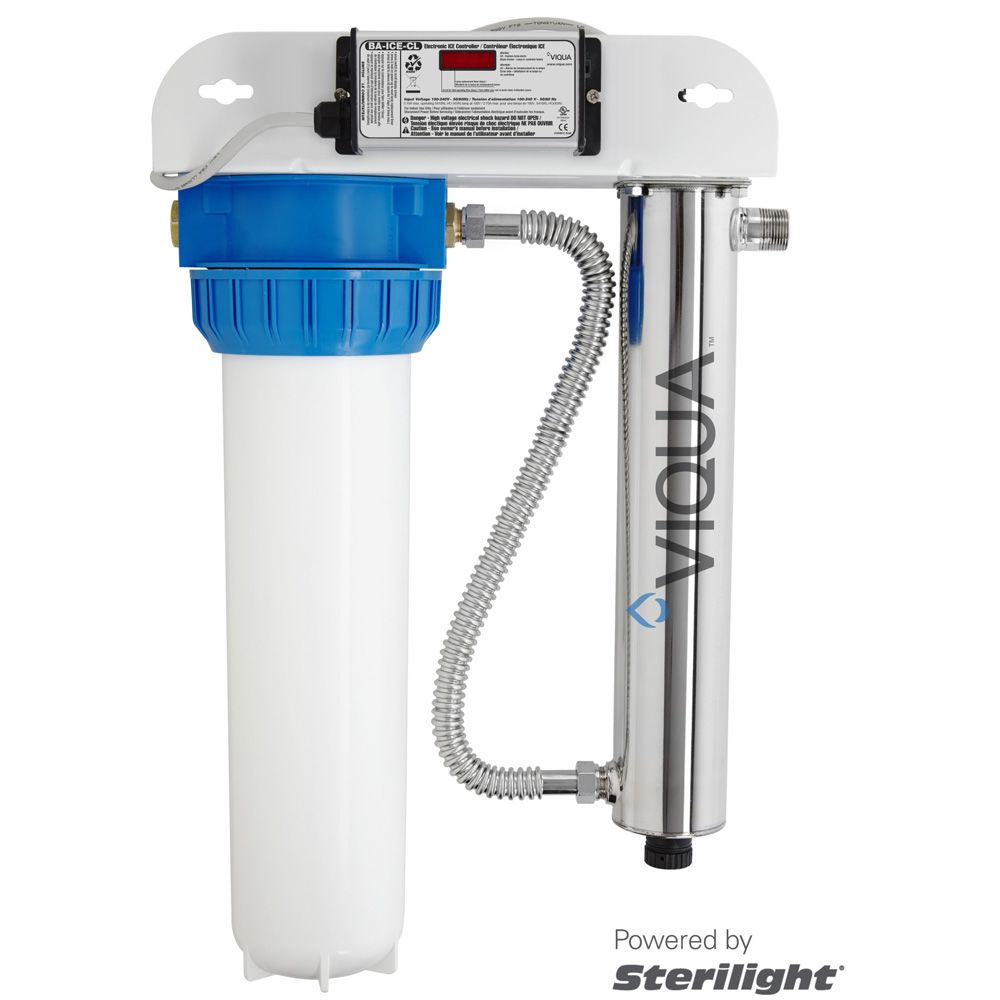

The Viqua VH410-F20 Integrated Ultraviolet System is a great whole house filtration solution. The UV system integrates high-output, UV lamp technology with a high flow, sediment pre-filter, reducing installation steps! The VH410-F20 comes mounted on a reversible steel bracket, and is extremely compact are easy to install.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • Integrated Sediment Filtration - A 5 micron pre-flter is included to the UV system, to ensure optimal performance of the UV Rays
  • Safety Guaranteed - 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Easily Programmable -A convenient controller allows constant output current and an universal power input
  • Monitoring System -An audible alarm will sound if lamp needs replacement, or if the system has failed, ensuring safety for your home.
  • Quality with Every Component -From the sealed case on the controller, which helps to prevent damage from accidental water intrusion, to the robust stainless steel chamber containing the UV lamp, Viqua Technology resonates quality all the way around.
  This system is compatible with the S410RL-HO Sterilight Lamp and the QSO-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH410-F20 includes:
  • Sterilight Lamp (1): S410RL-HO
  • Sterilight Quartz Sleeve (1): QSO-410

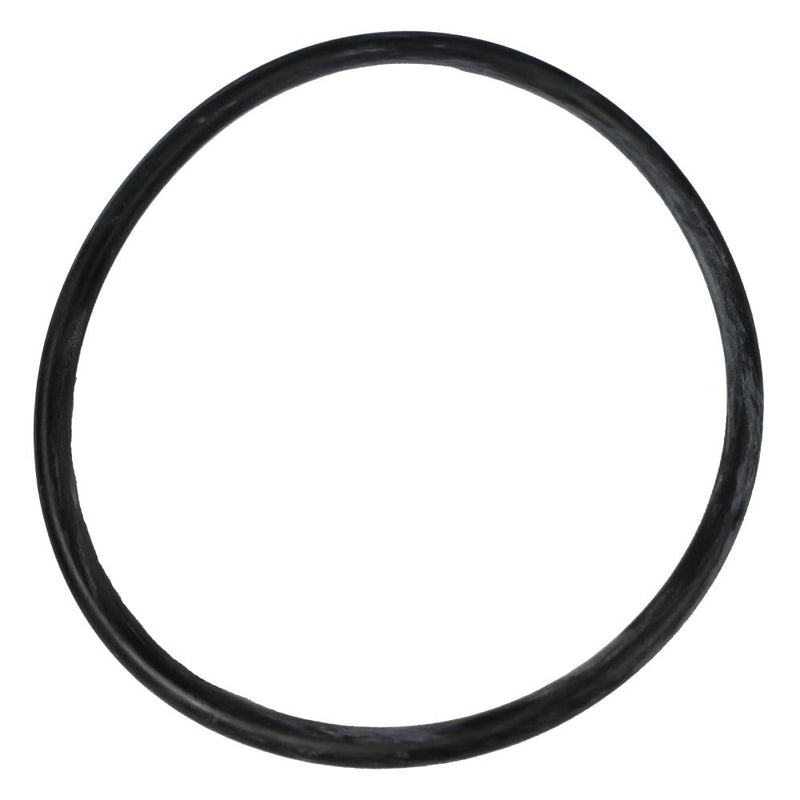

  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.



Weight & Dimensions

Length (inches)

29.5

Height (inches)

10.5

Width (inches)

19.5

Weight (lbs)

31

Details

Max Pressure (Psi)

125

Ambient Temperature Range

32-104 °F

Body Material

304 Stainless Steel

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On, Lamp Timer

Flow Rate

34 GPM (16mJ/cm2 Dose), 18 GPM (30mJ/cm2 Dose), 14 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

60 W

Size

3/4"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3/4" FPT
