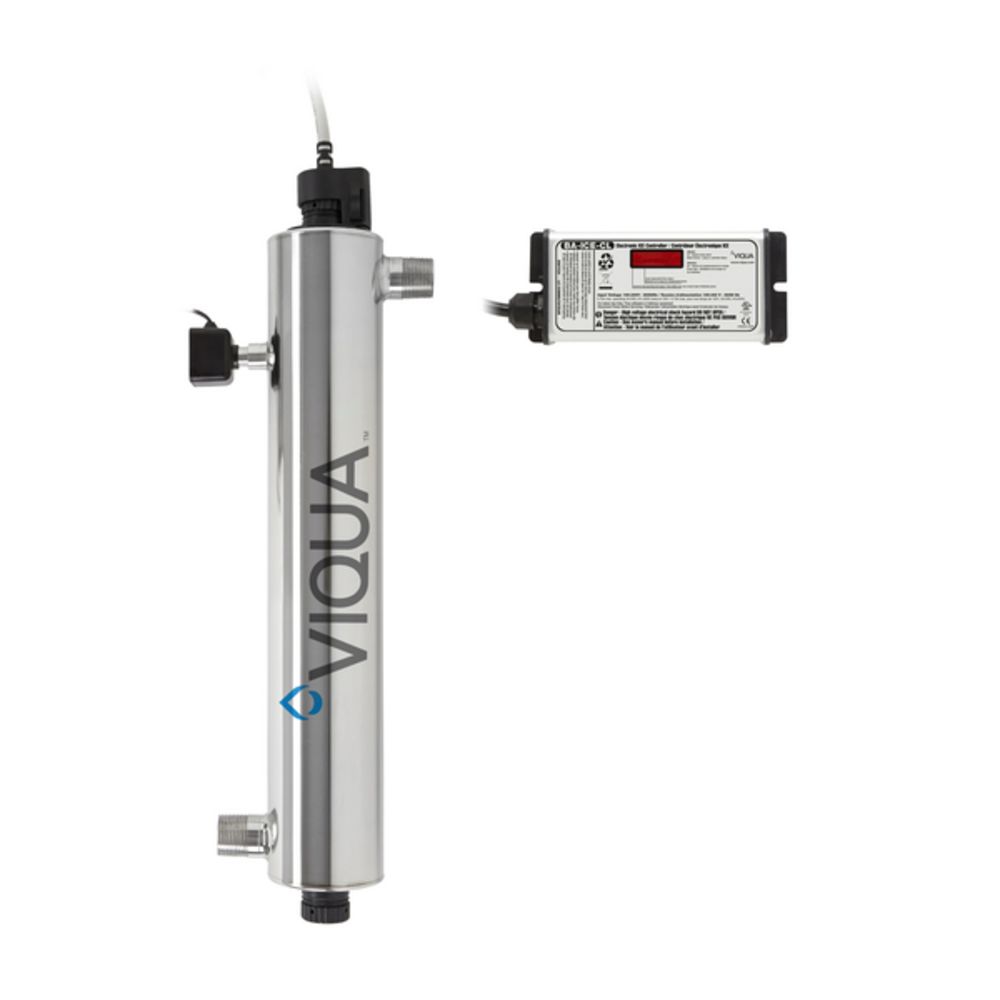

Viqua VH410M Cobalt Series Monitored UV System Powered By Sterilight 18 gpm

Part Number: VH410M

Alt. Part Number: SP320-HO

In Stock

out of stock

In Stock

$869.00

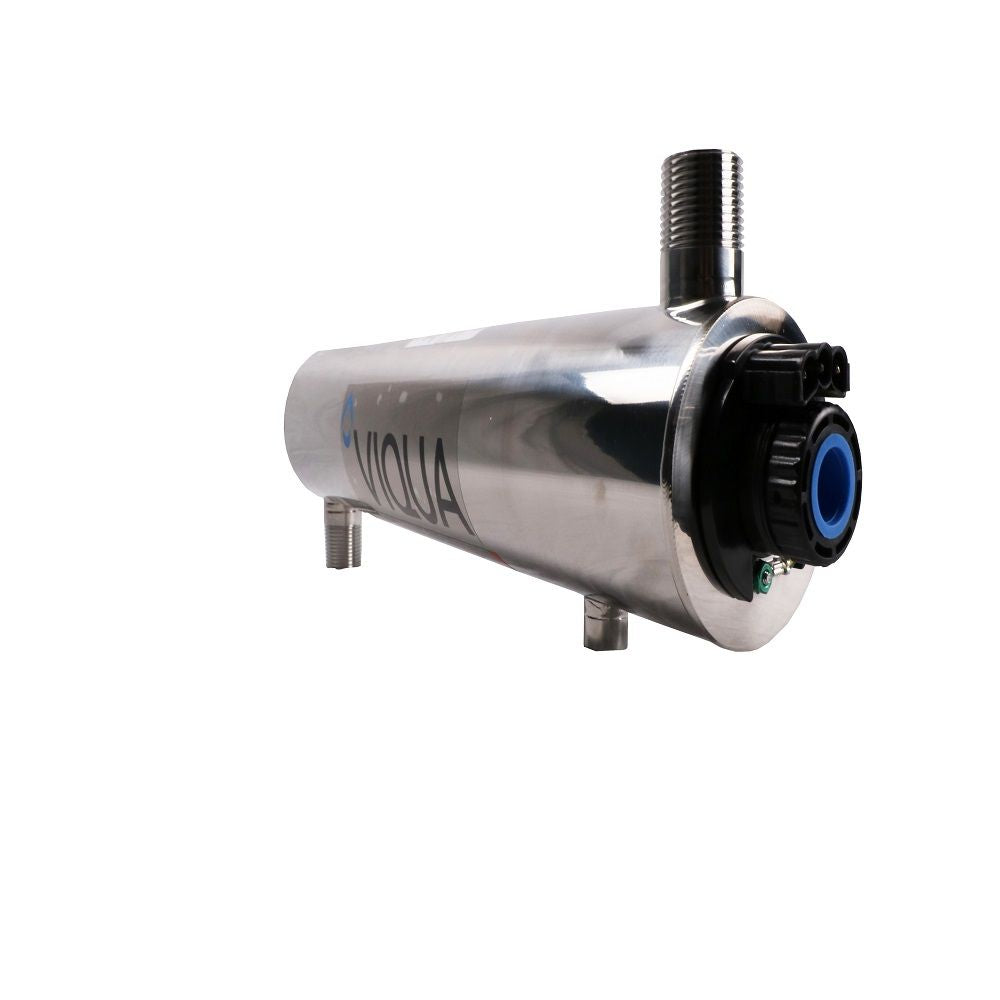

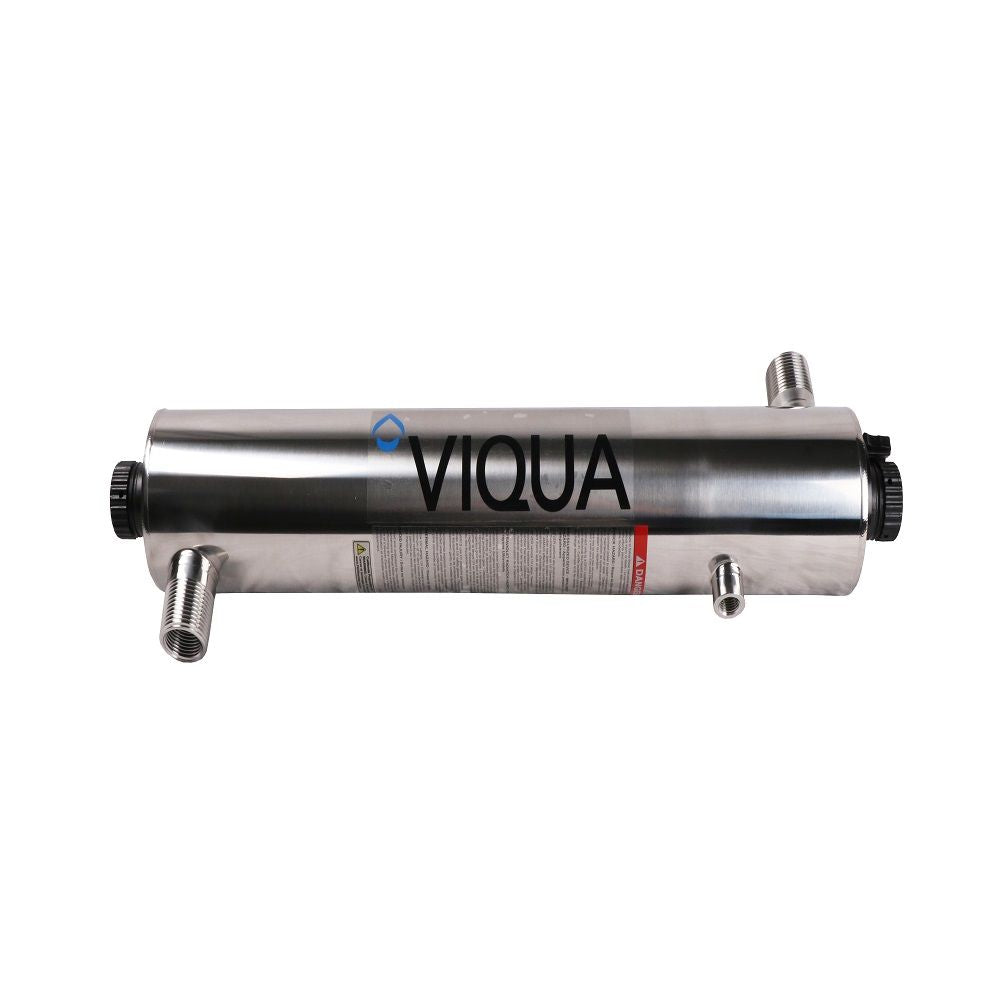

The Viqua VH410M Cobalt Series Monitored Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interrupting the water flow

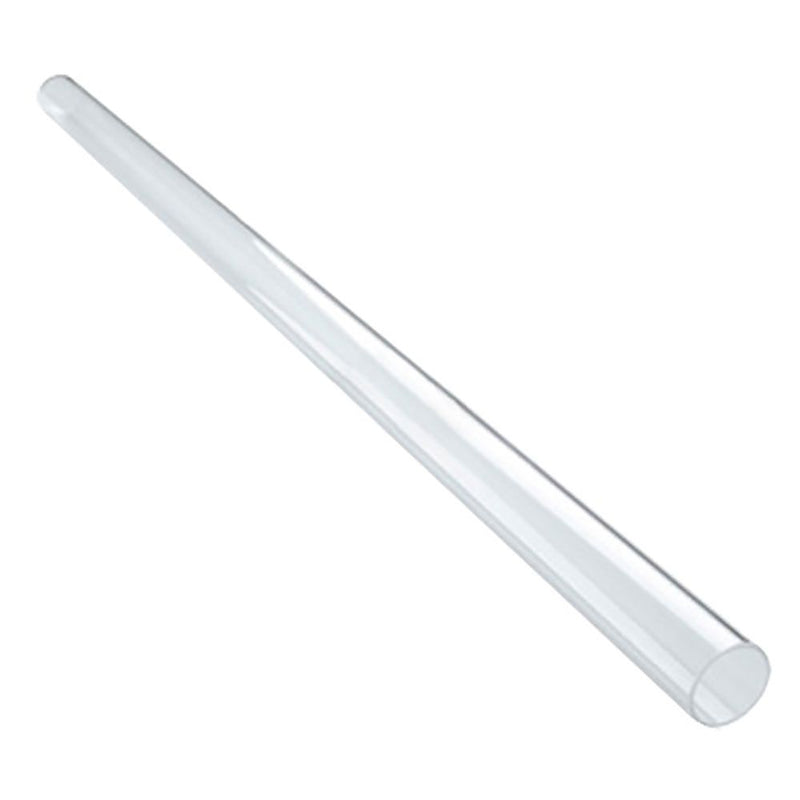

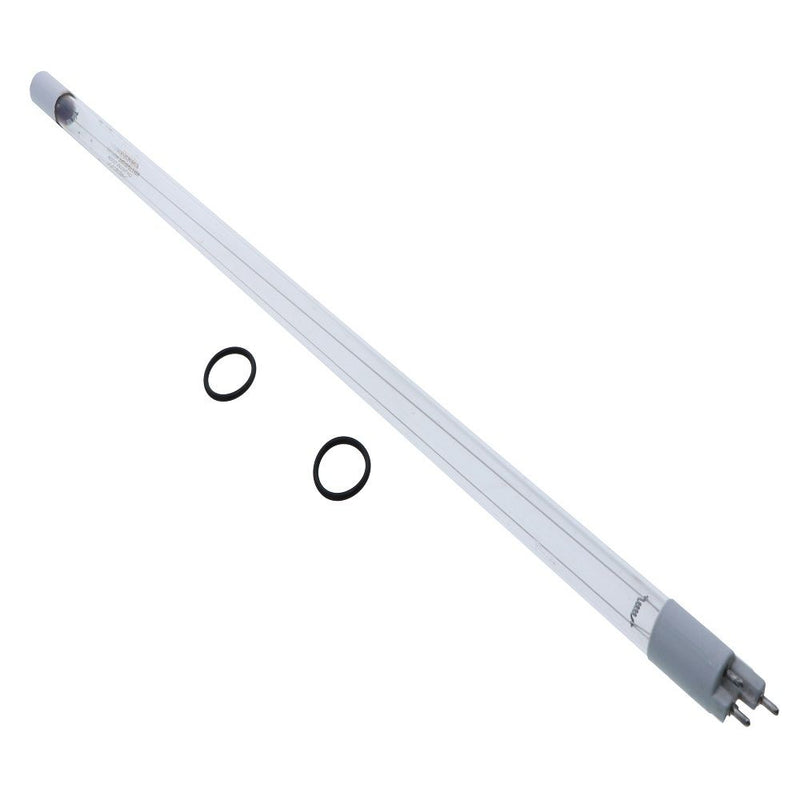

NOTE: This system is compatible with the S410RL-HO Sterilight Lamp and the QSO-410 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH410M includes:
  • Sterilight Lamp (1): S410RL-HO
  • Sterilight Quartz Sleeve (1): QSO-410
  • Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

22.8 Inches

Power Supply Dimensions

7.3"x3.2"x2.5"

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

UV Intensity Monitor; Audible Lamp Failure; Solenoid Valve; Lamp Timer

Flow Rate

34 Gallons Per Minute (16mJ/cm2 Dose); 18 Gallons Per Minute (30mJ/cm2 Dose); 14 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" FPT, 1" MPT Combo

Operating Pressure Range

5-125 PSI

Power

60 Watts

Type

UVC

Voltage

120 V
