Viqua

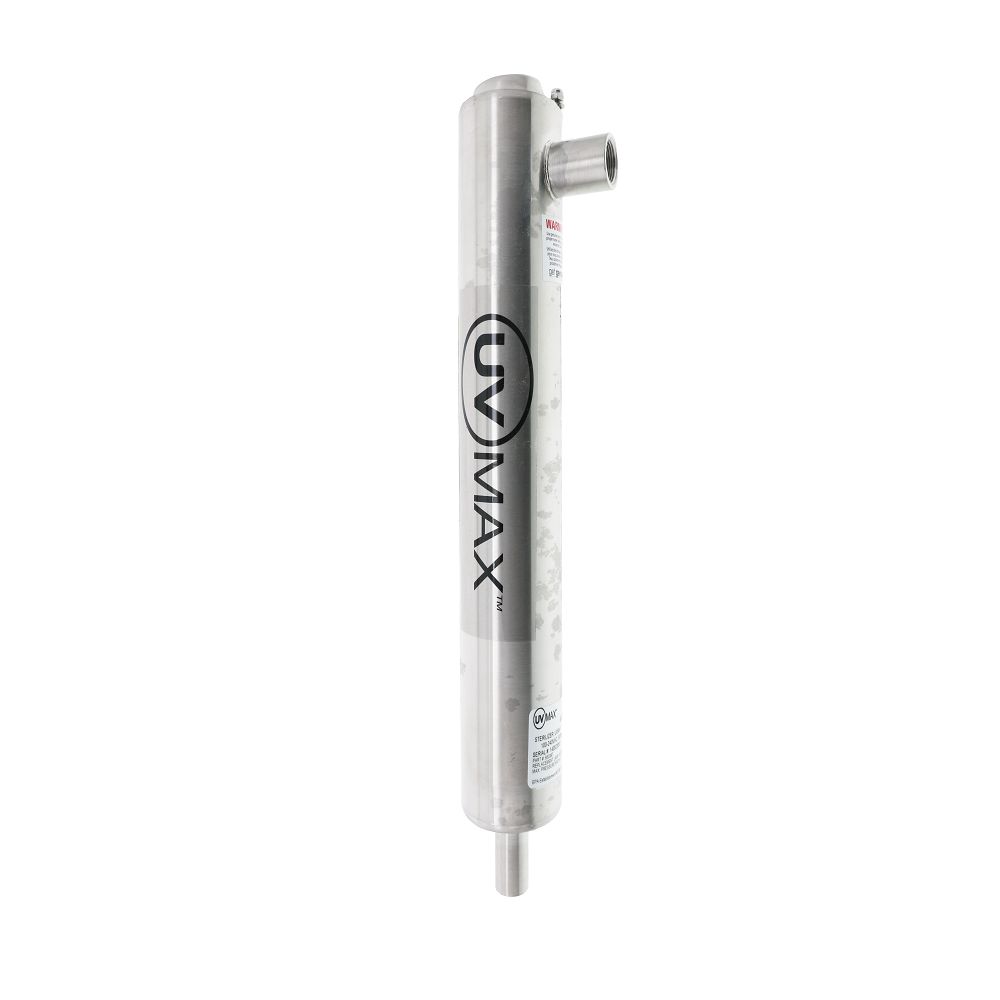

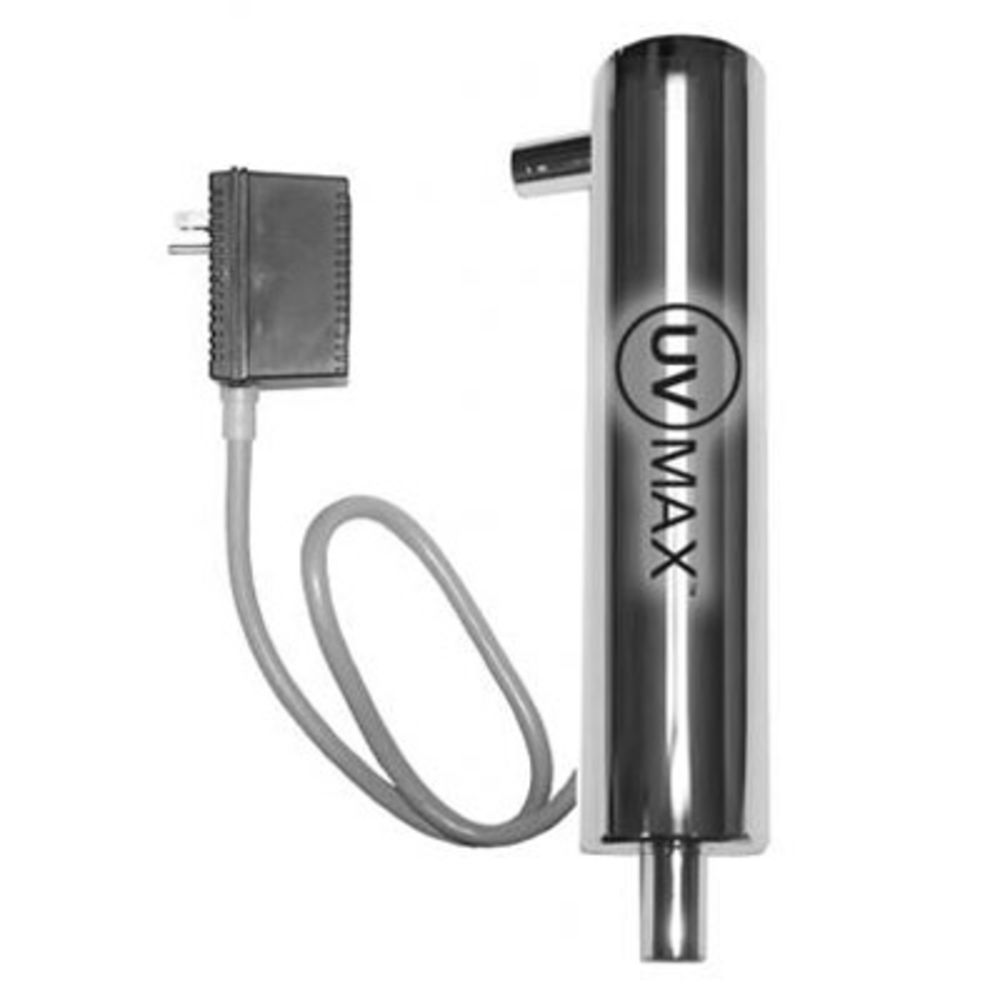

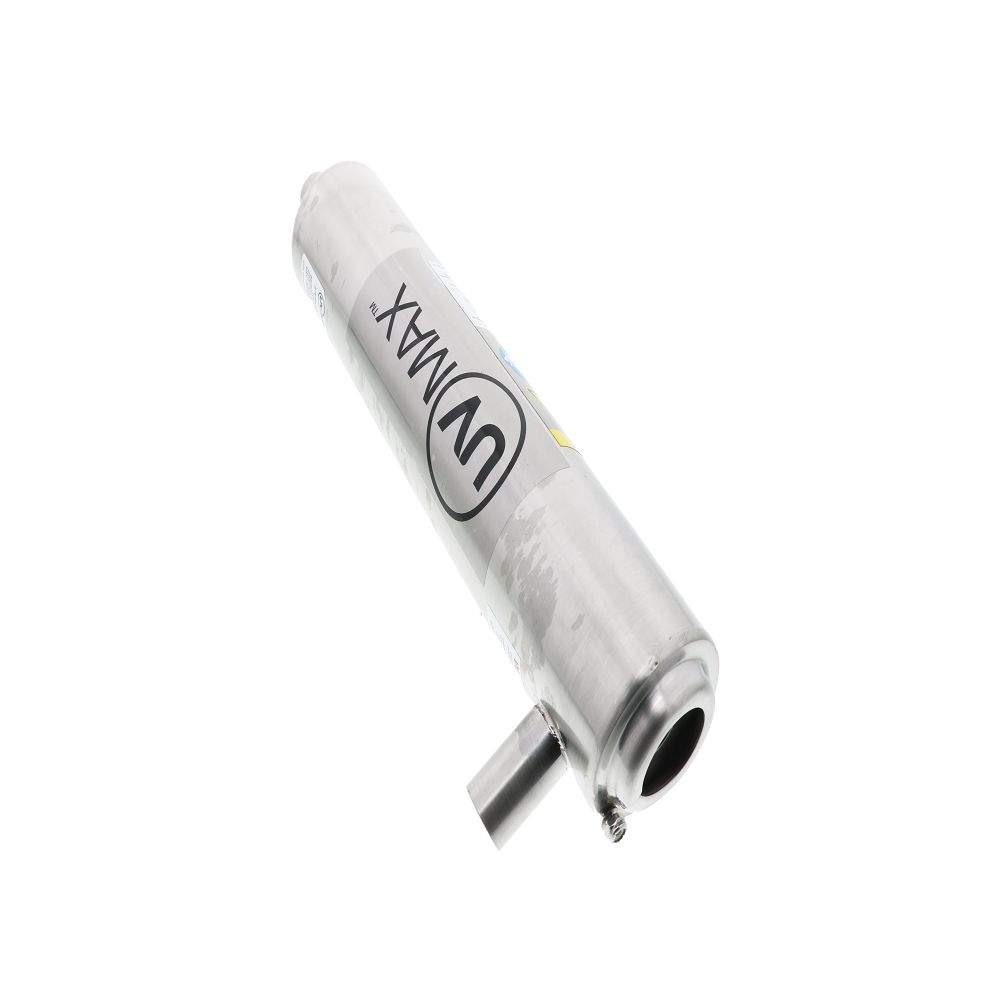

Viqua UVMax Model A Ultraviolet Water System 2 gpm - 230 Volt

Part Number: 650387

In Stock

out of stock

In Stock

$309.00


Install a Viqua UVMax Model A Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax Model A is a point-of-use ultraviolet disinfection water treatment system offers a 2 gpm water flow rate. The UVMax Model A compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 2 gpm high-output ultraviolet water purification system the Viqua UVMAX Model A.

Features:
  • Stainless steel chamber with safety cap
  • Universal power input
  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty

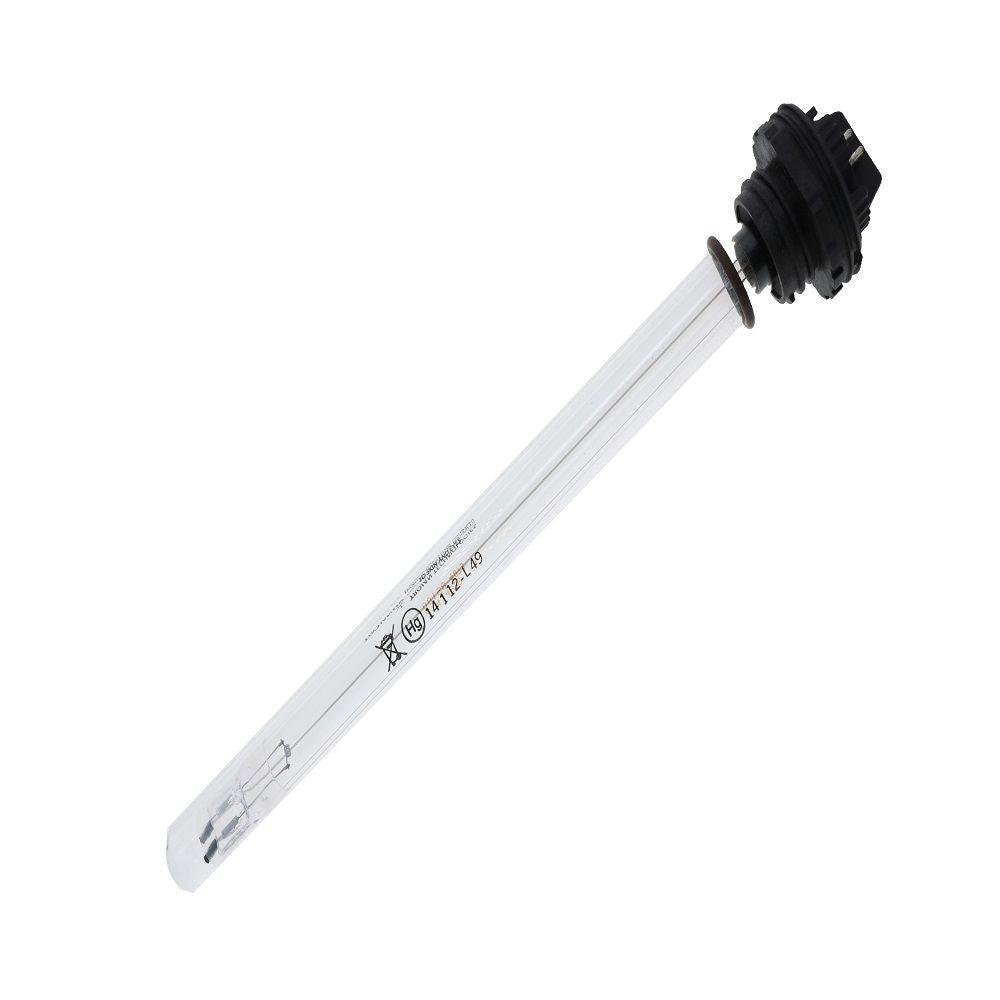

This system is compatible with the 602803 Trojan Lamp and the 602730 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for UVMAX A includes:
  • Trojan Lamp (1): 602803
  • Trojan Quartz Sleeve (1): 602730
  • Trojan O-Rings (2): 2045


Weight & Dimensions

Approx Length (Inches)

15.5 Inches

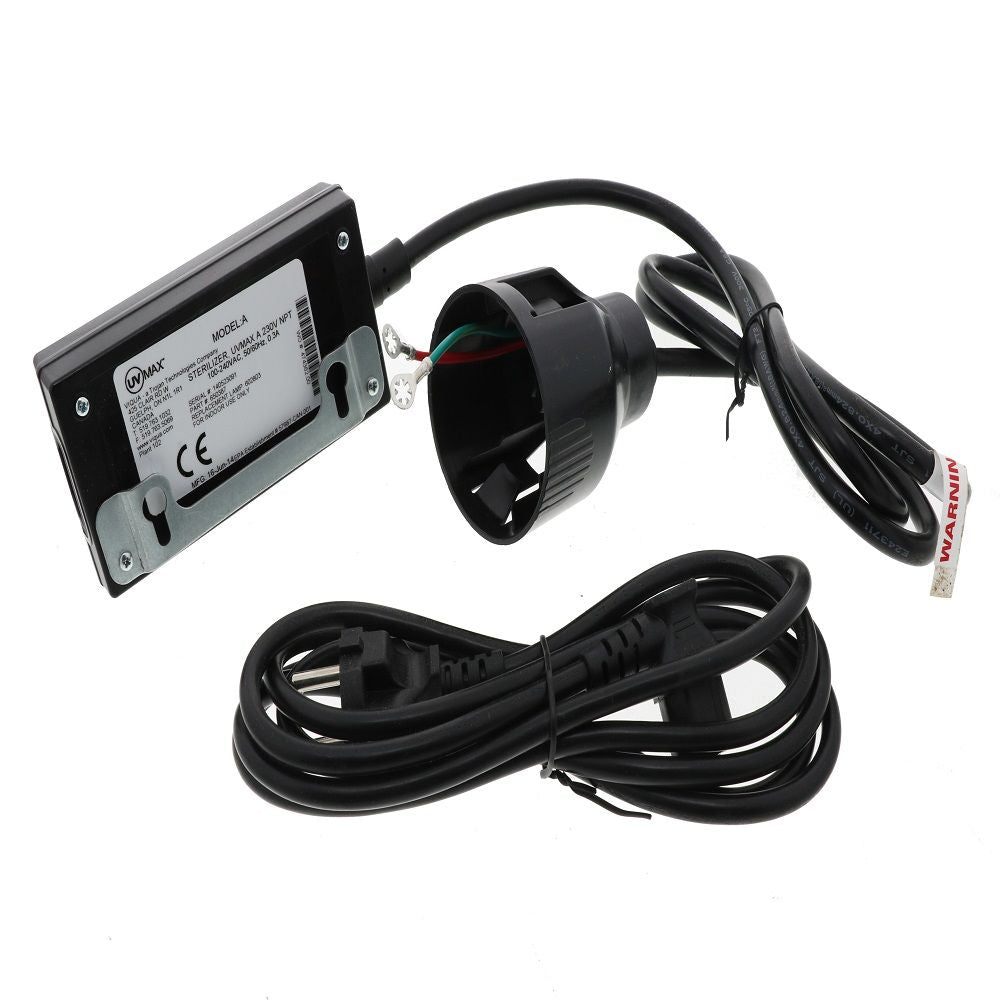

Power Supply Dimensions

2.8"x3.3"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches; 15.5" X 2.5" Inches

Flow Rate

4 Gallons Per Minute (16mJ/cm2 Dose); 2 Gallons Per Minute (30mJ/cm2 Dose); 1 Gallons Per Minute (40mJ/cm2 Dose); 2 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/8" FPT; 3/4" NPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

22 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors


Viqua

Viqua

Viqua

Viqua

Viqua





Install a Viqua UVMax Model A Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax Model A is a point-of-use ultraviolet disinfection water treatment system offers a 2 gpm water flow rate. The UVMax Model A compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 2 gpm high-output ultraviolet water purification system the Viqua UVMAX Model A.

Features:
  • Stainless steel chamber with safety cap
  • Universal power input
  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty

This system is compatible with the 602803 Trojan Lamp and the 602730 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for UVMAX A includes:
  • Trojan Lamp (1): 602803
  • Trojan Quartz Sleeve (1): 602730
  • Trojan O-Rings (2): 2045

Weight & Dimensions

Approx Length (Inches)

15.5 Inches

Power Supply Dimensions

2.8"x3.3"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches; 15.5" X 2.5" Inches

Flow Rate

4 Gallons Per Minute (16mJ/cm2 Dose); 2 Gallons Per Minute (30mJ/cm2 Dose); 1 Gallons Per Minute (40mJ/cm2 Dose); 2 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/8" FPT; 3/4" NPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

22 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
