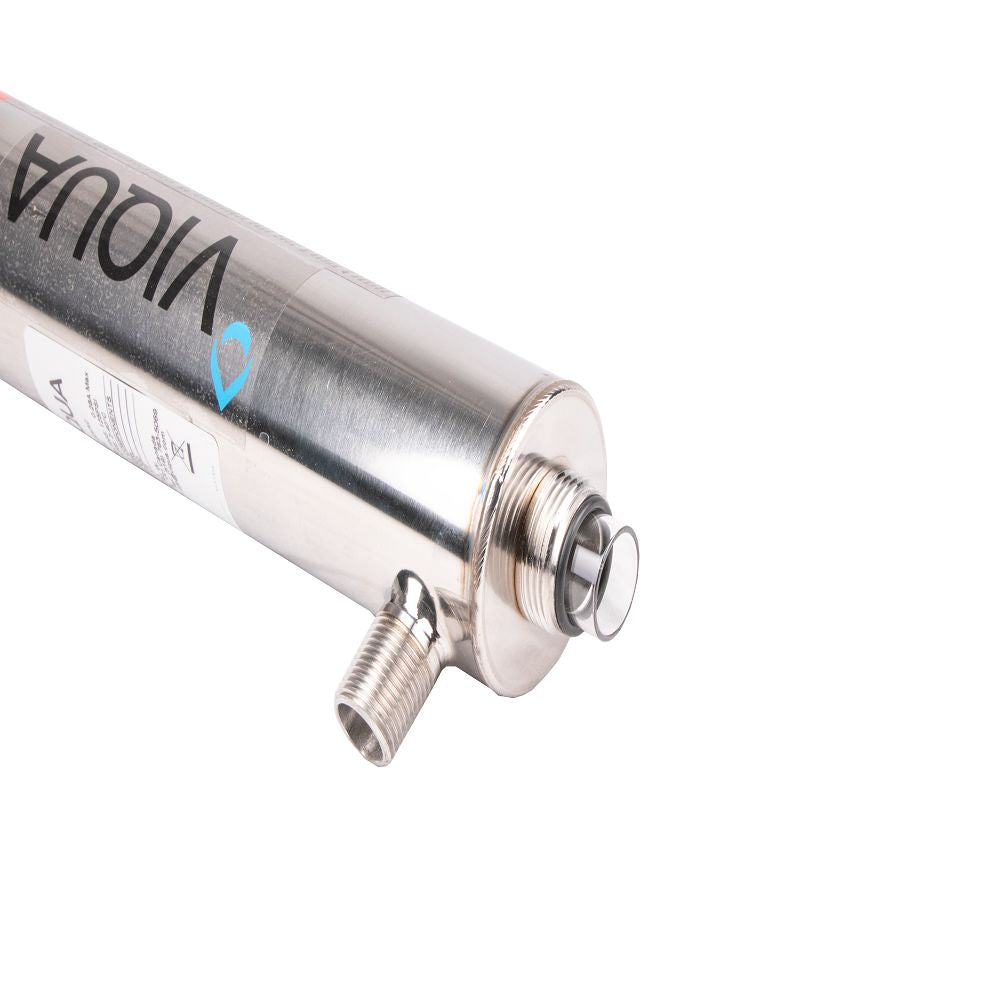

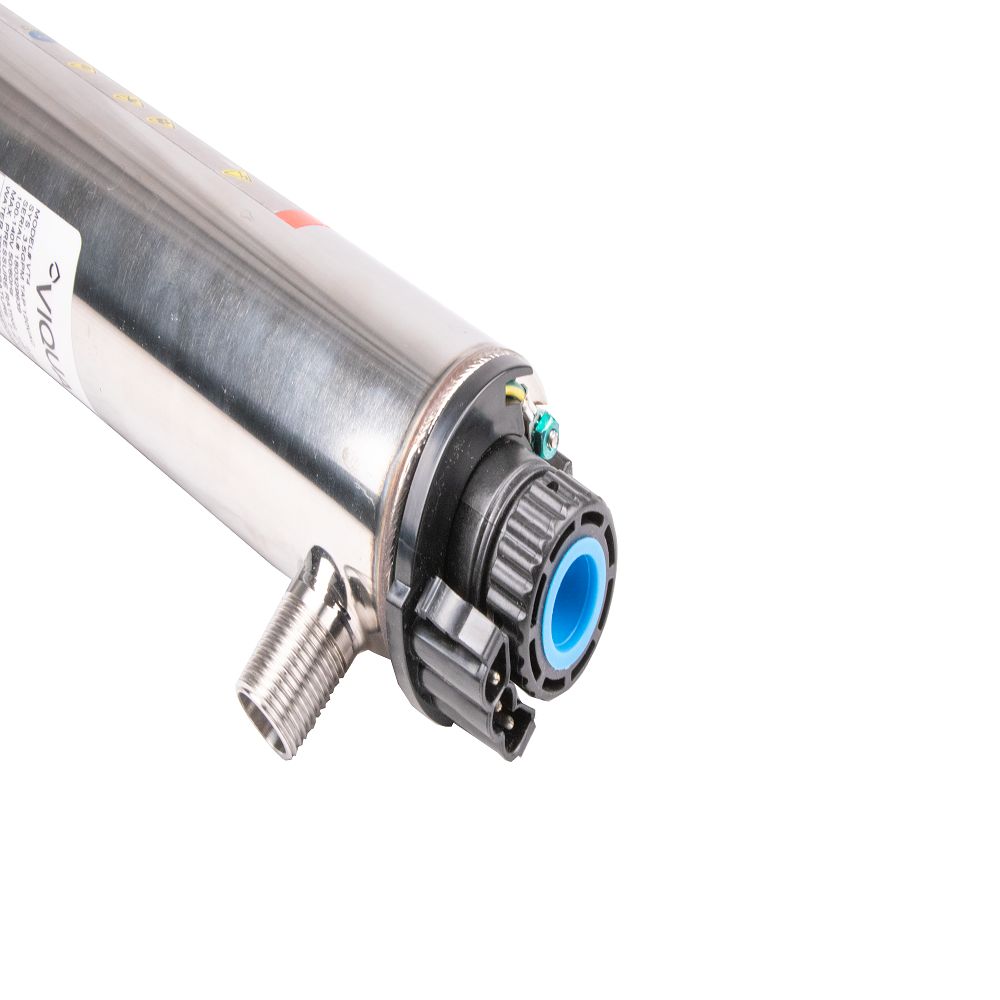

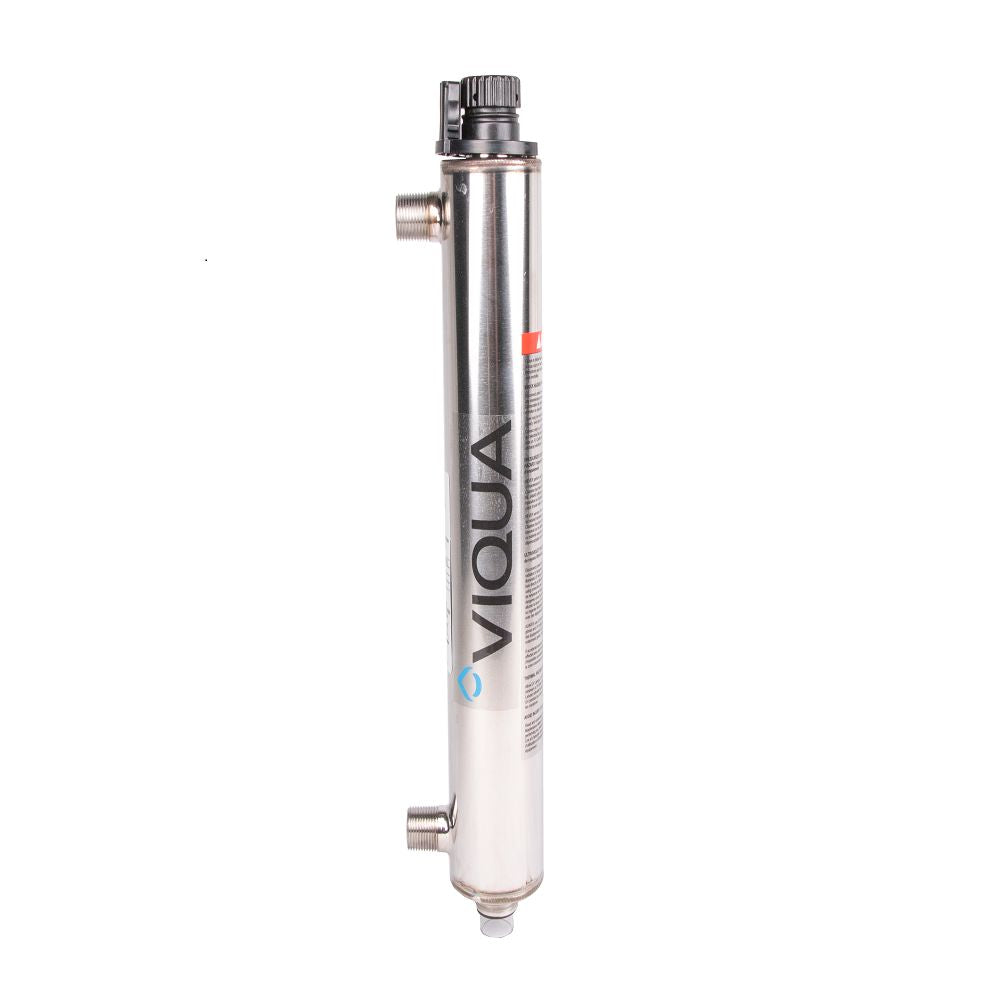

The Viqua VT4 Copper Series Ultraviolet System is specifically designed for point-of-use applications where microbiological control is required. The VT4 UV System controls bacteria, viruses and protozoan cyst all in one complete design.
Specifications:
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
Specifications:
- 304 Stainless Steel Reactors
- Flow Rate: 3.5 gpm
- Dimensions: 17" x 2.5" Diameter
- Max Operating Pressure: 125 psi
- Inlet/Outlet Port Size: 1/2" MPT
- Volts: 100-230V/50-60Hz
- Sterilight Lamp (1): S330RL
- Sterilight Quartz Sleeve (1): QS-330D
- Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
Details
Max Pressure (Psi) | 125 |
Ambient Temperature Range | 32-104 °F |
Body Material | 304 Stainless Steel |
Diameter | 2-1/2" |
Features | Visual Power On |
Flow Rate | 6.5 GPM (16mJ/cm2 Dose), 3.5 GPM (30mJ/cm2 Dose), 2.5 GPM (40mJ/cm2 Dose) |
Frequency | 50/60 Hz |
Number Of Lamps | 1 |
Power | 20 W |
Size | 1/2" |
Voltage | 120 V |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Inlet/Outlet Connection | 1/2" MPT |
The Viqua VT4 Copper Series Ultraviolet System is specifically designed for point-of-use applications where microbiological control is required. The VT4 UV System controls bacteria, viruses and protozoan cyst all in one complete design.
Specifications:
- 304 Stainless Steel Reactors
- Flow Rate: 3.5 gpm
- Dimensions: 17" x 2.5" Diameter
- Max Operating Pressure: 125 psi
- Inlet/Outlet Port Size: 1/2" MPT
- Volts: 100-230V/50-60Hz
- Sterilight Lamp (1): S330RL
- Sterilight Quartz Sleeve (1): QS-330D
- Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
Details
Max Pressure (Psi) | 125 |
Ambient Temperature Range | 32-104 °F |
Body Material | 304 Stainless Steel |
Diameter | 2-1/2" |
Features | Visual Power On |
Flow Rate | 6.5 GPM (16mJ/cm2 Dose), 3.5 GPM (30mJ/cm2 Dose), 2.5 GPM (40mJ/cm2 Dose) |
Frequency | 50/60 Hz |
Number Of Lamps | 1 |
Power | 20 W |
Size | 1/2" |
Voltage | 120 V |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Inlet/Outlet Connection | 1/2" MPT |
