Trojan

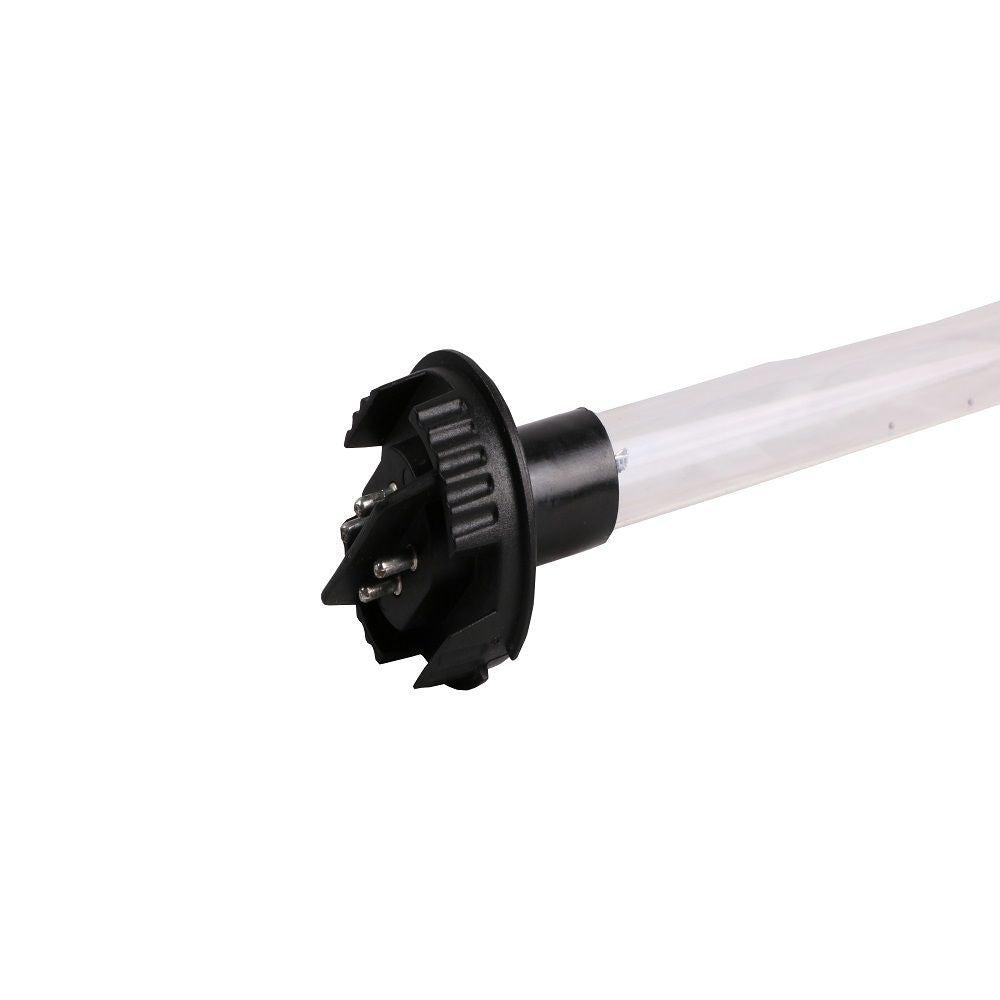

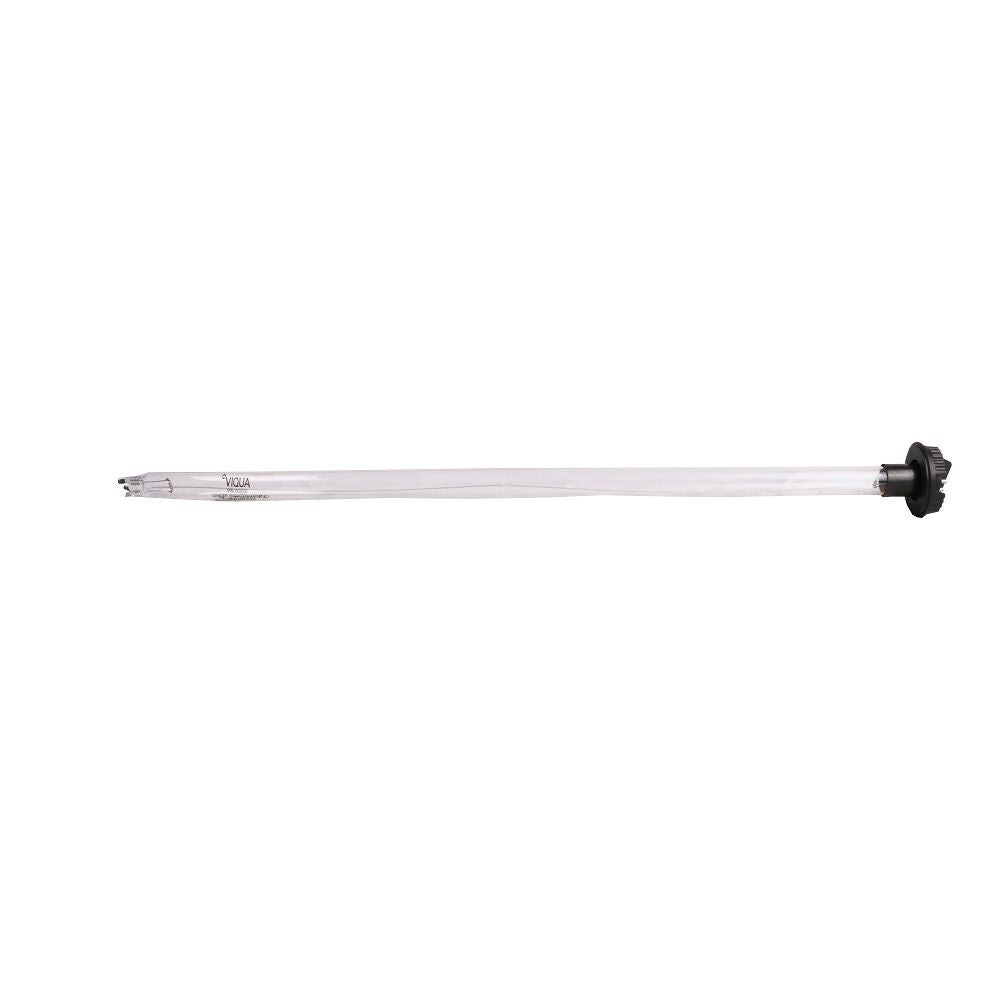

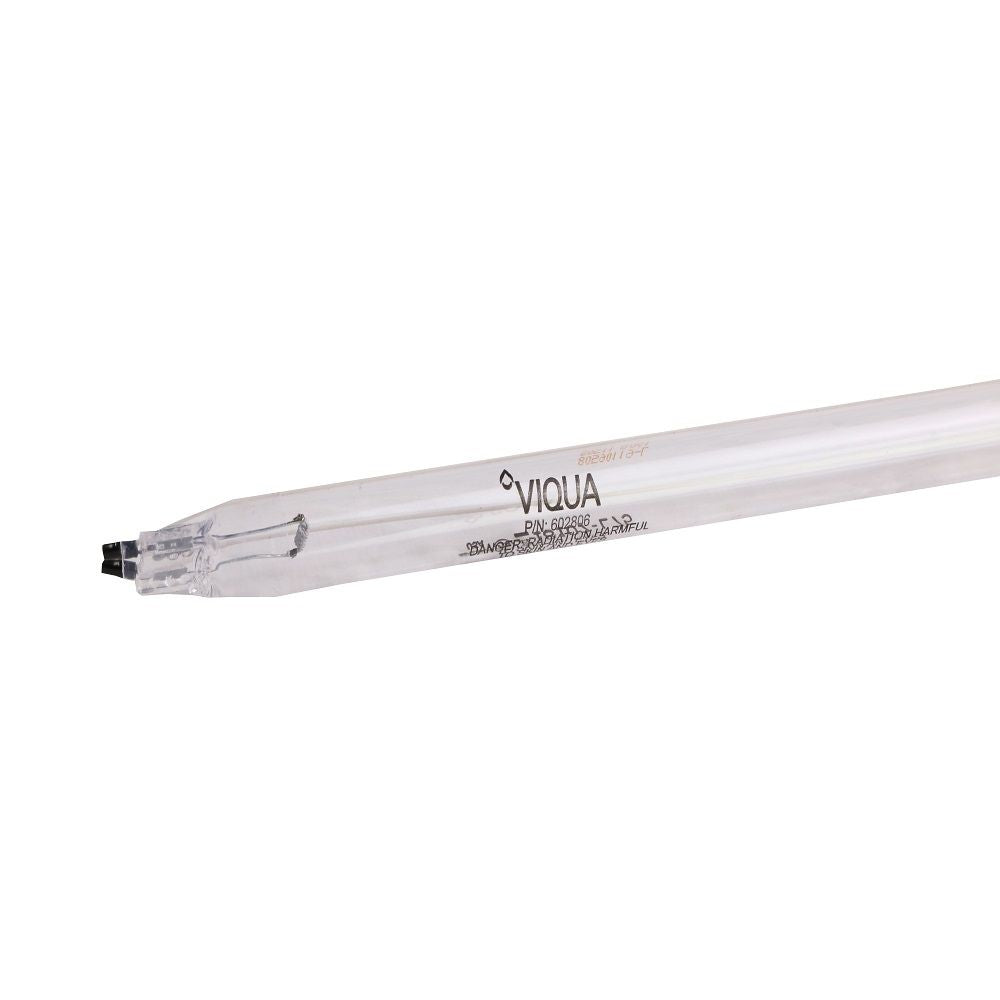

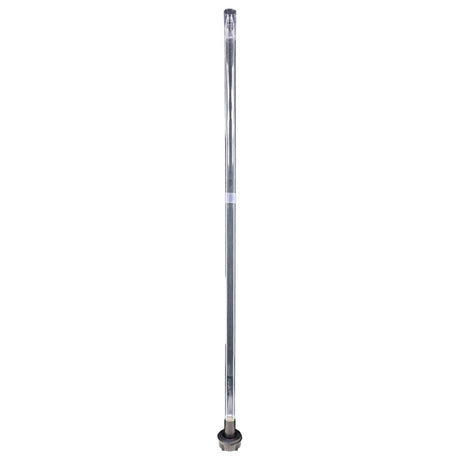

Trojan UV Lamp 602806 for UVMax Pro7, E, UVMax-28

Part Number: 602806

Alt. Part Number: 602728

In Stock

out of stock

In Stock

$109.00

The Trojan 602806 Lamp is a low pressure, high output lamp with a black base and an original replacement UV bulb for use with Trojan Pro7, E, E Plus, E4, E4 Plus, and UVMax-28 water disinfection systems. When you buy a Genuine Trojan 602806 UV lamp you can be assured of the performance, safety, and warranty of your system. This lamp is environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps. It is coated for stability, longer life, and increased efficiency and has a bulb life of up to 9,000 hours. Two O-rings are included.

Compatible With the Following Systems:
  • Pro7
  • E
  • E-Plus
  • IHS22-E4
  • E4-50 Plus
  • E4
  • E4 Plus
  • E4-V
  • E4-V Plus
  • UVMAX-28
NOTE: Replacing your 602806 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.
NOTE: If you are replacing discontinued lamp part # 602728 you will also need adapter part # 602980.




Weight & Dimensions

Length (inches)

37.5

Height (inches)

3.5

Width (inches)

3.5

Weight (lbs)

0.9

Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Power

67 W

Pin Configuration

4 Pin


Trojan




The Trojan 602806 Lamp is a low pressure, high output lamp with a black base and an original replacement UV bulb for use with Trojan Pro7, E, E Plus, E4, E4 Plus, and UVMax-28 water disinfection systems. When you buy a Genuine Trojan 602806 UV lamp you can be assured of the performance, safety, and warranty of your system. This lamp is environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps. It is coated for stability, longer life, and increased efficiency and has a bulb life of up to 9,000 hours. Two O-rings are included.

Compatible With the Following Systems:
  • Pro7
  • E
  • E-Plus
  • IHS22-E4
  • E4-50 Plus
  • E4
  • E4 Plus
  • E4-V
  • E4-V Plus
  • UVMAX-28
NOTE: Replacing your 602806 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening.
NOTE: If you are replacing discontinued lamp part # 602728 you will also need adapter part # 602980.



Weight & Dimensions

Length (inches)

37.5

Height (inches)

3.5

Width (inches)

3.5

Weight (lbs)

0.9

Details

Application

Germicidal (254nm), Preheat

Capacity

9,000 Hours

Power

67 W

Pin Configuration

4 Pin
