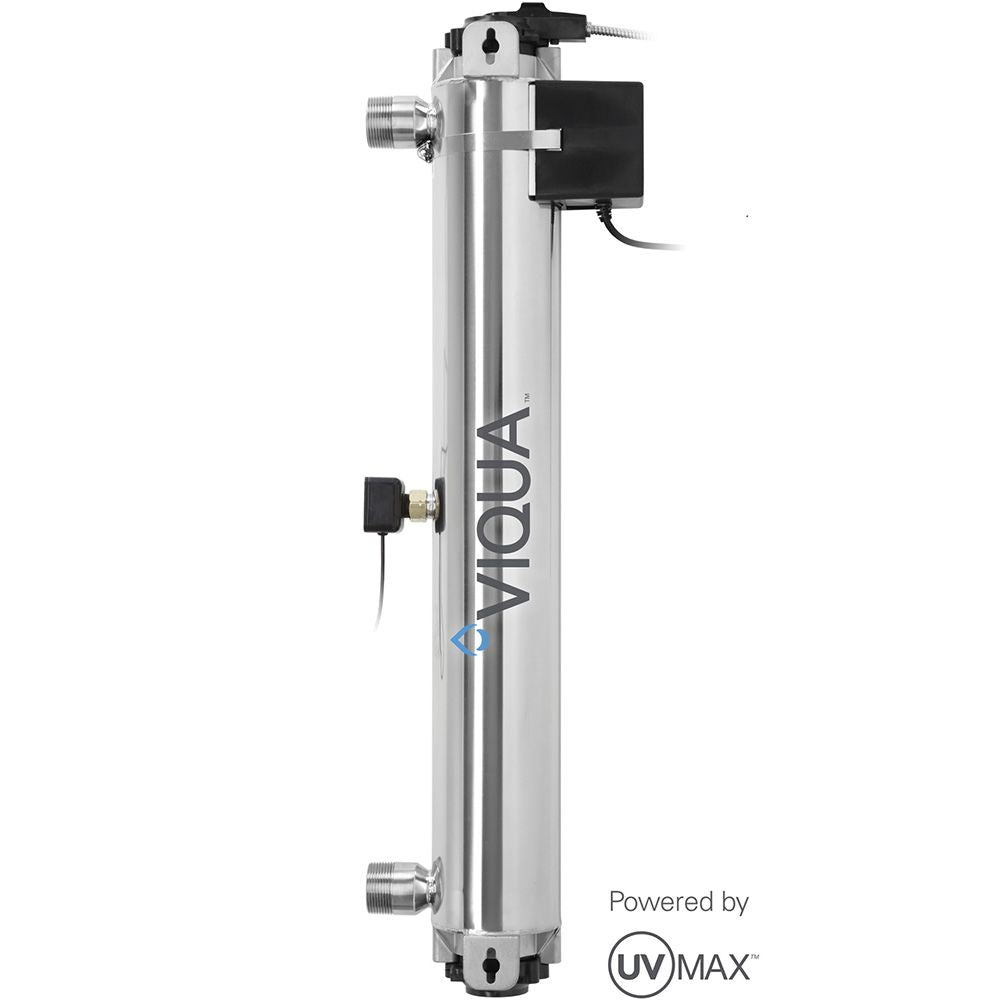

Viqua H Plus Monitored Ultraviolet Water System Powered by UVMax 39 gpm

Part Number: 650652

Viqua / Trojan

Viqua H Plus Monitored Ultraviolet Water System Powered by UVMax 39 gpm

Part Number: 650652

MSRP: $3,385.00

$2,877.25

Choose:

120 Volt 230 Volt

Product variants

You May Also Need

Replacement Part

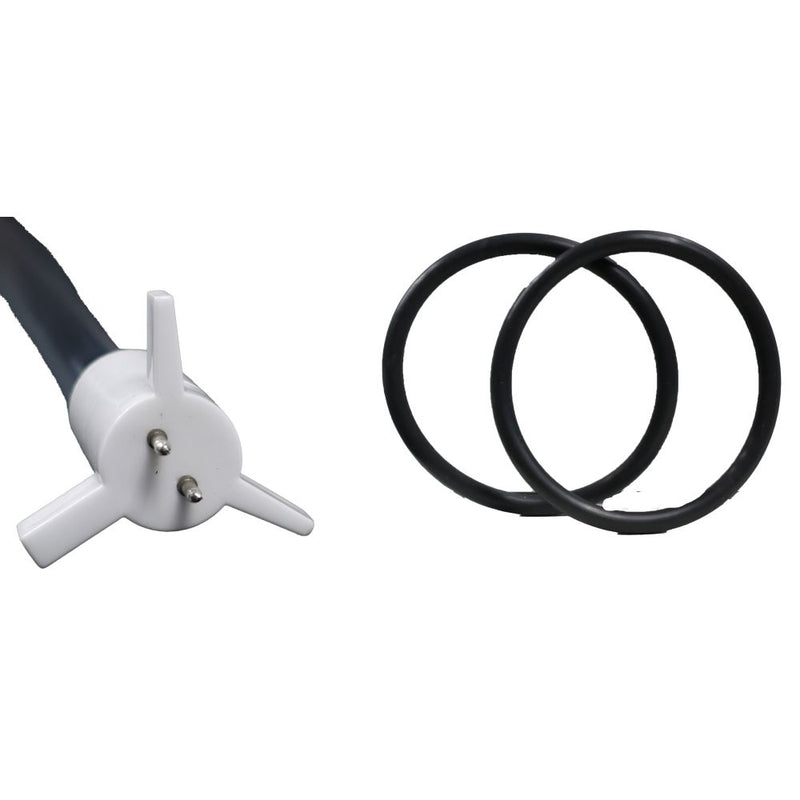

Trojan UV Lamp 602855 for UVMax Pro20, H

Regular price From $357.00
Replacement Part

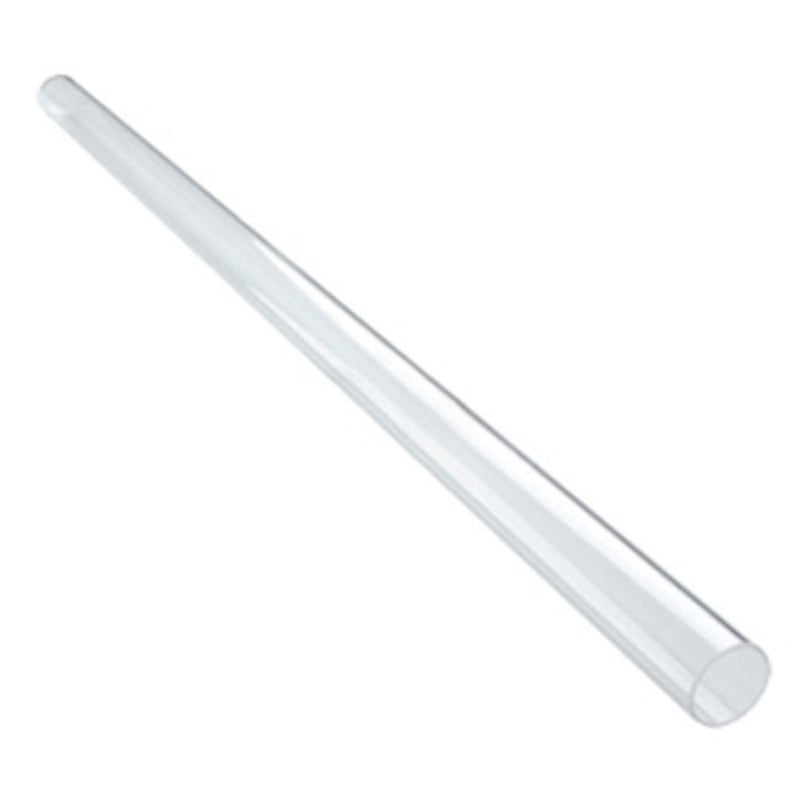

Compatible Trojan Quartz Sleeve 602975 for UVMax Pro20/H/Plus Systems

Regular price $29.50
Replacement Part
O-Ring for Trojan UVMax G-K, Pro10/Pro20/Pro30/Pro50

Regular price $5.50
Replacement Part
Trojan UVMax 650629-080 Power Supply Kit for H Plus (1994-2008)

Regular price $804.57
Optional Accessory

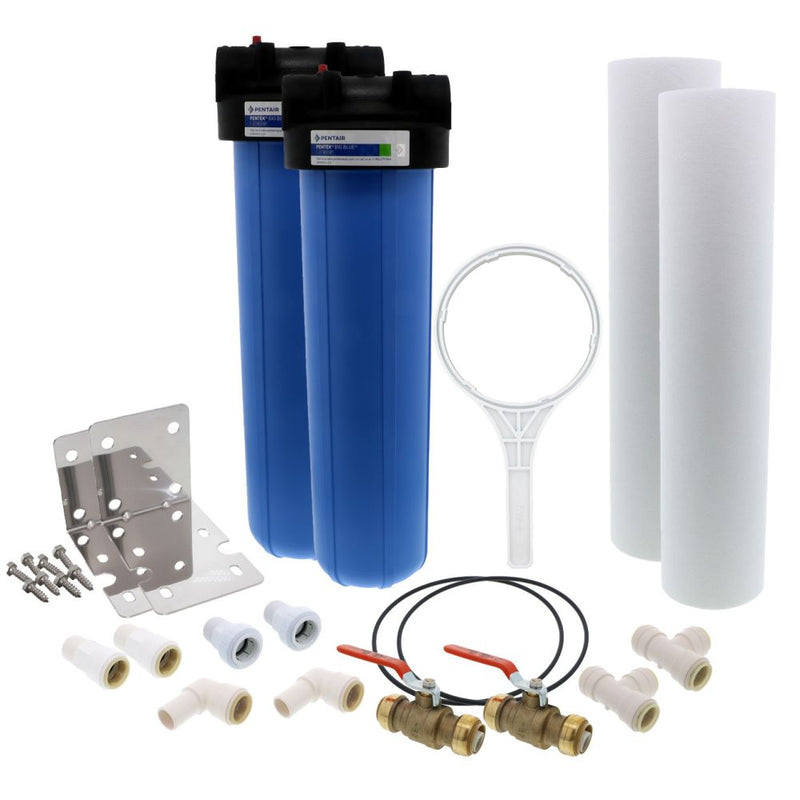

20" Heavy Duty Twin Sediment Prefilter Kit - 1"

Regular price $342.56

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Viqua H Plus disinfection water system eliminates the concern over harmful bacteria, virus and microorganisms in drinking water. It's compact design, simple installation, and low cost of operation are ideal for a small to medium size home.

Please note that the difference between the 120V and 230V Viqua H Plus is simply the power cord. If you are in the U.S.A. you will not need the 230V. The 120V has the standard 3-pronged cord, whereas the 230V comes with the Continental European power cord (CEE 7/7).

Specifications:

Type 316 stainless steel reactor
Viqua H Plus UV purification water system has color coded plug and play connections
UV intensity monitor with diagnostic test
CoolTouch fan
Flow Rate: 39 gpm
Inlet/Outlet: Combo 1.25" NPT, 1" MPT
Voltage: 120-240V (50-60Hz)
Chamber Material: 316L SST
Power Consumption: 160 watts
Chamber Dimensions: 30.7" x 3.9"
120 Volt: Standard 3-pronged power cord
230 Volt: European 2-pronged power cord (CEE7/7)

This system is compatible with the 602855 Trojan Lamp and the 602975 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for H Plus includes:

Trojan Lamp (1): 602855
Trojan Quartz Sleeve (1): 602975
Trojan O-Rings (2): 2233

Compatible with:

Trojan UVMax Lamps & Accessories

H Plus, 400-650652

Specifications

Product Details
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	15
Outlet Connection	1-1/4" MPT,1" FPT
Power	160 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Flow Rate	45 GPM (30mJ/cm2 Dose) 37 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	230 V
Shipping Dimensions
Shipping Length	38 in.
Shipping Width	8 in.
Shipping Height	15 in.
Product Weight & Dimensions
Product Weight (lbs)	29

Product Details
Body Material	316 Stainless Steel
Features	UV Intensity Monitor Audible Lamp Failure
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	15
Outlet Connection	1-1/4" MPT,1" FPT
Power	160 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Flow Rate	45 GPM (30mJ/cm2 Dose) 37 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	230 V
Product Weight & Dimensions
Product Weight (lbs)	29

Downloads

Viqua H Plus Monitored Ultraviolet Water System Powered by UVMax 39 gpm Manual
