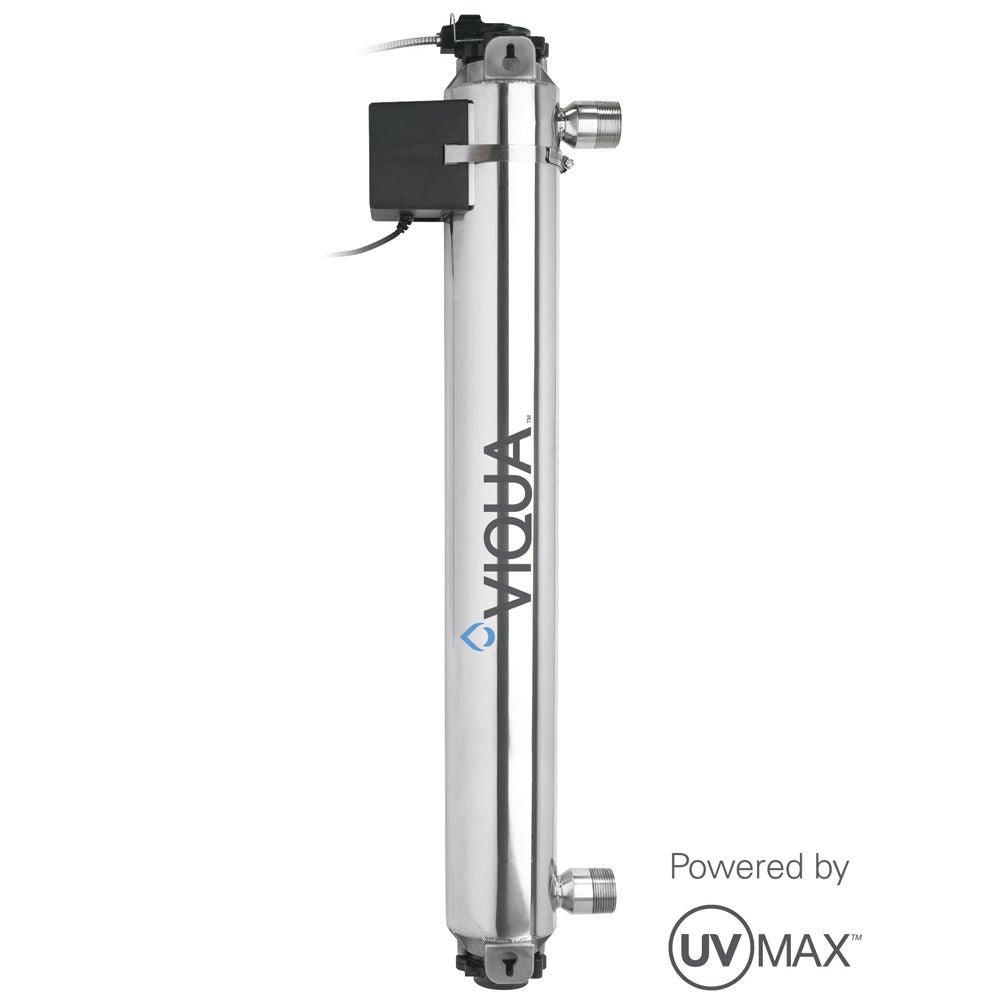

Viqua H UV System Powered By UV Max 45 gpm

Part Number: 650651

Viqua / Trojan

Viqua H UV System Powered By UV Max 45 gpm

Part Number: 650651

MSRP: $3,415.00

$2,903.00

Choose:

120 Volt 230 Volt

Product variants

You May Also Need

Replacement Part
Trojan UV Lamp 602855 for UVMax Pro20, H

Regular price From $386.00
Replacement Part

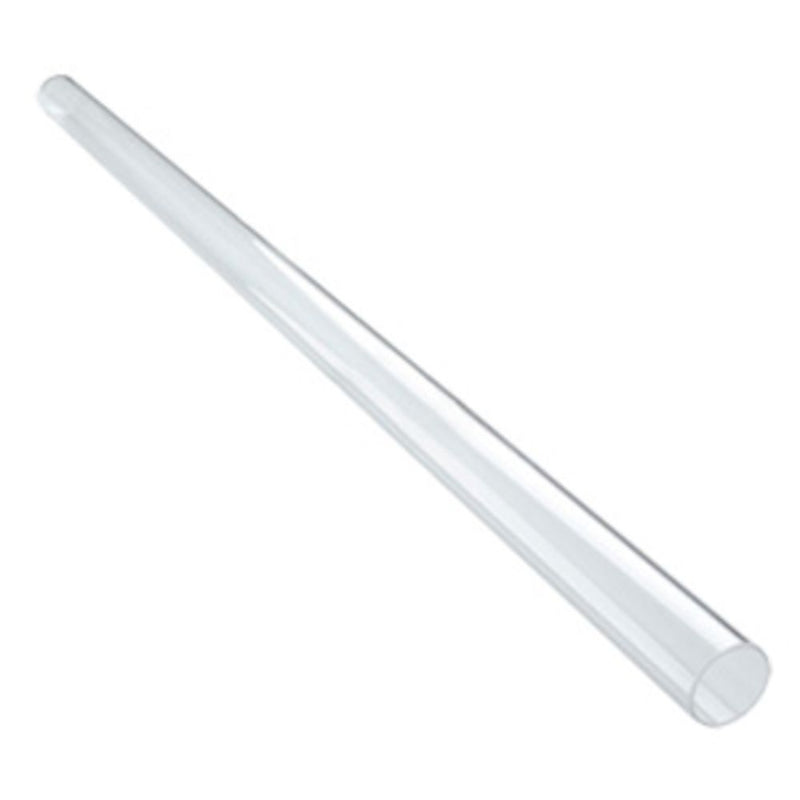

Compatible Trojan Quartz Sleeve 602975 for UVMax Pro20/H/Plus Systems

Regular price $29.50
Replacement Part
O-Ring for Trojan UVMax G-K, Pro10/Pro20/Pro30/Pro50

Regular price $5.50
Replacement Part

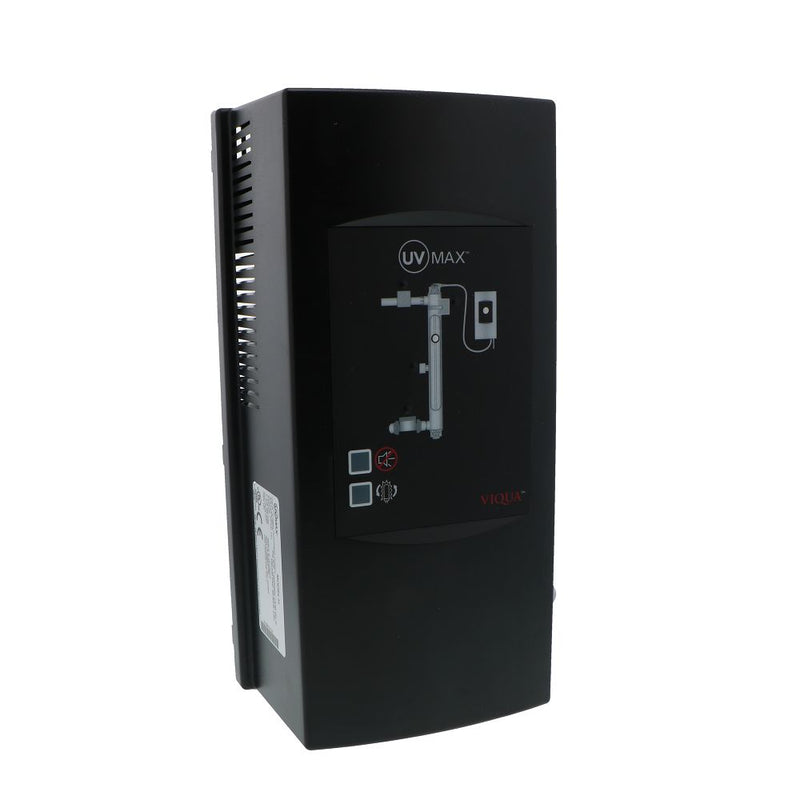

Trojan UVMax 650629-050 Power Supply Kit for H (1994-2008)

Regular price $1,107.89
Optional Accessory

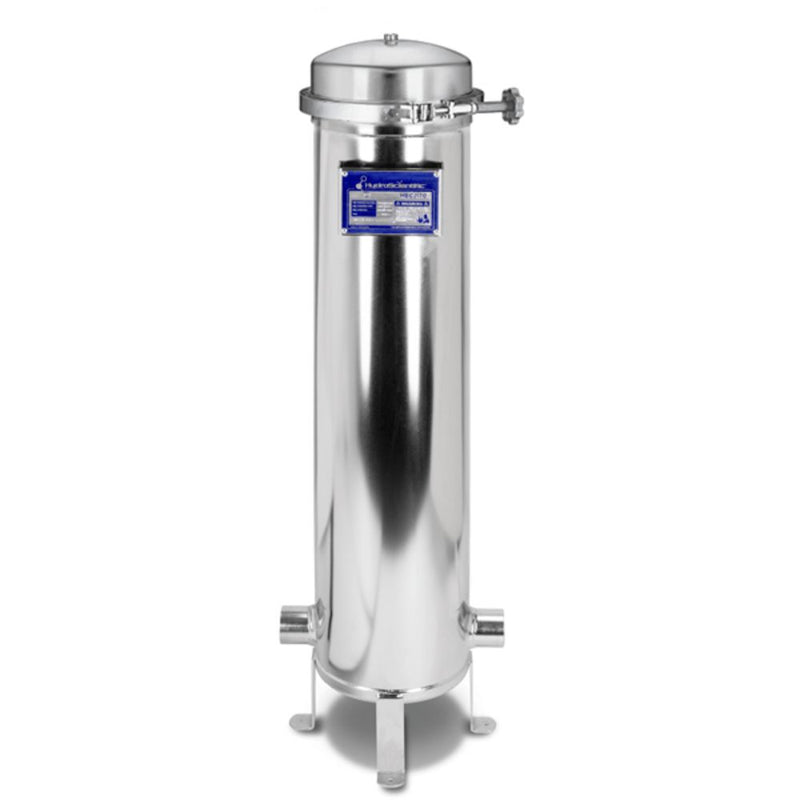

HydroScientific Band Clamp 40 Jumbo Filter Housing

Regular price $1,290.95
Optional Accessory

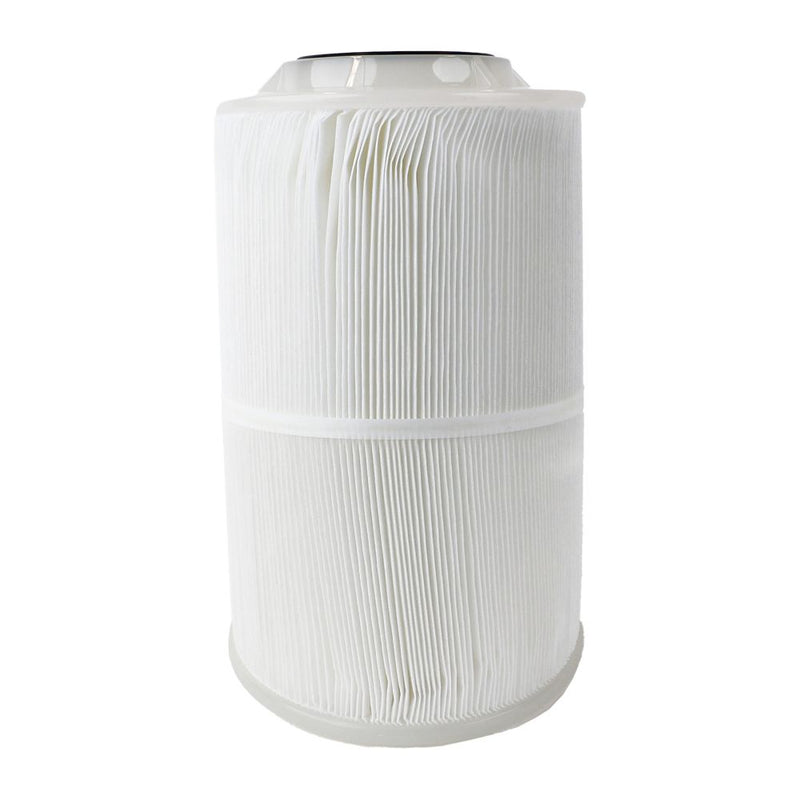

Neo-Pure PSJE-40-05 Pleated Synthetic Jumbo Cartridge 5 micron

Regular price From $58.83

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Viqua H Ultraviolet System offers the latest amalgam technology that provides four times more UV power than standard ultraviolet lamps. It also incorporates a Cool-Touch fan which significantly reduces water temperature and does not waste water. The power supply provides valuable information in the way of a digital readout, making it easy for you to determine UV purification levels.

Features:

Type 316 stainless steel reactor
UV lamp has twice the output of current high-output lamps. Lamp last two years, reducing maintenance requirements
CoolTouch fan significantly reduces water temperature, and doesn't waste any water
Audible lamp failure and replacement reminder

This system is compatible with the 602855 Trojan Lamp and the 602975 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for H includes:

Trojan Lamp (1): 602855
Trojan Quartz Sleeve (1): 602975
Trojan O-Rings (2): 2233

NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Specifications

Product Details
Ambient Temperature Range	32-104 °F
Body Material	316 Stainless Steel
Features	Audible Lamp Failure Visual Power On Lamp Timer
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	15
Outlet Connection	1-1/4" MPT,1" FPT
Power	160 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	4"
Flow Rate	48 GPM (16mJ/cm2 Dose) 45 GPM (30mJ/cm2 Dose) 37 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120V 230V
Shipping Dimensions
Shipping Length	38.5 in.
Shipping Width	15.25 in.
Shipping Height	7.5 in.
Product Weight & Dimensions
Product Height	7.5 in.
Product Length	38.5 in.
Product Width	15.25 in.
Product Weight (lbs)	27.009375

Product Details
Ambient Temperature Range	32-104 °F
Body Material	316 Stainless Steel
Features	Audible Lamp Failure Visual Power On Lamp Timer
Frequency Rate	50/60 Hz
Inlet Connection	1-1/4" MPT 1" FPT
Max Pressure (Psi)	100
Min Pressure (Psi)	15
Outlet Connection	1-1/4" MPT,1" FPT
Power	160 Watts
Size	1-1/4" 1"
Connection Type	Male (MPT) Female (FPT)
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	4"
Flow Rate	48 GPM (16mJ/cm2 Dose) 45 GPM (30mJ/cm2 Dose) 37 GPM (40mJ/cm2 Dose)
Type	Single UV System
Voltage	120V 230V
Product Weight & Dimensions
Product Weight (lbs)	28
