Viqua

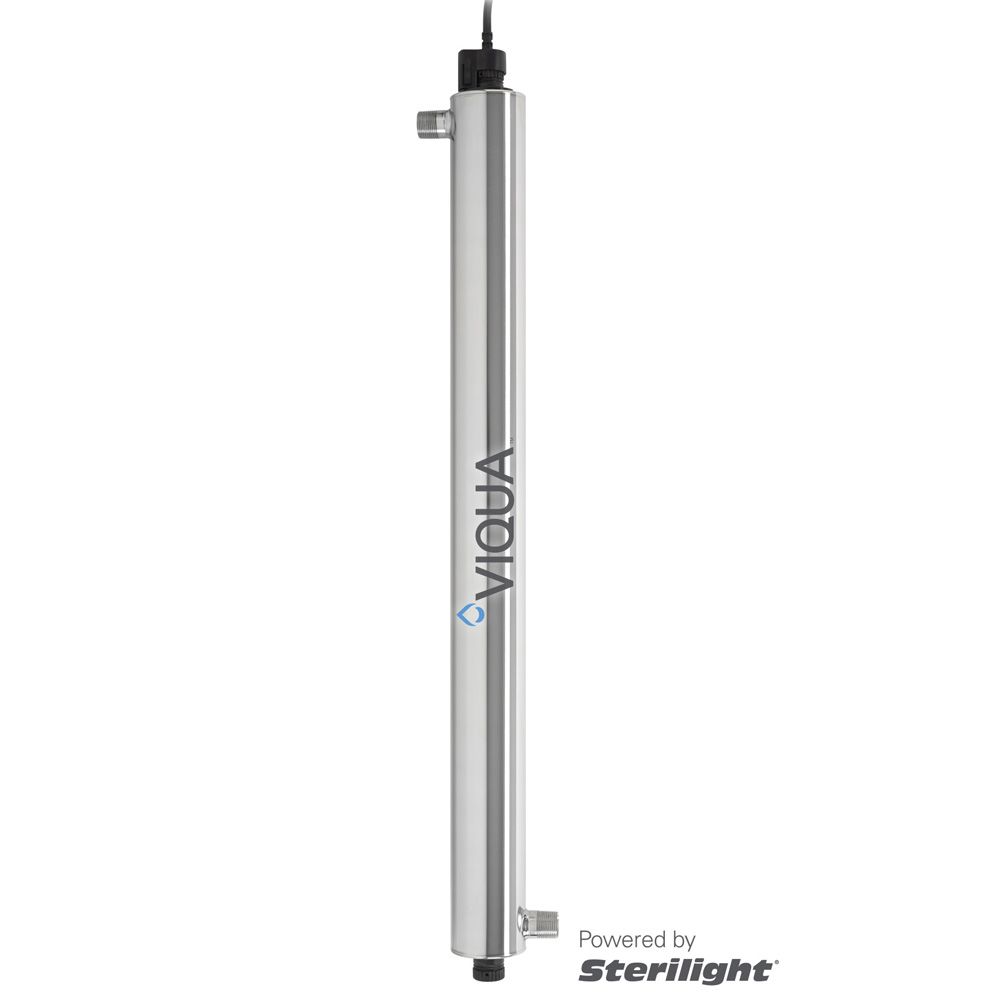

Viqua VP950 Cobalt Series UV System Powered By Sterilight 46 gpm

Part Number: VP950

Alt. Part Number: SC-740

In Stock

out of stock

In Stock

$1,125.00


The Viqua VP950 Cobalt Series Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Applications:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals

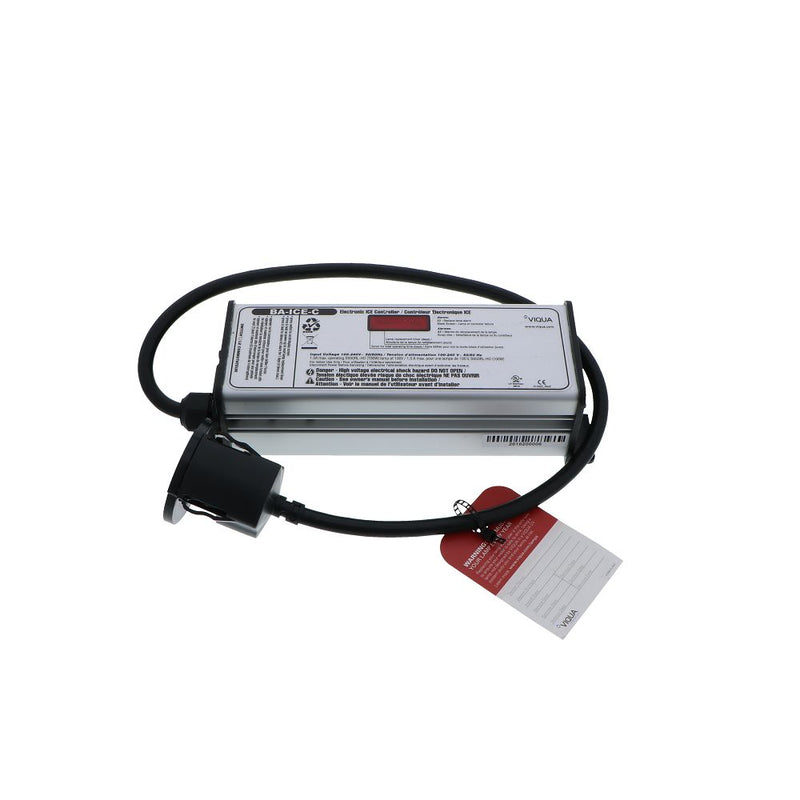

  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption of water flow

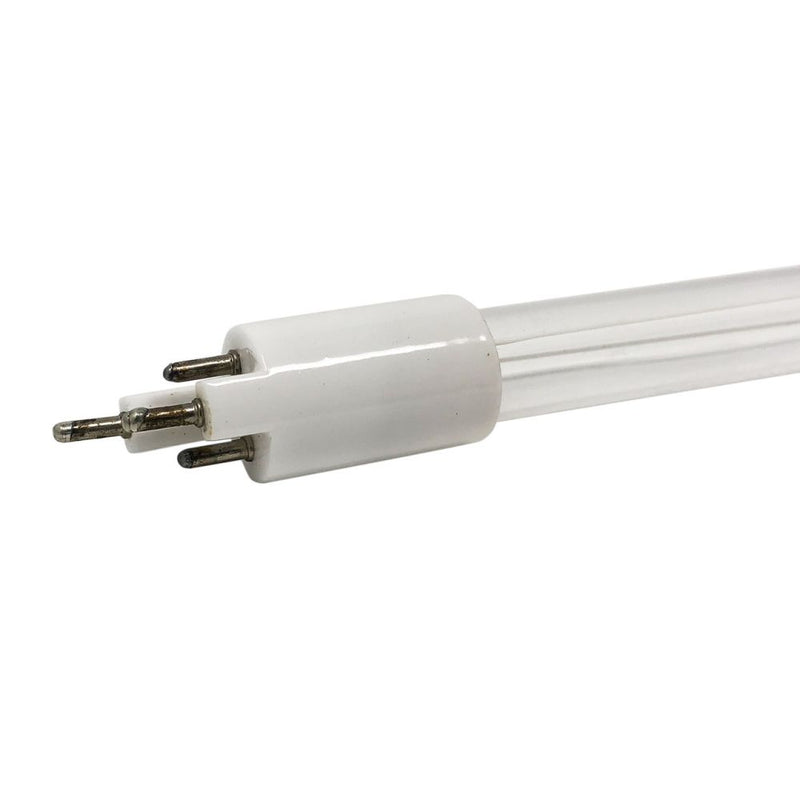

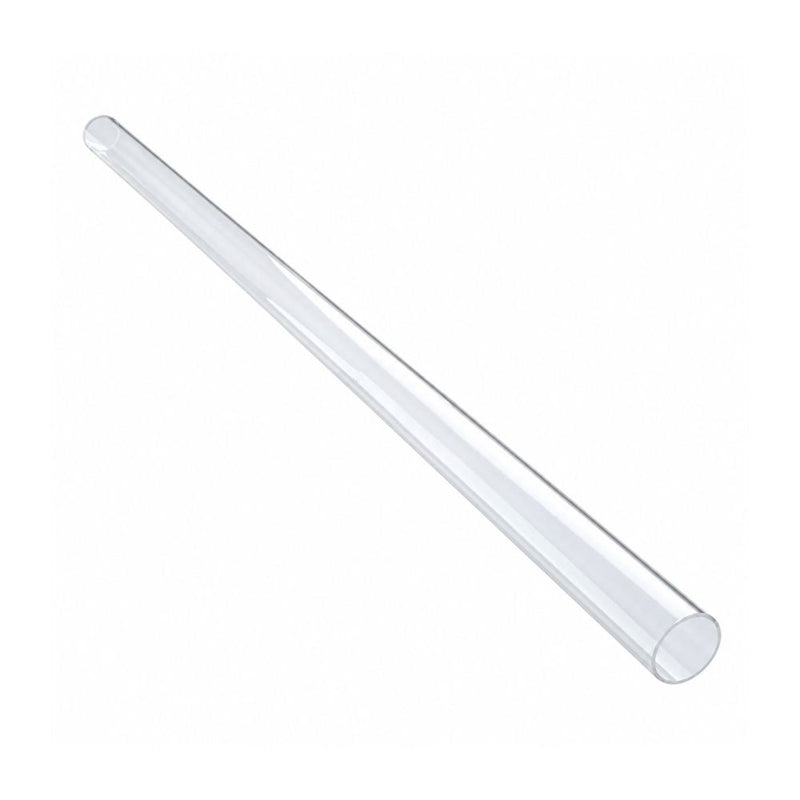

This system is compatible with the S950RL-HO Sterilight Lamp and the QSO-950 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VP950 includes:
  • Sterilight Lamp (1): S950RL-HO
  • Sterilight Quartz Sleeve (1): QSO-950
  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

45 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel

Diameter

3.5 Inches

Features

Audible Lamp Failure, Visual Power On, Lamp Timer, Flow Restrictor

Flow Rate

60 GPM (16mJ/cm2 Dose), 46 GPM (30mJ/cm2 Dose), 35 GPM (40mJ/cm2 Dose)

Frequency

50-60 Hz

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

96 Watts

Size

1-1/2"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

1-1/2" | MPT


Viqua





The Viqua VP950 Cobalt Series Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Applications:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption of water flow
This system is compatible with the S950RL-HO Sterilight Lamp and the QSO-950 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VP950 includes:
  • Sterilight Lamp (1): S950RL-HO
  • Sterilight Quartz Sleeve (1): QSO-950
  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Approx Length (Inches)

45 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel

Diameter

3.5 Inches

Features

Audible Lamp Failure, Visual Power On, Lamp Timer, Flow Restrictor

Flow Rate

60 GPM (16mJ/cm2 Dose), 46 GPM (30mJ/cm2 Dose), 35 GPM (40mJ/cm2 Dose)

Frequency

50-60 Hz

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

96 Watts

Size

1-1/2"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

1-1/2" | MPT
