Viqua

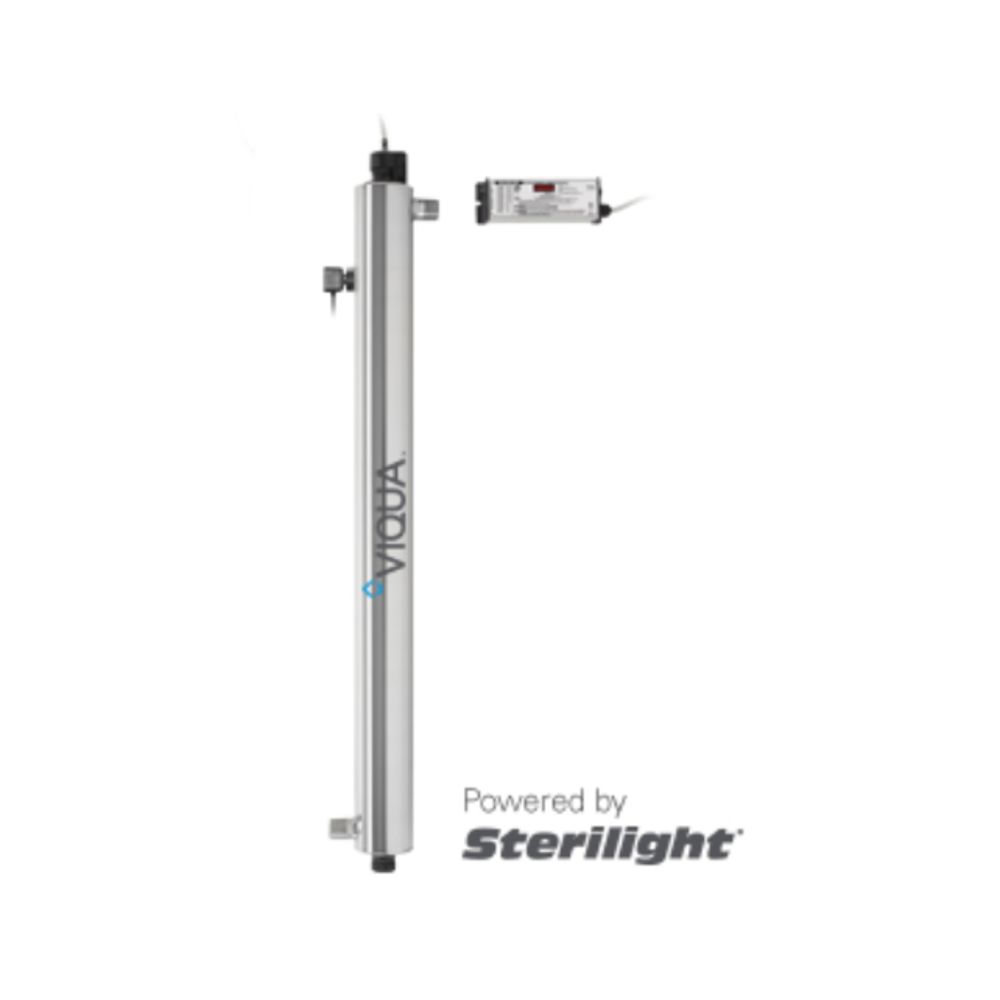

Viqua VP950M Cobalt Series Monitored UV System Powered By Sterilight 46 gpm

Part Number: VP950M

Alt. Part Number: SP950-HO

In Stock

out of stock

In Stock

$1,299.00

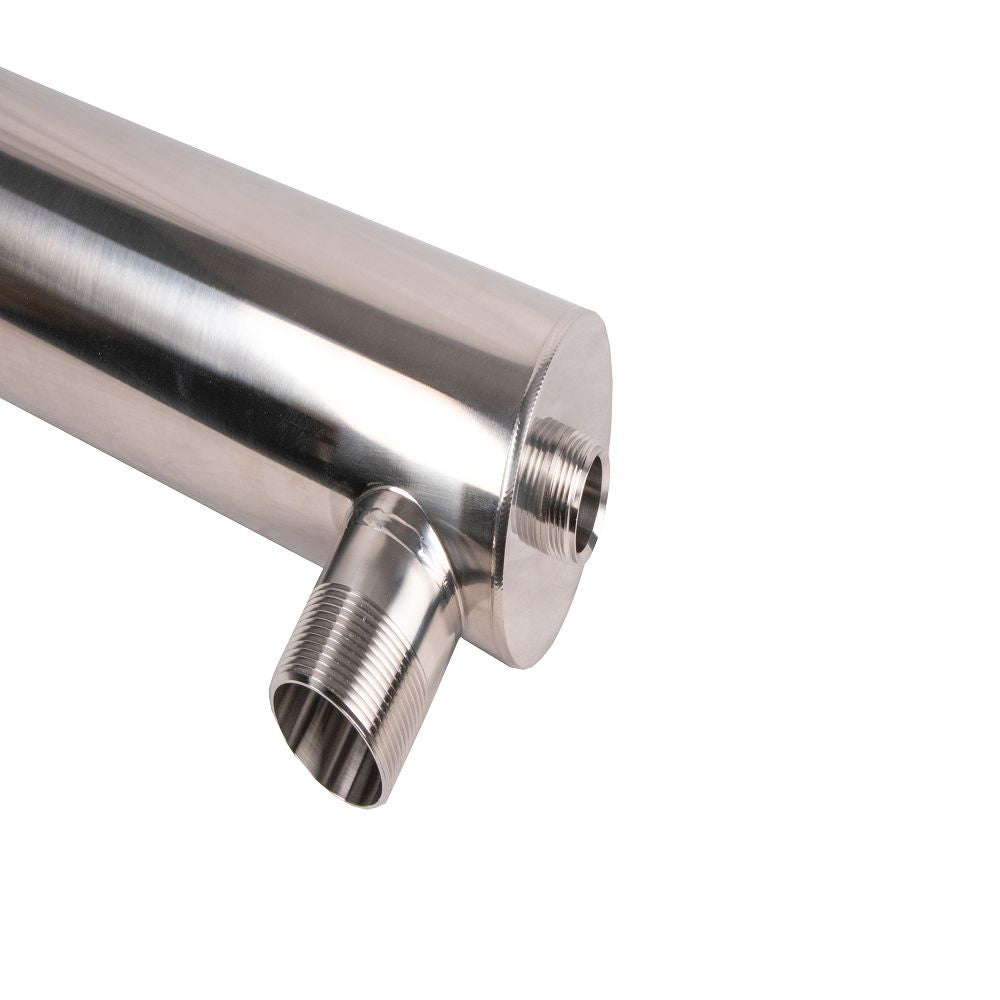

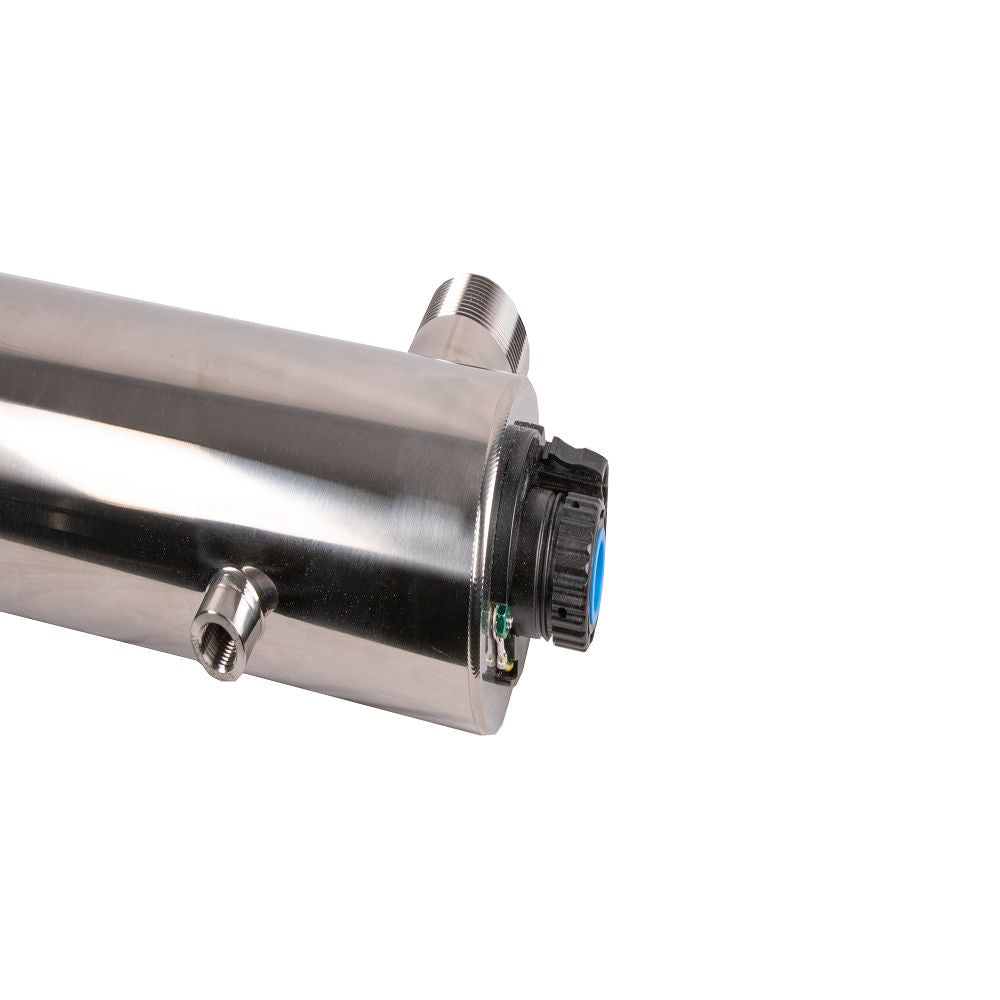

The Viqua VP950M Cobalt Series Monitored Ultraviolet System incorporates high-output UV lamp technology coupled with the redesigned Cobalt series chamber, moving the inlet/outlet ports from an axial to S-shaped configuration making it more compact and easier to install.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) reduction of most bacteria, viruses and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals

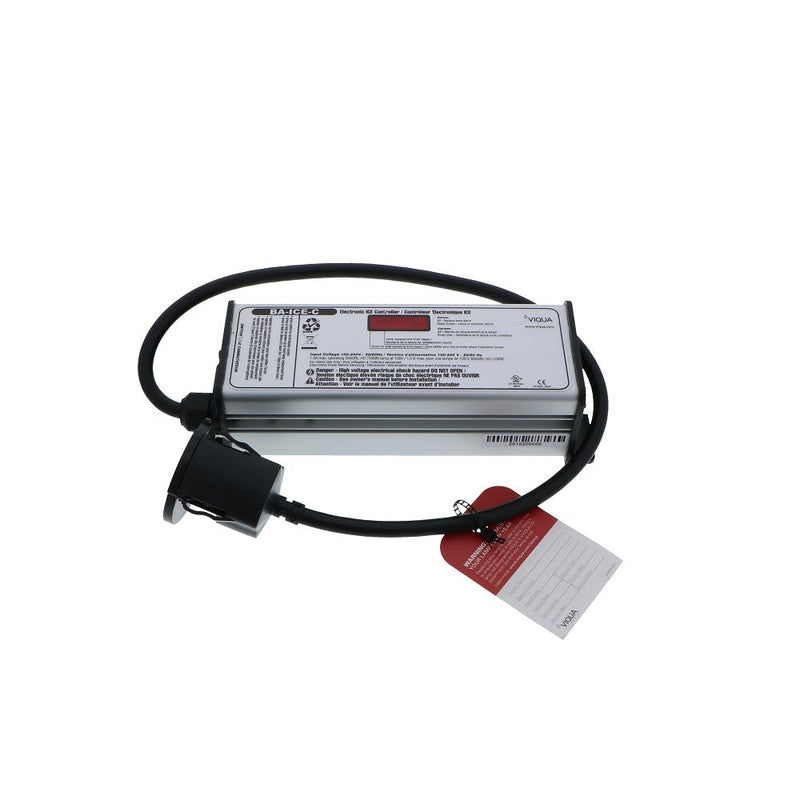

  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental water intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes up less space
  • Lamp can be changed without interruption of water flow

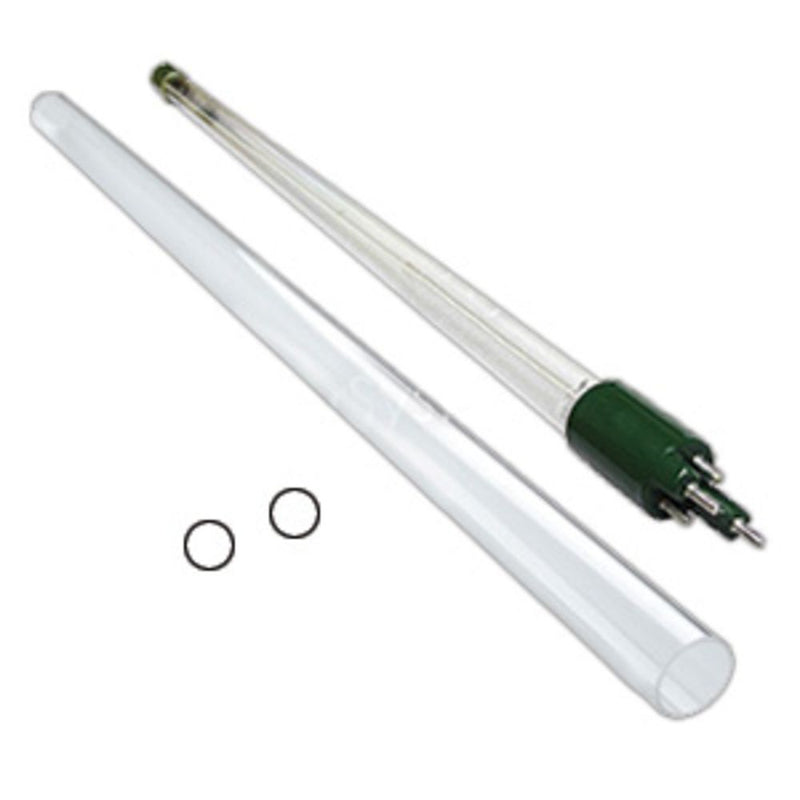

NOTE: This system is compatible with the S950RL-HO Sterilight Lamp and the QSO-950 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VP950M includes:
  • Sterilight Lamp (1): S950RL-HO
  • Sterilight Quartz Sleeve (1): QSO-950
  • Sterilight O-Rings (2): 410867

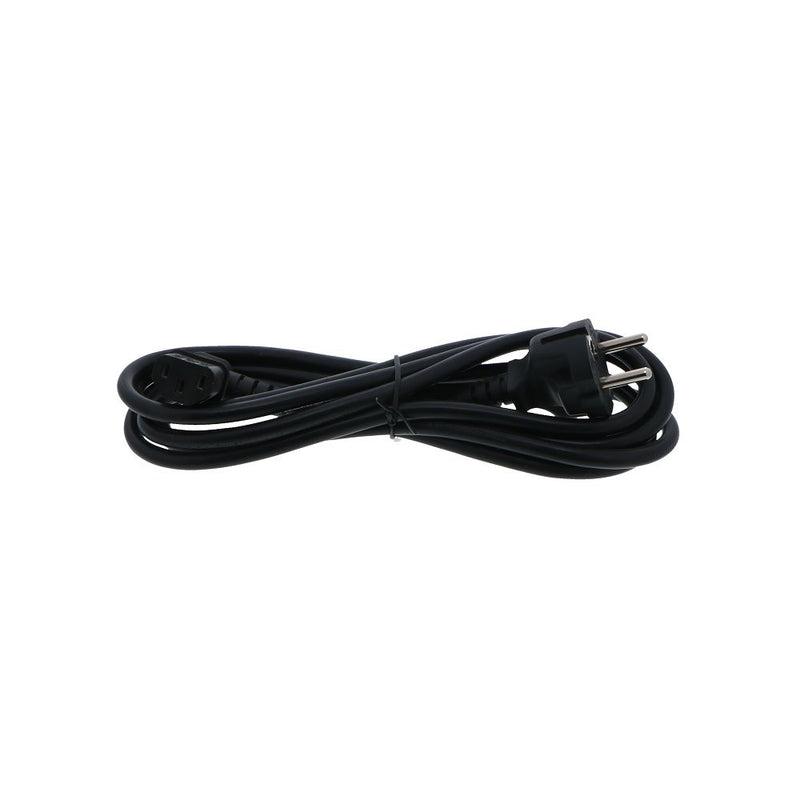

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

45 Inches

Power Supply Dimensions

9.4"x3.2"x2.5"

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

Audible Lamp Failure; Visual Power On; Solenoid Valve; Lamp Timer; Flow Pacing - Sensor; Flow Restrictor

Flow Rate

60 Gallons Per Minute (16mJ/cm2 Dose); 45 Gallons Per Minute (30mJ/cm2 Dose); 35 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

1-1/2" MPT

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Power

96 Watts

Type

UVC

Voltage

100-240 V
