The Heavy Duty Twin Sediment Prefilter Kit that is parallel plumbed, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates from 24 to 40 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

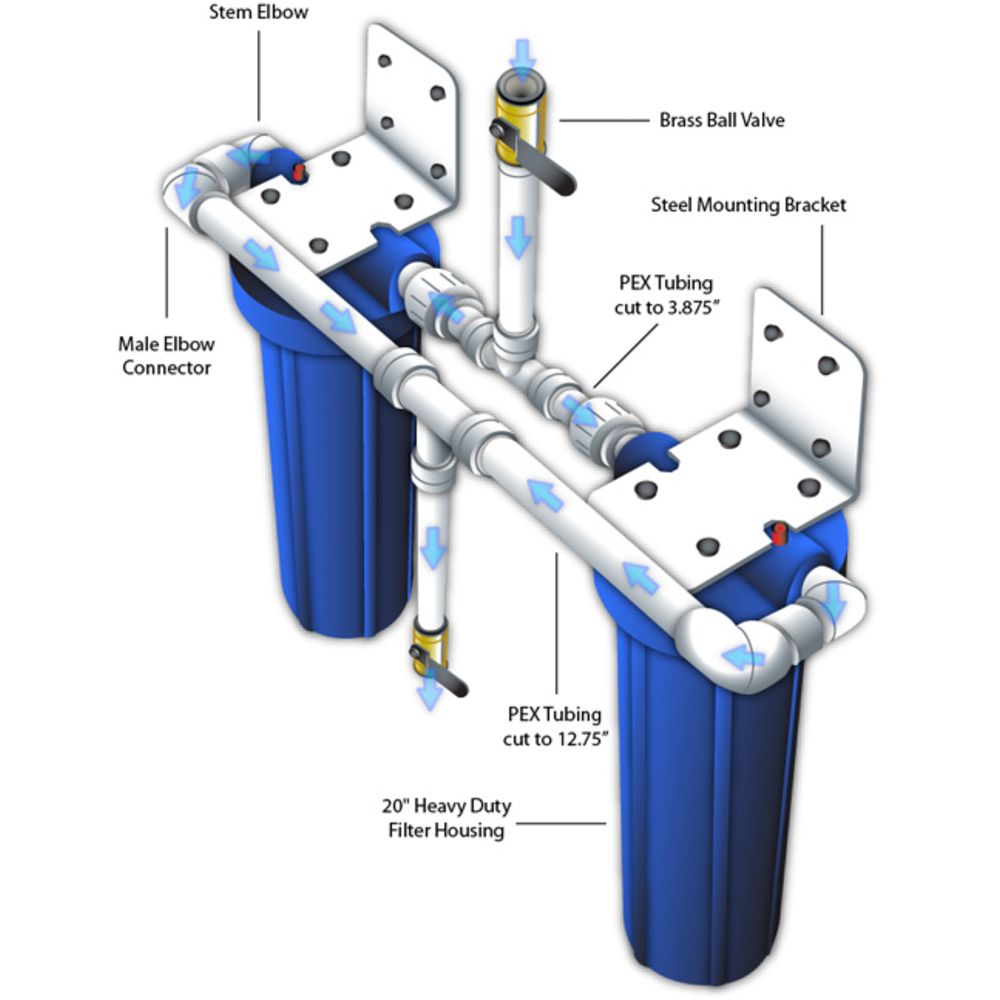

Filter housings may be plumbed in Parallel with the same filter type to achieve higher flow rates, or in Series with different filter types to achieve multi-stage filtration.

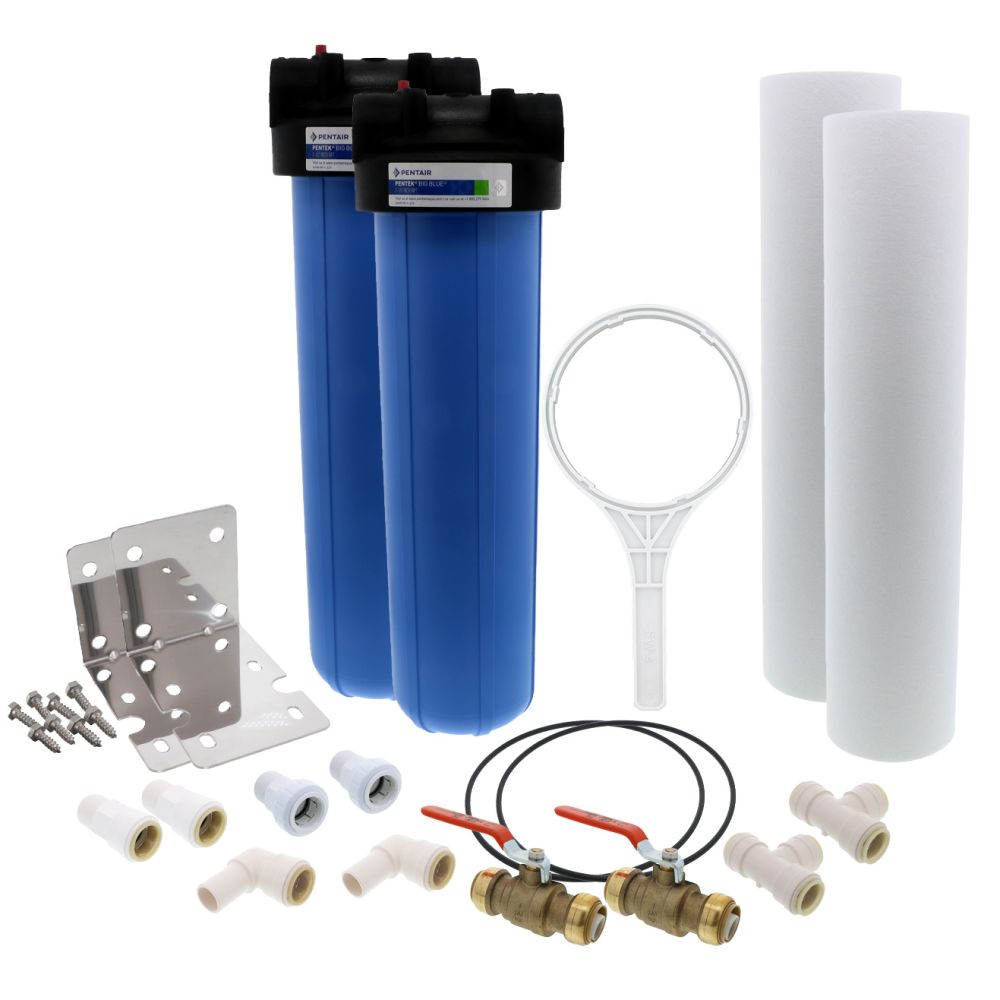

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:
Filter housings may be plumbed in Parallel with the same filter type to achieve higher flow rates, or in Series with different filter types to achieve multi-stage filtration.
Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:
- Two 20" Heavy Duty Filter Housing 1" Inlet/Outlet
- Two White Powder Coated Steel Mounting Bracket w/lag bolts
- Filter Wrench for Heavy Duty Housings
- Two Extra O-ring for Heavy Duty Housings
- Two Dual Gradient Polypropylene 50/5 micron filters
- Two 1" CTS x 1" NPT Male Connectors
- Two 1" CTS x 1" NPT Male Elbow Connectors
- Two 1" CTS Stem Elbows
- Two 1" CTS x 1" CTS x 1" CTS Union Tees
- Two 1" CTS Sharkbite Brass Ball Valves
- Two 1" CTS x 18" PEX Tubing
Weight & Dimensions
Weight (lbs) | 40 |
Approx Height (Inches) | 29" |
Approx Width (Inches) | 32" |
Approx Depth | 8" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 100 |
Filter Application | Sediment/Dirt/Rust |
Flow Rate | 24-40 GPM |
Housing Material | Polypropylene |
Media Type | Dual Gradient Polypropylene |
Micron Rating (Nominal) | 5 µm |
Nut / Fitting Material | Polysulfone, Brass |
Size | 1" |
Contaminants Reduced | Sediment/Dirt/Rust |
Inlet/Outlet Connection | 1" FPT |
The Heavy Duty Twin Sediment Prefilter Kit that is parallel plumbed, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates from 24 to 40 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.
Filter housings may be plumbed in Parallel with the same filter type to achieve higher flow rates, or in Series with different filter types to achieve multi-stage filtration.
Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:
- Two 20" Heavy Duty Filter Housing 1" Inlet/Outlet
- Two White Powder Coated Steel Mounting Bracket w/lag bolts
- Filter Wrench for Heavy Duty Housings
- Two Extra O-ring for Heavy Duty Housings
- Two Dual Gradient Polypropylene 50/5 micron filters
- Two 1" CTS x 1" NPT Male Connectors
- Two 1" CTS x 1" NPT Male Elbow Connectors
- Two 1" CTS Stem Elbows
- Two 1" CTS x 1" CTS x 1" CTS Union Tees
- Two 1" CTS Sharkbite Brass Ball Valves
- Two 1" CTS x 18" PEX Tubing
Weight & Dimensions
Weight (lbs) | 40 |
Approx Height (Inches) | 29" |
Approx Width (Inches) | 32" |
Approx Depth | 8" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 100 |
Filter Application | Sediment/Dirt/Rust |
Flow Rate | 24-40 GPM |
Housing Material | Polypropylene |
Media Type | Dual Gradient Polypropylene |
Micron Rating (Nominal) | 5 µm |
Nut / Fitting Material | Polysulfone, Brass |
Size | 1" |
Contaminants Reduced | Sediment/Dirt/Rust |
Inlet/Outlet Connection | 1" FPT |
