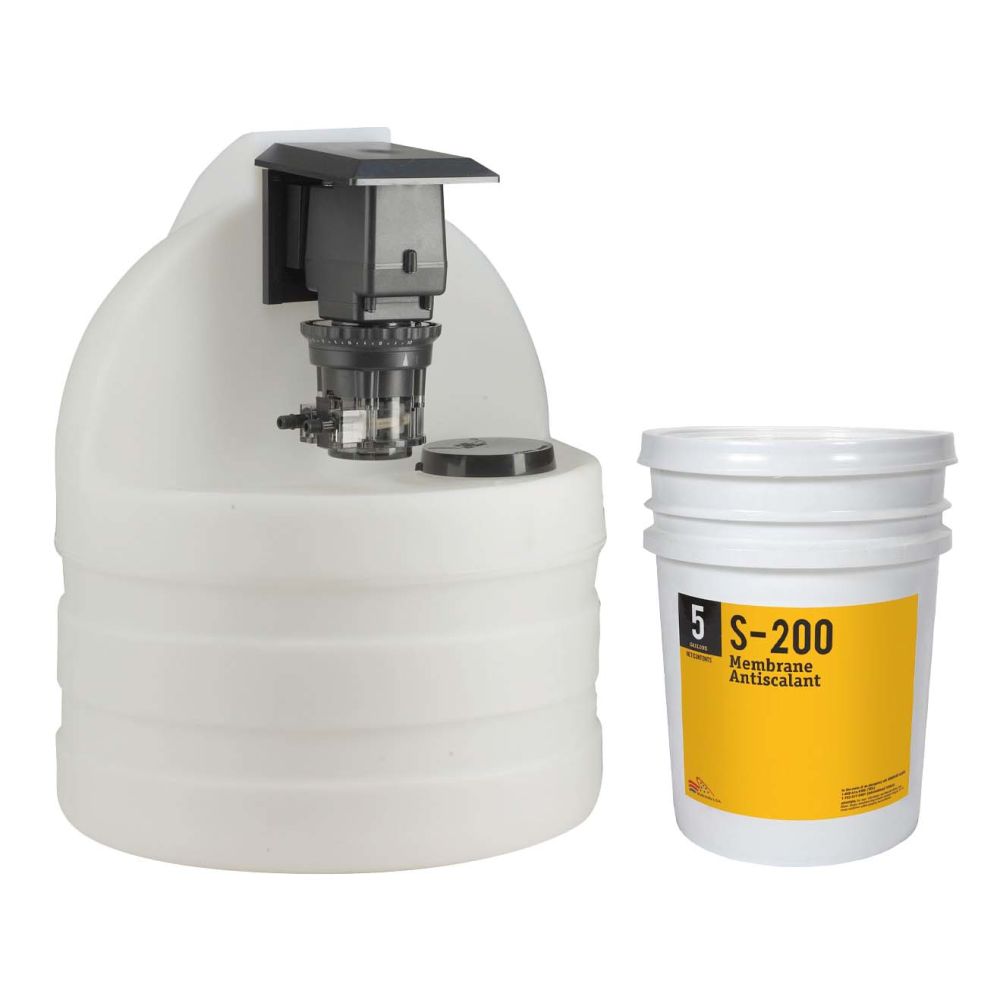

Stenner Antiscalant System Single Head Adjustable Pump with 15 Gallon Tank

Part Number: STW1514120

In Stock

out of stock

In Stock

$999.99


The Stenner Antiscalant System is an auto-dosing system designed to periodically pump AXEON Membrane Antiscalant into commercial RO membranes. In areas where the feed water is hard, membranes can develop scale, which greatly reduces efficiency. The Stenner Antiscalant System regularly doses the membranes with antiscalant to ensure that they operate at maximum efficiency.

Applications:
The AXEON S-100 is a substitute for pretreatment with ion exchange beds, and is effective in water containing high levels of metal oxides, silica and scale-forming minerals. The antiscalant enters the RO system directly in front of the membranes and then cleans the membranes as it is washed down the drain with the reject water. This system replaces the need for bulky softeners which take up space and require backwashing, potentially requiring users to shut down the system. The system comes pre-assembled, includes a 5 gallon bucket of AXEON S-100 Membrane Antiscalant, and is certified to NSF 61.
Features:
  • For use with commercial reverse osmosis systems
  • Shipped preassembled
  • Replaces the need for a water softener in hard water applications
  • Compatible with all brands and types of RO, NF and UF membranes
  • Stenner Antiscalant System includes:
NOTE: 85MHP5 Series Adjustable Stenner Pump 15 gallon tank system Accessory kit AXEON S-100 Antiscalant 5 gallon bucket
Specifications:
Pump
  • Series: 85MHP5 Series Classic Single Head Adjustable Pump
  • Pump Capacity: 0.3 to 5.0 gpd
  • Connections: 1/4" JACO
  • Max Working Pressure: 100 psi
  • Max Temperature: 125°F
  • Housing Material: Polycarbonate
  • Tube Material: Santoprene
  • Pump Head Rollers: HDPE
  • Self-priming, can run dry without damage
  • UL Listed
Tank
  • Capacity: 15 gallons
  • Tank Material: Polyethylene
  • Grommets: Viton
  • Screws: Stainless steel
  • Childproof Lid: Polypropylene
  • Color: Translucent white
  • Includes rain roof to protect motor
  • NSF 61 certified
Accessory Kit
  • 1/4" connecting nuts (3)
  • 1/4" ferrules (3)
  • Injection check valve 100 psi
  • 1/4" weighted suction line strainer
  • 20' roll suction/discharge tubing 1/4"
  • Additional pump tube
  • Additional Latches (2)
  • Mounting bracket
  • Manual
AXEON S-100 Membrane Antiscalant
  • Compatible with all brands and types of RO, NF and UF membranes
  • Effective in feed water with pH range 5.0 - 11.0
  • Effectively controls inorganic scale over a large concentration range
  • Effective in retarding polymerization and precipitation of silica
  • Does not flocculate dissolved iron/aluminum oxide/silica complexes
  • Effective in controlling calcium carbonate and calcium sulfate scale
  • Effective for controlling aluminum, iron and heavy metal salts
  • Certified to NSF/ANSI Standard 60 for drinking water production
  • Made in USA


Details

Ambient Temperature Range

Up to 125 Degrees Fahrenheit

Amps

0.17 Amps

Flow Rate

0.3 - 5 GPD

Housing Material

Polycarbonate

Max Operating Pressure

100 PSI

Type

Peristaltic

Valve Type

Santoprene

Motor Rpm

26 Rotations Per Minute

Suction Lift

Self prime up to 25 ft.
