Watts

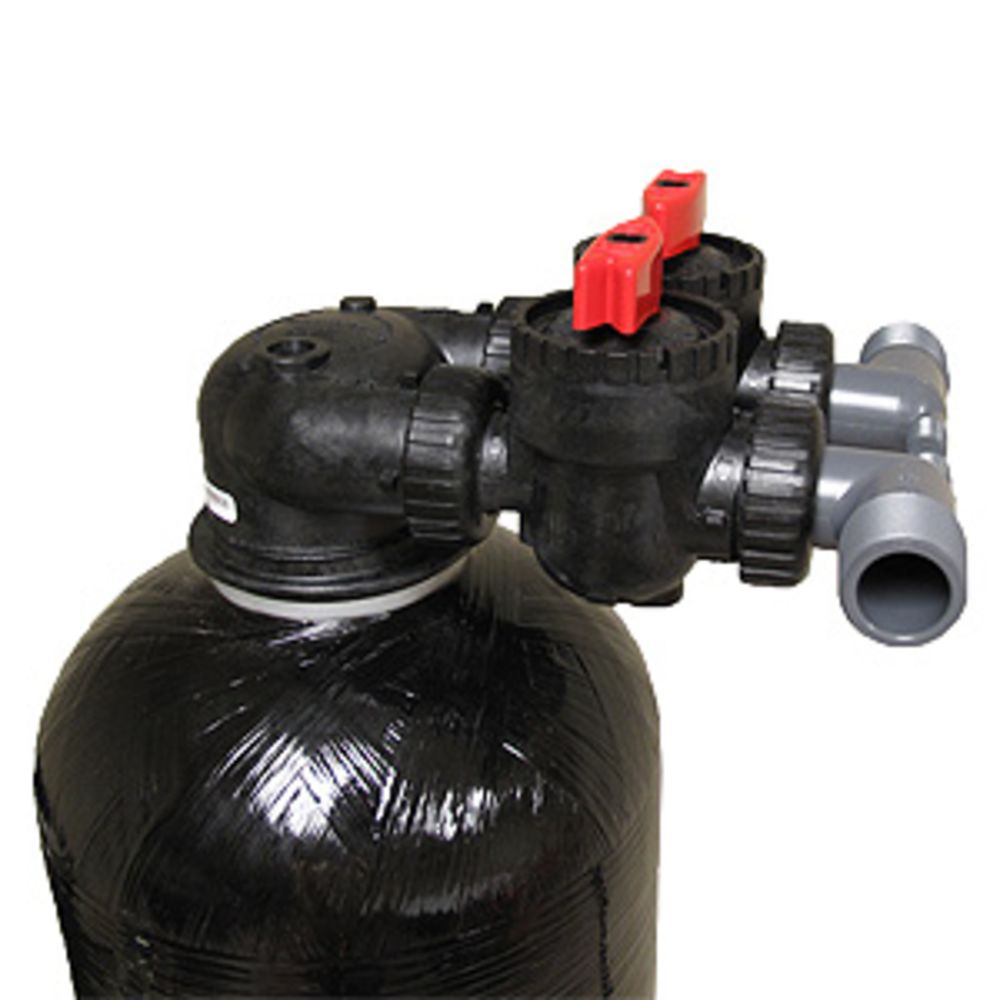

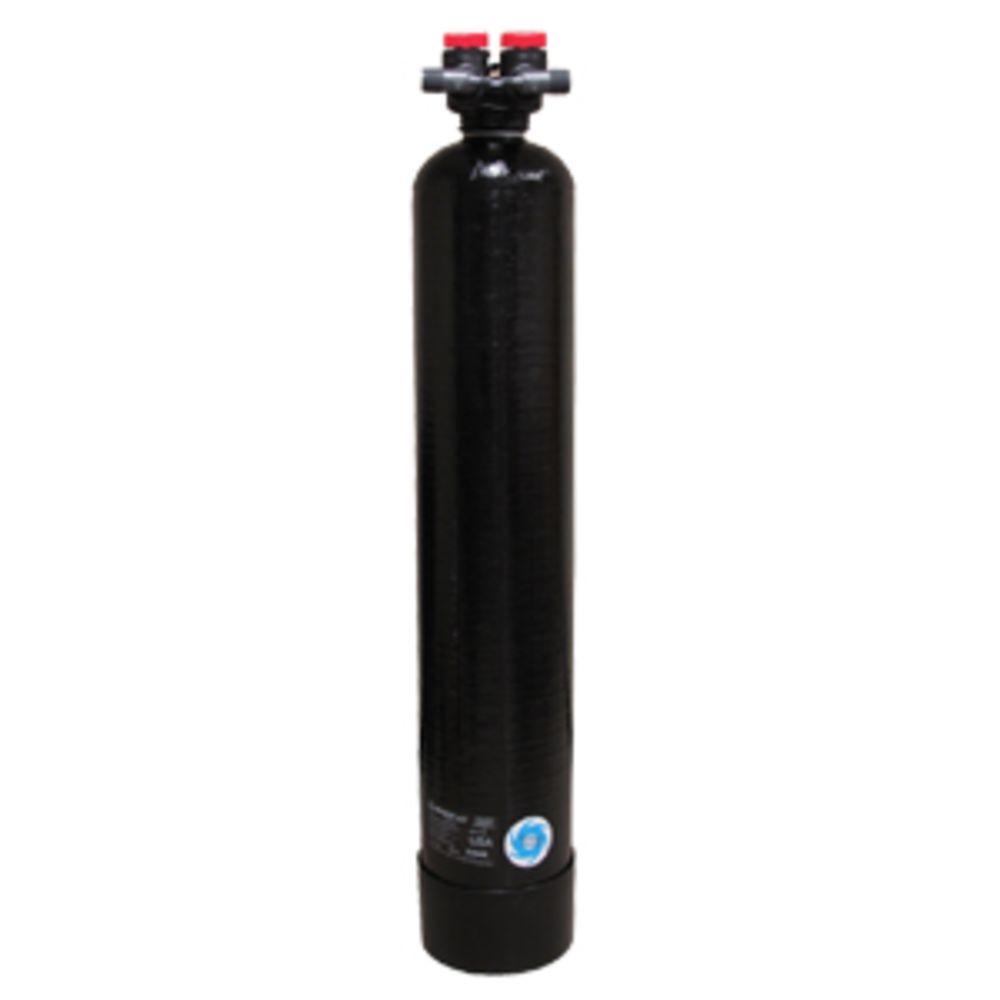

ScaleNet Salt-Free Water Conditioner High Output

Part Number: M8409-HO

In Stock

out of stock

In Stock

$1,075.00


Calcium creates scale in pipes, on appliances and other plumbing surfaces. This leads to higher heating and energy costs and expensive repairs to appliances, such as ice machines, coffee makers, dishwashers and cooling towers in commercial buildings.
The ScaleNet Salt-Free Water Softener Conditioning System's Template Assisted Crystalization (TAC) media, also known as Matrix Enabled Particularization or MEP process, transforms calcium ions into calcium crystals, which are stable and cannot attach to pipes, surfaces, hardware or heat exchanger components. The crystals are so small they are easily rinsed away by the water flow.
This new media technology is also sold and marketed under a variety of other brand names like Next, Filtersorb as well as ScaleNet.

ScaleNet Salt-Free Water Conditioner Softening Benefits:
  • Scale is virtually eliminated
  • Aids in removing existing scale
  • No costly repairs to appliances due to scale
  • No salt
  • No brine tank
  • No backwash
  • Saves water
  • No electricity
  • Easy installation

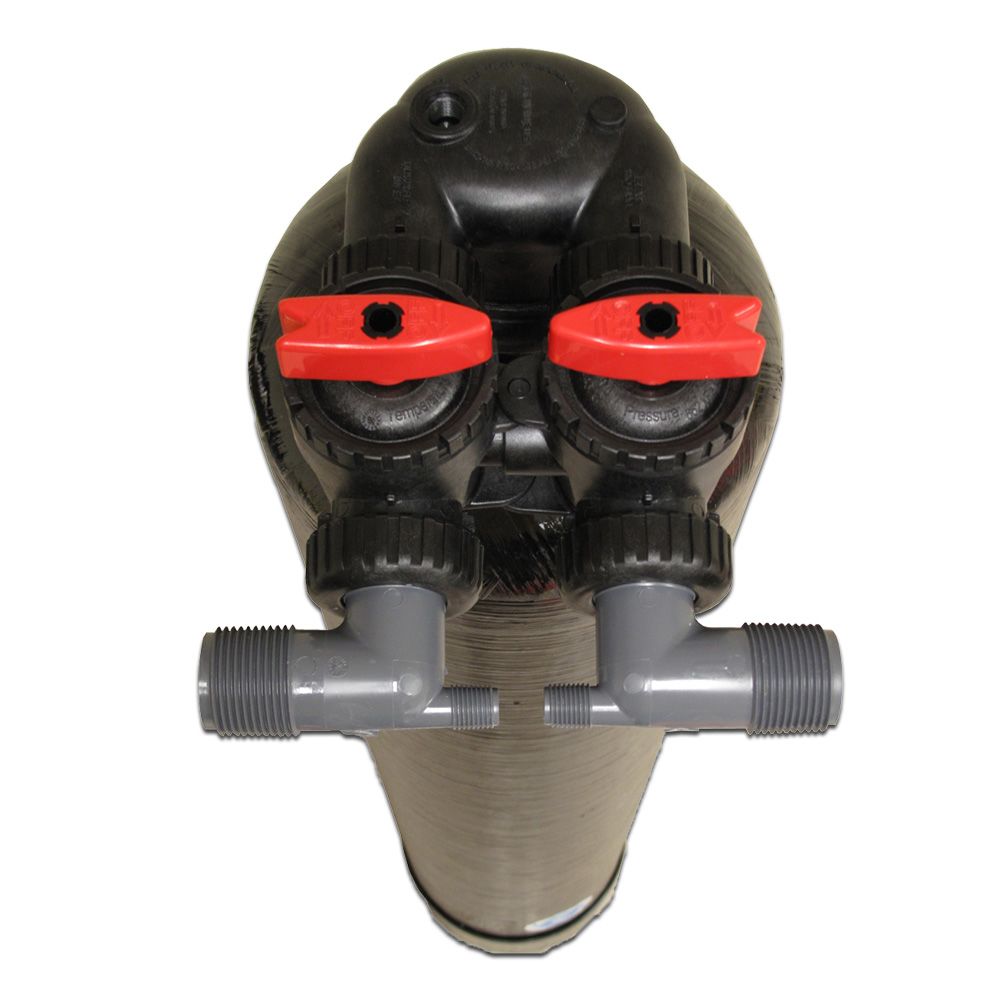

The ScaleNet High Output Systems include the V3007 PVC 1" NPT Male Elbow Assembly and the V3006 Bypass for the 1" Valve.
Go to Clack Parts and Accessories to purchase other Clack Valve attachments for PVC, Lead-Free Brass Sweat, 1" Male NPT, or Brass Sharkbite Quick Connect Fittings.
As shown below, SCALE is the incrustation of calcium carbonate (CaCO3) that forms within piping.

How Does TAC (Template Assisted Crystallization) Media Prevent Scale Buildup?
  • STEP 1 - The T.A.C. MEDIA releases a TEMPLATE
  • STEP 2 - The TEMPLATE attracts and captures the scale contaminants (Ca, Mg & MCO3) by turning them into crystals that stick to the TEMPLATE'S surface
  • STEP 3 - The TEMPLATE carries the scale harmlessly through the piping

Disclaimer: If you are using well water, please contact our technical support staff to help you determine if this system is right for your application.
 Part Number Tank Size Pipe Size Media Service Flow Floor Space
 M8407-HO 8 x 35  1"  3.0 L  10 gpm  11 x 11 x 42
 M8409-HO 9 x 48  1"  4.0 L  16 gpm  12 x 12 x 42
 M8410-HO 10 x 54  1"  5.0 L  20 gpm  13 x 13 x 61
 M8412-HO 12 x 52  1"  7.5 L  30 gpm  15 x 15 x 59
 M8414-HO 14 x 65  2"  12.5 L  50 gpm  15 x 15 x 72
 M8416-HO 16 x 65  2"  19.0 L  75 gpm  17 x 17 x 72


Weight & Dimensions

Approx Weight

650 g/l

Details

Capacity

3-5 years based on hardness and chlorine levels.

Flow Rate

0-30 GPM

Max Operating Temperature

140 Degrees Fahrenheit

Media Type

Scale Inhibitor

Size

1", 2"

Chlorine Reduction

<3 Parts per Million

Contaminants Reduced

Heavy Metals, Scale

Ph Range

6 to 9 (effective range)

Density

1.1 to 1.2 lbs. per cubic foot

Hardness

75 grains (1300 ppm CaCO3) Grains per Gallon

Matrix

Ceramic Coated Polymer

Max Copper Content

1.3 mg/l

Max Iron Content

0.3 mg/l

Max Manganese Content

0.05 mg/l

Max Silica Content

10 Parts per Million

Min Operating Temperature

40 Degrees Fahrenheit

Oil & H2s

None Allowed

Polyphosphate

None Allowed

Inlet/Outlet Connection

1", 2" | MPT

Warranty & Certifications

Warranty

Tank: 10 years; Valve: 1 year
