MIRION Technologies

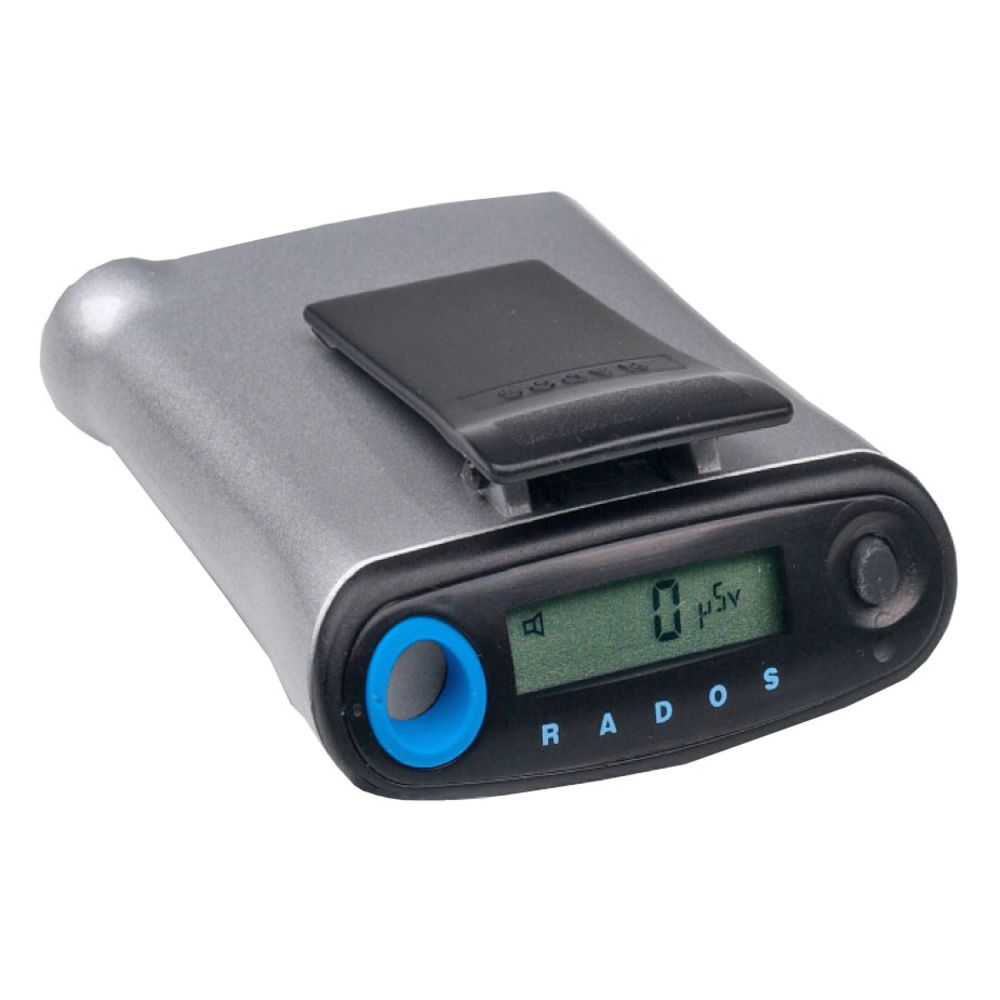

Mirion RAD-60 LCD Radiation Detector Dosimeter

Part Number: RAD-60R

Alt. Part Number: RAD-60R/RAF-1233218

In Stock

out of stock

In Stock

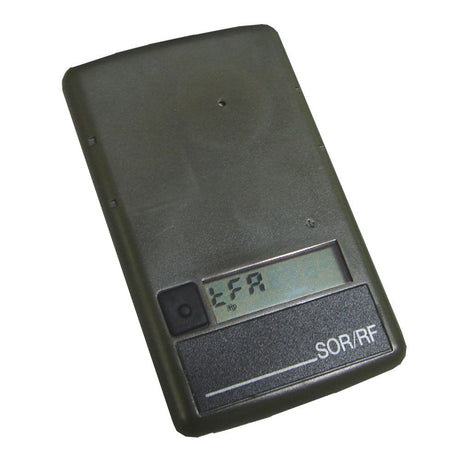

This item is discontinued. We recommend the Mirion SOR/RF LCD Radiation Detector Dosimeter as a substitute.


The RADOS RAD-60 Personal Alarming Dosimeter is a precise radiation measuring instrument for reliable detection and registration of radiation in order to ensure the personal safety of the user. It is suitable for a broad range of everyday radiation monitoring purposes in stand alone conditions.

Features:
  • Enhanced EMI immunity
  • Improved wear-out and decontamination properties
  • Individual personal alarming dosimeter
  • Digital display for integrated dose or alternatively dose rate
  • User selectable alarm levels for both dose and dose rate
  • Detector system utilizes high quality energy compensated Si diode and advanced mathematical dose rate linearization
  • Splash-proof mechanical construction, high impact plastic case with strong pocket clip
  • Ideal for civil defense, rescue operations, customs operations, military forces, industrial radiography, nuclear medicine
Radiological Characteristics:
  • Detects gamma and X-ray radiation
  • Energy compensated Si-Diode detectors
  • Measurement range:
  • dose: 1 µSv - 9.99 Sv or 0.1 mrem - 999 rem
  • dose rate: 5 µSv/h - 3 Sv/h or 0,5 mrem/h - 300 rem/h
  • Calibration is better than ±5% (Cs-137, 662 keV at 2 mSv/h), Hp(10)
  • Dose rate linearity is better than ±15%, up to 3 Sv/h (300rem/h)
  • Energy response is Hp(10), 55 keV - 3 MeV, better than ±25%, up tp 6 MeV, better than ±35%
Functional Characteristics:
  • Six preset alarm threshold values each for integrated dose and dose rate, manually selectable by push-button
  • Front panel push-button functions:
  • Toggle between dose and dose rate display
  • Switch ON/OFF
  • Chirp ON/OFF
  • Reset integrated dose
  • Change alarm thresholds
  • Activate battery test
  • Audible alarms:
  • Seven separate alarms, sound level typically better than 85 dBA at 30 cm
  • Low battery 1 and 2
  • Defect
  • Integrated dose, dose rate, dose overflow, dose rate overflow at 3 Sv/h or 300 rem/h

NOTE: Radiation meters are a special purchase item to address the needs of our customers and are non-refundable, with the exception of products that are not functioning due to manufacturer defects. Replacement for defective items must have trouble-shooting performed by our technical department prior to RGA approval.



Weight & Dimensions

Weight (lbs)

3.8

Dimensions

3.07 x 2.63 x 0.86 / 78 x 67 x 22"/MM

Details

Max Temp (°F)

122

Min Temp (°F)

-4

Origin

Finland

Power Source

one triple A alkaline cell, life typically 1800 h in background field (dose mode)

Test Type

Gamma, X-Ray


Mirion

Mirion

Mirion

Mirion





The RADOS RAD-60 Personal Alarming Dosimeter is a precise radiation measuring instrument for reliable detection and registration of radiation in order to ensure the personal safety of the user. It is suitable for a broad range of everyday radiation monitoring purposes in stand alone conditions.

Features:
  • Enhanced EMI immunity
  • Improved wear-out and decontamination properties
  • Individual personal alarming dosimeter
  • Digital display for integrated dose or alternatively dose rate
  • User selectable alarm levels for both dose and dose rate
  • Detector system utilizes high quality energy compensated Si diode and advanced mathematical dose rate linearization
  • Splash-proof mechanical construction, high impact plastic case with strong pocket clip
  • Ideal for civil defense, rescue operations, customs operations, military forces, industrial radiography, nuclear medicine
Radiological Characteristics:
  • Detects gamma and X-ray radiation
  • Energy compensated Si-Diode detectors
  • Measurement range:
  • dose: 1 µSv - 9.99 Sv or 0.1 mrem - 999 rem
  • dose rate: 5 µSv/h - 3 Sv/h or 0,5 mrem/h - 300 rem/h
  • Calibration is better than ±5% (Cs-137, 662 keV at 2 mSv/h), Hp(10)
  • Dose rate linearity is better than ±15%, up to 3 Sv/h (300rem/h)
  • Energy response is Hp(10), 55 keV - 3 MeV, better than ±25%, up tp 6 MeV, better than ±35%
Functional Characteristics:
  • Six preset alarm threshold values each for integrated dose and dose rate, manually selectable by push-button
  • Front panel push-button functions:
  • Toggle between dose and dose rate display
  • Switch ON/OFF
  • Chirp ON/OFF
  • Reset integrated dose
  • Change alarm thresholds
  • Activate battery test
  • Audible alarms:
  • Seven separate alarms, sound level typically better than 85 dBA at 30 cm
  • Low battery 1 and 2
  • Defect
  • Integrated dose, dose rate, dose overflow, dose rate overflow at 3 Sv/h or 300 rem/h

NOTE: Radiation meters are a special purchase item to address the needs of our customers and are non-refundable, with the exception of products that are not functioning due to manufacturer defects. Replacement for defective items must have trouble-shooting performed by our technical department prior to RGA approval.


NOTE: This item is discontinued. We recommend the Mirion SOR/RF LCD Radiation Detector Dosimeter as a substitute.

Weight & Dimensions

Weight (lbs)

3.8

Dimensions

3.07 x 2.63 x 0.86 / 78 x 67 x 22"/MM

Details

Max Temp (°F)

122

Min Temp (°F)

-4

Origin

Finland

Power Source

one triple A alkaline cell, life typically 1800 h in background field (dose mode)

Test Type

Gamma, X-Ray
