MIRION Technologies

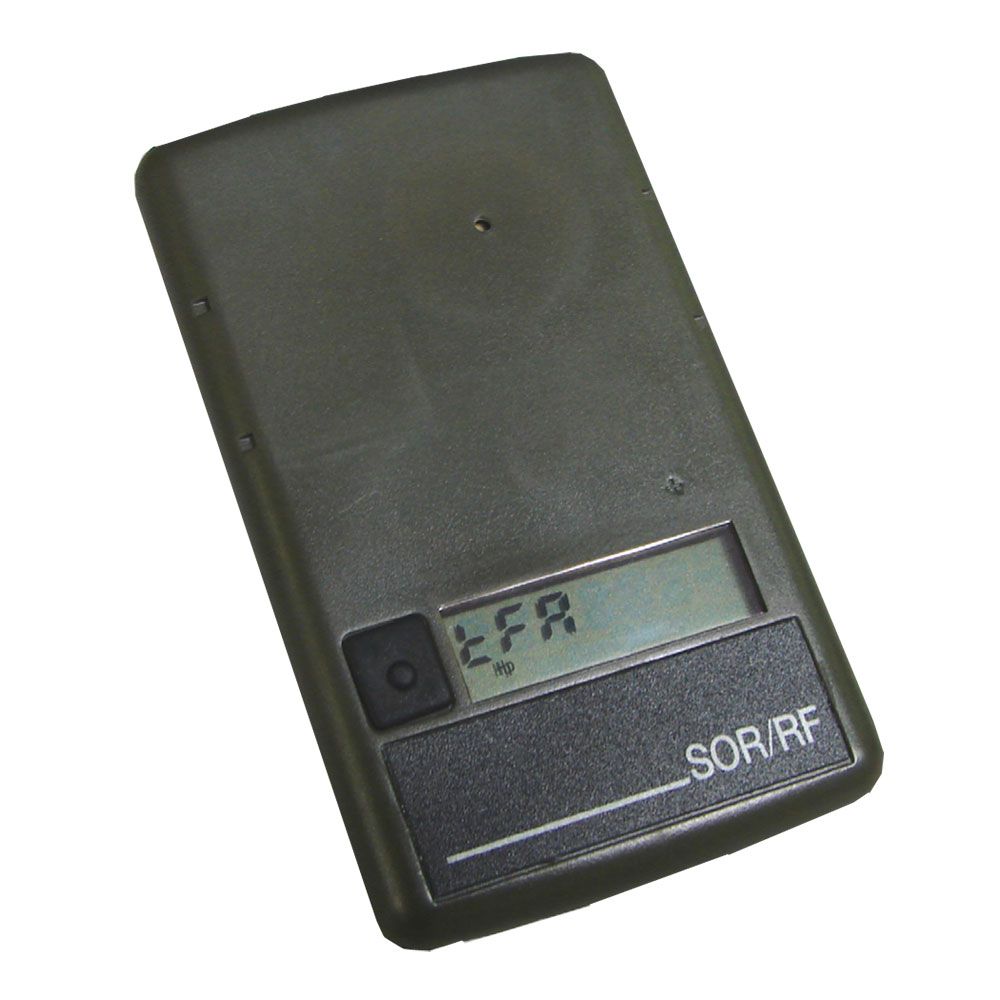

Mirion SOR/RF LCD Radiation Detector Dosimeter

Part Number: SOR/RF

Alt. Part Number: SOR-RF/147493, DMC-2000S

In Stock

out of stock

In Stock

$499.00


The SOR/RF Electronic Dosimeter represents a substantially increased EMI resistance over the SOR-R and SOR-T product lines. It has been enhanced to exceed the EMI interference requirements of MIL STD-461/810. This small and rugged dosimeter can be used in the battlefield, as well as in various international missions where low level radiations (LLR) performance is needed.
Environmental Characteristics:
  • Meets MIL-STD-810 & MIL-STD-461 requirements
  • NATO Number 6665 14 563 9423
  • Complies with IEC 1283, ANSI 42-20 & NATO D104
  • Qualified by most NATO military laboratories
  • Resistant to EMP, EMC and radars
  • Resistant to water immersion, drops, shock, vibration, low pressure, initial conditions and NBC environmental conditions
Radiological Characteristics:
  • Hp(10) dose equivalent measurements
  • Flash gamma dose measurement: 5 cGy to 10 Gy
  • Ambient gamma dose measurement range: 1µGy to 10 Gy
  • Gamma dose rate measurement range: from background to 10 Gy/h
  • Gamma dose rate display: from 1 or 10 µGy/h to 10 Gy/h
  • Saturation indication (above 10 Gy/h)
  • Energy response:
  • < +/- 20 % in the range 60 keV to 2 MeV
  • < +/- 50 % in the range 2 MeV to 6 MeV
Functional Characteristics:
  • Redundant architecture with passive measurement components
  • Selectable units: cGy; cGy/h; mSv; mSv/h: mrem; mrem/h
  • 4 configurable dose and dose rate alarm levels
  • Typical one year lifetime with standard battery
  • User selectable display modes
  • Periodic exhaustive self-testing including the detector
  • Battery fault pre-alarm (16 h) and alarm
  • Historical record of measurements and events (750 steps; 10 s; 1 min, 10 min; 1 h; 24 h)

Radiation meters are a special purchase item to address the needs of our customers and are non-refundable, with the exception of products that are not functioning due to manufacturer defects. Replacement for defective items must have trouble-shooting performed by our technical department prior to RGA approval.


Weight & Dimensions

Approx Weight

55 g (1.94 oz)

Dimensions

80,4 x 48 x 9 mm (flat housing) (3.16 x 1.85 x 0.35 in) Inches

Details

Operating Temperature Range

-4 to 122 (-20C to 50C) Degrees Fahrenheit

Origin

France

Power Source

3V LiMnO(2) CR4250

Warranty & Certifications

Certifications

MIL STD-461/810
