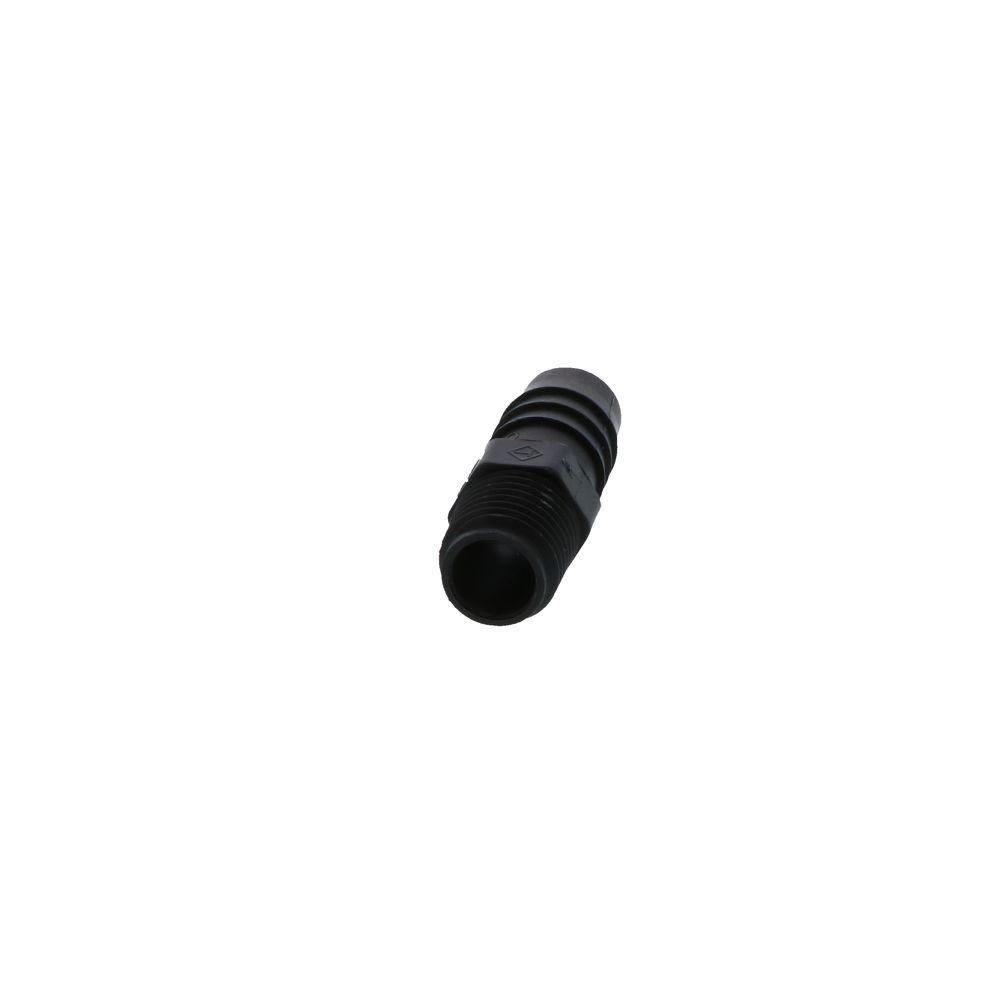

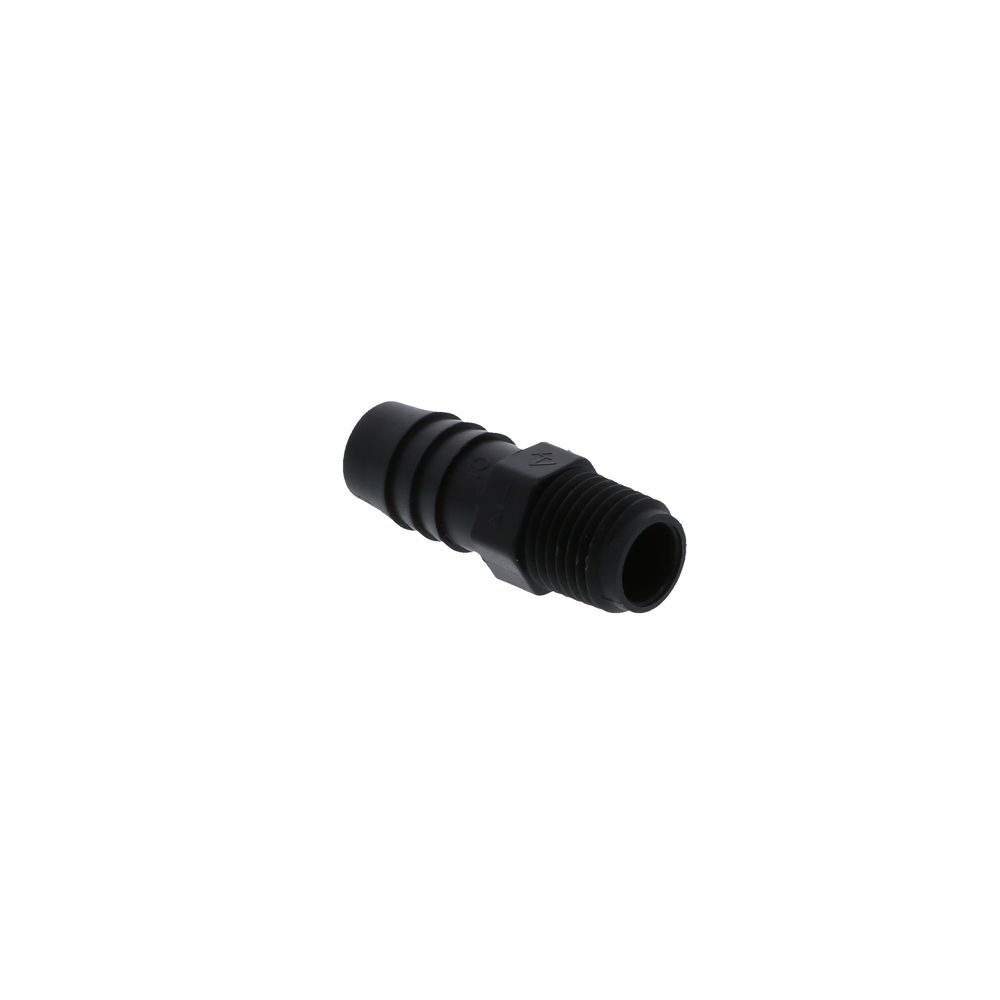

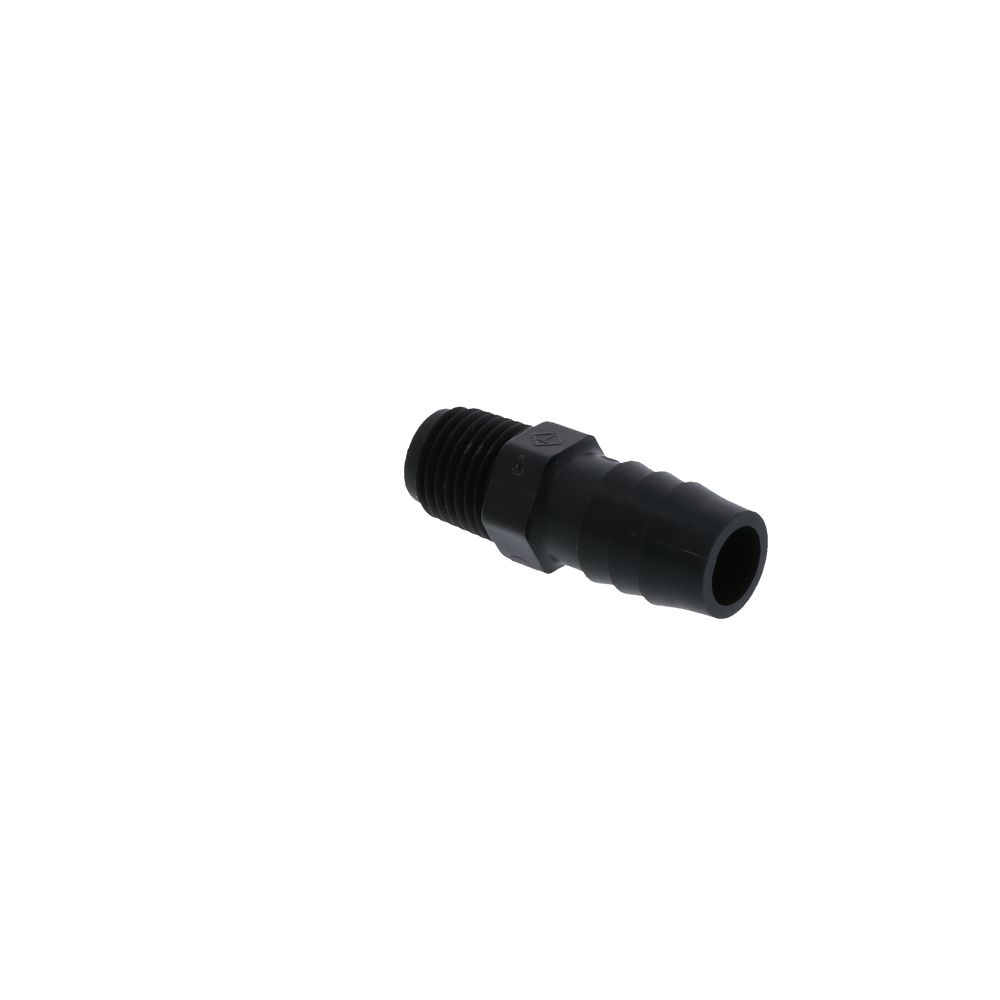

The Male Barb Connector made from polypropylene provides a tight seal that, because of the polypropylene, is resistant to chemicals, corrosion, and abrasion.
Specifications: Material: Black Polypropylene
Temp Range: 9°F min to 150°F max Pressure: 125psi at 70°F Barb Sizes: Available in 1/16" barb to 1" barb Male NPT Sizes: Available in 1/8" Male NPT to 1" Male NPT Like most of the polyolefins, polypropylene is highly resistant to solvents and chemicals. It has outstanding resistance to water and other inorganic environments. It resists most strong mineral acids. White polypropylene fittings exhibit the same physical and chemical resistance properties as natural polypropylene. These fittings contain a percentage of recycled material sourced from natural polypropylene, virgin material production runs. A white colorant is added to differentiate our white polypropylene fittings from natural polypropylene fittings. If your application does not require lot traceability, or a fitting that meets USP XXI Class VI requirements (for medical applications) these fittings represent an excellent value.
Specifications: Material: Black Polypropylene
Temp Range: 9°F min to 150°F max Pressure: 125psi at 70°F Barb Sizes: Available in 1/16" barb to 1" barb Male NPT Sizes: Available in 1/8" Male NPT to 1" Male NPT Like most of the polyolefins, polypropylene is highly resistant to solvents and chemicals. It has outstanding resistance to water and other inorganic environments. It resists most strong mineral acids. White polypropylene fittings exhibit the same physical and chemical resistance properties as natural polypropylene. These fittings contain a percentage of recycled material sourced from natural polypropylene, virgin material production runs. A white colorant is added to differentiate our white polypropylene fittings from natural polypropylene fittings. If your application does not require lot traceability, or a fitting that meets USP XXI Class VI requirements (for medical applications) these fittings represent an excellent value.
Weight & Dimensions
Weight (lbs) | 0.1 |
Details
Series | Par-Barb |
Max Temp (°F) | 212 |
Max Pressure (Psi) | 125 |
Min Temp (°F) | 0 |
Min Pressure (Psi) | 0 |
Barb Size | 1/2" ID |
Application | Water, Beverage |
Body Material | Polypropylene |
Color / Finish | Black |
Mounting Options | Thread |
Size | 1/4" |
Inlet/Outlet Connection | 1/4" MPT |
Warranty & Certifications
Certifications | NSF 51, FDA Approved |
The Male Barb Connector made from polypropylene provides a tight seal that, because of the polypropylene, is resistant to chemicals, corrosion, and abrasion.
Specifications: Material: Black Polypropylene
Temp Range: 9°F min to 150°F max Pressure: 125psi at 70°F Barb Sizes: Available in 1/16" barb to 1" barb Male NPT Sizes: Available in 1/8" Male NPT to 1" Male NPT Like most of the polyolefins, polypropylene is highly resistant to solvents and chemicals. It has outstanding resistance to water and other inorganic environments. It resists most strong mineral acids. White polypropylene fittings exhibit the same physical and chemical resistance properties as natural polypropylene. These fittings contain a percentage of recycled material sourced from natural polypropylene, virgin material production runs. A white colorant is added to differentiate our white polypropylene fittings from natural polypropylene fittings. If your application does not require lot traceability, or a fitting that meets USP XXI Class VI requirements (for medical applications) these fittings represent an excellent value.
Weight & Dimensions
Weight (lbs) | 0.1 |
Details
Series | Par-Barb |
Max Temp (°F) | 212 |
Max Pressure (Psi) | 125 |
Min Temp (°F) | 0 |
Min Pressure (Psi) | 0 |
Barb Size | 1/2" ID |
Application | Water, Beverage |
Body Material | Polypropylene |
Color / Finish | Black |
Mounting Options | Thread |
Size | 1/4" |
Inlet/Outlet Connection | 1/4" MPT |
Warranty & Certifications
Certifications | NSF 51, FDA Approved |
