Parker

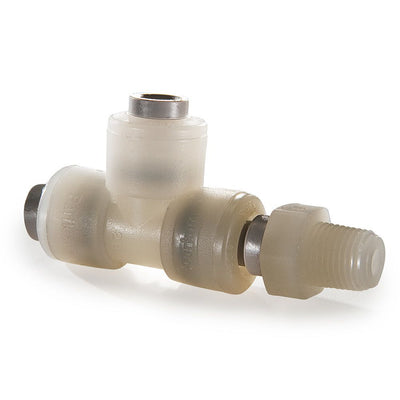

Kynar PVDF Male Run Swivel Tee - 3/8 x 3/8 NPTF

Part Number: F6MRS6

In Stock

out of stock

In Stock

$9.59

Features:
  • Patented Push-to-connect Design
  • Chemical Resistance
  • UV Resistance
  • FDA Compliant
Applications:
  • Chemical Processing/Storage
  • Fluid Handling
  • Semiconductor Equipment
  • DI Water Systems
  • High Purity
  • Aquariums


Kynar
w/Viton Seal
 Tube O.D. NPTF
Thread
C
Hex
L  M  N  D
 F4MRS2 1/4

1/8

9/16 1.55 0.81

0.85

.175
 F4MRS4 1/4 1/4 11/16 1.67 0.81 0.85 .175
 F6MRS4 3/8 1/4 13/16 1.90 1.02 1.02 .250
 F6MRS6 3/8 3/8 13/16 1.90 1.02 1.02 .250


Weight & Dimensions

Weight (lbs)

0.075

Details

Application

Water, Air, Beverage, Beer, Wine, Soft Drinks, Dyes

Body Material

Kynar

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

250

Max Temp (°F)

275

Min Pressure (Psi)

Vacuum

Min Temp (°F)

0

Mounting Options

Thread

Push-In Size

3/8" OD

Seal Material

FKM (Viton)

Series

TrueSeal

Size

3/8"

Color / Finish

White

Connection Type

Male (MPT)

Origin

USA

Sub-Type

Swivel Run Tee

Type

Tee

Warranty & Certifications

Certifications

NSF 51


Kynar
