JACO Manufacturing Company

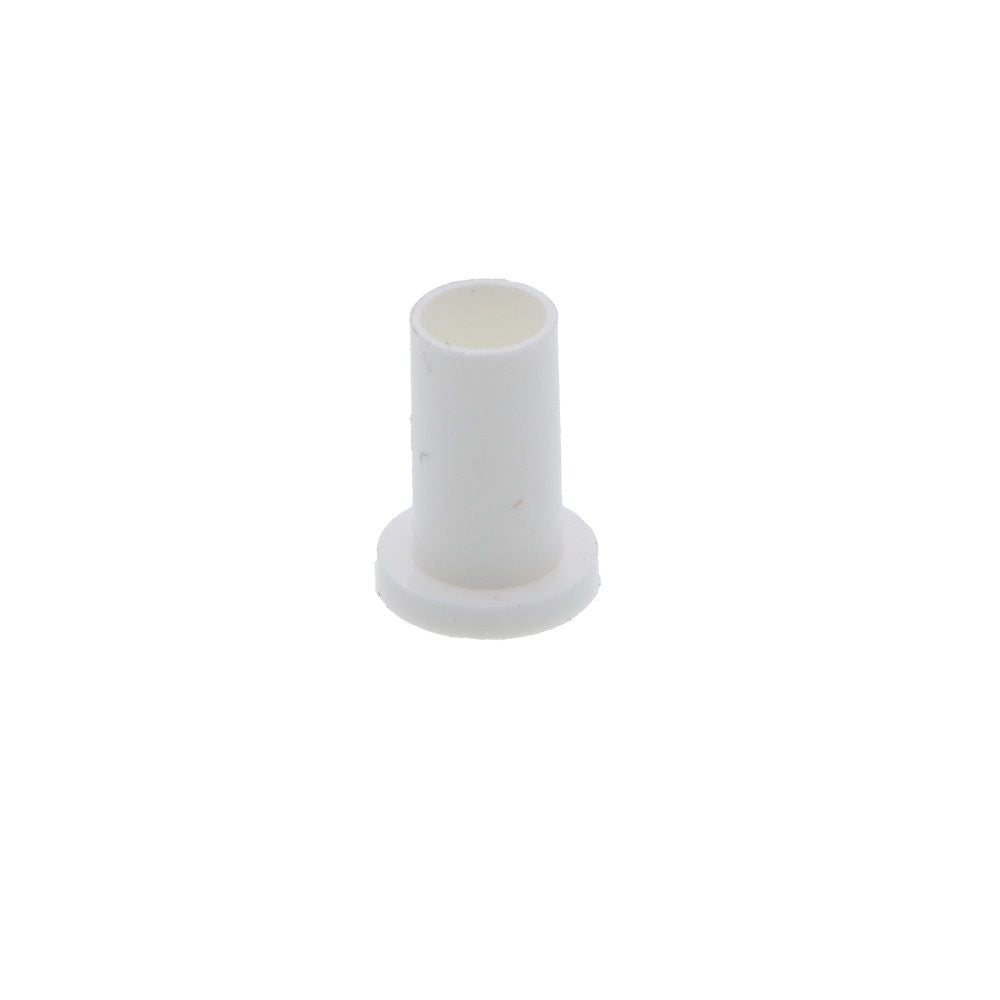

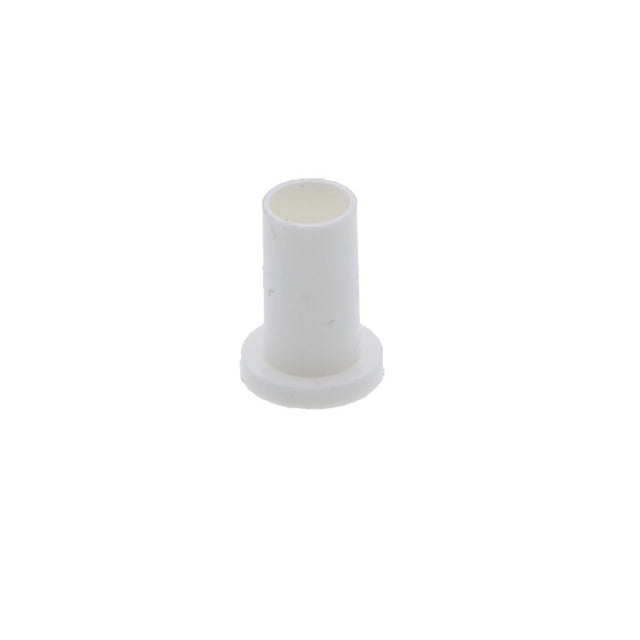

JACO C-P-4 Acetal Tube Insert 1/4" OD

Part Number: C-P-4

In Stock

out of stock

In Stock

This item is discontinued. We recommend the JACO P-P-4 Polypropylene Tube Insert For 1/4" OD Tubing as a substitute.

Jaco C-P-4 Acetal Tube Insert Fittings are used in soft or thin wall tubing. The inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Acetal inserts eliminate the need for special high-temperature inserts.

Specifications:
  • Tubing Size: 1/4" OD
  • Inside Diameter of Fitting: 1/8"
  • Length Of Fitting: 3/8"

Advantages of JACO fittings over metal compression fittings: Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting. Low density and softness of plastic give JACO fittings the ability to absorb mechanical and acoustical vibrations. Low resistance to flow due to the smooth internal surface of the fittings. Resistance to scale buildup.

Jaco Part
Numbers
Tube Size
(O.D.)

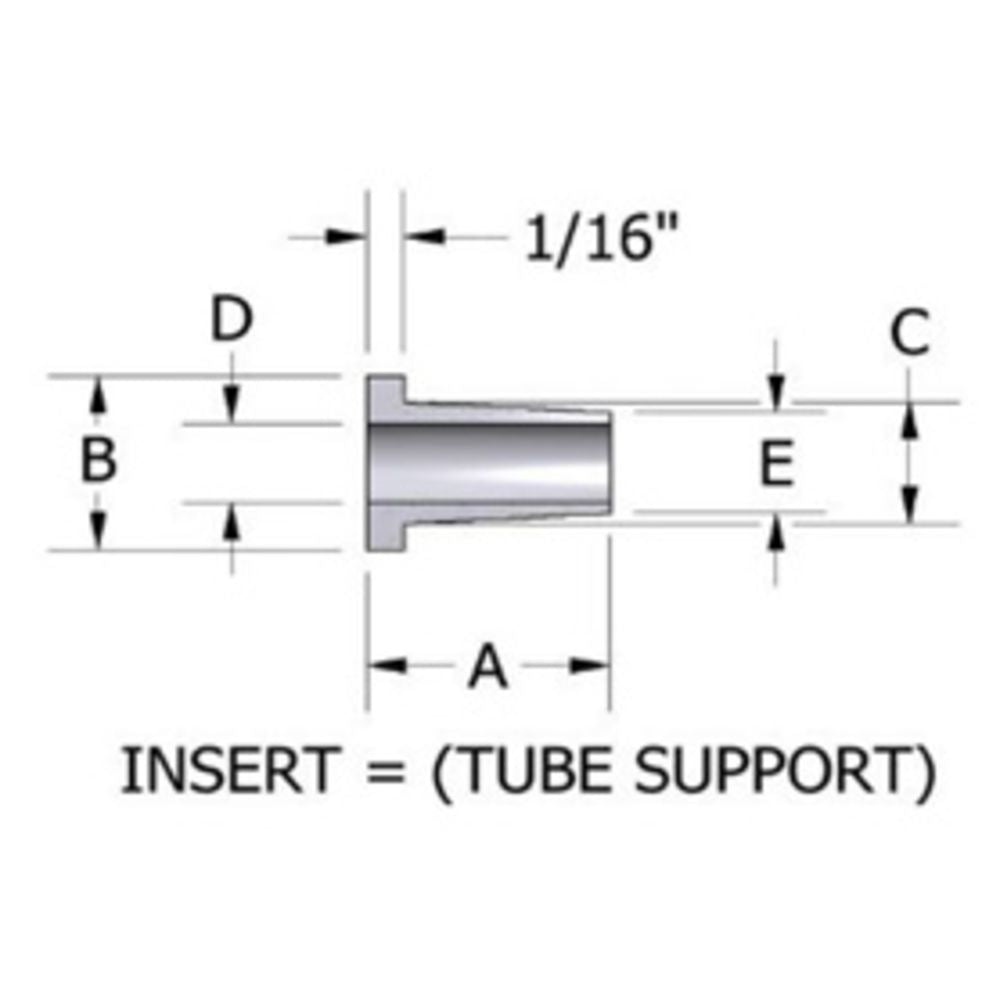

A B C D E C-P-4 1/4 3/8 .240 - .250 .199 1/8 .167 C-P-5 5/16 13/32 .300 - .312 .217 9/64 .180 C-P-6 3/8 1/2 .360 - .370 .245 - .250 .200 .235 C-P-8 1/2 9/16 .475 - .490 .370 - .375 .300 .350 All Measurements listed above are in Inches

Jaco Part
Numbers
Tube Size
(O.D.)
A B C D E
C-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
 C-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
C-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
C-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches


Details

Application

Water

Body Material

Acetal Copolymer

Max Temp (°F)

200

Min Temp (°F)

-40

Push-In Size

1/4" OD

Color / Finish

White

Type

Tube Insert



Jaco C-P-4 Acetal Tube Insert Fittings are used in soft or thin wall tubing. The inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Acetal inserts eliminate the need for special high-temperature inserts.

Specifications:
  • Tubing Size: 1/4" OD
  • Inside Diameter of Fitting: 1/8"
  • Length Of Fitting: 3/8"

Advantages of JACO fittings over metal compression fittings: Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting. Low density and softness of plastic give JACO fittings the ability to absorb mechanical and acoustical vibrations. Low resistance to flow due to the smooth internal surface of the fittings. Resistance to scale buildup.

Jaco Part
Numbers
Tube Size
(O.D.)
A B C D E C-P-4 1/4 3/8 .240 - .250 .199 1/8 .167 C-P-5 5/16 13/32 .300 - .312 .217 9/64 .180 C-P-6 3/8 1/2 .360 - .370 .245 - .250 .200 .235 C-P-8 1/2 9/16 .475 - .490 .370 - .375 .300 .350 All Measurements listed above are in Inches

Jaco Part
Numbers
Tube Size
(O.D.)
A B C D E
C-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
 C-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
C-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
C-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches

NOTE: This item is discontinued. We recommend the JACO P-P-4 Polypropylene Tube Insert For 1/4" OD Tubing as a substitute.

Details

Application

Water

Body Material

Acetal Copolymer

Max Temp (°F)

200

Min Temp (°F)

-40

Push-In Size

1/4" OD

Color / Finish

White

Type

Tube Insert
