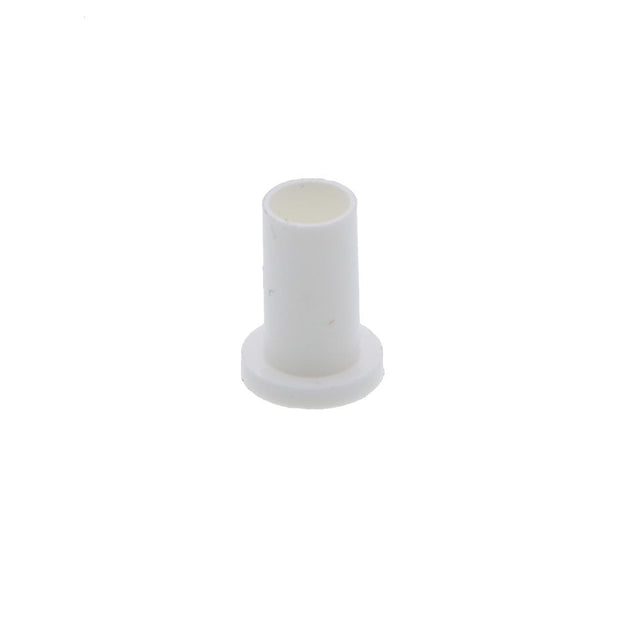

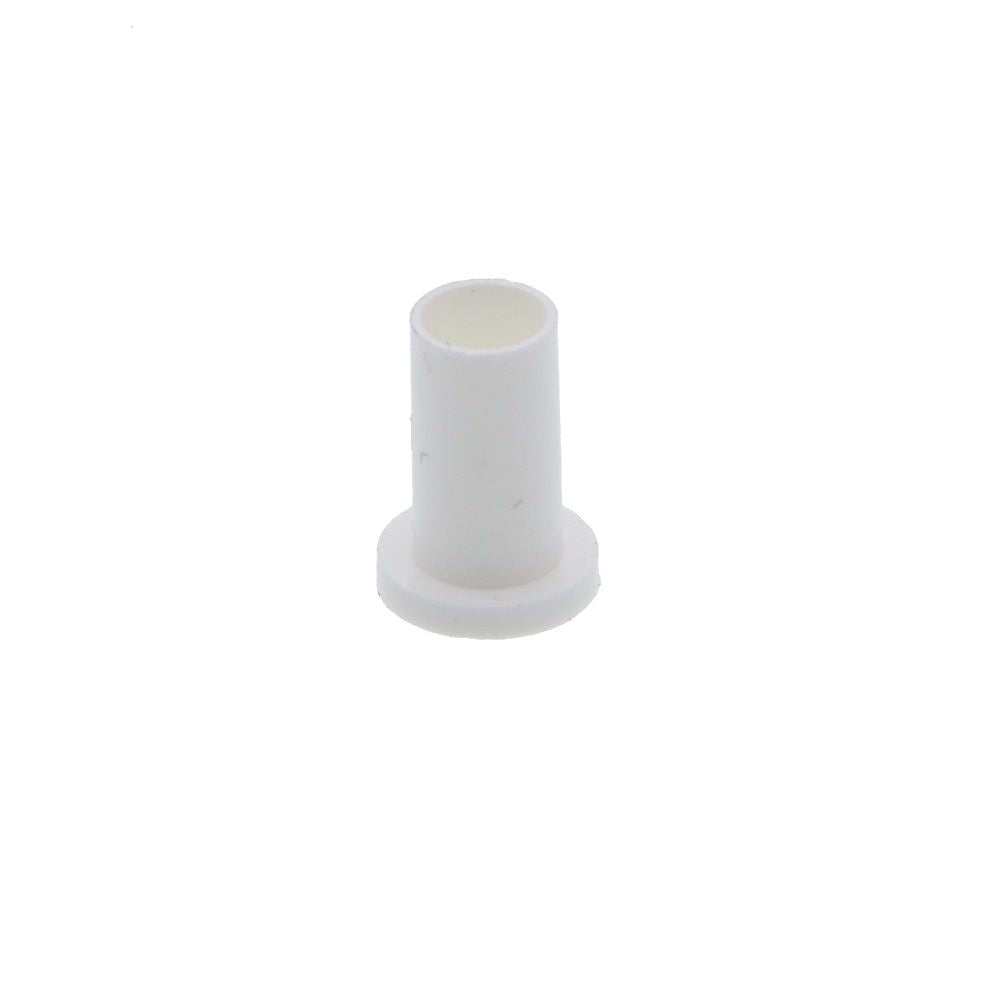

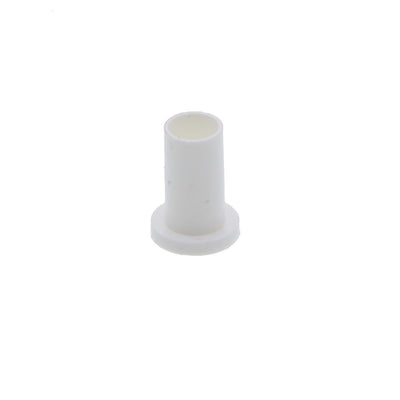

JACO C-P-5 Acetal Tube Insert 5/16" OD

Part Number: C-P-5

In Stock

out of stock

In Stock

$0.14


Jaco C-P-5 Acetal Tube Insert Fittings are used in soft or thin wall tubing. The inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Acetal inserts eliminate the need for special high temperature inserts.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

Specifications:
  • Tubing Size: 5/16" OD
  • Inner Diameter of Fitting: 9/64"
  • Length of Fitting: 13/32"
Jaco Part
Numbers
Tube Size
(O.D.)
A B C D E

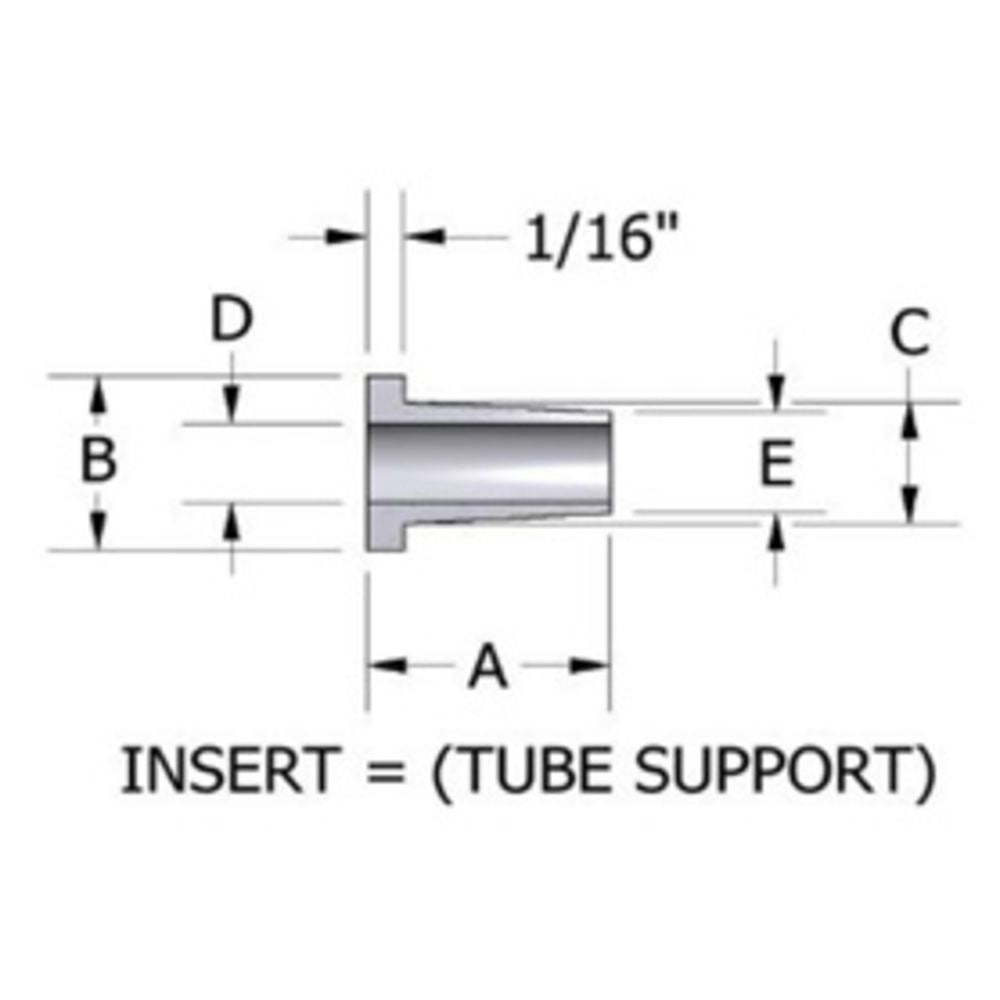

C-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
 C-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
C-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
C-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches


Details

Body Material

Celcon

Od Size

5/16"




Jaco C-P-5 Acetal Tube Insert Fittings are used in soft or thin wall tubing. The inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Acetal inserts eliminate the need for special high temperature inserts.

Advantages of JACO fittings over metal compression fittings:
  • Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
  • Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
  • Low resistance to flow due to the smooth internal surface of the fittings.
  • Resistance to scale buildup.

Specifications:
  • Tubing Size: 5/16" OD
  • Inner Diameter of Fitting: 9/64"
  • Length of Fitting: 13/32"
Jaco Part
Numbers
Tube Size
(O.D.)
A B C D E
C-P-4  1/4  3/8 .240 - .250  .199  1/8  .167
 C-P-5  5/16  13/32  .300 - .312   .217 9/64 .180
C-P-6  3/8  1/2 .360 - .370  .245 - .250  .200  .235
C-P-8  1/2  9/16 .475 - .490  .370 - .375  .300  .350
All Measurements listed above are in Inches

Details

Body Material

Celcon

Od Size

5/16"
