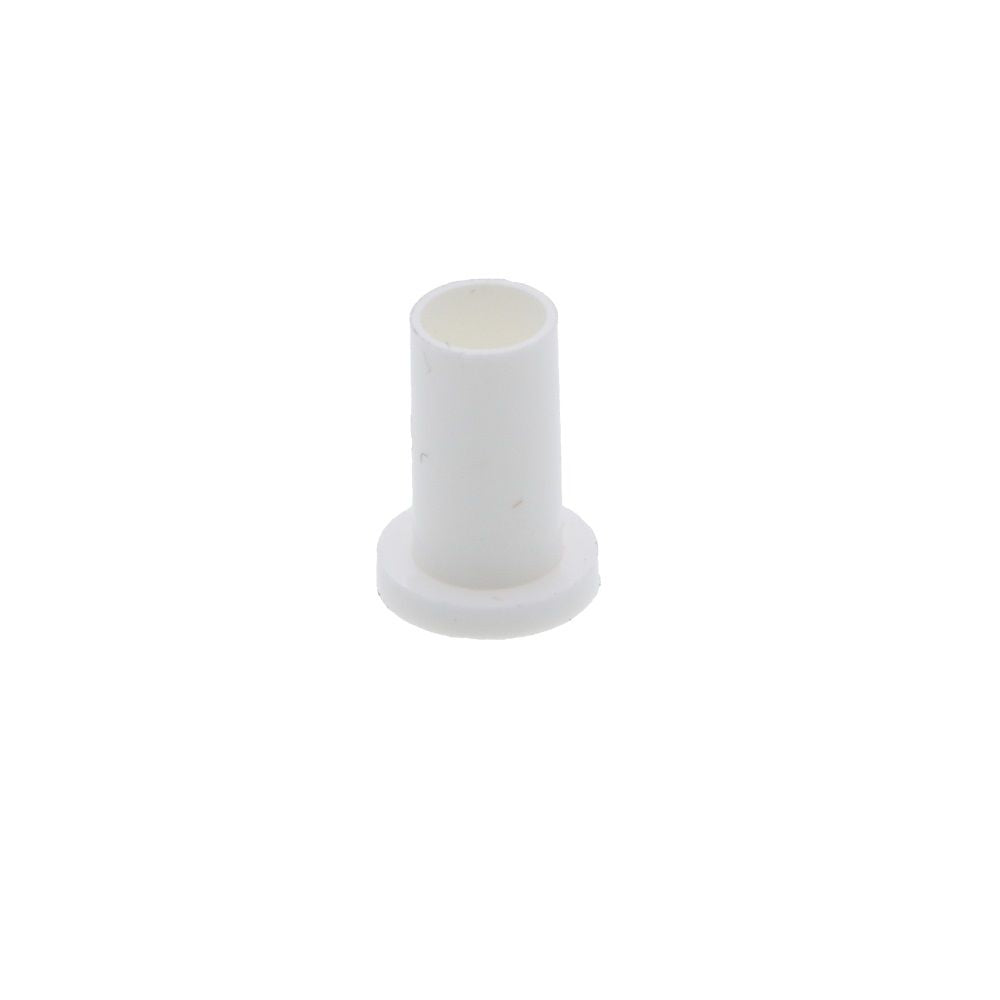

JACO C-P-6 Acetal Tube Insert 3/8" OD
JACO C-P-6 Acetal Tube Insert 3/8" OD
Part Number: C-P-6
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
More expected soon
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Jaco C-P-6 Acetal Tube Insert Fittings are used in soft or thin wall tubing. These inserts will not wear a hole in the tubing, and provide a grip to prevent sliding due to heat expansion. Acetal inserts eliminate the need for special high temperature inserts.
Advantages of JACO fittings over metal compression fittings:
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
- Tubing Size: 3/8" OD
- Inner Diameter of Fitting: 0.2"
- Length of Fitting: 1/2"

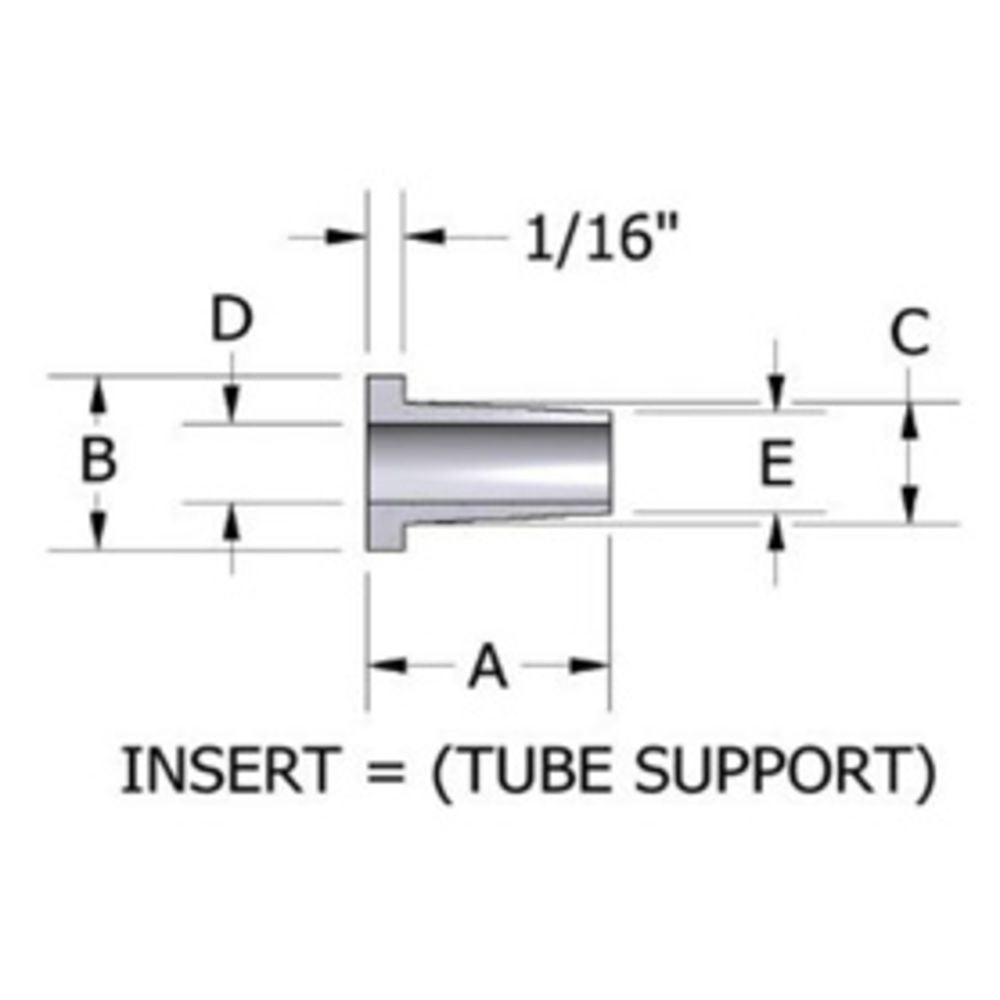

Jaco Part Numbers |
Tube Size (O.D.) |
A | B | C | D | E |
C-P-4 | 1/4 | 3/8 | .240 - .250 | .199 | 1/8 | .167 |
C-P-5 | 5/16 | 13/32 | .300 - .312 | .217 | 9/64 | .180 |
C-P-6 | 3/8 | 1/2 | .360 - .370 | .245 - .250 | .200 | .235 |
C-P-8 | 1/2 | 9/16 | .475 - .490 | .370 - .375 | .300 | .350 |
All Measurements listed above are in Inches |
