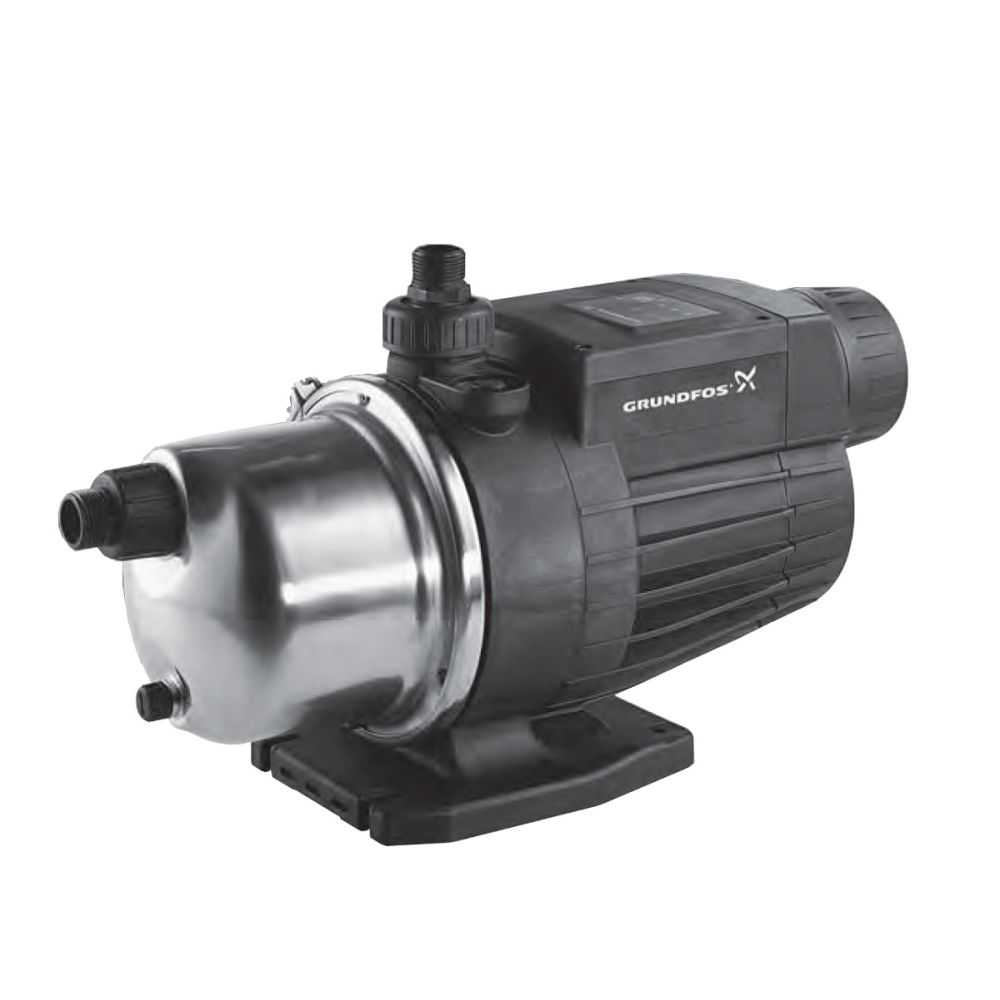

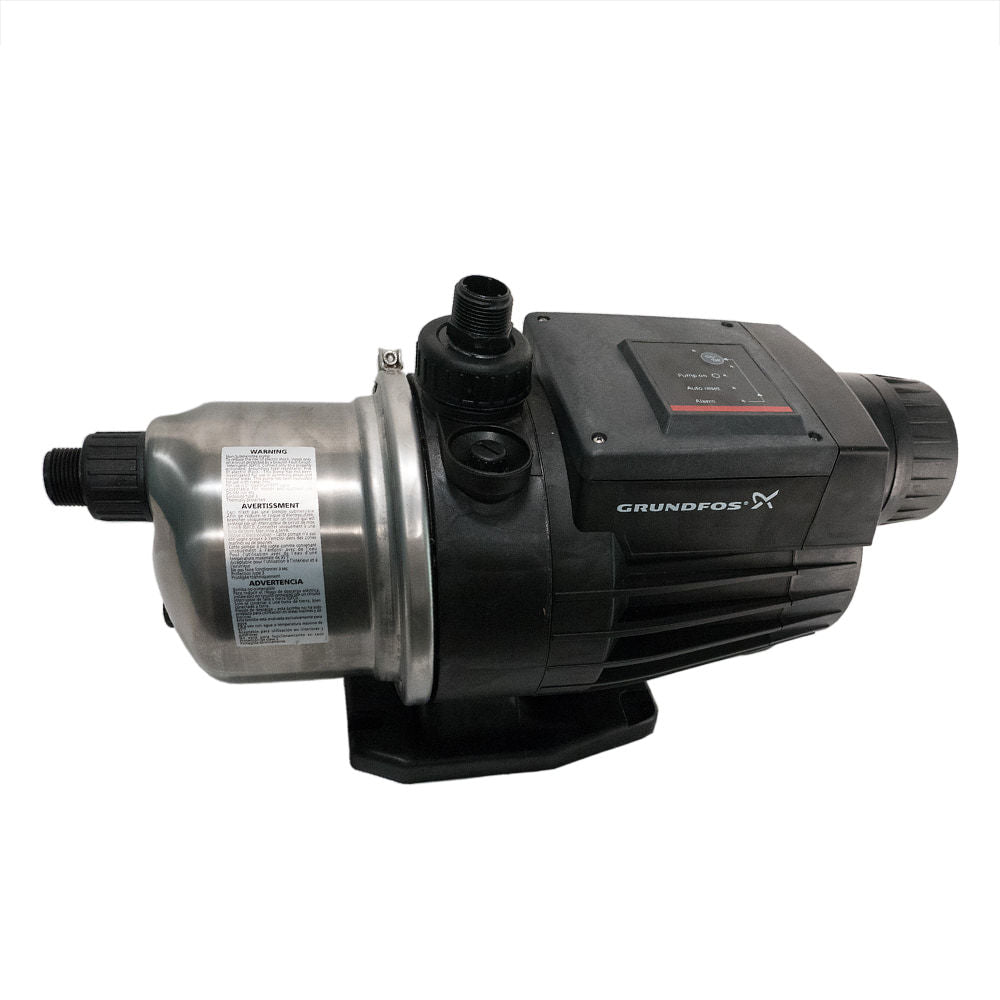

Grundfos MQ3-35 (115V) 3/4 HP Pressure Booster Pump - 96860172
Part Number: MQ3-35-1
Alt. Part Number: G96860172, 96860172, Formerly 96515512
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Easy installation and little space required
- All-in-one design featuring a water pump, motor, tank, flow controller, and check valve
- Stop and start prevention to protect motor during dry running or increased temperature
- User-friendly control panel
- Class A capacitor to increase the length of operation
- More robust printed circuit to increase capacity to function during power fluctuations
- Potting material added to protect printed circuit board components
- High torque motor
- Advanced diffuser design for improved hydraulic performance
Compatible with: Davey BT14-45, Amtrol RP15, DuraMac 17052R
WARNING!
| Product Details | |
|---|---|
Ambient Temperature Range | 32-113 °F |
Inlet Connection | 1" MPT |
Inlet Pressure | 44 PSI |
Liquid Temperature | 32-95 °F |
Outlet Connection | 1" MPT |
Power | 3/4 hp 585 Watts |
Pump Max Flow Rate (Gpm) | 22 |
Pump Max Pressure (Psi) | 108 |
Series | MQ3 |
Size | 1" |
Suction Lift | 26 ft Max |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 115VAC |
| Warranty & Certifications | |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
| Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 10 in. |
Shipping Height | 14 in. |
| Product Weight & Dimensions | |
Product Height | 14 |
Product Length | 24 |
Product Width | 10 |
Product Weight (lbs) | 34 |
| Product Details | |
|---|---|
Ambient Temperature Range | 32-113 °F |
Inlet Connection | 1" MPT |
Inlet Pressure | 44 PSI |
Liquid Temperature | 32-95 °F |
Outlet Connection | 1" MPT |
Power | 3/4 hp 585 Watts |
Pump Max Flow Rate (Gpm) | 22 |
Pump Max Pressure (Psi) | 108 |
Series | MQ3 |
Size | 1" |
Suction Lift | 26 ft Max |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 115VAC |
| Warranty & Certifications | |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 512.25 |
Features:
- Easy installation and little space required
- All-in-one design featuring a water pump, motor, tank, flow controller, and check valve
- Stop and start prevention to protect motor during dry running or increased temperature
- User-friendly control panel
- Class A capacitor to increase the length of operation
- More robust printed circuit to increase capacity to function during power fluctuations
- Potting material added to protect printed circuit board components
- High torque motor
- Advanced diffuser design for improved hydraulic performance
Compatible with: Davey BT14-45, Amtrol RP15, DuraMac 17052R
WARNING!
| Product Details | |
|---|---|
Ambient Temperature Range | 32-113 °F |
Inlet Connection | 1" MPT |
Inlet Pressure | 44 PSI |
Liquid Temperature | 32-95 °F |
Outlet Connection | 1" MPT |
Power | 3/4 hp 585 Watts |
Pump Max Flow Rate (Gpm) | 22 |
Pump Max Pressure (Psi) | 108 |
Series | MQ3 |
Size | 1" |
Suction Lift | 26 ft Max |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 115VAC |
| Warranty & Certifications | |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
| Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 10 in. |
Shipping Height | 14 in. |
| Product Weight & Dimensions | |
Product Height | 14 |
Product Length | 24 |
Product Width | 10 |
Product Weight (lbs) | 34 |
| Product Details | |
|---|---|
Ambient Temperature Range | 32-113 °F |
Inlet Connection | 1" MPT |
Inlet Pressure | 44 PSI |
Liquid Temperature | 32-95 °F |
Outlet Connection | 1" MPT |
Power | 3/4 hp 585 Watts |
Pump Max Flow Rate (Gpm) | 22 |
Pump Max Pressure (Psi) | 108 |
Series | MQ3 |
Size | 1" |
Suction Lift | 26 ft Max |
Voltage Type | AC |
Connection Type | Male (MPT) |
Voltage | 115VAC |
| Warranty & Certifications | |
Warranty | Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 512.25 |
