Davey

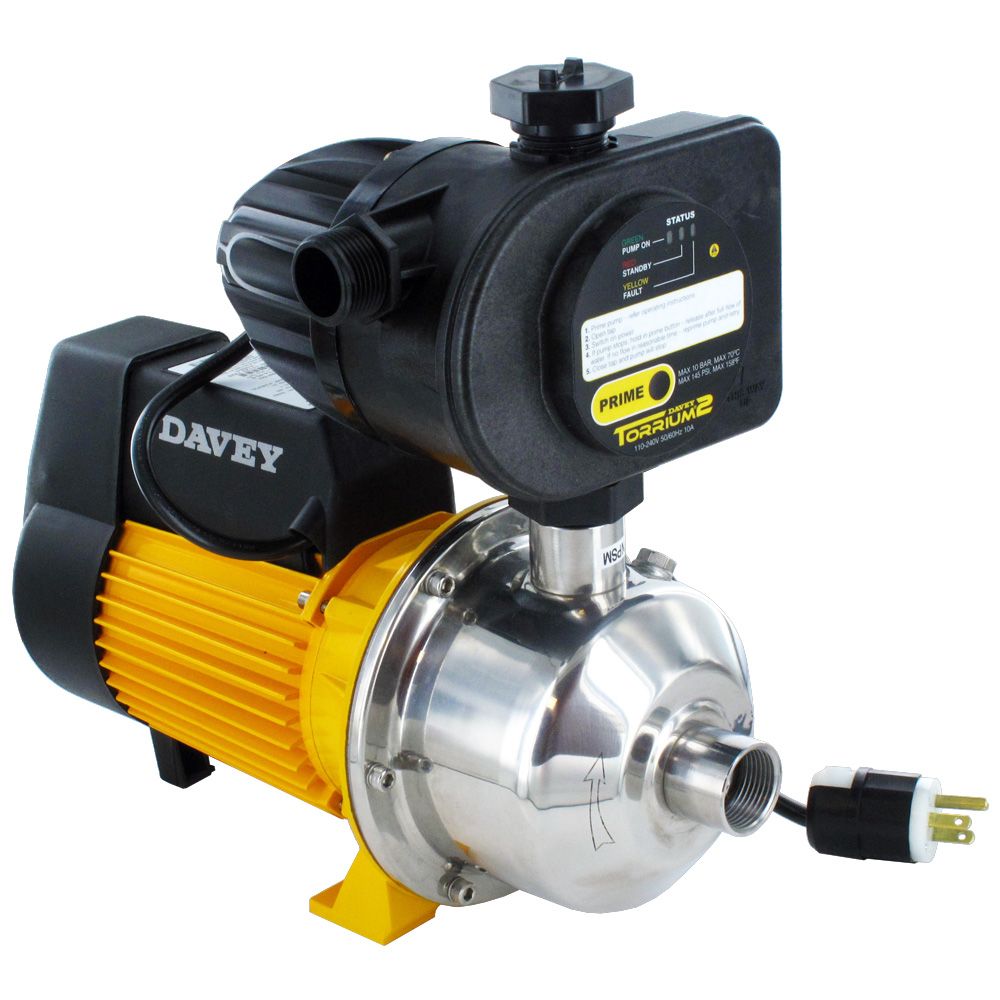

Davey BT14-30 Booster System with Torrium2 - +30 psi 14 gpm

Part Number: BT14-30

Alt. Part Number: BT14-30, BT14-30-D

In Stock

out of stock

In Stock

$671.00

The Davey BT14-30 Single Impeller Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quiet, featuring low noise between 54 and 56 dBa. The BT14-30 is ideal size for a small residences, mobile homes, cottages and yachts. Torrium 2: Smart controller with adaptive cut-in knows to come on for even constant pressure Needs no adjustment - comes on with half gallon flow or a 20% pressure loss Swivels 360 degrees with top and side discharge Built-in spring loaded check valve and accumulator - no tank required

Features:

  • Dry run protection & automatic restart below 60°C Water leakage detection which minimises pump cycling High current shutdown & low voltage indication High water temp protection Built-in check valve No tank necessary
  • Applications: Residential water supply Light commercial Irrigation Water Transfer Washing systems Pressure boosting
  • Economical Choice. The Davey BT14-30 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
  • Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump's cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
  • Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply.

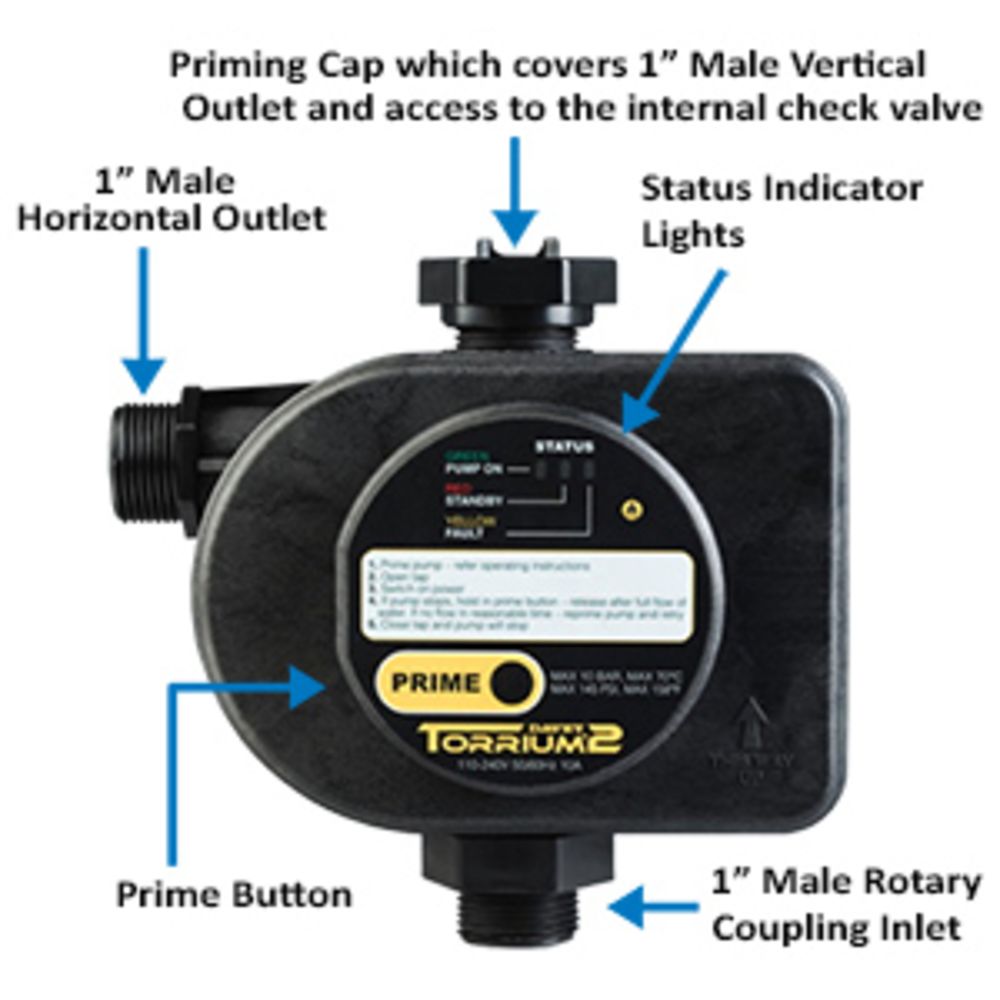

  • Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.
NOTE: 100% Compatible with: Amtrol RP10, DuraMac 17035R, and Grundfos MQ3-35 Systems. Formerly known as HS12-40HT1.

Davey BT14-30 Booster PumpAre you experiencing low water pressure issues?

The Davey BT14-30 Booster Pump can solve your problems. The system will give you a stronger and even water pressure by boosting your exisisting pressurized water supply. You will no longer struggle with water pressure fluctuations when someone flushes a toilet or have low pressure in a bathroom faucet.
Opposite to flow switch controllers that require a minimum flow before they will operate, Davey BT pumps will begin as soon as the faucet is opened and keeps running until the water is no longer needed. But that's not all! The Torrium 2 Pressure System Controller automatically adapts to changing conditions because it has a built-in 'brain' that can out smart every-day problems. This also means far less installation and maintenance issues. The Torrium2 ensures that a steady, reliable flow of water is available day after day, year after year.

BT Home Pressure System Max System Pressure Max Boost Nominal Flow Voltage Usage Single / Multi Stage
BT14-30 76 PSI 38 PSI 14 GPM 120V/1 Small homes or Weekenders Single Impeller
BT14-45 100 PSI 58 PSI 14 GPM 120V/1 Small two stories or long runs Mulitistage Centrifugal Pump -
has suction lift of 25'
BT20-30 50 PSI 50 PSI 20 GPM 120V/1  Large homes Mulitistage Centrifugal Pump -
has suction lift of 25'
BT20-40 100 PSI 78 PSI 20 GPM 220-240V/1  Average to large homes with two stories or large runs Mulitistage Centrifugal Pump -
has suction lift of 25'
BT30-30 100 PSI 50 PSI 20 GPM 220-240V/1  Large homes Single Impeller

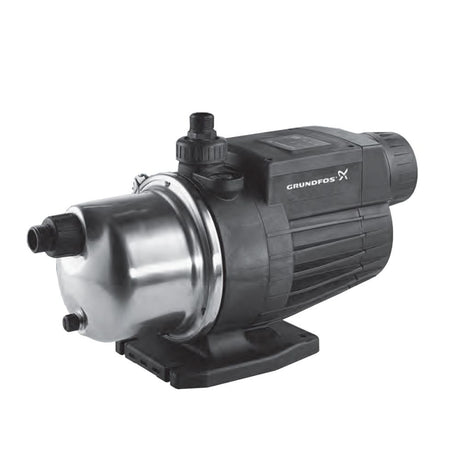

Compatible with: Grundfos MQ Series Pumps | MQ3-35


Weight & Dimensions

Approx Height (Inches)

19.53 Inches

Approx Length (Inches)

13.8 Inches

Approx Width (Inches)

8.83 Inches

Cord Length

80 Inches

Details

Ambient Temperature Range

120 Degrees Fahrenheit

Flow Rate

14

Housing Material

Baked polyester

Inlet Size

1-1/4" FPT

Liquid Temperature

150 max Degrees Fahrenheit

Max Operating Pressure

76 PSI; 116 PSI

Outlet Size

1" MPT

Power

1 hp

Type

Booster

Voltage

120VAC

Watts

1 kW

Suction Lift

Max 25 Feet

Max Head Pressure

76 PSI

Cut In Flow Rate

1.2 Gallons Per Minute

Cut Out Flow Rate

0.7 Gallons Per Minute

Maximum Pump Boost

38

Warranty & Certifications

Certifications

NSF61

Warranty

Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.


Davey

Davey

Davey




The Davey BT14-30 Single Impeller Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quiet, featuring low noise between 54 and 56 dBa. The BT14-30 is ideal size for a small residences, mobile homes, cottages and yachts. Torrium 2: Smart controller with adaptive cut-in knows to come on for even constant pressure Needs no adjustment - comes on with half gallon flow or a 20% pressure loss Swivels 360 degrees with top and side discharge Built-in spring loaded check valve and accumulator - no tank required

Features:

  • Dry run protection & automatic restart below 60°C Water leakage detection which minimises pump cycling High current shutdown & low voltage indication High water temp protection Built-in check valve No tank necessary
  • Applications: Residential water supply Light commercial Irrigation Water Transfer Washing systems Pressure boosting
  • Economical Choice. The Davey BT14-30 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
  • Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump's cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
  • Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply.
  • Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.
NOTE: 100% Compatible with: Amtrol RP10, DuraMac 17035R, and Grundfos MQ3-35 Systems. Formerly known as HS12-40HT1.

Davey BT14-30 Booster PumpAre you experiencing low water pressure issues?

The Davey BT14-30 Booster Pump can solve your problems. The system will give you a stronger and even water pressure by boosting your exisisting pressurized water supply. You will no longer struggle with water pressure fluctuations when someone flushes a toilet or have low pressure in a bathroom faucet.
Opposite to flow switch controllers that require a minimum flow before they will operate, Davey BT pumps will begin as soon as the faucet is opened and keeps running until the water is no longer needed. But that's not all! The Torrium 2 Pressure System Controller automatically adapts to changing conditions because it has a built-in 'brain' that can out smart every-day problems. This also means far less installation and maintenance issues. The Torrium2 ensures that a steady, reliable flow of water is available day after day, year after year.

BT Home Pressure System Max System Pressure Max Boost Nominal Flow Voltage Usage Single / Multi Stage
BT14-30 76 PSI 38 PSI 14 GPM 120V/1 Small homes or Weekenders Single Impeller
BT14-45 100 PSI 58 PSI 14 GPM 120V/1 Small two stories or long runs Mulitistage Centrifugal Pump -
has suction lift of 25'
BT20-30 50 PSI 50 PSI 20 GPM 120V/1  Large homes Mulitistage Centrifugal Pump -
has suction lift of 25'
BT20-40 100 PSI 78 PSI 20 GPM 220-240V/1  Average to large homes with two stories or large runs Mulitistage Centrifugal Pump -
has suction lift of 25'
BT30-30 100 PSI 50 PSI 20 GPM 220-240V/1  Large homes Single Impeller

Compatible with: Grundfos MQ Series Pumps | MQ3-35

Weight & Dimensions

Approx Height (Inches)

19.53 Inches

Approx Length (Inches)

13.8 Inches

Approx Width (Inches)

8.83 Inches

Cord Length

80 Inches

Details

Ambient Temperature Range

120 Degrees Fahrenheit

Flow Rate

14

Housing Material

Baked polyester

Inlet Size

1-1/4" FPT

Liquid Temperature

150 max Degrees Fahrenheit

Max Operating Pressure

76 PSI; 116 PSI

Outlet Size

1" MPT

Power

1 hp

Type

Booster

Voltage

120VAC

Watts

1 kW

Suction Lift

Max 25 Feet

Max Head Pressure

76 PSI

Cut In Flow Rate

1.2 Gallons Per Minute

Cut Out Flow Rate

0.7 Gallons Per Minute

Maximum Pump Boost

38

Warranty & Certifications

Certifications

NSF61

Warranty

Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.
