Flowmatic

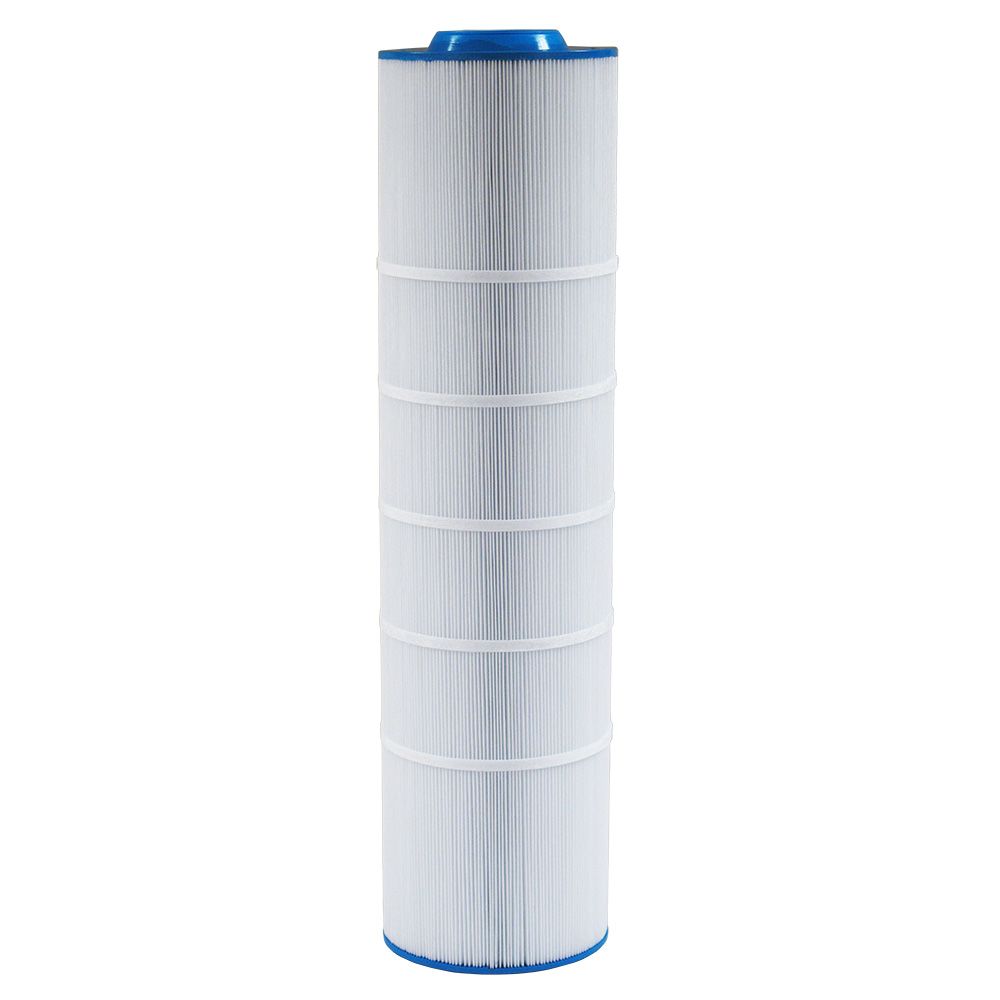

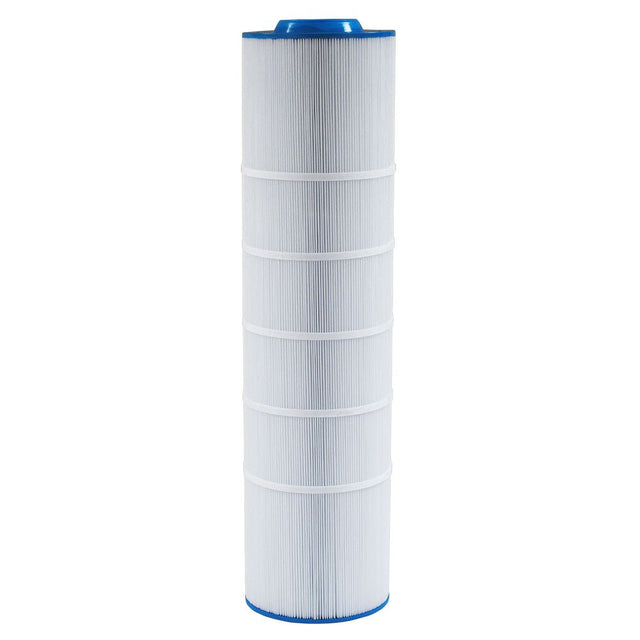

Flow-Max FMHC-170-100 Jumbo Filter Cartridge 100 micron

Part Number: FMHC-170-100

Alt. Part Number: FMHC-170-100EZ

In Stock

out of stock

In Stock

$83.42

The Watts Flow-Max Jumbo FMHC-170-100 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.


Features:
  • Cleanable (Reusable) Filter
  • Sediment Filtration
  • 100 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
  • Also known as Watts Pure Water PWPL170M100



Compatible with:
WattsPWPL170M100

Weight & Dimensions

Approx Length (Inches)

30-3/4"

Box Dimensions

8.375x8.375x32.25

Weight (lbs)

6.91

Details

Capacity

As Needed

Core Material

Polypropylene

Features

Cleanable (Reusable) Filter

Max Flow Rate

150 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

100 µm

Min Temp (°F)

40

Recommended Flow Rate

150 GPM

Cap Material

Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

7-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

150 GPM

Media Type

Polyester

Micron Rating

100 µm

Origin

USA

Product Length

30-3/4"


Flow-Max

Flow-Max




The Watts Flow-Max Jumbo FMHC-170-100 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.


Features:
  • Cleanable (Reusable) Filter
  • Sediment Filtration
  • 100 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
  • Also known as Watts Pure Water PWPL170M100



Compatible with:
WattsPWPL170M100

Weight & Dimensions

Approx Length (Inches)

30-3/4"

Box Dimensions

8.375x8.375x32.25

Weight (lbs)

6.91

Details

Capacity

As Needed

Core Material

Polypropylene

Features

Cleanable (Reusable) Filter

Max Flow Rate

150 GPM

Max Temp (°F)

140

Micron Rating (Nominal)

100 µm

Min Temp (°F)

40

Recommended Flow Rate

150 GPM

Cap Material

Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

7-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

150 GPM

Media Type

Polyester

Micron Rating

100 µm

Origin

USA

Product Length

30-3/4"
