Neo-Pure

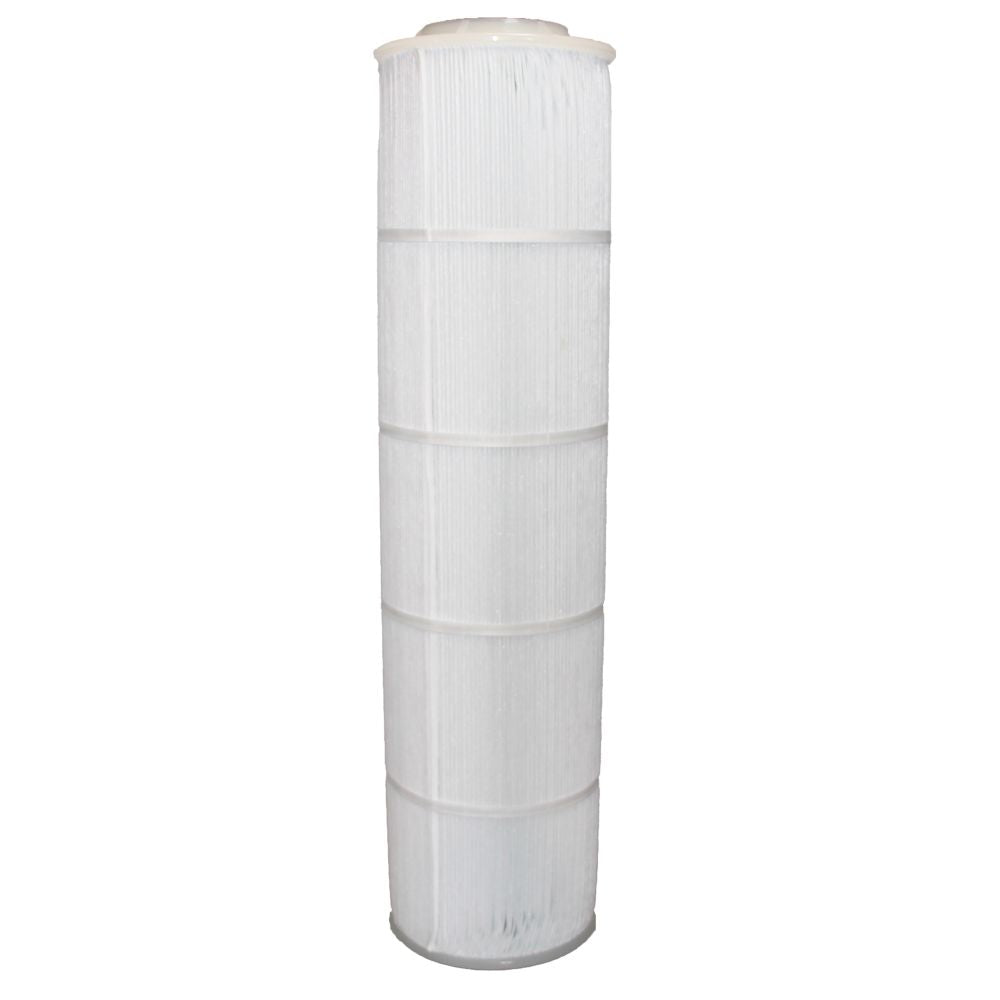

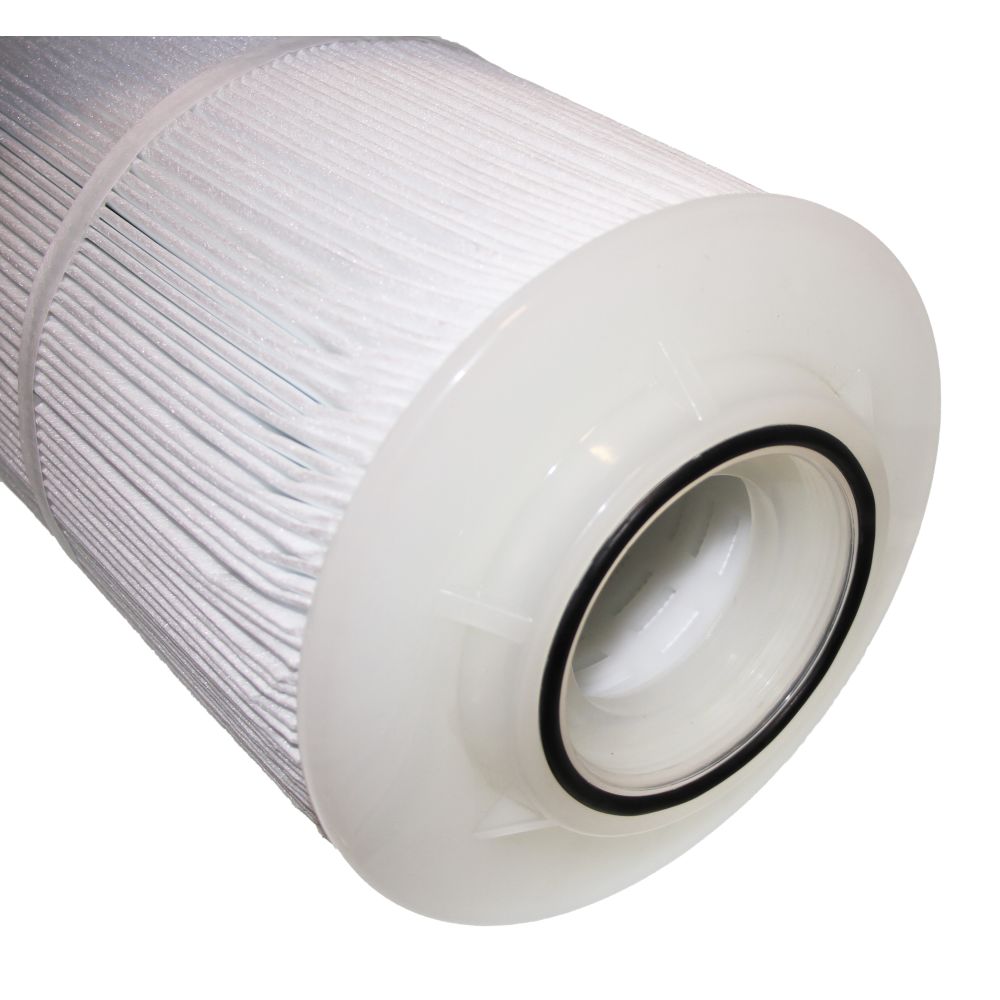

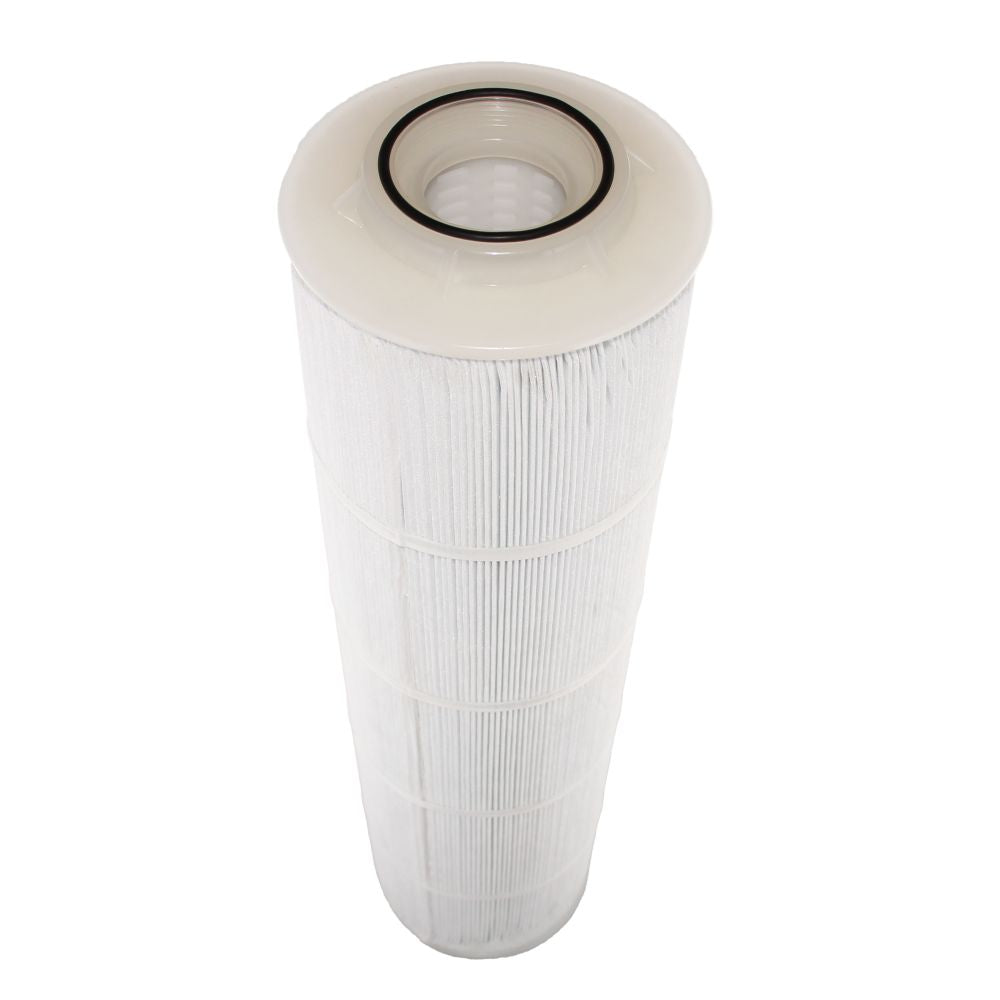

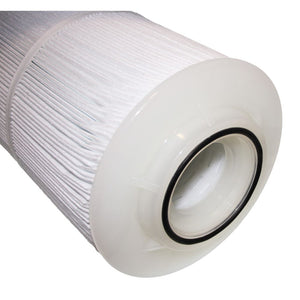

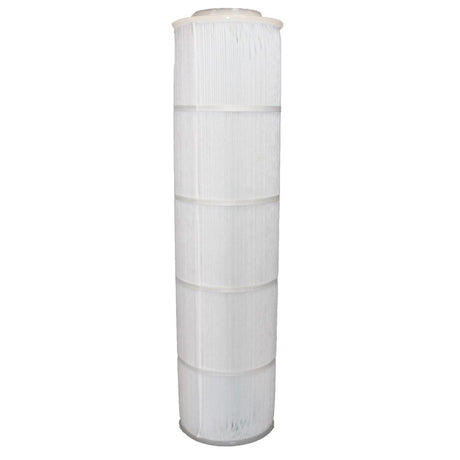

Neo-Pure PSJE-170-100 Pleated Synthetic Jumbo Cartridge 100 micron

Part Number: PSJE-170-100

In Stock

out of stock

In Stock

$82.59


The Neo-Pure PSJE-170-100 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:
  • Pleated Filter Design. The pleated filter design on the PSJE-170-100 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
  • Low Maintenance. The Neo-Pure PSJE-170-100 requires fewer cartridge changes, which results in lower maintenance costs. The cartridge is cleanable and reusable in most applications.
  • High Value At A Competitive Price. The PSJE-170-100 Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Made in the USA. The Neo-Pure PSJE-170-100 filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 30-3/4"
  • Diameter: 7-3/4"
  • Micron Rating: 100 micron
  • Surface Area: ~170 sq. ft.
  • Max Temperature: 140°F
  • Max Flow rate: 150 gpm
 Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | HC/170-100


Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

150 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

100 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 170 Square Feet




The Neo-Pure PSJE-170-100 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter's pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:
  • Pleated Filter Design. The pleated filter design on the PSJE-170-100 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
  • Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
  • Low Maintenance. The Neo-Pure PSJE-170-100 requires fewer cartridge changes, which results in lower maintenance costs. The cartridge is cleanable and reusable in most applications.
  • High Value At A Competitive Price. The PSJE-170-100 Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
  • Made in the USA. The Neo-Pure PSJE-170-100 filter cartridge is made and manufactured in the US.
Additional Specifications:
  • Length: 30-3/4"
  • Diameter: 7-3/4"
  • Micron Rating: 100 micron
  • Surface Area: ~170 sq. ft.
  • Max Temperature: 140°F
  • Max Flow rate: 150 gpm
 Applications:
  • Potable drinking water
  • Industrial waste water treatment
  • Food and beverage
  • Reverse osmosis prefiltration
  • Cooling tower filtration
  • Desalination prefiltration
  • Process water
  • Oil/Gas
  • Paper and Pulp
  • Paints
  • Inks
  • Coatings

Compatible with: Harmsco® Compatible | HC/170-100

Weight & Dimensions

Approx Length (Inches)

30-3/4" (78.1 cm)

Details

Cap Material

Polypropylene

Capacity

As Needed

Case Quantity

1

Filter Application

Sediment/Dirt/Rust

Max Flow Rate

150 Gallons Per Minute

Media Type

Synthetic Polypropylene

Micron Rating (Nominal)

100 Micron

Netting

Polypropylene

Operating Temperature Range

Max 140 Degrees Fahrenheit

Origin

USA

Outer Diameter

7-3/4"

Surface Area

Approximately 170 Square Feet
