Specifications:
- Sediment filtration
- Cryptosporidium and giardia cyst filtration to 99.9%
- 0.35 micron nominal
- Chemically resistant pleated polyester filtration
- 100% cellulose free
- Also known as Watts Pure Water PWPL170M.35
Compatible with:
| Watts | PWPL170M.35 |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" |
Weight (lbs) | 6.91 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Flow Rate | 100 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 0.35 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 6 psid @ 100 GPM |
Recommended Flow Rate | 100 GPM |
Cap Material | Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 100 GPM |
Media Type | Polyester |
Micron Rating | 0.35 µm |
Origin | USA |
Product Length | 30-3/4" |

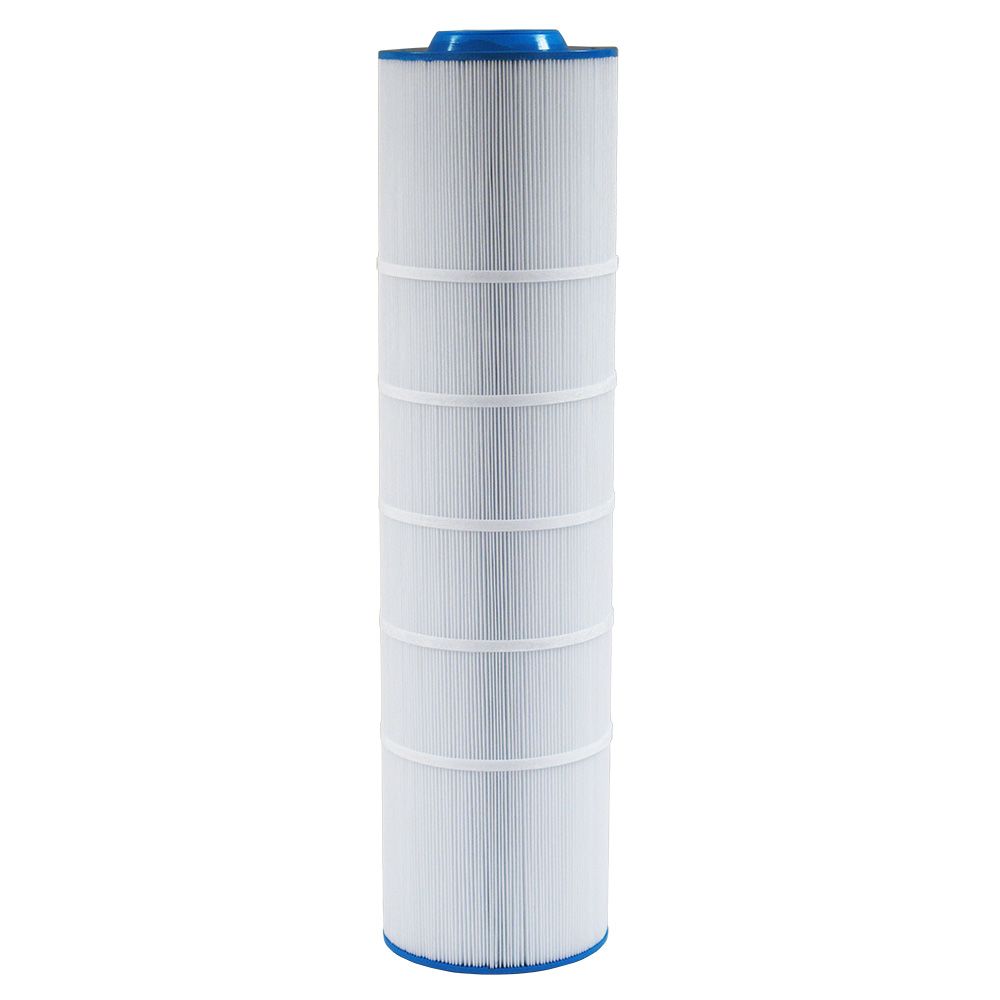

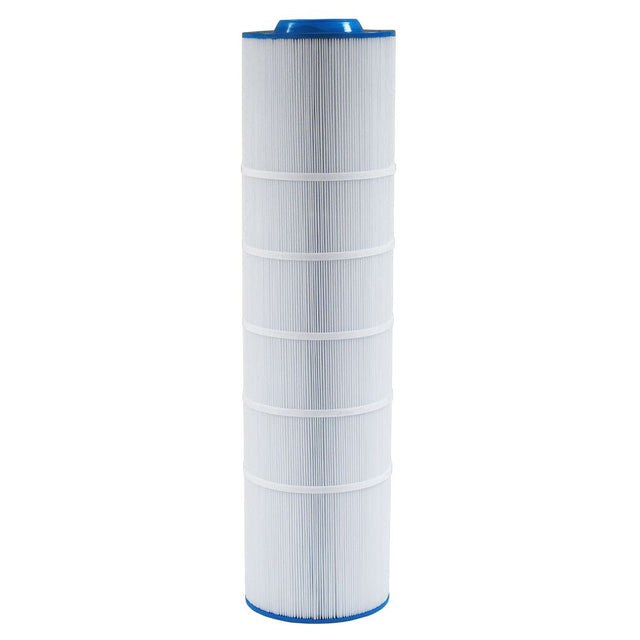

The Watts Flow-Max Jumbo FMHC-170-0.35 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.
Specifications:
- Sediment filtration
- Cryptosporidium and giardia cyst filtration to 99.9%
- 0.35 micron nominal
- Chemically resistant pleated polyester filtration
- 100% cellulose free
- Also known as Watts Pure Water PWPL170M.35
Compatible with:
| Watts | PWPL170M.35 |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" |
Weight (lbs) | 6.91 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Max Flow Rate | 100 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 0.35 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 6 psid @ 100 GPM |
Recommended Flow Rate | 100 GPM |
Cap Material | Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 100 GPM |
Media Type | Polyester |
Micron Rating | 0.35 µm |
Origin | USA |
Product Length | 30-3/4" |
