Specifications:
- Cleanable (Reusable) Filter
- Sediment Filtration
- 50 Micron Nominal
- Chemically Resistant Pleated Polyester Filtration
- 100% Cellulose Free
- Also known as Watts Pure Water PWPL170M50
Compatible with:
| Watts | PWPL170M50 |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" |
Box Dimensions | 8.375x8.375x32.25 |
Height (inches) | 8 |
Length (inches) | 32 |
Weight (lbs) | 10.2 |
Width (inches) | 8 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Features | Cleanable (Reusable) Filter |
Max Flow Rate | 150 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 3.5 @ 150 GPM |
Recommended Flow Rate | 150 GPM |
Cap Material | Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 150 GPM |
Media Type | Polyester |
Micron Rating | 50 µm |
Origin | USA |
Product Length | 30-3/4" |

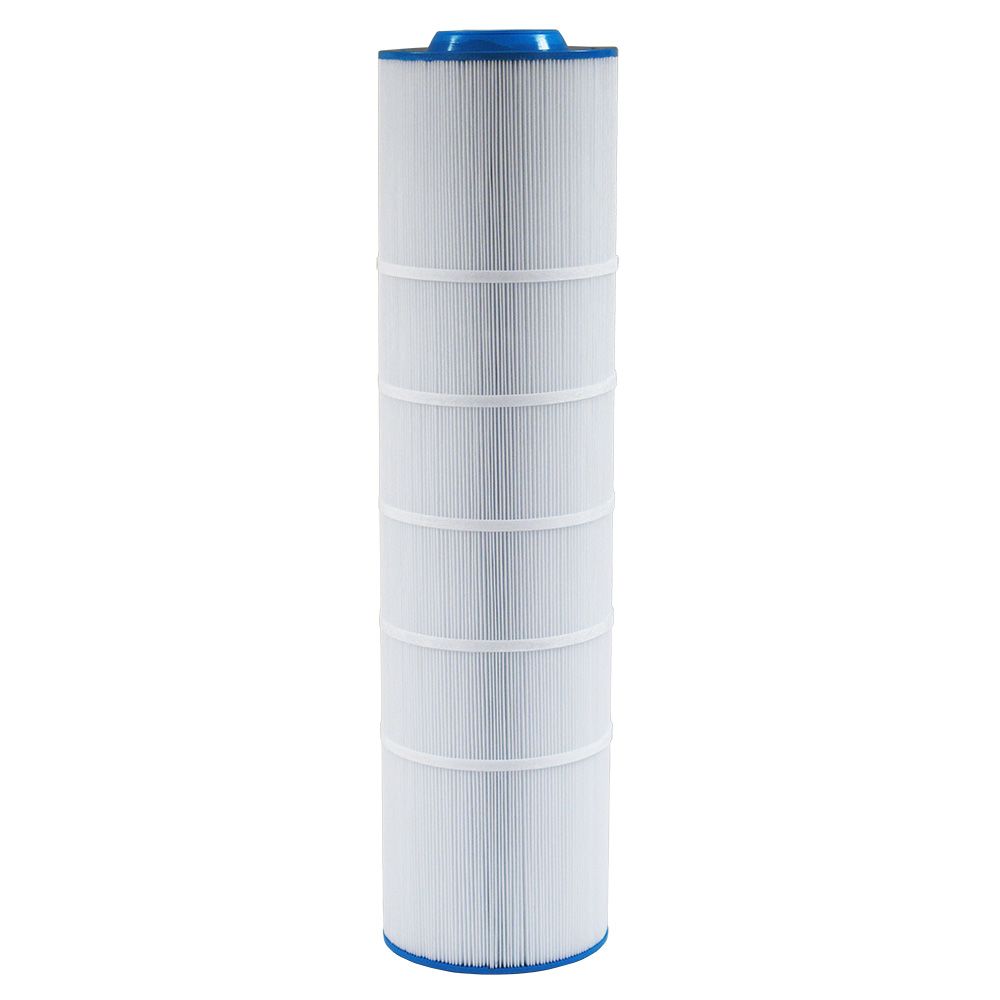

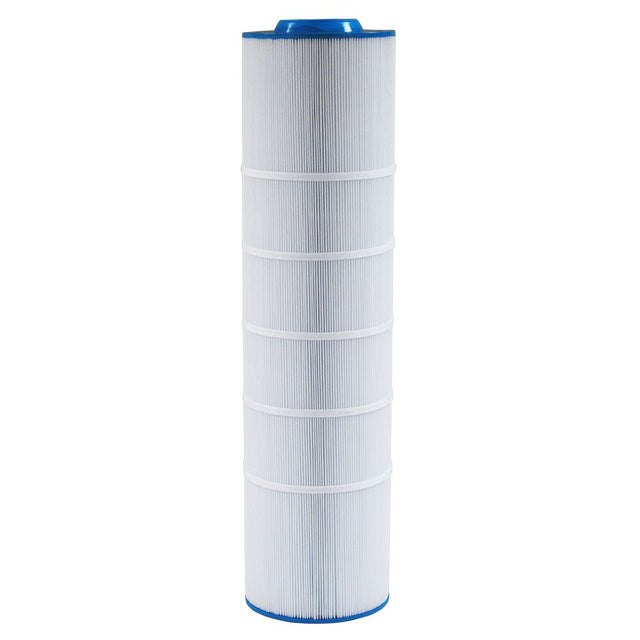

The Watts Flow-Max Jumbo FMHC-170-50 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.
Specifications:
- Cleanable (Reusable) Filter
- Sediment Filtration
- 50 Micron Nominal
- Chemically Resistant Pleated Polyester Filtration
- 100% Cellulose Free
- Also known as Watts Pure Water PWPL170M50
Compatible with:
| Watts | PWPL170M50 |
Weight & Dimensions
Approx Length (Inches) | 30-3/4" |
Box Dimensions | 8.375x8.375x32.25 |
Height (inches) | 8 |
Length (inches) | 32 |
Weight (lbs) | 10.2 |
Width (inches) | 8 |
Details
Capacity | As Needed |
Core Material | Polypropylene |
Features | Cleanable (Reusable) Filter |
Max Flow Rate | 150 GPM |
Max Temp (°F) | 140 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | 3.5 @ 150 GPM |
Recommended Flow Rate | 150 GPM |
Cap Material | Plastisol |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 7-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 150 GPM |
Media Type | Polyester |
Micron Rating | 50 µm |
Origin | USA |
Product Length | 30-3/4" |
