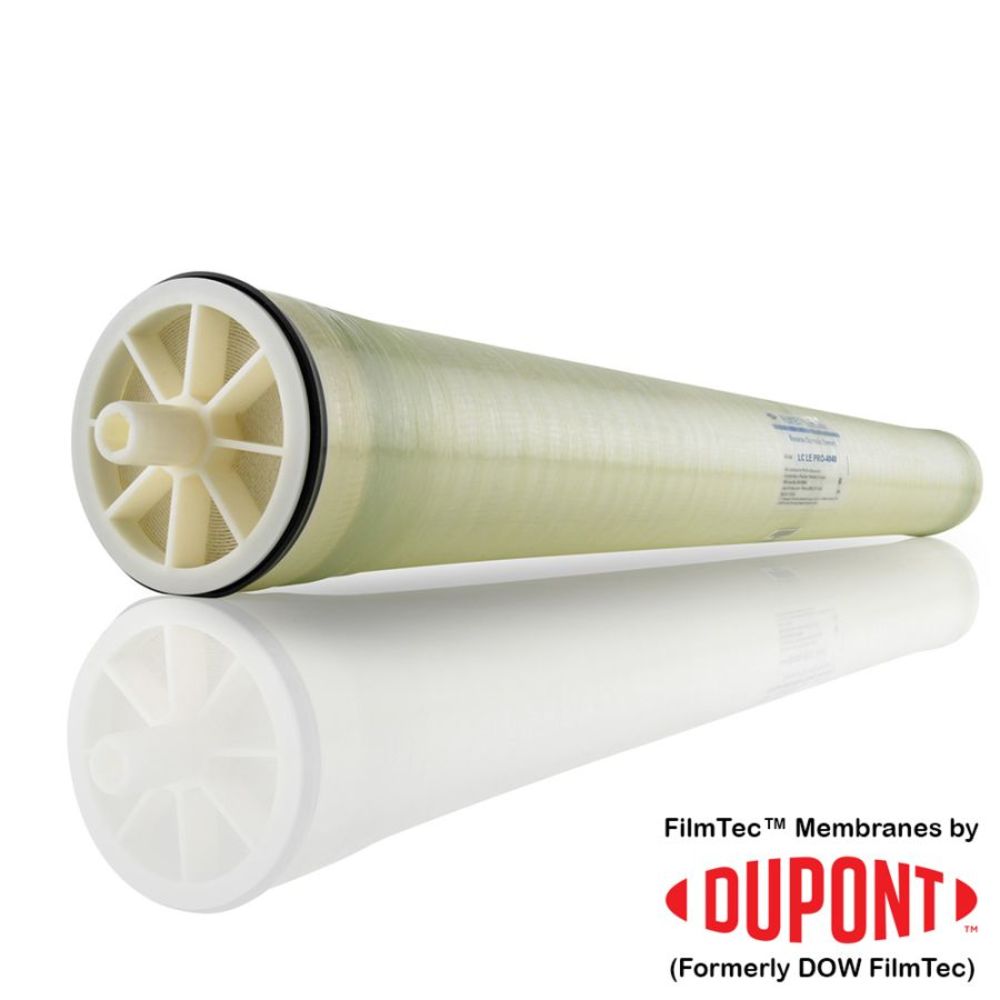

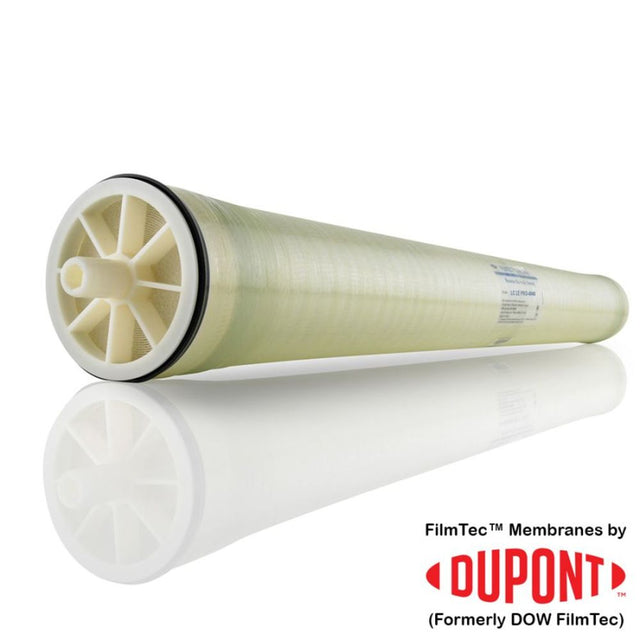

FilmTec™ LC LE PRO-4040 Reverse Osmosis Elements

Key Features

• Innovative Low-Pressure Performance: The FilmTec™ LC LE PRO-4040 delivers high-quality water even in harsh conditions, thanks to DuPont’s proprietary low-energy technology.
• Maximized Active Area: With an industry-leading active area of 94 square feet, this element reduces fouling by operating at a lower flux while achieving higher flow rates.
• Superior Salt Rejection: Offers high salt rejection at low pressure, making it ideal for challenging water conditions.
• Effective Cleaning and Durability: The element is designed for robust performance with the widest cleaning pH range (1-13) and excellent chemical tolerance, ensuring long-lasting durability.

Key Applications

• Ideal for light industrial applications requiring high-quality permeate water.
• Perfect for harsh feed water conditions.
• Suitable for drinking water systems, including refilling stations, bottling plants, hotels, schools, and other institutions.

Typical Properties

• Permeate Flow Rate: 2600 gpd (9.8 m³/d)
• Minimum Salt Rejection: 99.0%
• Stabilized Salt Rejection: 99.5%

Test Conditions: The permeate flow and salt rejection are based on 2000 ppm NaCl, 77°F (25°C), 15% recovery, pH 8, and an applied pressure of 150 psig. Individual element performance may vary by ±20%. Specifications may be updated periodically for improvement purposes.

Operating and Cleaning Limits

• Membrane Type: Polyamide Thin-Film Composite
• Maximum Operating Temperature: 113°F (45°C)
• Maximum Operating Pressure: 600 psig (41 bar)
• Maximum Pressure Drop: 15 psig (1.0 bar)
• Maximum Feed Flow Rate: 16 gpm (3.6 m³/h)
• pH Range: Continuous operation: 2 - 11; Short-term cleaning: 1 - 13
• Maximum Feed Silt Density Index (SDI): 5
• Free Chlorine Concentration: < 0.1 ppm

Choose FilmTec™ LC LE PRO-4040 for reliable, efficient, and high-quality water filtration in demanding conditions.
