Stenner Pumps

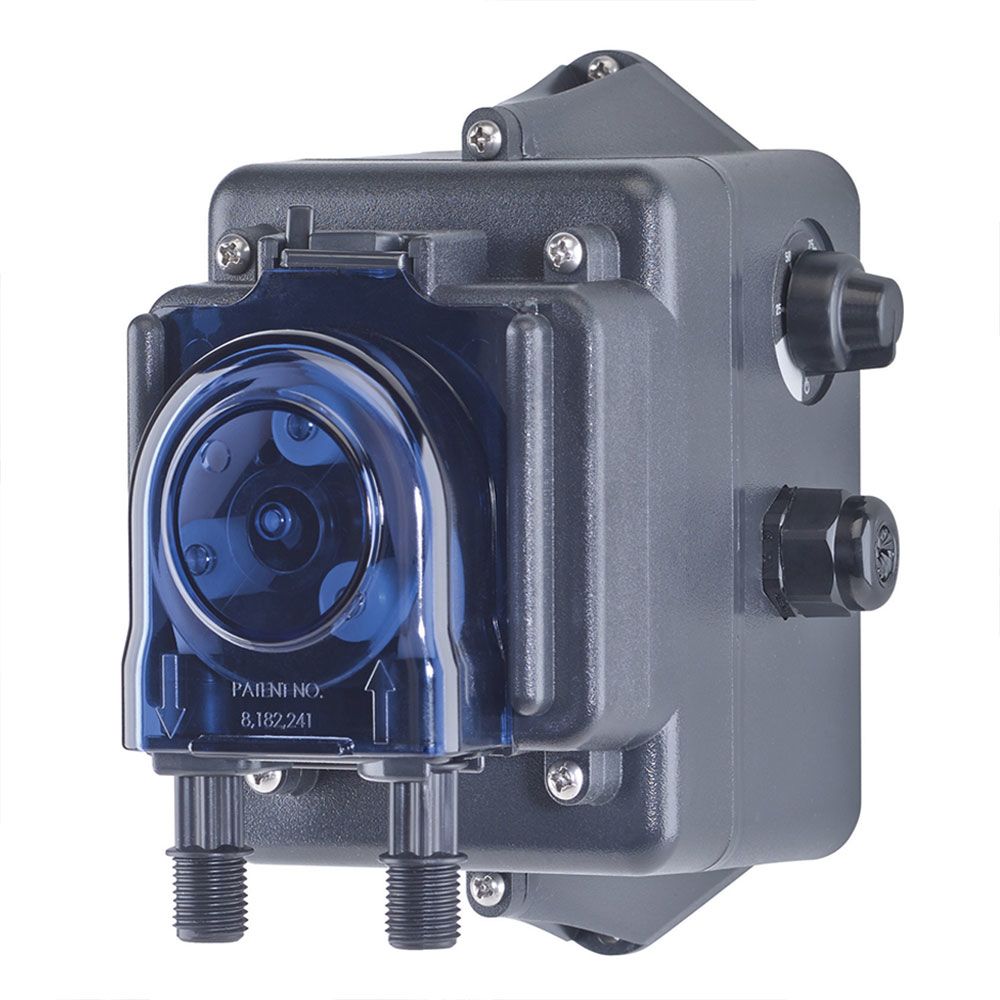

ECON VX PUMP 14.0 GPD/52.9 LPD 80 PSI 5.5 BAR 120V/60HZ

Part Number: E10VXHA1S6

In Stock

out of stock

In Stock

$319.99


The ECON VX PUMP Series Pumps are ideal for light duty applications in swimming pools, food & beverage, metal finishing, irrigation, horticulture, and more. They offer reliable dosing and consistent output productivity. The patented quick release pump head includes a solid one piece tube construction. This tube is manufactured in one operation, providing a durable connection and ensuring that solutions are contained inside the tube and do not touch moving parts. These pumps do not lose prime from off-gassing solutions, so priming and degassing valves are not needed. The pump head design makes tube replacement effortless, without the need for tools. The Econ VX is a variable speed pump and features an adjustable potentiometer.

Specifications:
  • Series: VX Series
  • Tube Size: A
  • Pump Capacity: 14.0 GPD

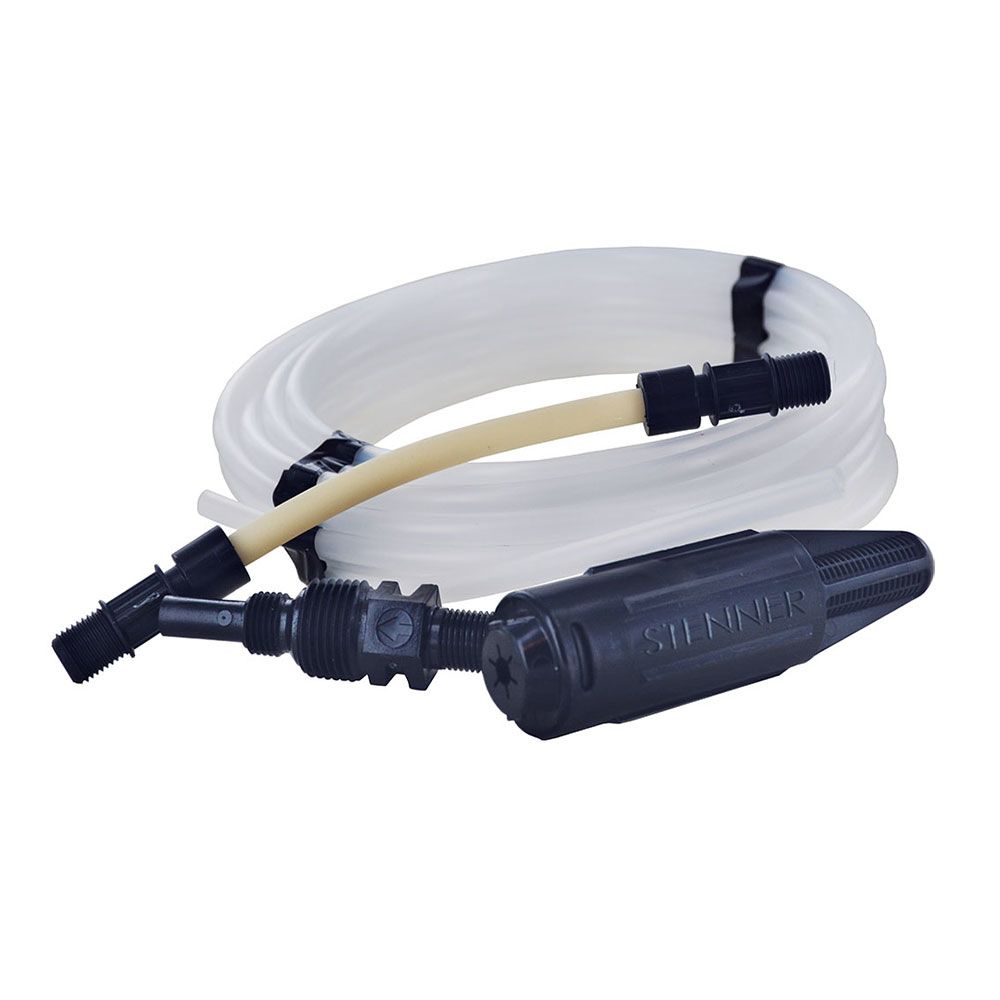

  • Suction and Discharge Tubing: 1/4" White Santoprene
  • Max Working Pressure: 80 psi
  • Tube Material: Santoprene
  • Self-priming to 25 feet
  • Output Reproducibility: ± 5%
  • Size: 5.2" x 4.4" x 5.9"

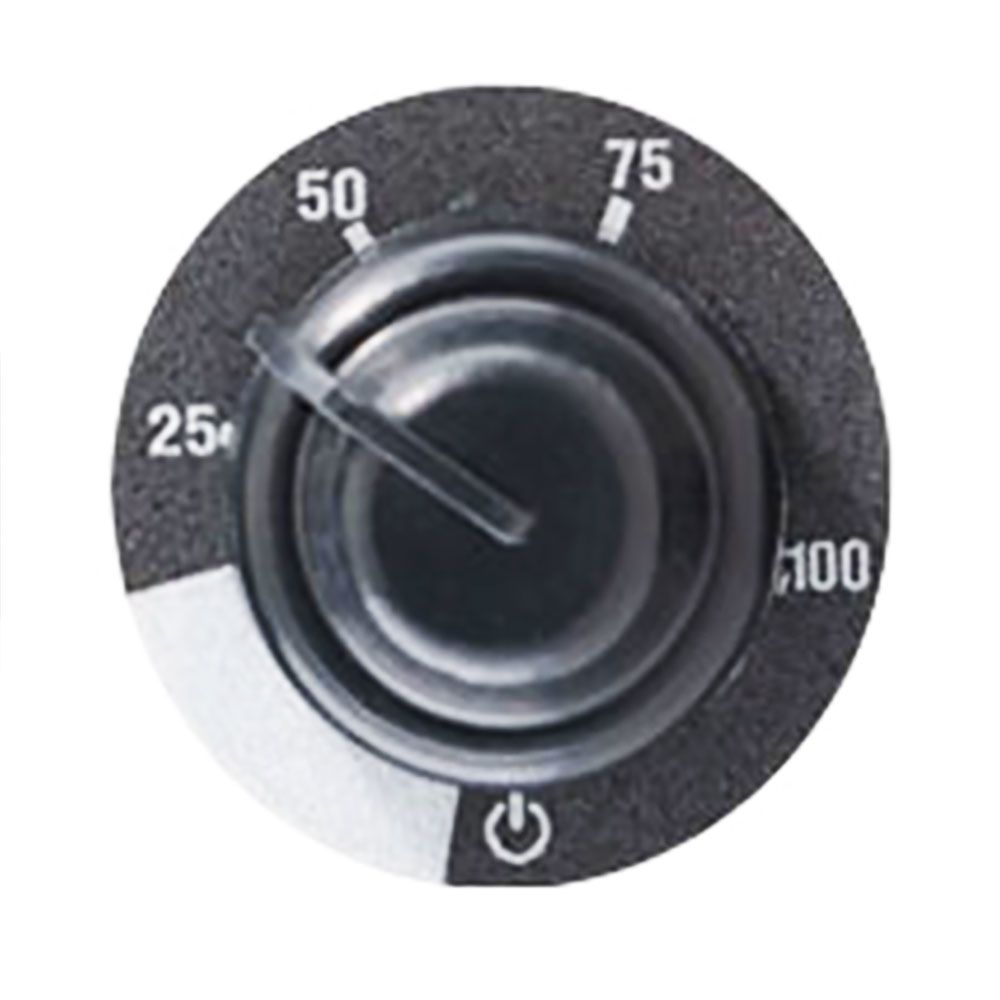

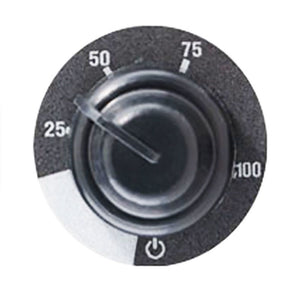

  • Adjustable potentiometer
  • 8:1 Turndown
  • cULus for indoor/outdoor use
  • CE listed
  • Internal power supply
  • Wall mountable
  • Accessory kit included


Weight & Dimensions

Approx Height (Inches)

5.2 Inches

Approx Length (Inches)

4.4 Inches

Approx Weight

3 pounds

Approx Width (Inches)

5.9 Inches

Details

Diaphragm Materials

Polycarbonate

Operating Pressure Range

Max 80 PSI

Voltage

120VAC

Suction Lift

25 ft Max


ECON





The ECON VX PUMP Series Pumps are ideal for light duty applications in swimming pools, food & beverage, metal finishing, irrigation, horticulture, and more. They offer reliable dosing and consistent output productivity. The patented quick release pump head includes a solid one piece tube construction. This tube is manufactured in one operation, providing a durable connection and ensuring that solutions are contained inside the tube and do not touch moving parts. These pumps do not lose prime from off-gassing solutions, so priming and degassing valves are not needed. The pump head design makes tube replacement effortless, without the need for tools. The Econ VX is a variable speed pump and features an adjustable potentiometer.

Specifications:
  • Series: VX Series
  • Tube Size: A
  • Pump Capacity: 14.0 GPD
  • Suction and Discharge Tubing: 1/4" White Santoprene
  • Max Working Pressure: 80 psi
  • Tube Material: Santoprene
  • Self-priming to 25 feet
  • Output Reproducibility: ± 5%
  • Size: 5.2" x 4.4" x 5.9"
  • Adjustable potentiometer
  • 8:1 Turndown
  • cULus for indoor/outdoor use
  • CE listed
  • Internal power supply
  • Wall mountable
  • Accessory kit included

Weight & Dimensions

Approx Height (Inches)

5.2 Inches

Approx Length (Inches)

4.4 Inches

Approx Weight

3 pounds

Approx Width (Inches)

5.9 Inches

Details

Diaphragm Materials

Polycarbonate

Operating Pressure Range

Max 80 PSI

Voltage

120VAC

Suction Lift

25 ft Max
