Home / Pumps & Motors / Pump Accessories / Stenner Econ LD Series Low Volume Pump 8.1 oz/hr #F Tube 120V
Stenner Pumps

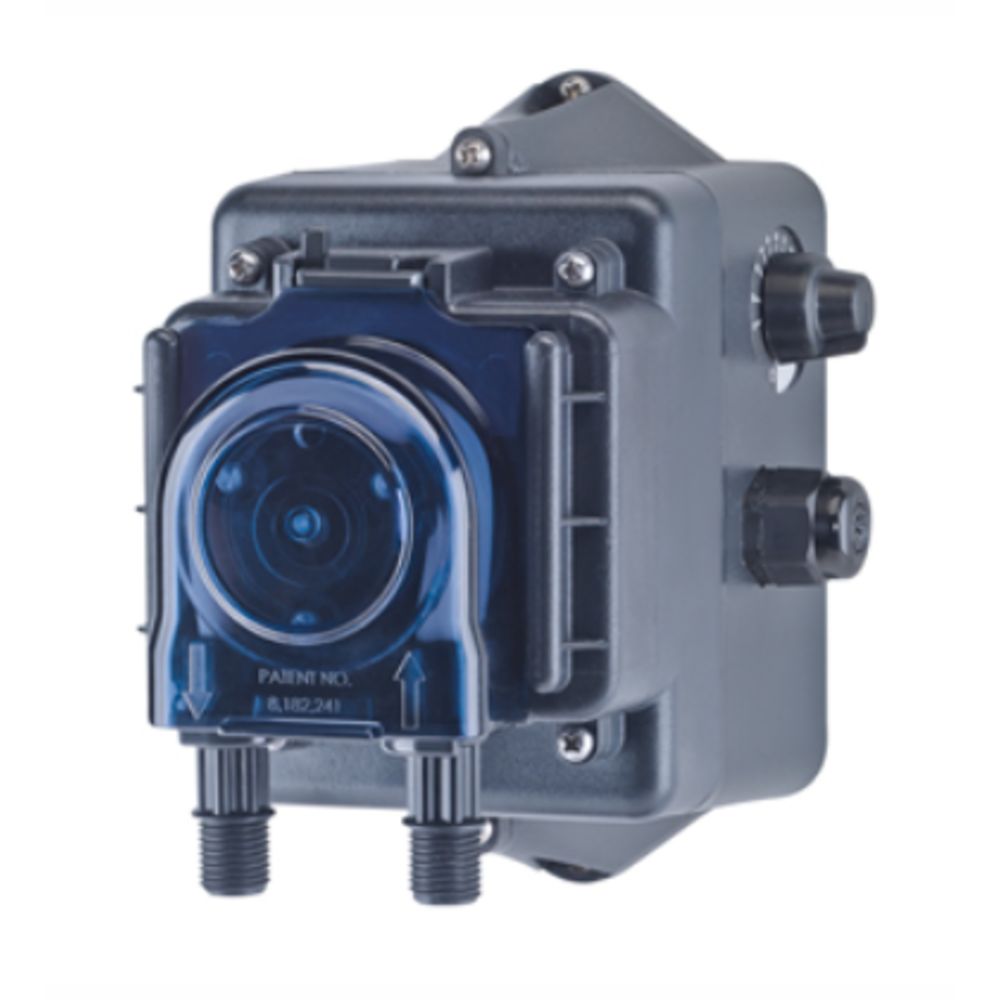

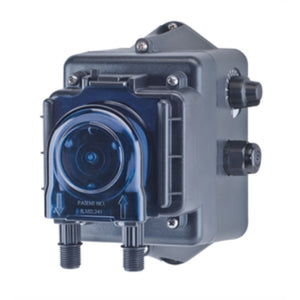

Stenner Econ LD Series Low Volume Pump 8.1 oz/hr #F Tube 120V

Part Number: E10LHFA1S
Product image 1
Product image 2
Product image 3
Your price:
similar items
The Stenner Econ LD Series Low Volume Pump 8.1 oz/hr #F Tube 120V is a compact, peristaltic pump designed for reliably metering low volume amounts. The quiet, long lasting brushless motor, in a totally enclosed housing, offers premium quality at an economical price. The LD series is adjustable with a potentiometer to control outputs with a 50:1 turndown.

Features:

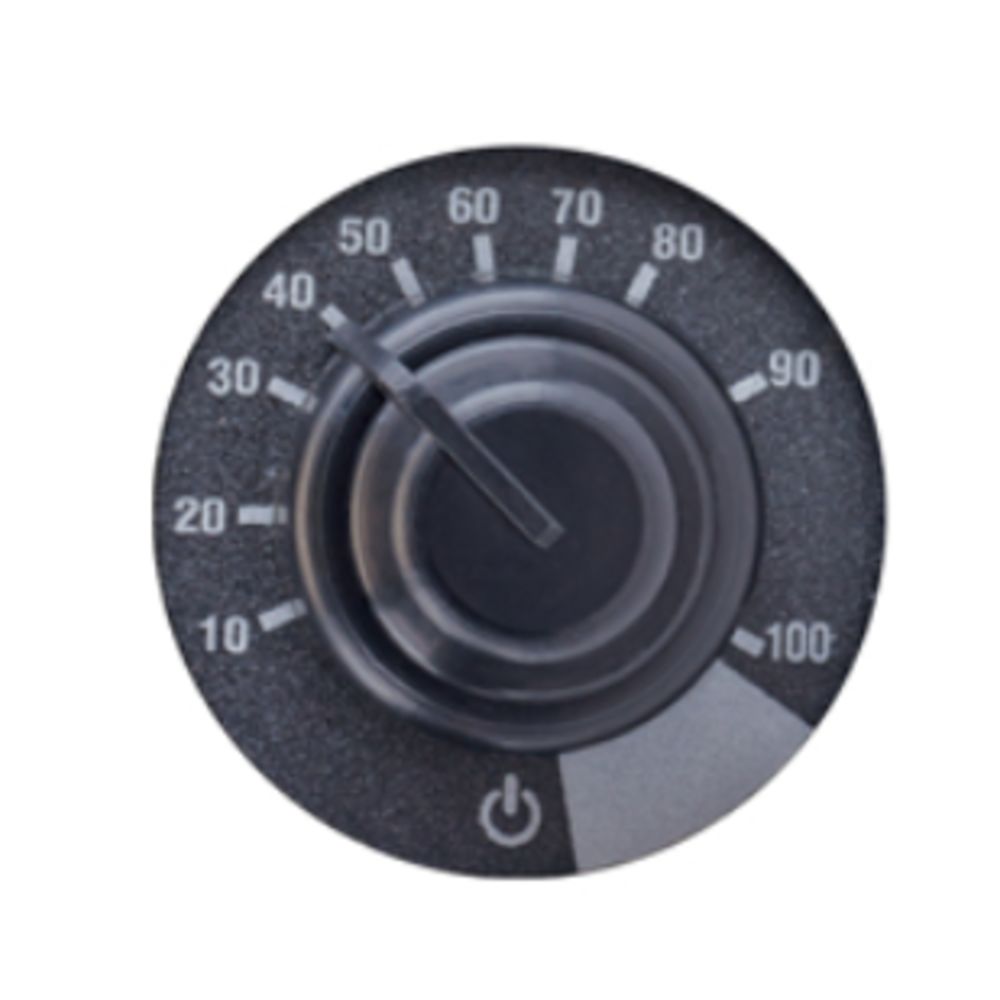

  • Manually adjustable flow rate output
  • Quick Release Pump Head
  • Enclosed housing
  • Self-priming, does not lose prime or vapor lock
  • Pumps off-gassing solutions and can run dry
  • 3-point roller design assists with anti-siphon
  • Tube replacement without tools
  • Output reproducibility
  • Tube lubrication not required
Specifications:
  • Maximum Working Pressure: 80 psi (5.5 bar)
  • Maximum Operating Temperature: 104°F (40°C)
  • Maximum Suction Lift: 25 ft (7.6 m) vertical lift, based on water
  • Maximum Viscosity: 50 Centipoise
  • Uses: Indoor/Outdoor
  • Output Range: 0.11 to 8.1 ounces per hour, with pressures to 80 psi
