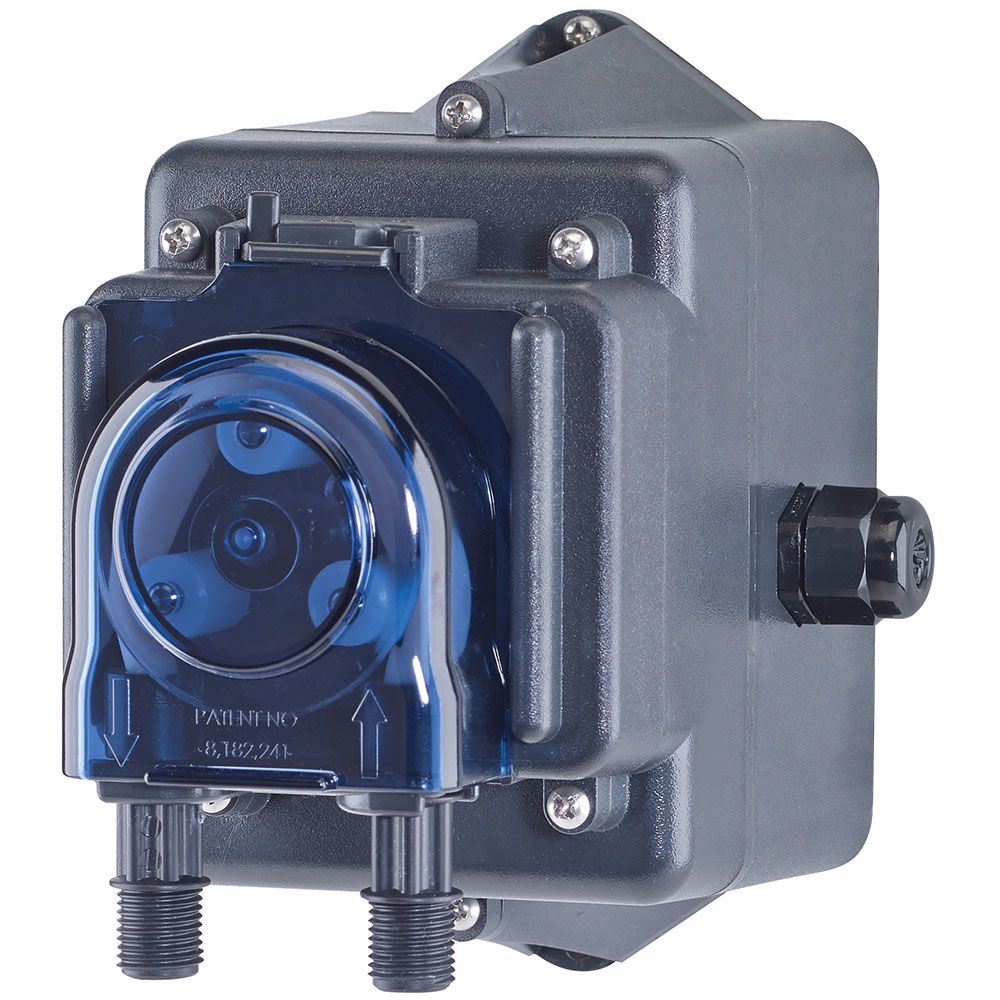

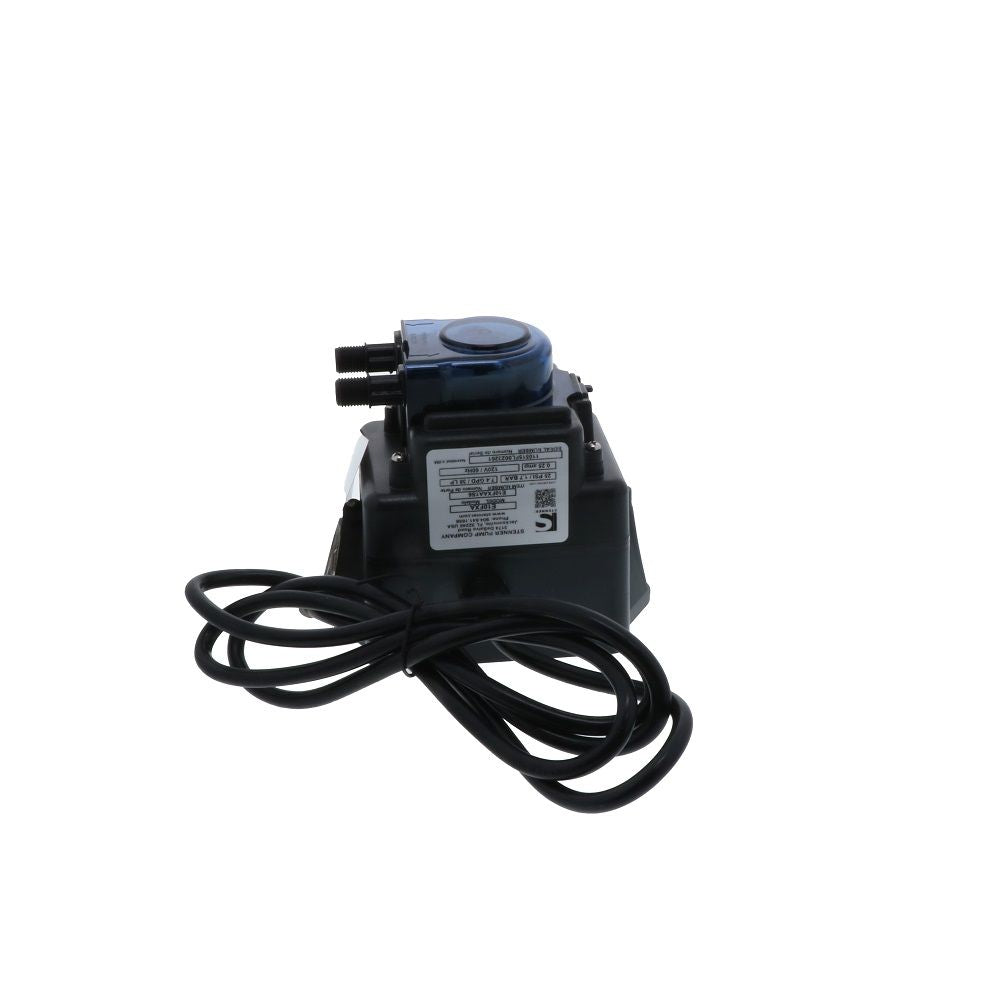

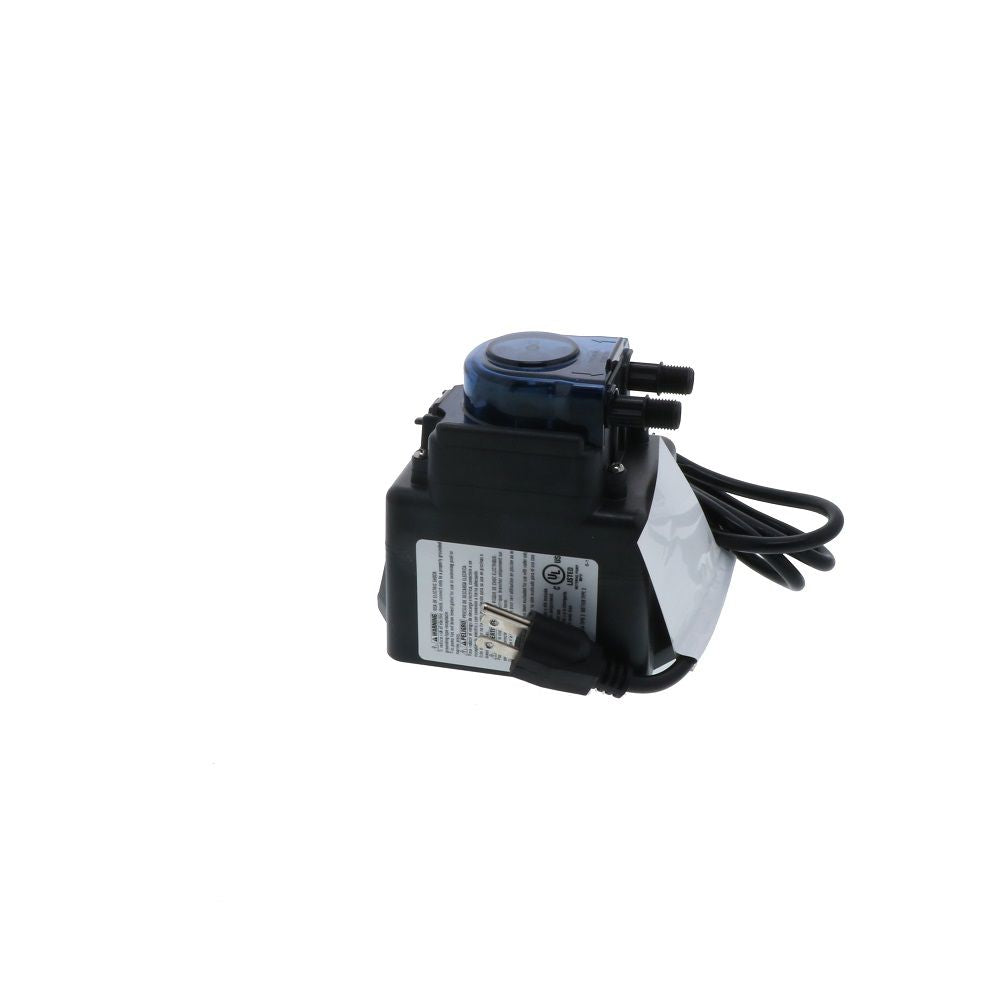

Stenner Econ FX Series Fixed Speed Dosing Pump 7.4 GPD, Tube A 120V

Name: Stenner Econ FX Series Fixed Speed Dosing Pump 7.4 GPD, Tube A 120V
Brand: Stenner Pumps
SKU: E10FXAA1S
Price: 505.73 USD
Availability: InStock

Part Number: E10FXAA1S

1 4

Stenner Pumps

Stenner Econ FX Series Fixed Speed Dosing Pump 7.4 GPD, Tube A 120V

Part Number: E10FXAA1S

$505.73

You May Also Need

Optional Accessory

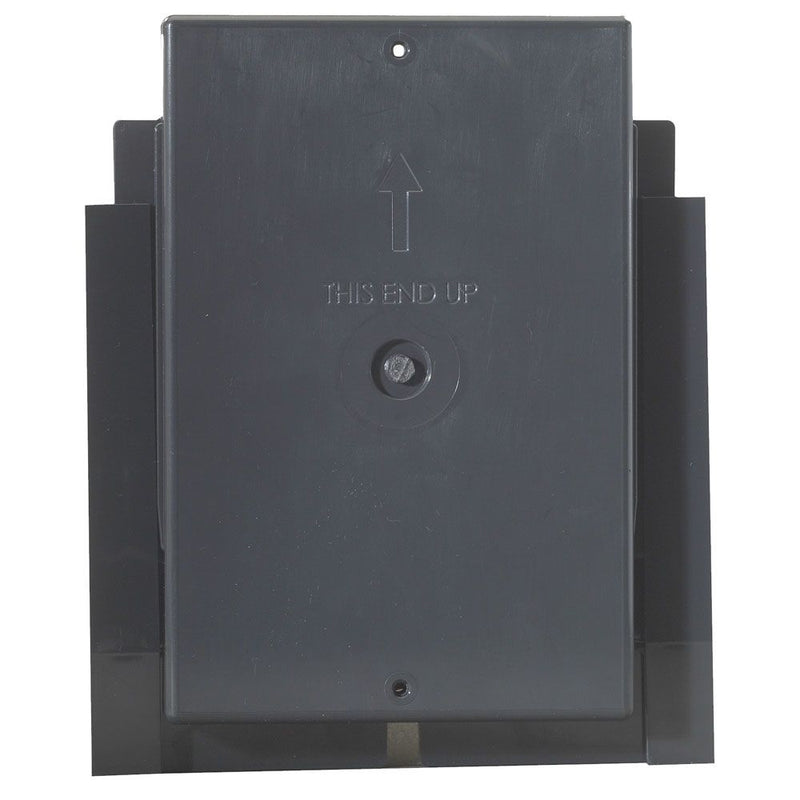

Mounting Bracket for all Stenner Econ Pumps

Regular price $13.66

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Econ FX Series Pumps are ideal for light duty applications in swimming pools, food & beverage, metal finishing, irrigation, horticulture, and more. They offer reliable dosing and consistent output productivity. The patented quick release pump head includes a solid one piece tube construction. This tube is manufactured in one operation, providing a durable connection and ensuring that solutions are contained inside the tube and do not touch moving parts. These pumps do not lose prime from off-gassing solutions, so priming and degassing valves are not needed. The pump head design makes tube replacement effortless, without the need for tools. FX series pumps' three point roller design prevents backflow, and can run dry without damage.

Specifications:

Series: FX Series
Tube Size: A
Pump Capacity: 7.4 GPD
Suction and Discharge Tubing: 1/4" White Santoprene
Max Working Pressure: 25 psi
Tube Material: Santoprene
Self-priming to 25 feet
Output Reproducibility: ± 5%
Size: 5.2" x 4.4" x 5.9"
cULus for indoor/outdoor use
CE listed
Internal power supply
Wall mountable

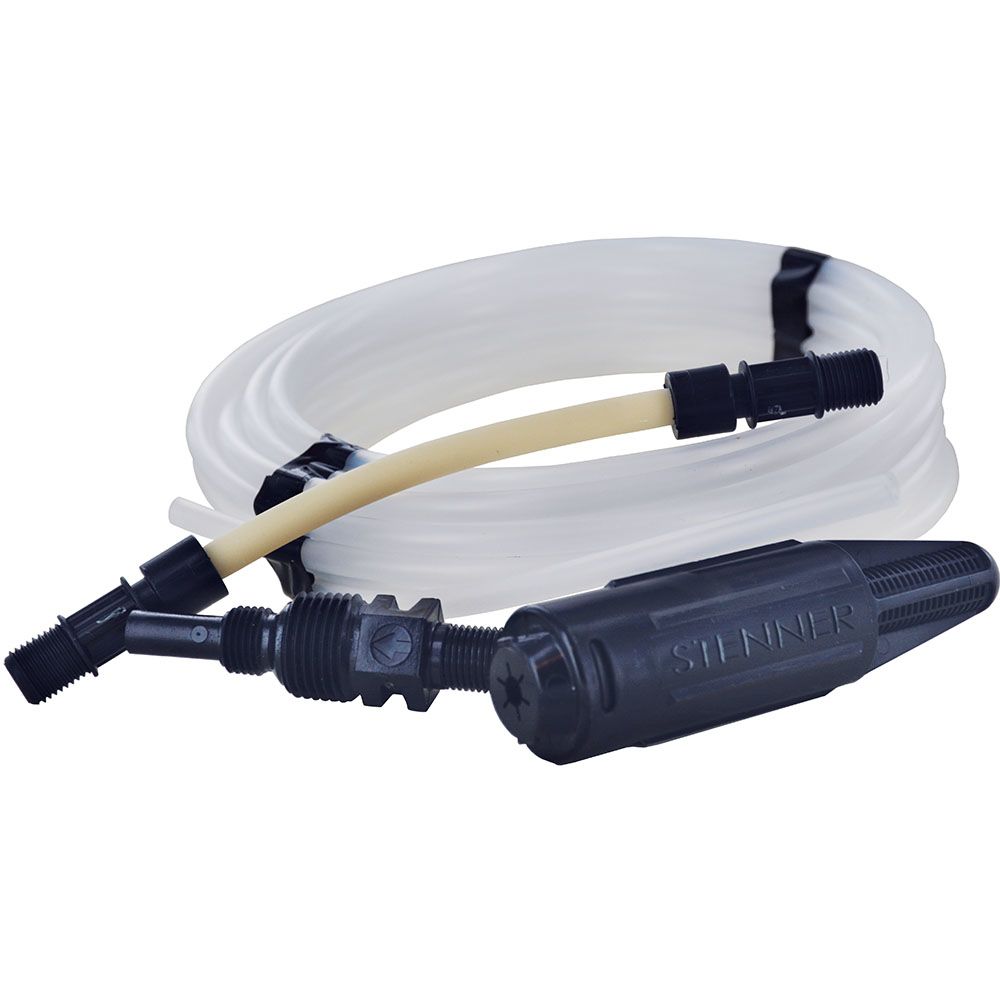

Accessory kit included

Specifications

Product Details
Housing Material	Polycarbonate
Pump Max Flow Rate (Gpm)	7.4
Pump Max Pressure (Psi)	25
Series	Econ FX
Size	Tube #A
Suction Lift	Self prime up to 25 ft.
Voltage Type	AC
Sub-Type	Timer Controlled
Type	Single Head Pump
Voltage	120VAC
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Height	5.2"
Product Length	5.9"
Product Width	4.4"
Product Weight (lbs)	3.25

Downloads

Stenner Econ FX Series Fixed Speed Dosing Pump 7.4 GPD, Tube A 120V Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

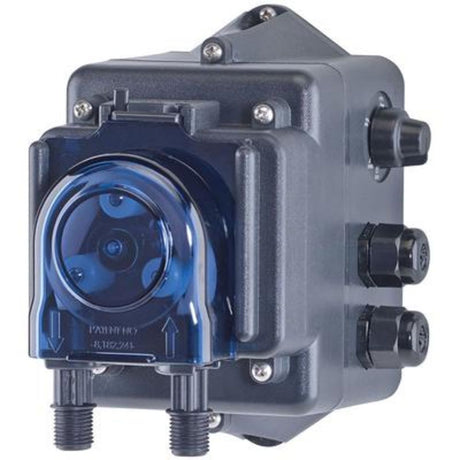

Facet	Stenner Pumps Stenner Econ FX Series Fixed Speed Dosing Pump 7.4 GPD, Tube A 120V Regular price $505.73 Very low stock Part #: E10FXAA1S Current Product	Stenner Pumps Stenner Econ LD Series Low Volume Pump 8.1 oz/hr #F Tube 120V Regular price $432.98 Very low stock Part #: E10LHFA1S View details	Stenner Pumps Stenner Econ LD Series Low Volume Pump 2.4 oz/hr #M Tube 230V Regular price $432.98 Very low stock Part #: E10LHMB1S View details	Stenner Pumps Stenner Econ T Series Timer Controlled Dosing Pump 2.5 GPD, Tube A 120V - 120 volt 5.0 Regular price $338.75 Low stock Part #: E10T1A71S View details
