DMFit

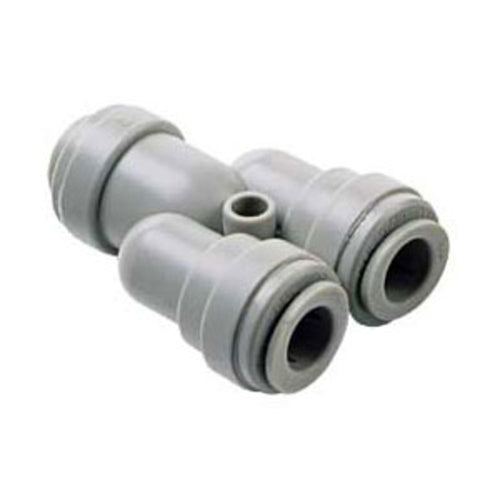

DMfit Two Way Divider - 1/4" x 1/4" x 1/4" Push-In

Part Number: ATWD0404

In Stock

out of stock

In Stock

$4.34

Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability




Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.5

Length (inches)

1.56

Weight (lbs)

0.00625

Width (inches)

1.19

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

Gray, White

Sub-Type

Two-Way

Type

Divider

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



Features:
  • Acetal copolymer construction
  • O-rings are NBR (Buna-N)
  • Unique oval collet design
  • FDA approved materials
  • For water, air, gases, vacuum, & liquids
  • NSF Certified 51 & 62
  • Fittings may be gray or white based on availability



Weight & Dimensions

Box Dimensions

7.5x11x6.125

Case Dimensions

12x15.5x13.5

Height (inches)

0.5

Length (inches)

1.56

Weight (lbs)

0.00625

Width (inches)

1.19

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

Buna-N

Series

Acetal

Color / Finish

Gray, White

Sub-Type

Two-Way

Type

Divider

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
