DMFit

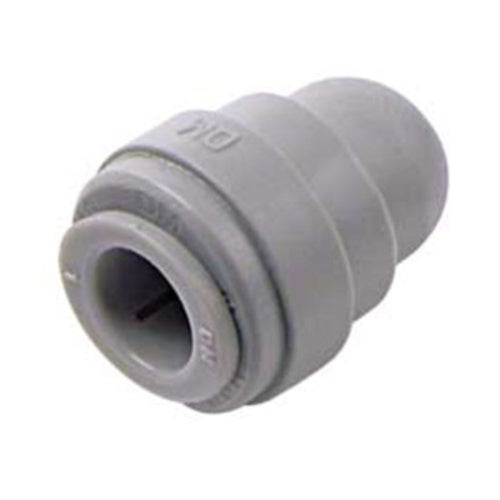

DMfit End Stop - 5/16" Push-in

Part Number: ATES05

In Stock

out of stock

In Stock

$1.07 Regular price

DMFit ATES05 End Stop - 5/16 Push-in. Used to plug the end of tubing to prevent leaking. 1. Push Squared-off Tubing into Fitting 2. Pull Back to Confirm Lock 3. To Unlock Push in Collet and Pull Tubing End Stops All Acetal Inch Size Fittings Accessories

Instructions:
Push Squared-off Tubing into Fitting
Pull Back to Confirm Lock
To Unlock Push in Collet and Pull Tubing End Stops


Weight & Dimensions

Height (inches)

0.69

Length (inches)

0.88

Weight (lbs)

0.000625

Width (inches)

0.69

Details

Application

Water; Air; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

Gray; White

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

5/16" OD

Seal Material

Buna-N

Series

Acetal

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved



DMFit ATES05 End Stop - 5/16 Push-in. Used to plug the end of tubing to prevent leaking. 1. Push Squared-off Tubing into Fitting 2. Pull Back to Confirm Lock 3. To Unlock Push in Collet and Pull Tubing End Stops All Acetal Inch Size Fittings Accessories

Instructions:
Push Squared-off Tubing into Fitting
Pull Back to Confirm Lock
To Unlock Push in Collet and Pull Tubing End Stops

Weight & Dimensions

Height (inches)

0.69

Length (inches)

0.88

Weight (lbs)

0.000625

Width (inches)

0.69

Details

Application

Water; Air; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

Gray; White

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

34

Mounting Options

Free Floating

Push-In Size

5/16" OD

Seal Material

Buna-N

Series

Acetal

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved
