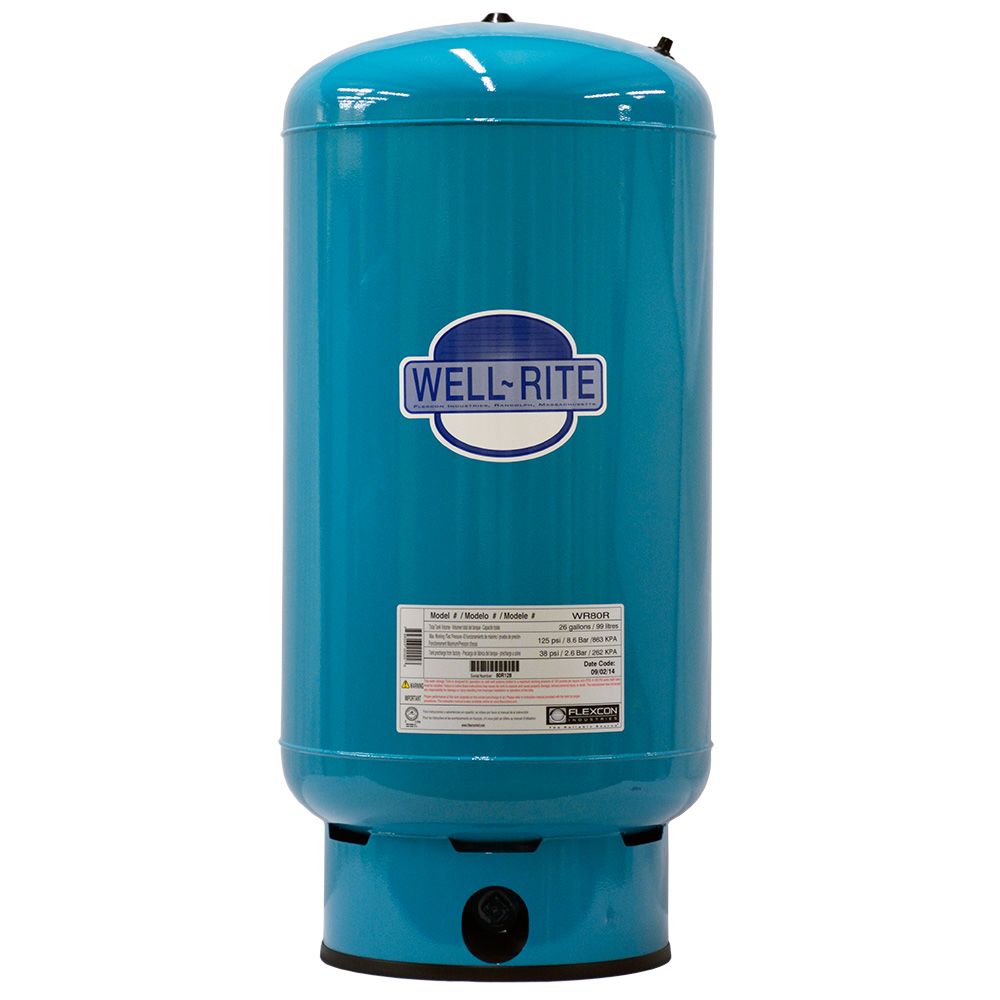

Well-Rite WR-80 Well Pressure Tank 26 gallon Steel

WR-80 Flexcon IndustriesWR-80R
Mouse over to view larger image.
You might like:

NSF Certified  BPA Free  Made in USA

Free Shipping!
Part Number: WR-80
Alt. Part Number: WR-80R
This item is no longer available. We have replaced it with:
Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal

Well-Rite WR-80 Well Pressure Tank Features:


The Well-Rite WR-80 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-60 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown at 30/50 Setting: 8.9 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-80 is compatible with the following tanks:

  • Well-X-Trol WX-202XL
  • Goulds V80
  • Flex2Pro WWT-25
  • Champion CH6000
  • A.O. Smith PM-26
  • Flex2Pro H2P-25



Eletrical
Tank Specifications
Pressure Pump Tank, RO Water Storage
26 Gallons
38 psi
1" FNPT Stainless Steel
Bottom
Top
10.5 Gallons
8.9 Gallons
7.7 Gallons
Dimensions
34.5 "
16 "
41 lbs
Operating Conditions
140 °F
125 psi
Drawn Steel w/ Epoxy Finish
Butyl Rubber
USA
Certifications
NSF Certified to Standard 61
Warranty
5 years
