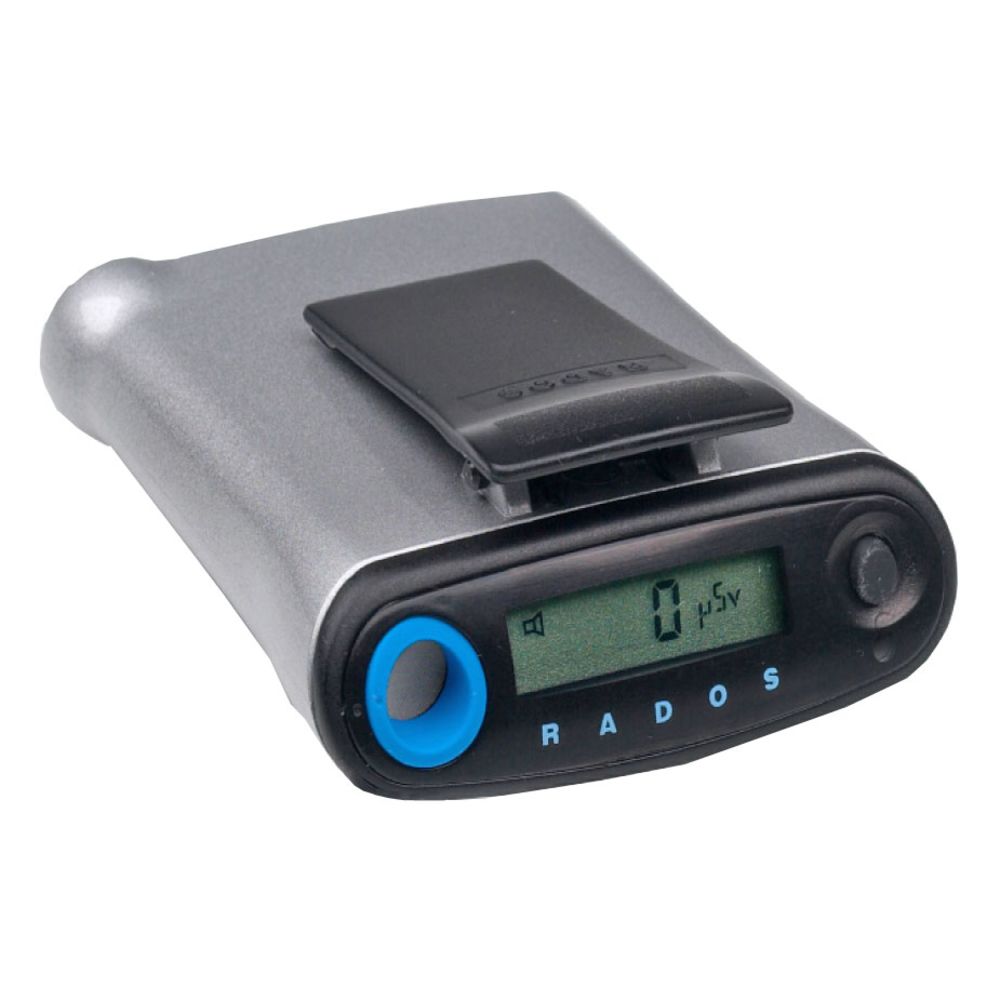

Mirion RAD-60 LCD Radiation Detector Dosimeter

Mirion RAD-60 LCD Radiation Detector Dosimeter
Mouse over to view larger image.
You might like:

Personal Alarming Dosimeter

Part Number: RAD-60R
Alt. Part Number: RAD-60R/RAF-1233218
This item is no longer available. We have replaced it with:
Mirion SOR/RF LCD Radiation Detector Dosimeter

Mirion RAD-60 Geiger Counter & Radiation Detector Monitor Features:

The RADOS RAD-60 Personal Alarming Dosimeter is a precise radiation measuring instrument for reliable detection and registration of radiation in order to ensure the personal safety of the user. It is suitable for a broad range of everyday radiation monitoring purposes in stand alone conditions.

  • Enhanced EMI immunity
  • Improved wear-out and decontamination properties
  • Individual personal alarming dosimeter
  • Digital display for integrated dose or alternatively dose rate
  • User selectable alarm levels for both dose and dose rate
  • Detector system utilizes high quality energy compensated Si diode and advanced mathematical dose rate linearization
  • Splash-proof mechanical construction, high impact plastic case with strong pocket clip
  • Ideal for civil defense, rescue operations, customs operations, military forces, industrial radiography, nuclear medicine

Radiological Characteristics:
  • Detects gamma and X-ray radiation
  • Energy compensated Si-Diode detectors
  • Measurement range:
    • dose: 1 µSv - 9.99 Sv or 0.1 mrem - 999 rem
    • dose rate: 5 µSv/h - 3 Sv/h or 0,5 mrem/h - 300 rem/h
  • Calibration is better than ±5% (Cs-137, 662 keV at 2 mSv/h), Hp(10)
  • Dose rate linearity is better than ±15%, up to 3 Sv/h (300rem/h)
  • Energy response is Hp(10), 55 keV - 3 MeV, better than ±25%, up tp 6 MeV, better than ±35%

Functional Characteristics:
  • Six preset alarm threshold values each for integrated dose and dose rate, manually selectable by push-button
  • Front panel push-button functions:
    • Toggle between dose and dose rate display
    • Switch ON/OFF
    • Chirp ON/OFF
    • Reset integrated dose
    • Change alarm thresholds
    • Activate battery test
  • Audible alarms:
    • Seven separate alarms, sound level typically better than 85 dBA at 30 cm
    • Low battery 1 and 2
    • Defect
    • Integrated dose, dose rate, dose overflow, dose rate overflow at 3 Sv/h or 300 rem/h
Portable Radiation and Dosimeter Comparison Chart
Mirion RAD-60 Personal Alarming Dosimeter Specifications
Download a High Resolution Map of Nuclear Sites in the USA
Understanding Radiation Safety Principals

Radiation meters are a special purchase item to address the needs of our customers and are non-refundable, with the exception of products that are not functioning due to manufacturer defects. Replacement for defective items must have trouble-shooting performed by our technical department prior to RGA approval.

3.07 x 2.63 x 0.86 / 78 x 67 x 22 in/mm
2.82 oz.
one triple A alkaline cell, life typically 1800 h in background field (dose mode)
Operating Conditions
Gamma, X-Ray
-20 - +50 oC (-4 - 122oF) operational, humidity up to 90% RH, non condensed °C
