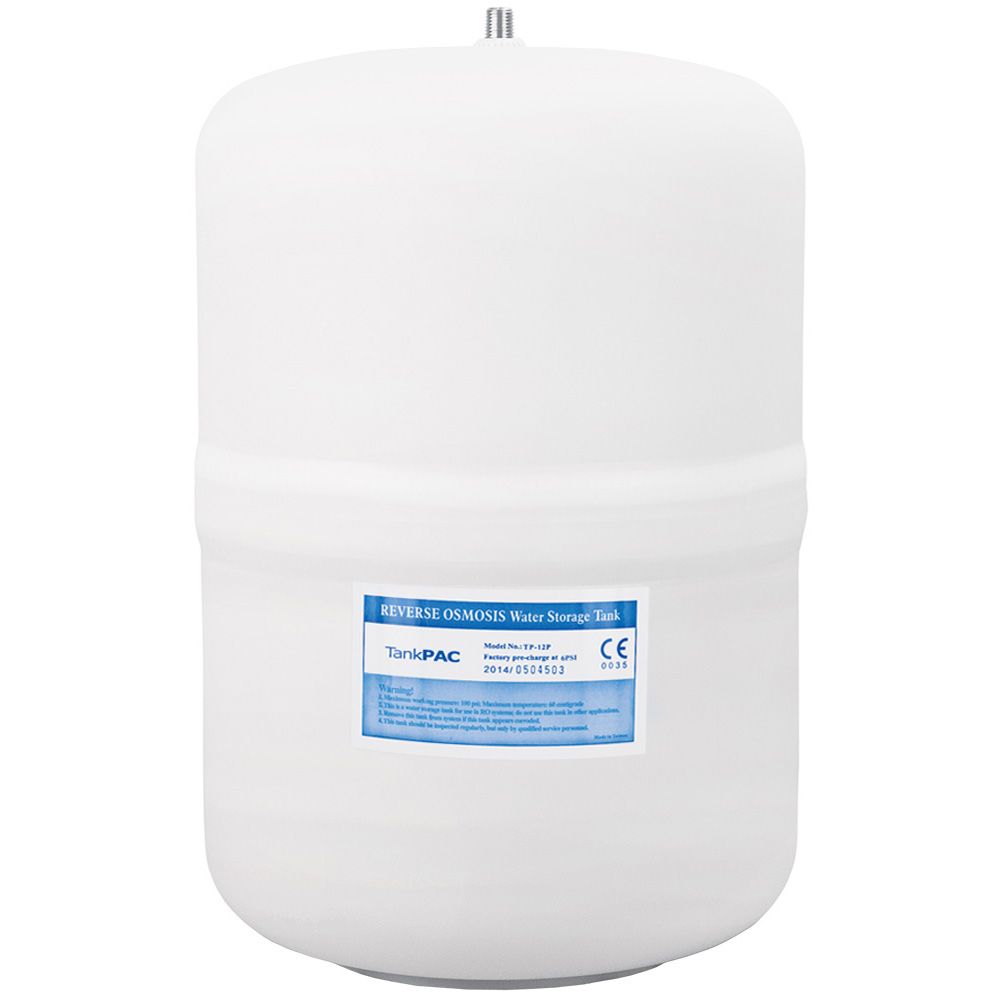

PAE TP-12P Reverse Osmosis Plasteel Storage Tank 3.2 Gal

5.0
(15 reviews)
Part Number: TP-12P Alt. Part Number: TKE-2400-P, ROPT201-PLW, 52-35138, ROPRO4-W, 140S723

PAE TP-12P Reverse Osmosis Plasteel Storage Tank 3.2 Gal

5.0
(15 reviews)
Part Number: TP-12P Alt. Part Number: TKE-2400-P, ROPT201-PLW, 52-35138, ROPRO4-W, 140S723
MSRP: $69.95
Regular price $44.95

Any Pressurized Tanks will be Depressurized if shipping Air

You May Also Need

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

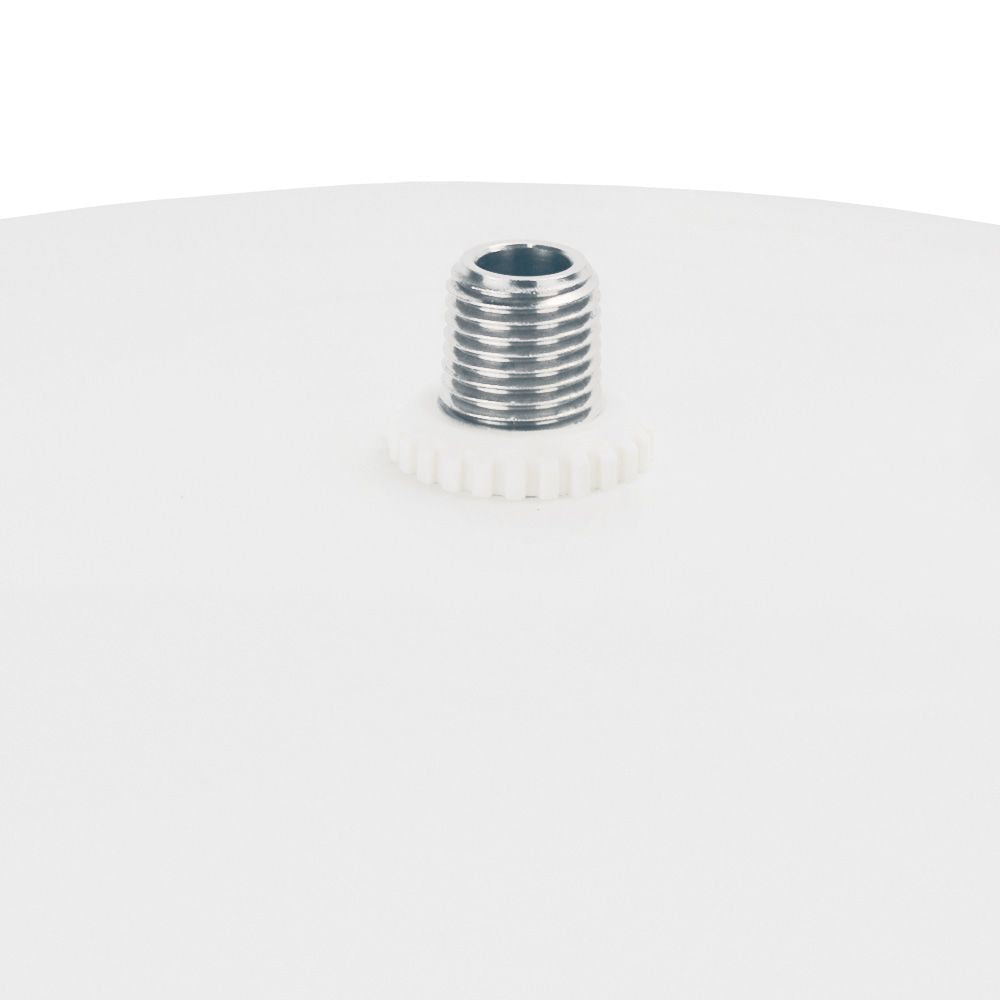

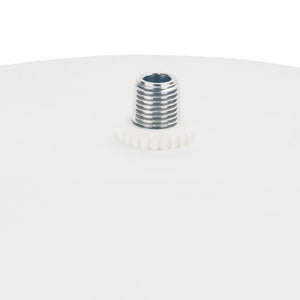

The PAE TankPAC TP-12P is built with FDA approved materials. The water storage chamber features a virgin polypropylene liner, high-grade chlorobutyl diaphragm and stainless steel 1/4" MPT water connection. The diaphragm is post-cured to ensure that your water is tasteless, odorless and contaminant free.


Note: Please refer to the chart under the documentation/videos tab for information regarding capacity. The volume stated is total capacity, not water storage volume.

Maintenance Free.
The ROT-3.2-P tank is built with a sealed brass air valve and o-ring sealed cap to ensure a leak-free air chamber, meaning no more checking the air precharge.

NSF Certified.
This product is certified to NSF/ANSI Standard 58 for the reduction of contaminants using reverse osmosis technology.

Additional Specifications:
  • Stainless steel water connection
  • High-grade chlorobutyl diaphragm
  • Virgin polypropylene liner
  • CE approved
  • BPA free
Reverse Osmosis Tank Maintenance and Accessories:

A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4
valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG
valve.
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge
reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.

Compatible with:
Hague®200100
MarloC2000, A2225024

Specifications

    Product Details

    Capacity

    2 Gallons @ 40 psi

    Diaphragm Materials

    Butyl Rubber

    Inlet Connection

    1/4" MPT

    Max Pressure (Psi)

    100

    Max Temp (°F)

    104°F

    Outlet Connection

    1/4" MPT

    Size

    1/4"

    Volume

    3.2

    Connection Type

    Male (MPT)

    Diameter

    9.4"

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 58

    Warranty

    1 Year

    Shipping Dimensions

    Shipping Length

    15.5 in.

    Shipping Width

    9.5 in.

    Shipping Height

    9.5 in.

    Product Weight & Dimensions

    Height W/O Stand

    14.3"

    Product Height

    9.5 in.

    Product Length

    15.5 in.

    Product Width

    9.5 in.

    Product Weight (lbs)

    7

Downloads

PAE TP-12P Reverse Osmosis Plasteel Storage Tank 3.2 Gal Manual
