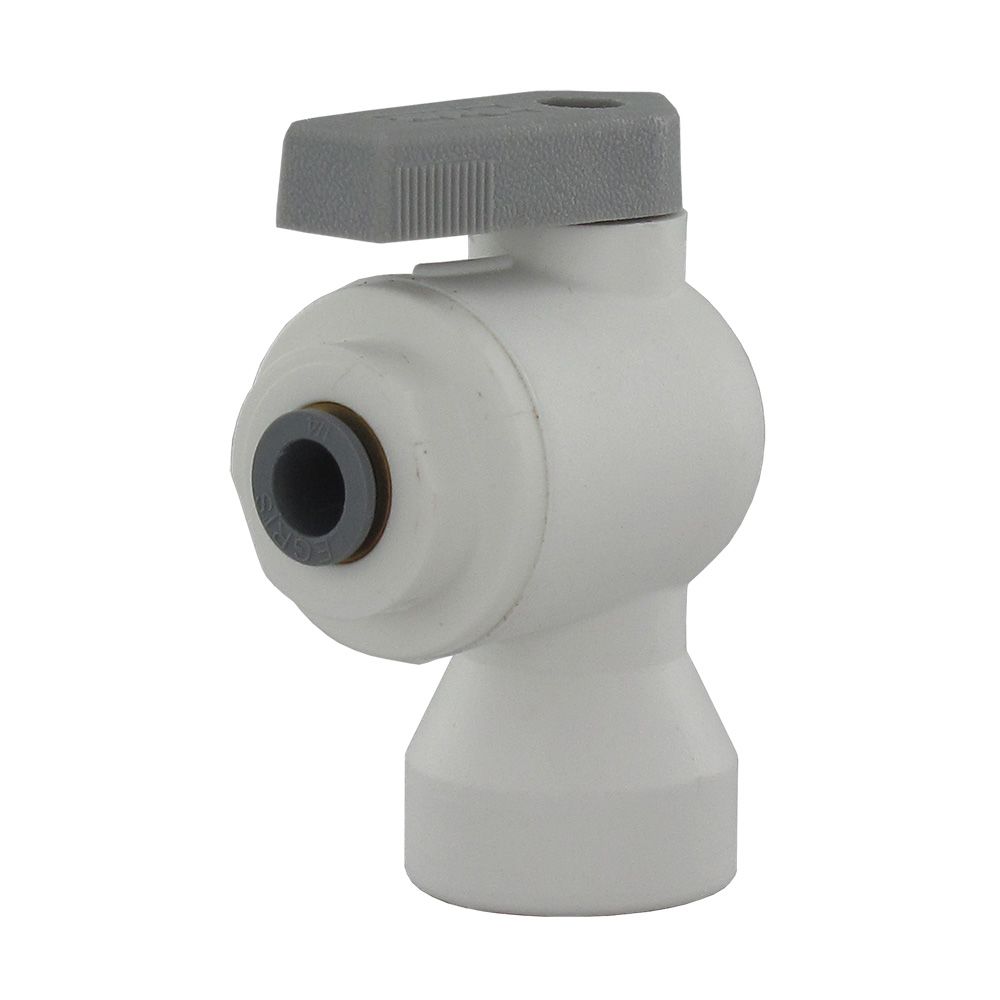

For proven leak-free performance, specify Polypropylene Ball Valves. Their precision molded, all-plastic design is corrosion-resistant, making them ideal for water filtration units, coffee and beverage machines and a wide variety of other fluid applications. Polypropylene material offers a wider chemical acceptance range, as well as a wide temperature range, and meets all FDA and NSF-51 requirements for food contact.
Features:
- Bi-directional flow maximizes productivity
- Full flow design reduces pressure drop across the valve
- Special o-ring seal ensures a reliable leak-tight connection
- Built-in TrueSeal™ connection eliminates the need for a secondary fitting and reduces potential leaks.
- Low-profile design allows for easy assembly and access where space is at a premium
Weight & Dimensions
Height (inches) | 3.09 |
Length (inches) | 4.19 |
Weight (lbs) | 0.021875 |
Width (inches) | 3 |
Details
Application | Water, Food, Beverage |
Body Material | Polypropylene |
Inlet/Outlet Connection | 1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 35 |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | LIQUIfit |
Size | 1/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
Warranty & Certifications
Certifications | NSF 51; FDA Approved |
