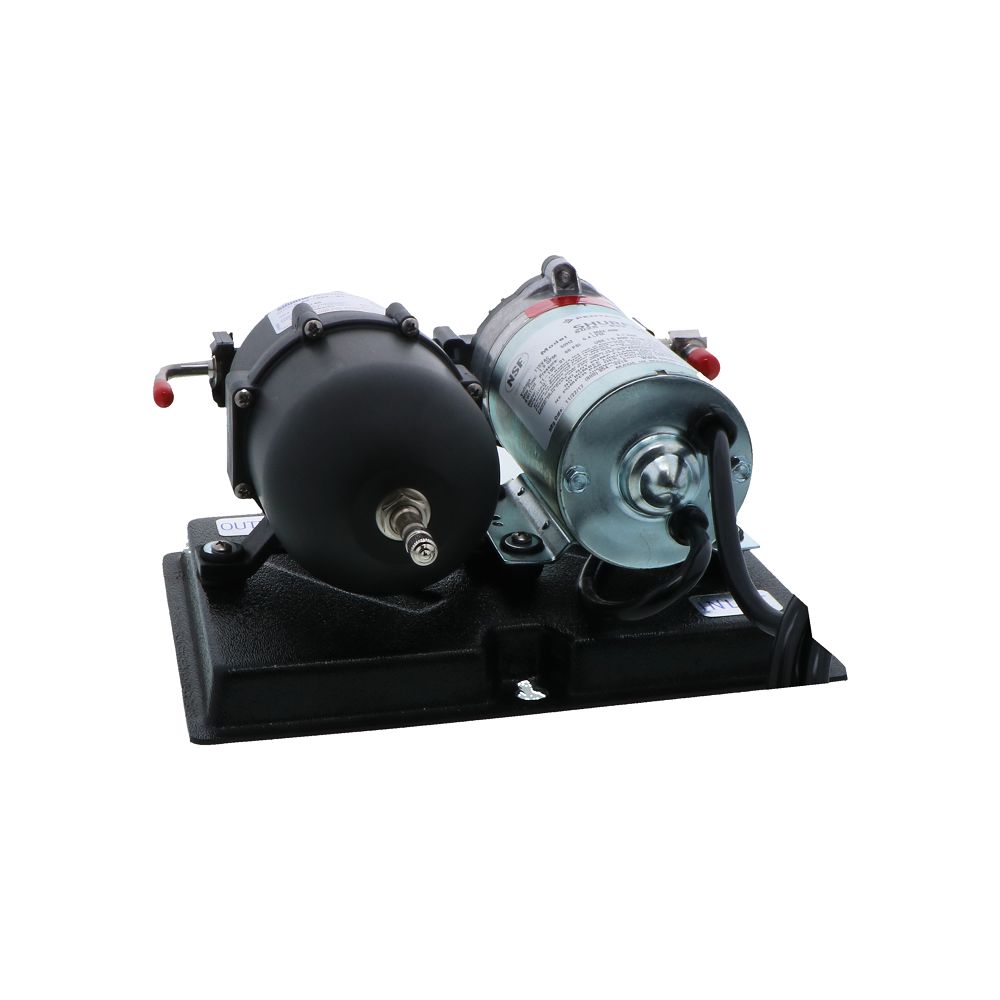

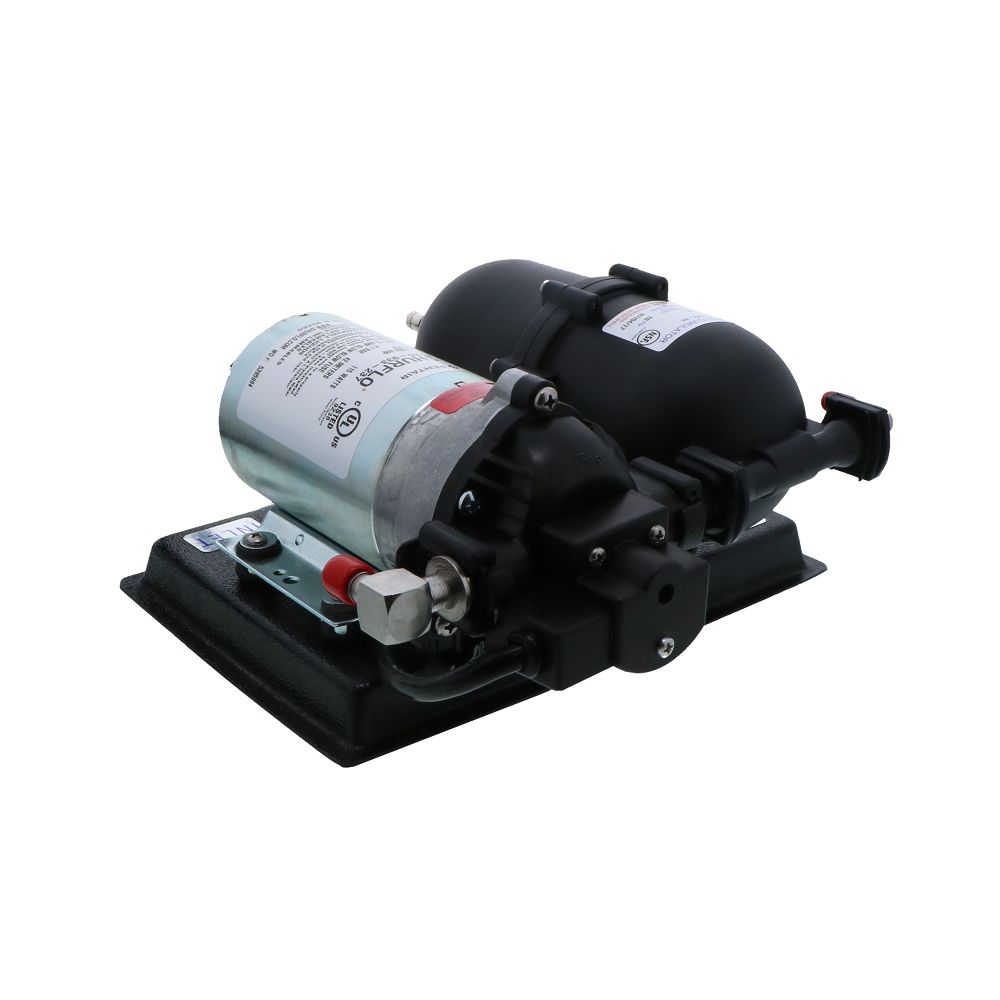

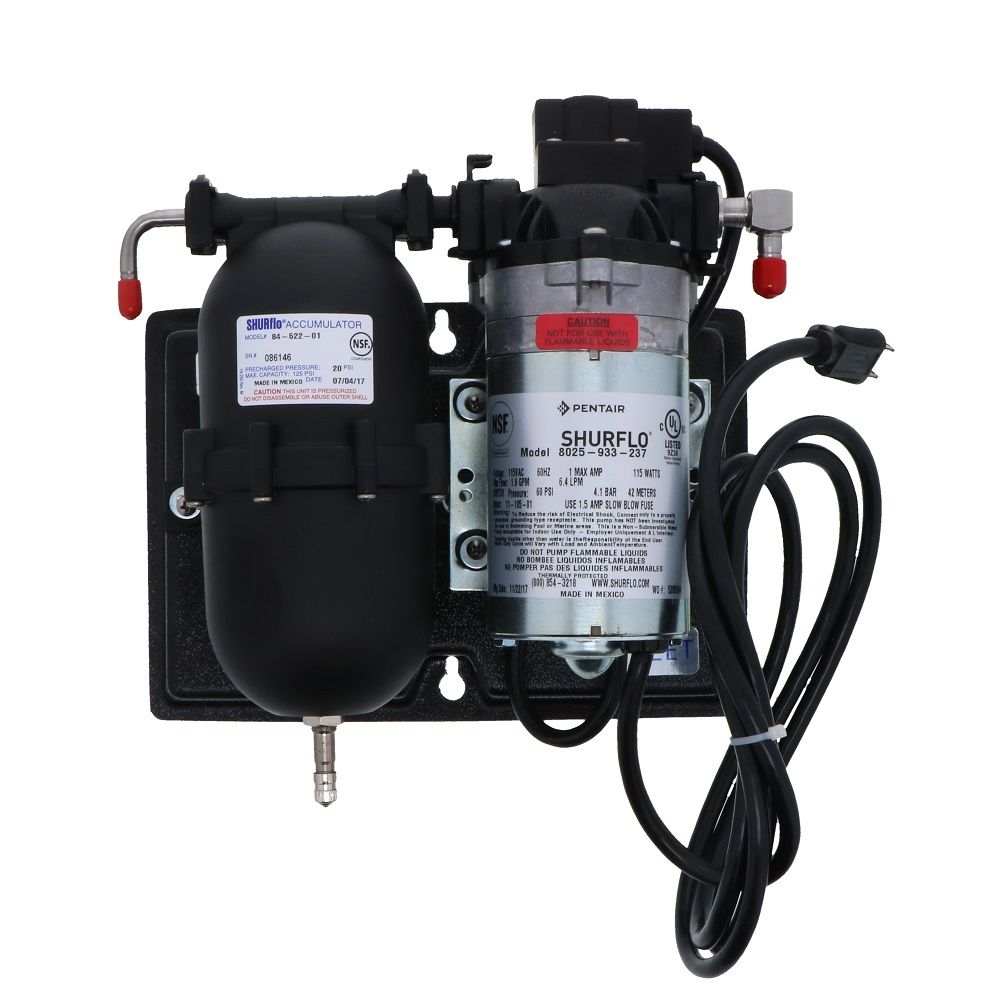

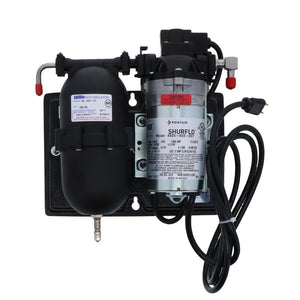

SHURflo 804-021 Mini Water Boost System 90 PSI 230VAC

Part Number: 804-021

SHURflo 804-021 Mini Water Boost System 90 PSI 230VAC

Part Number: 804-021
MSRP: $762.17
Regular price $427.35

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

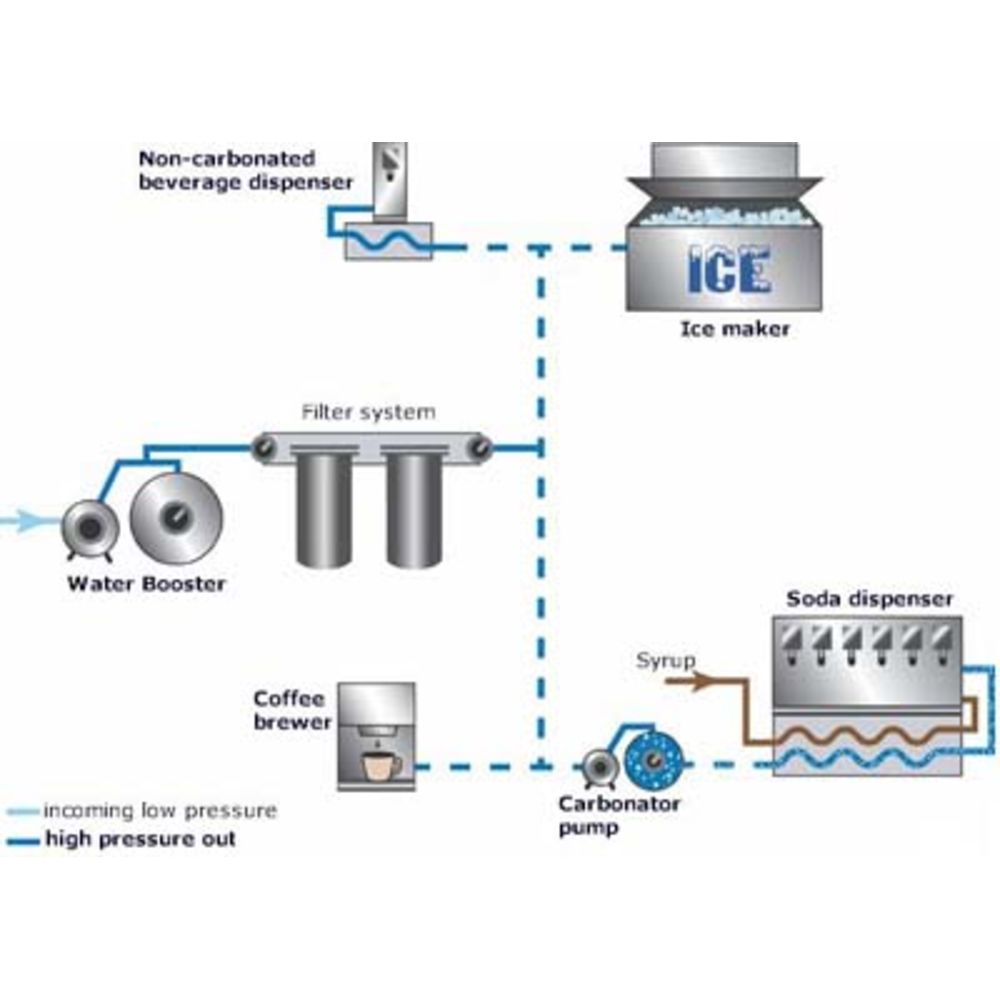

The SHURflo Water Boost Systems deliver quality drinks in many installations where there is an inconsistency in the pressure and flow of city water. Using one or more dispensing valves or faucets, the pump and accumulator maintain consistent water pressure to a source (for a given duration) as long as incoming water is sufficient. The system is a great back-up option for supplying water to a carbonator in case of short periods of insufficient water pressure.

Features:
  • Pump and tank are NSF, UL, and CSA listed
  • Features reliable SHURflo 8025 Series Pump
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Pressure reducing valves on inlet help prevent damage
Note: inlet 3/8" barbed elbow, outlet 1/4" barbed elbow.


Specifications

    Product Details

    Barb Size

    3/8"

    1/4"

    Diaphragm Materials

    Santoprene

    Housing Material

    Glass-Reinforced Nylon

    Inlet Pressure

    30 PSI

    Liquid Temperature

    34-170 °F

    Pump Max Flow Rate (Gpm)

    1.1

    Series

    8000

    Voltage Type

    AC

    Wire Option

    Wall Plug

    Type

    Water Pressure Booster System

    Voltage

    115VAC

    Product Weight & Dimensions

    Product Height

    7

    Product Length

    12.5

    Product Width

    12.5

    Product Weight (lbs)

    7.879

Downloads

SHURflo 804-021 Mini Water Boost System 90 PSI 230VAC ManualSHURflo 804-021 Mini Water Boost System 90 PSI 230VAC ManualSHURflo 804-021 Mini Water Boost System 90 PSI 230VAC Manual
