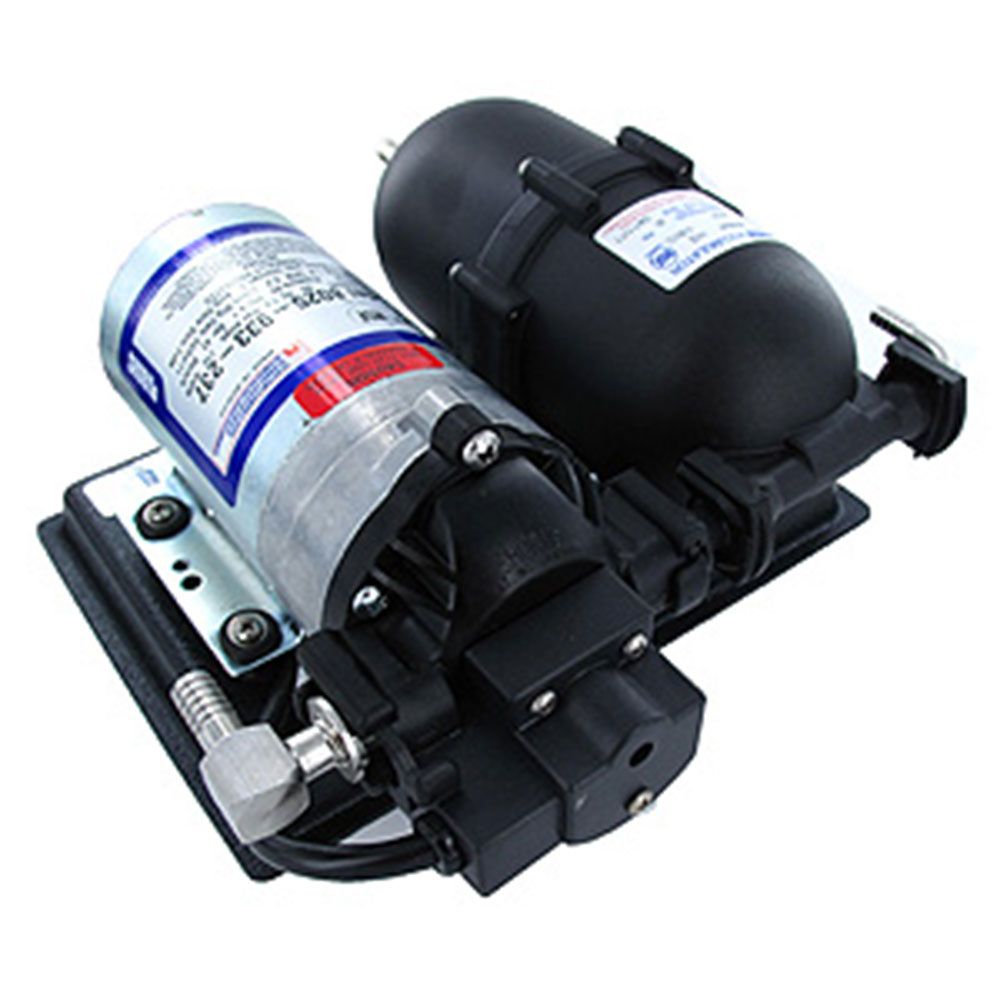

SHURflo 804-002 Mini Water Boost System 90 PSI 115VAC

Part Number: 804-002

In Stock

out of stock

In Stock

$203.99

The SHURflo Water Boost Systems deliver quality drinks in many installations where there is an inconsistency in the pressure and flow of city water. Using one or more dispensing valves or faucets, the pump and accumulator maintain consistent water pressure to a source (for a given duration) as long as incoming water is sufficient. The system is a great back-up option for supplying water to a carbonator in case of short periods of insufficient water pressure.

Features:
  • Pump and tank are NSF, UL, and CSA listed
  • Features reliable SHURflo 8025 Series Pump
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Pressure reducing valves on inlet help prevent damage


SHURflo 8040-002 Mini Water Booster Pump Configuration
PSI BAR GPM LPM Amps
20 1.4 1.42 4.90 0.40
40 2.8 1.26 2.50 0.49
60 4.1 1.13 0.10 0.54


Weight & Dimensions

Weight (lbs)

8.1

Approx Height (Inches)

10.24"

Approx Length (Inches)

9.84"

Approx Width (Inches)

4.6"

Details

Series

8000

Max Pressure (Psi)

90

Bypass Valve Material

EDPM

Diaphragm Materials

Santoprene

Flow Rate

1.1 GPM

Housing Material

Glass Filled Nylon

Liquid Temperature

34-170 °F

Voltage

115VAC

Inlet Pressure

30 PSI

Psi Bypass

90 PSI

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA


SHURflo

SHURflo

SHURflo




The SHURflo Water Boost Systems deliver quality drinks in many installations where there is an inconsistency in the pressure and flow of city water. Using one or more dispensing valves or faucets, the pump and accumulator maintain consistent water pressure to a source (for a given duration) as long as incoming water is sufficient. The system is a great back-up option for supplying water to a carbonator in case of short periods of insufficient water pressure.

Features:
  • Pump and tank are NSF, UL, and CSA listed
  • Features reliable SHURflo 8025 Series Pump
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Pressure reducing valves on inlet help prevent damage


SHURflo 8040-002 Mini Water Booster Pump Configuration
PSI BAR GPM LPM Amps
20 1.4 1.42 4.90 0.40
40 2.8 1.26 2.50 0.49
60 4.1 1.13 0.10 0.54

Weight & Dimensions

Weight (lbs)

8.1

Approx Height (Inches)

10.24"

Approx Length (Inches)

9.84"

Approx Width (Inches)

4.6"

Details

Series

8000

Max Pressure (Psi)

90

Bypass Valve Material

EDPM

Diaphragm Materials

Santoprene

Flow Rate

1.1 GPM

Housing Material

Glass Filled Nylon

Liquid Temperature

34-170 °F

Voltage

115VAC

Inlet Pressure

30 PSI

Psi Bypass

90 PSI

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA
