SHURflo

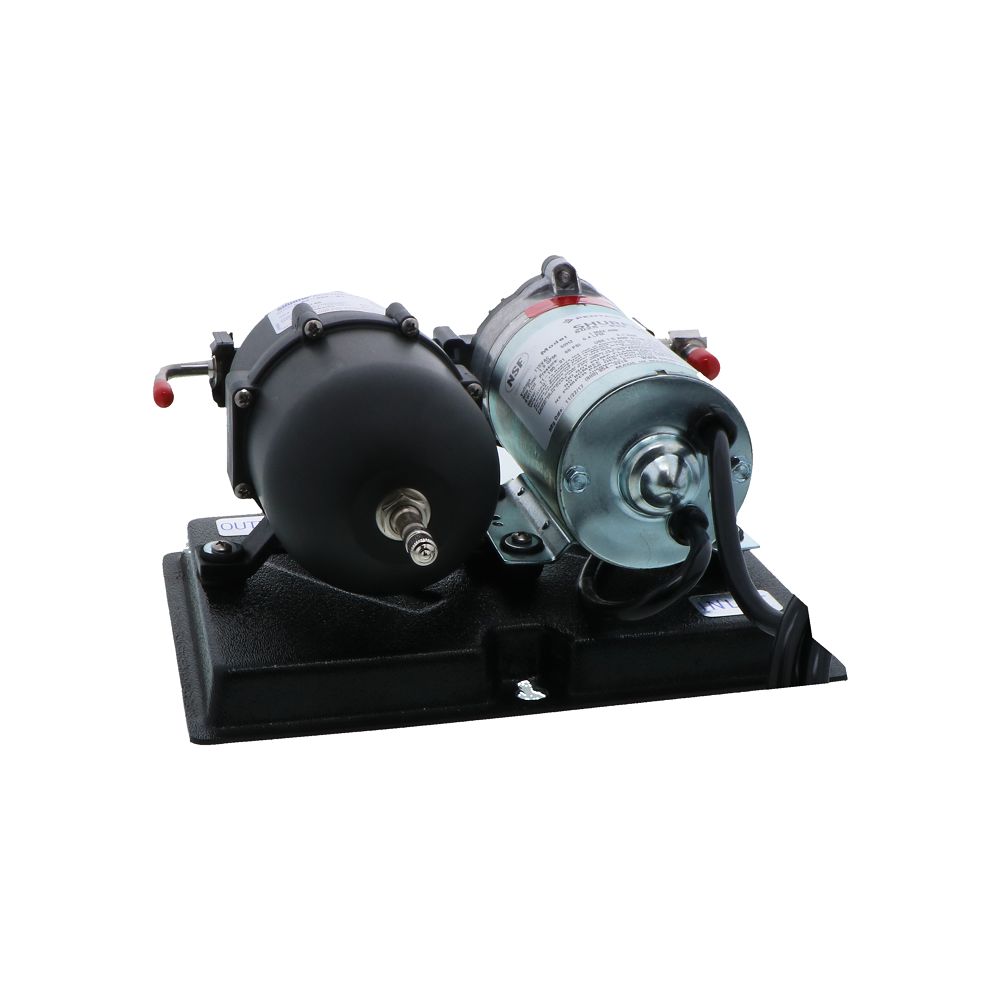

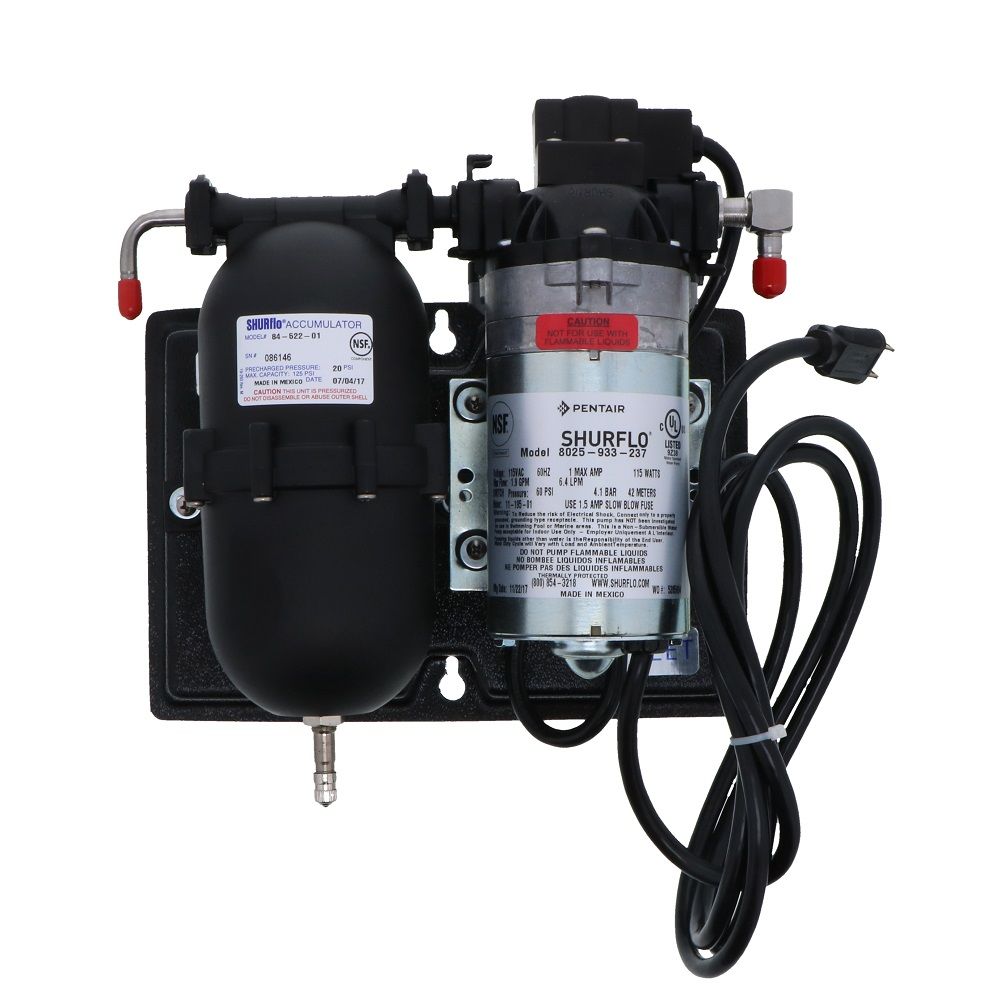

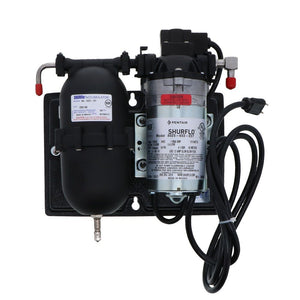

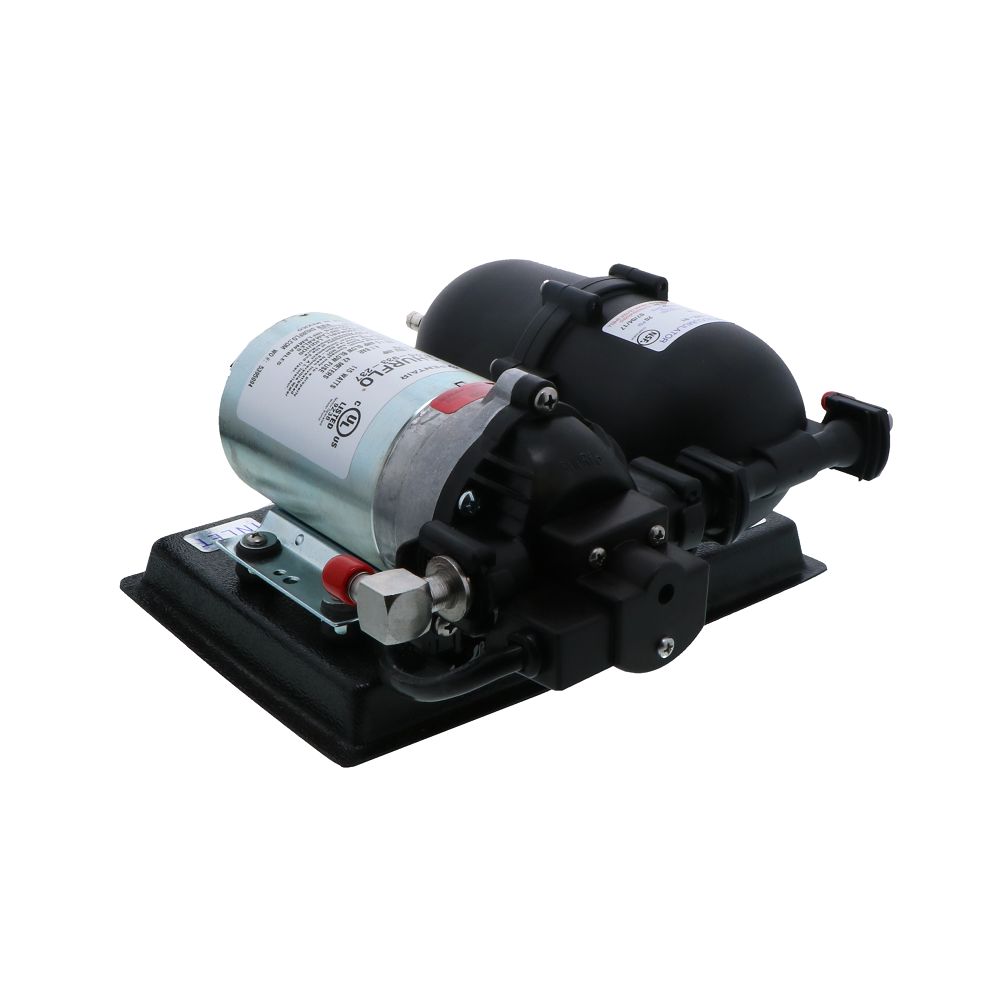

SHURflo 804-001 Mini Water Boost System 60 PSI 115VAC

Part Number: 804-001

In Stock

out of stock

In Stock

$239.99

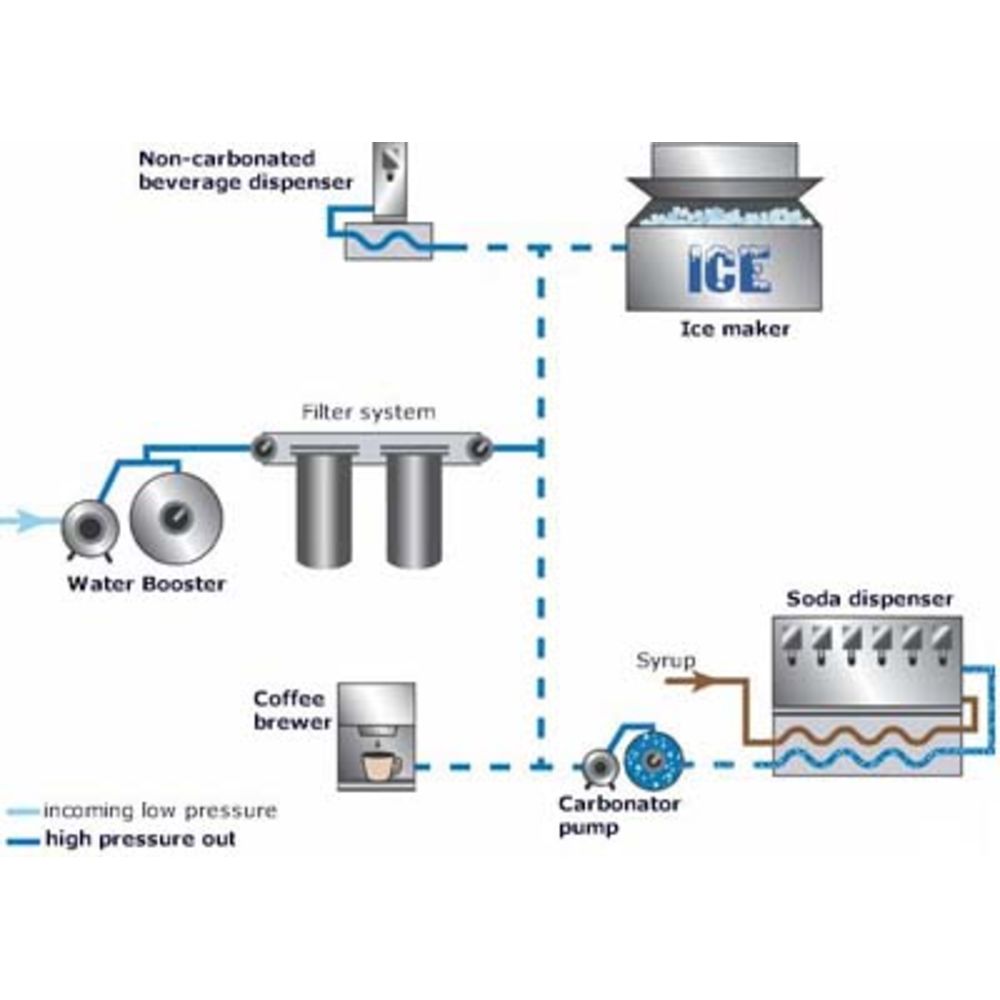

The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Features:
  • Pump and tank are NSF, UL, and CSA listed
  • Features reliable SHURflo 8025 Series Pump
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Pressure reducing valves on inlet help prevent damage



PSI BAR GPM LPM Amps
20 1.4 1.42 4.90 0.40
40 2.8 1.26 2.50 0.49
60 4.1 1.13 0.10 0.54


Weight & Dimensions

Length (inches)

12.25

Height (inches)

6.25

Width (inches)

12.13

Weight (lbs)

7.05625

Details

Series

8000

Barb Size

1/2" ID, 3/8" ID

Diaphragm Materials

Santoprene

Flow Rate

1.1 GPM

Housing Material

Glass Filled Nylon

Liquid Temperature

34-170 °F

Voltage

115VAC

Inlet Pressure

30 PSI

Psi Bypass

60 PSI

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA


SHURflo

SHURflo




The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Features:
  • Pump and tank are NSF, UL, and CSA listed
  • Features reliable SHURflo 8025 Series Pump
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Pressure reducing valves on inlet help prevent damage



PSI BAR GPM LPM Amps
20 1.4 1.42 4.90 0.40
40 2.8 1.26 2.50 0.49
60 4.1 1.13 0.10 0.54

Weight & Dimensions

Length (inches)

12.25

Height (inches)

6.25

Width (inches)

12.13

Weight (lbs)

7.05625

Details

Series

8000

Barb Size

1/2" ID, 3/8" ID

Diaphragm Materials

Santoprene

Flow Rate

1.1 GPM

Housing Material

Glass Filled Nylon

Liquid Temperature

34-170 °F

Voltage

115VAC

Inlet Pressure

30 PSI

Psi Bypass

60 PSI

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA
