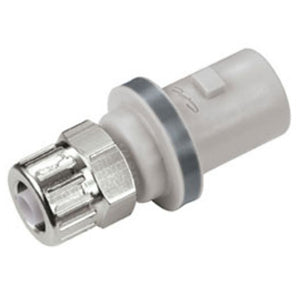

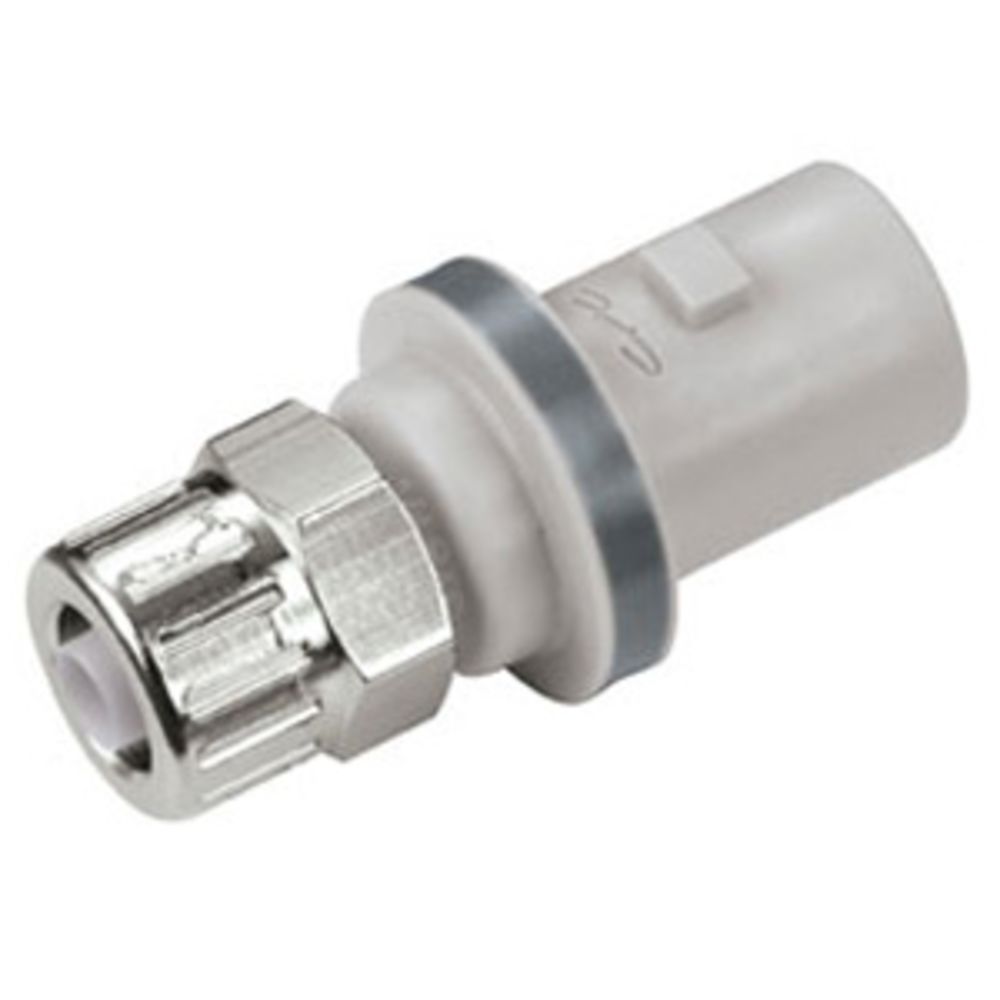

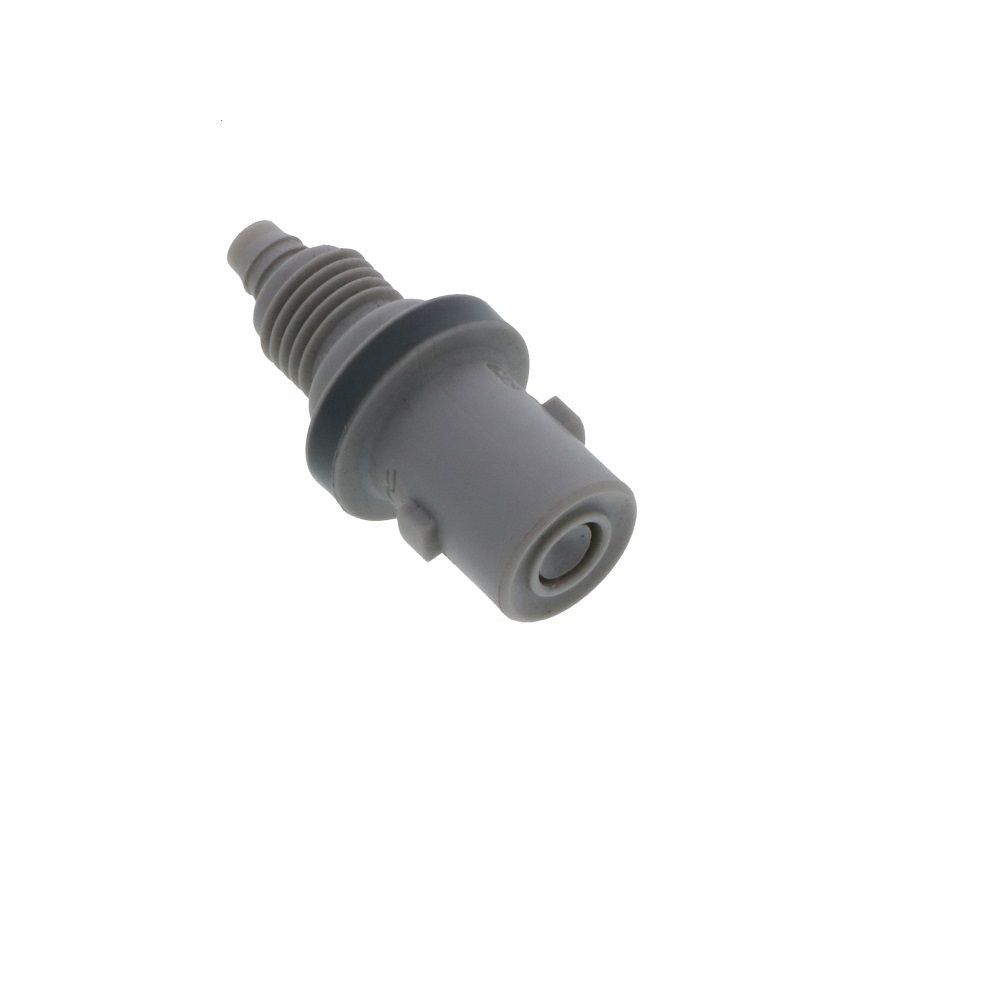

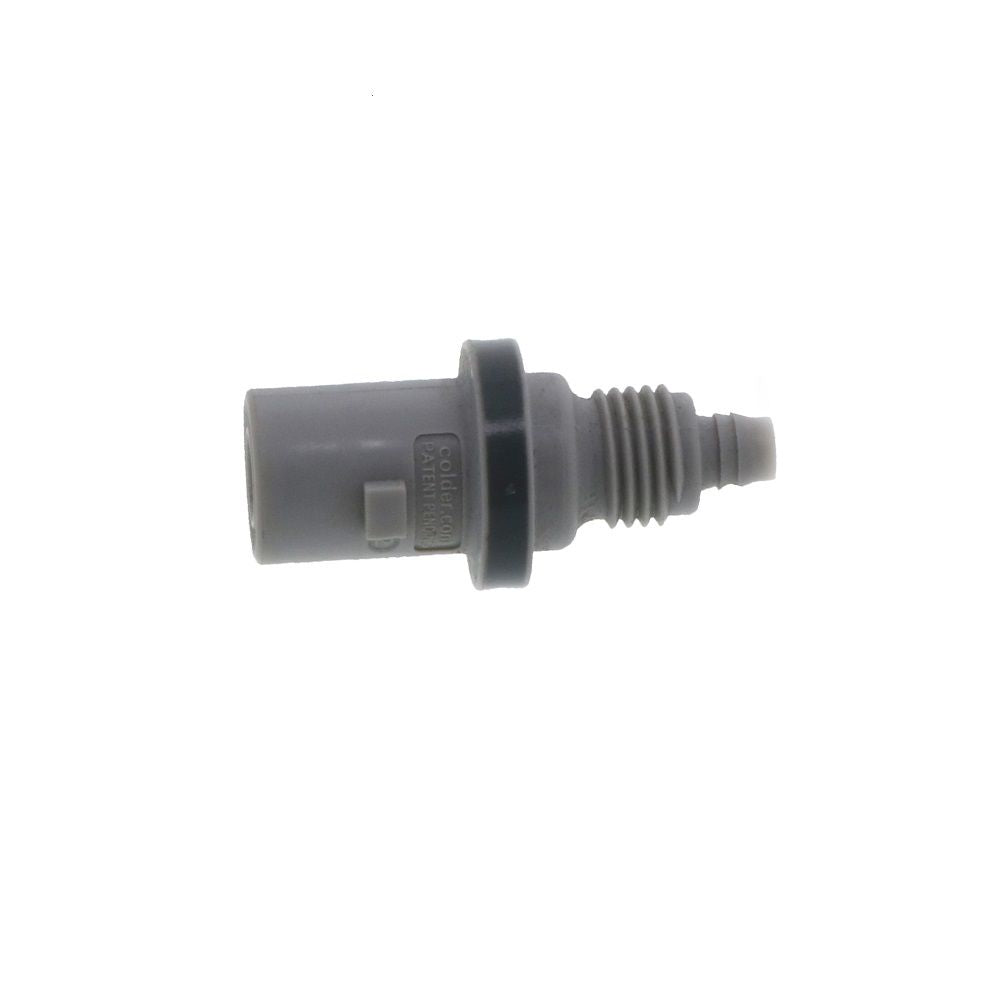

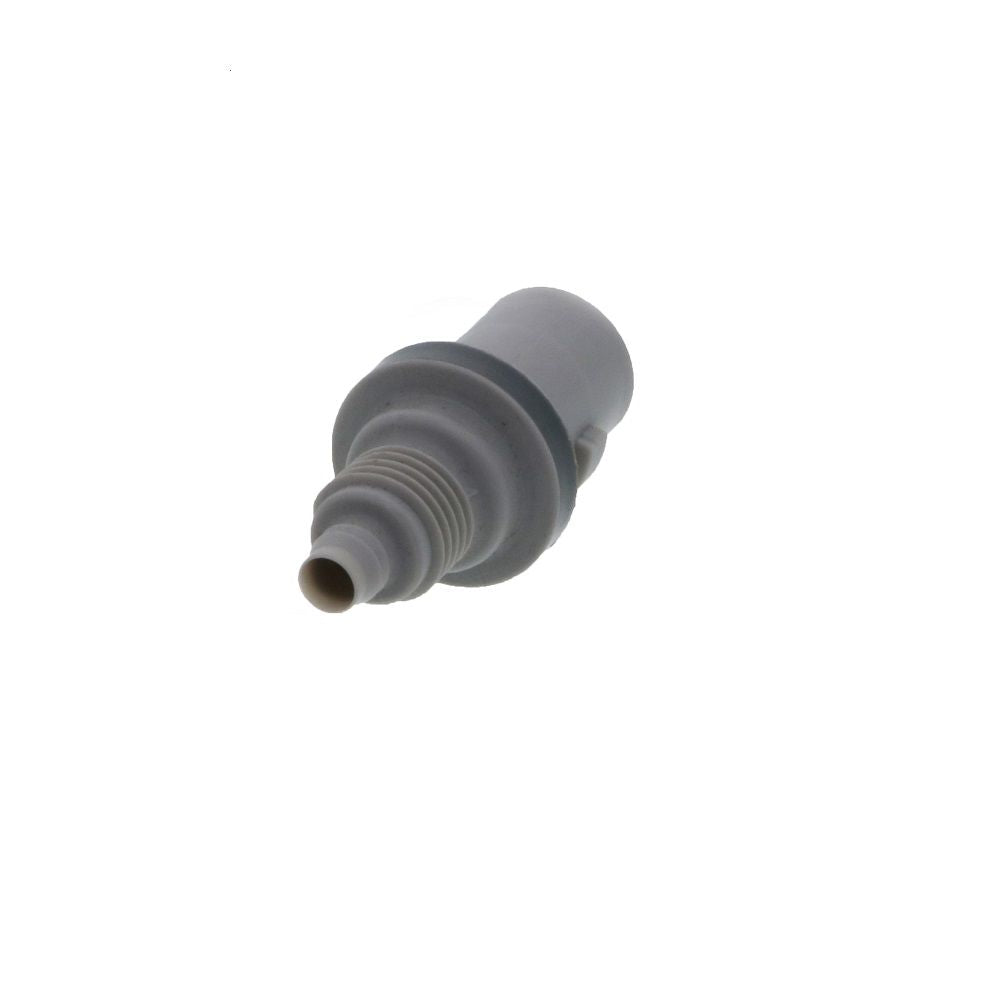

NS2D2004 Valved In-Line PTF Coupling Insert 1/4 PTF

Part Number: NS2D2004
Your price:
similar items
NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units
