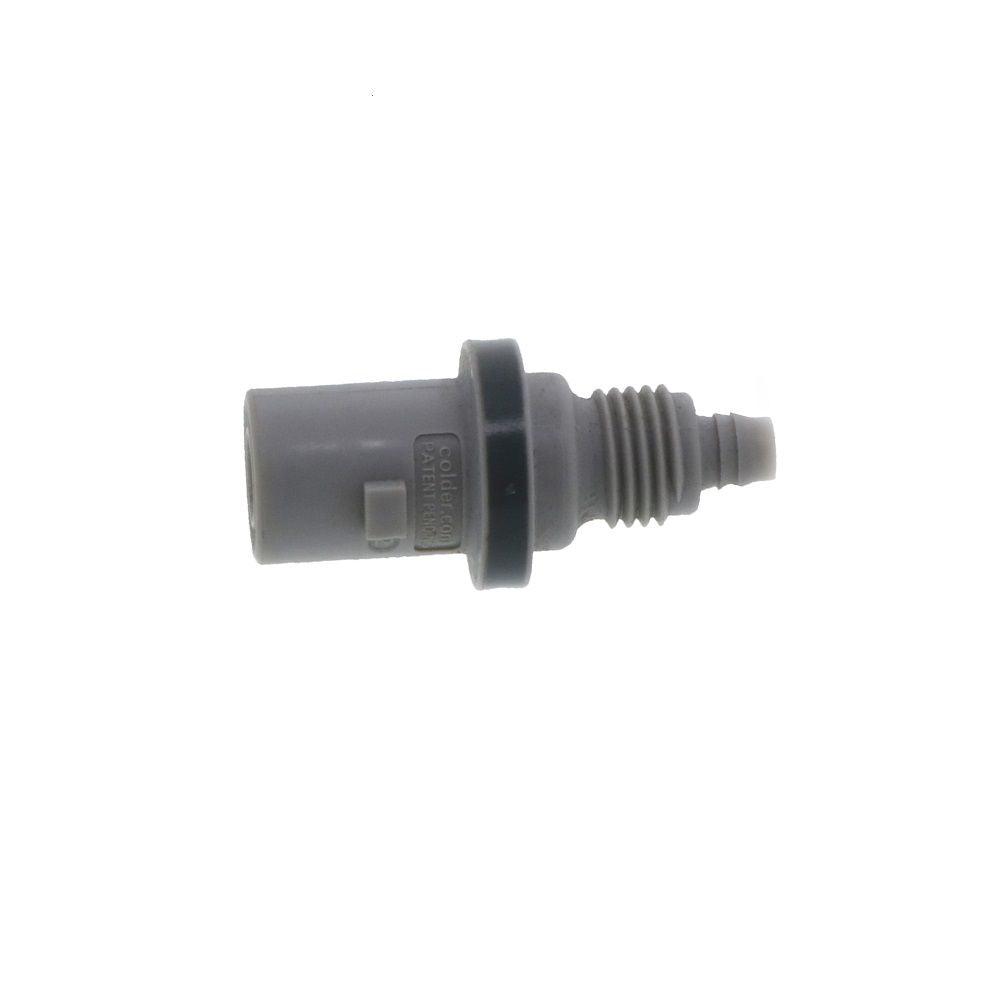

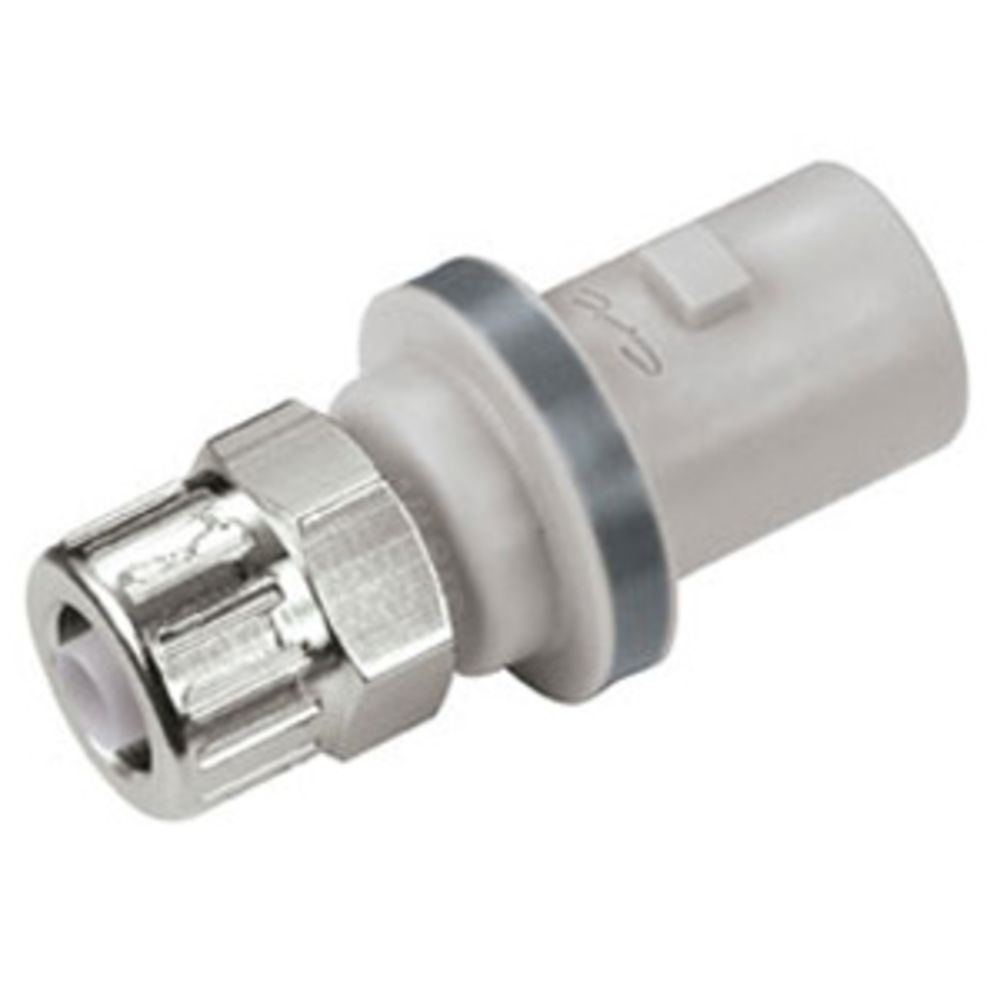

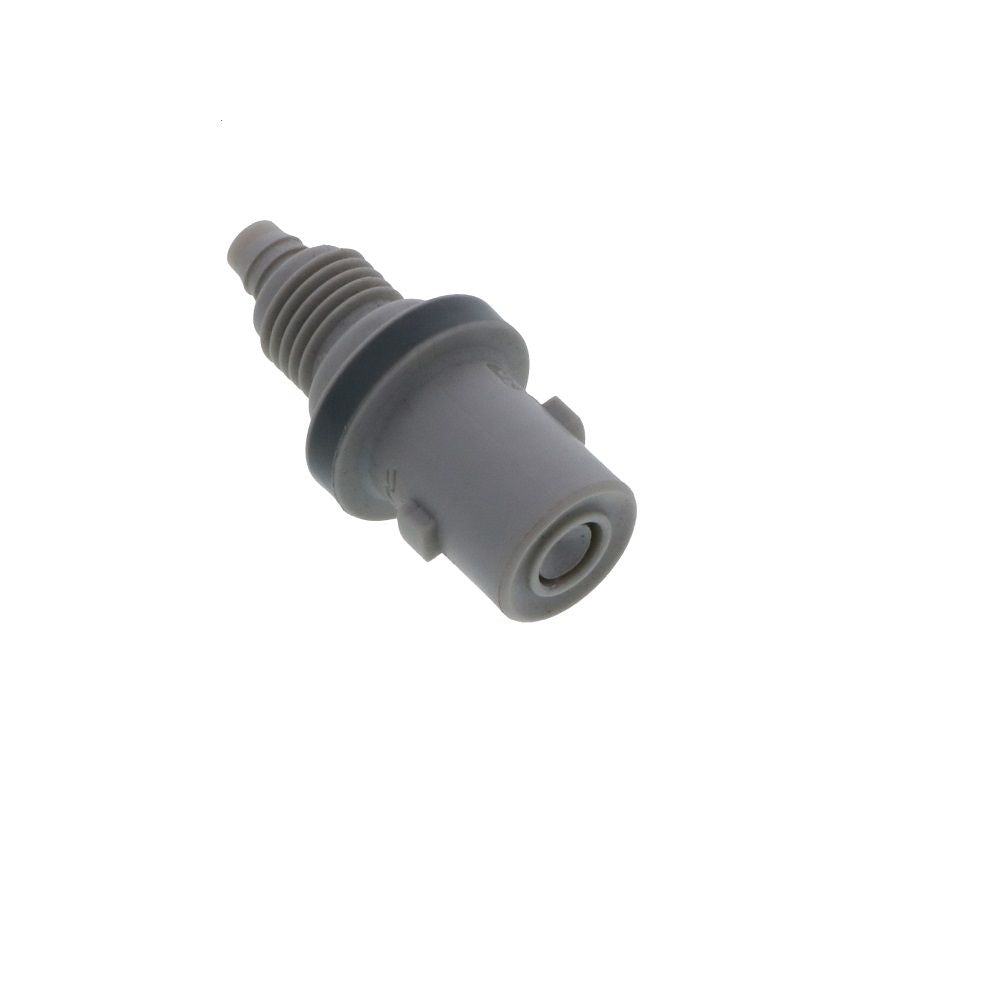

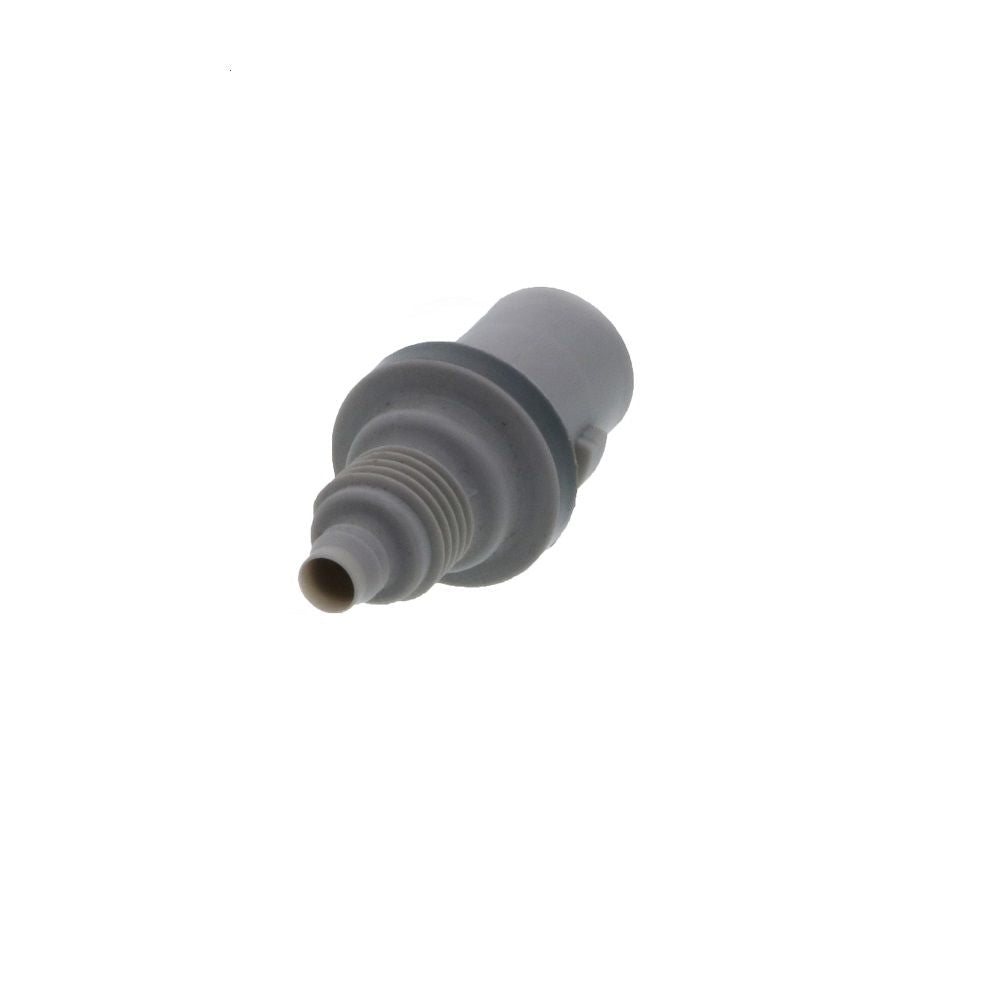

NS2D2004 Valved In-Line PTF Coupling Insert 1/4 PTF
Part Number: NS2D2004
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 45 psi, 3.1 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 120ºF
- Valve Spring: 316 Stainless Steel
- Seal Option: TPV (Thermoplastic Vulcinizate)
- Spillage: <0.025 cc per disconnect, 0.009cc per connect
- Tubing Size: .17" ID, 1/4" OD
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Number Of Seals | 2 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Number Of Seals | 2 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 45 psi, 3.1 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 120ºF
- Valve Spring: 316 Stainless Steel
- Seal Option: TPV (Thermoplastic Vulcinizate)
- Spillage: <0.025 cc per disconnect, 0.009cc per connect
- Tubing Size: .17" ID, 1/4" OD
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Number Of Seals | 2 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Number Of Seals | 2 |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Glass-Filled Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 45 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | TPV (Thermoplastic Vulcinizate) |
Series | NS2 |
Shape | Straight |
Size | 1/4" |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Connection Type | Female (FPT) |
Type | Coupling Insert |
