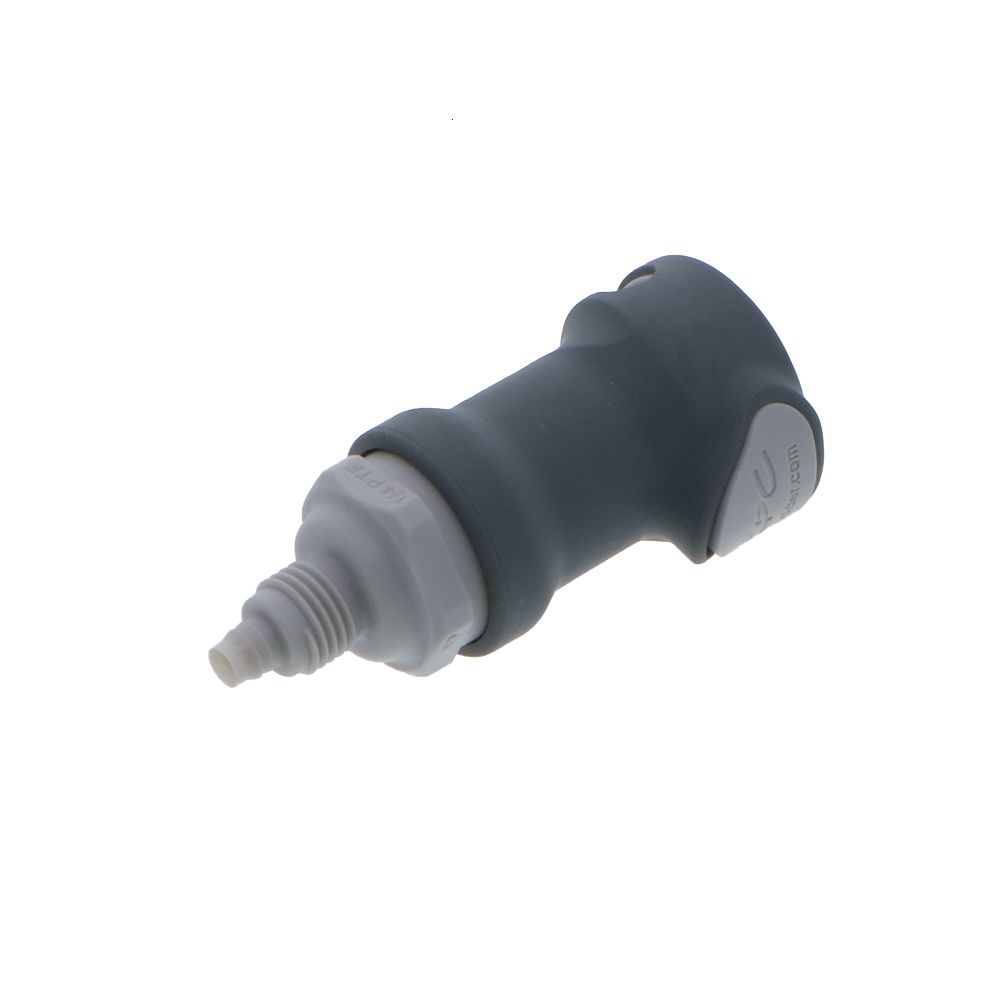

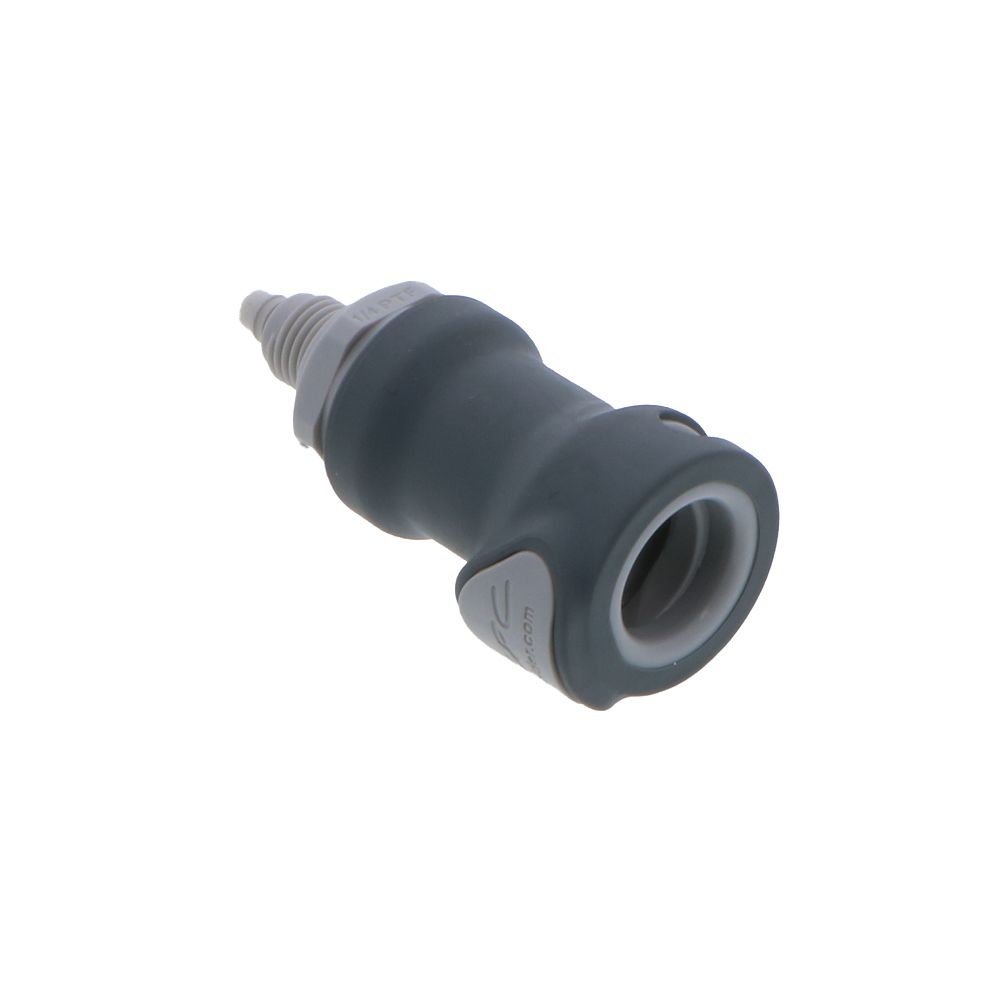

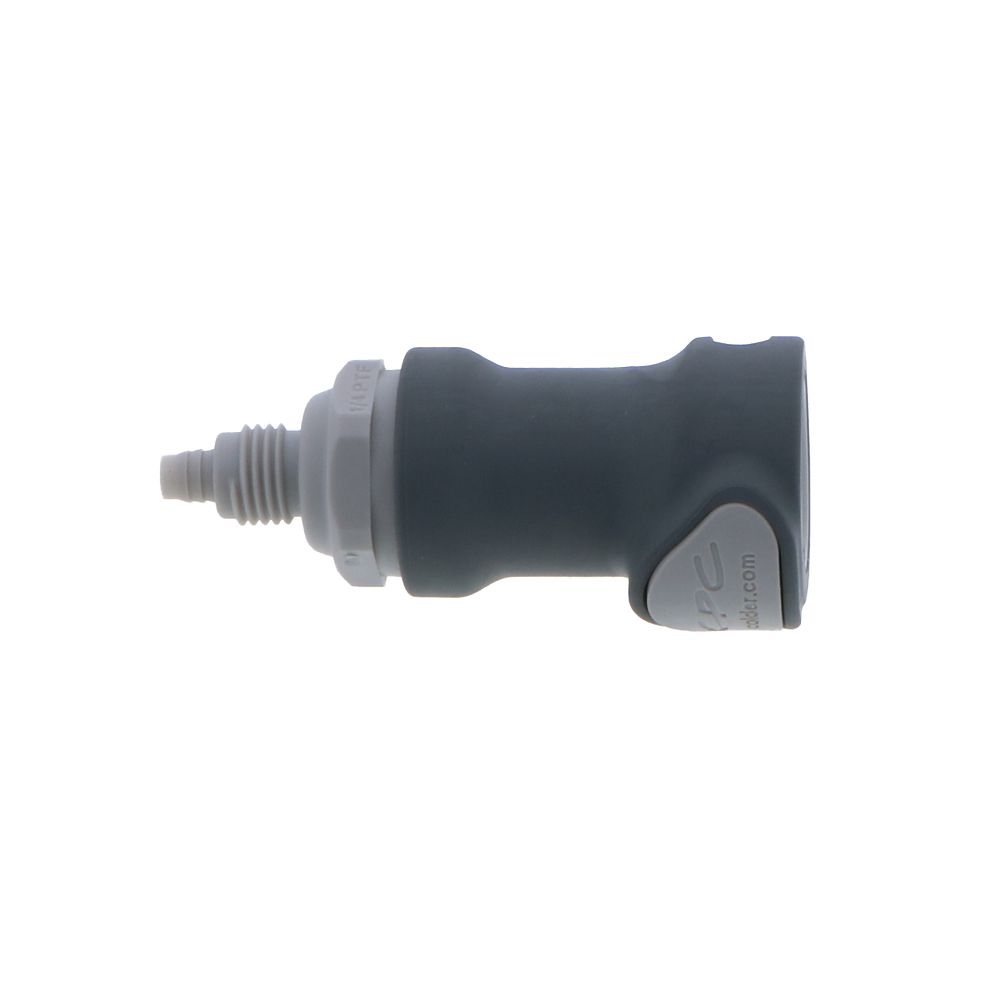

NS2D200412 Valved In-Line PTF Coupling Insert 1/4 PTF

Part Number: NS2D200412
Your price:
similar items
NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units


California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
