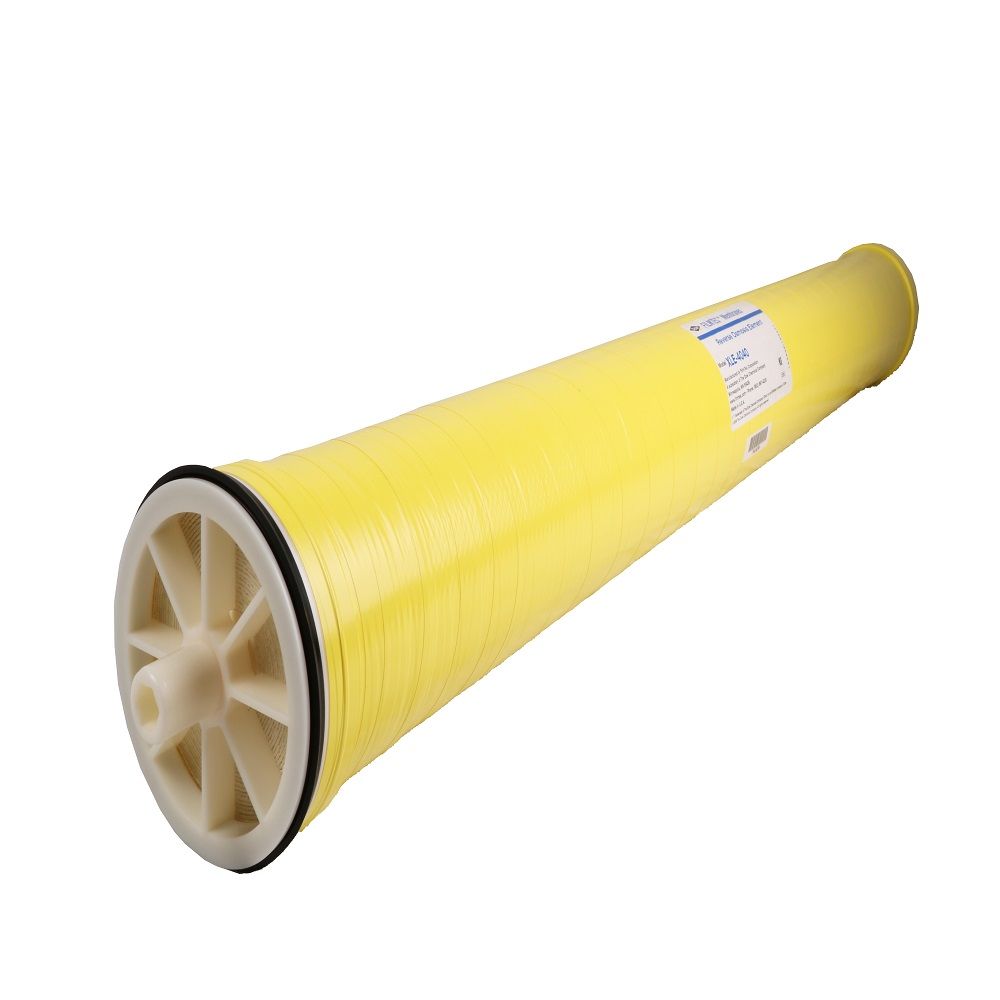

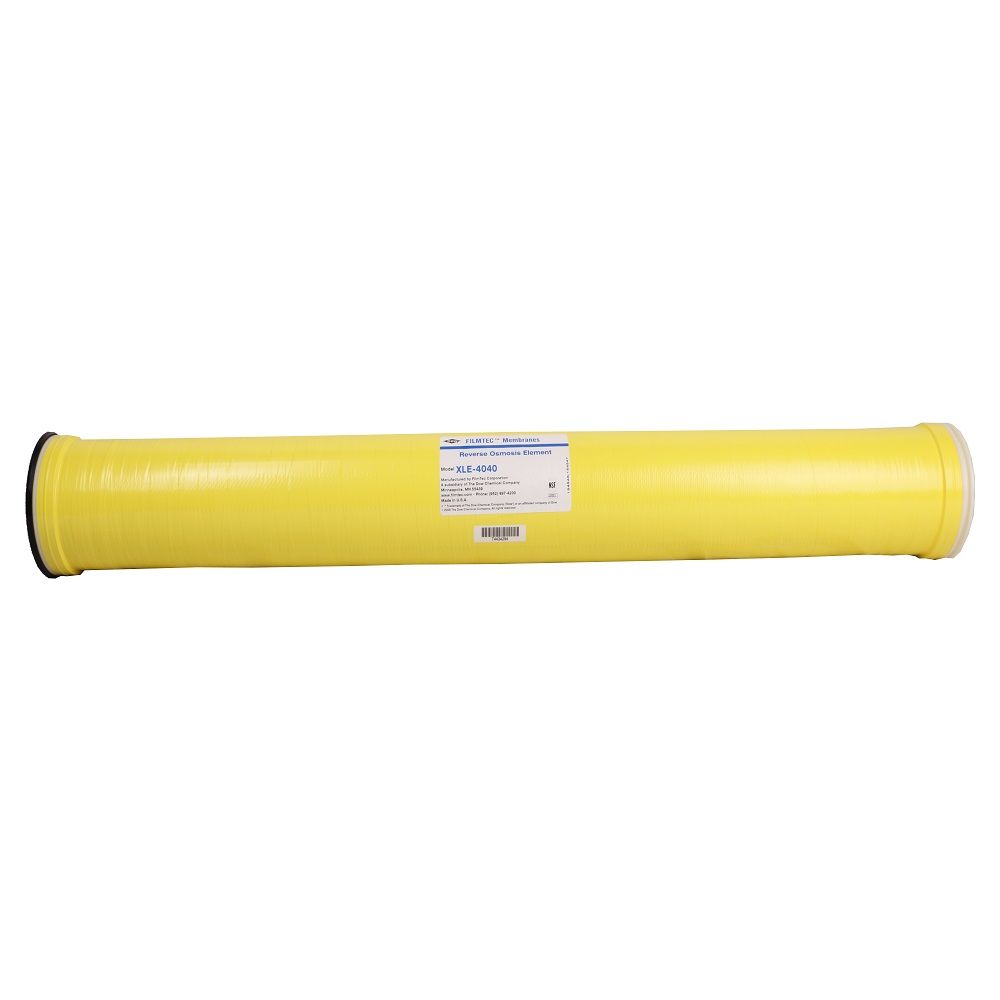

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element

Name: Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element
Brand: Filmtec
SKU: XLE-4040
Price: 299.84 USD
Availability: InStock

5.0

(4 reviews)

Part Number: XLE-4040 Alt. Part Number: 2117575

1 2

Filmtec

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element

5.0

(4 reviews)

Part Number: XLE-4040 Alt. Part Number: 2117575

MSRP: $860.00

$299.84

Product not eligible for free shipping

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:

Up to 2600 gallon per day production
Up to 600 psig
Fits standard 4" housings or pressure vessels
Better system performance and economics by operating at very low applied pressure
Made with a patented technology
Provides consistent and reliable system performance
May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Filmtec RO membranes are wet packed

Specifications

Product Details
Active Area	87 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	100 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	14 gpd (3.2)
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,600 gpd (9.8
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41.5 in.
Product Width	5 in.
Product Weight (lbs)	6.5

Downloads

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element Manual
