Filmtec

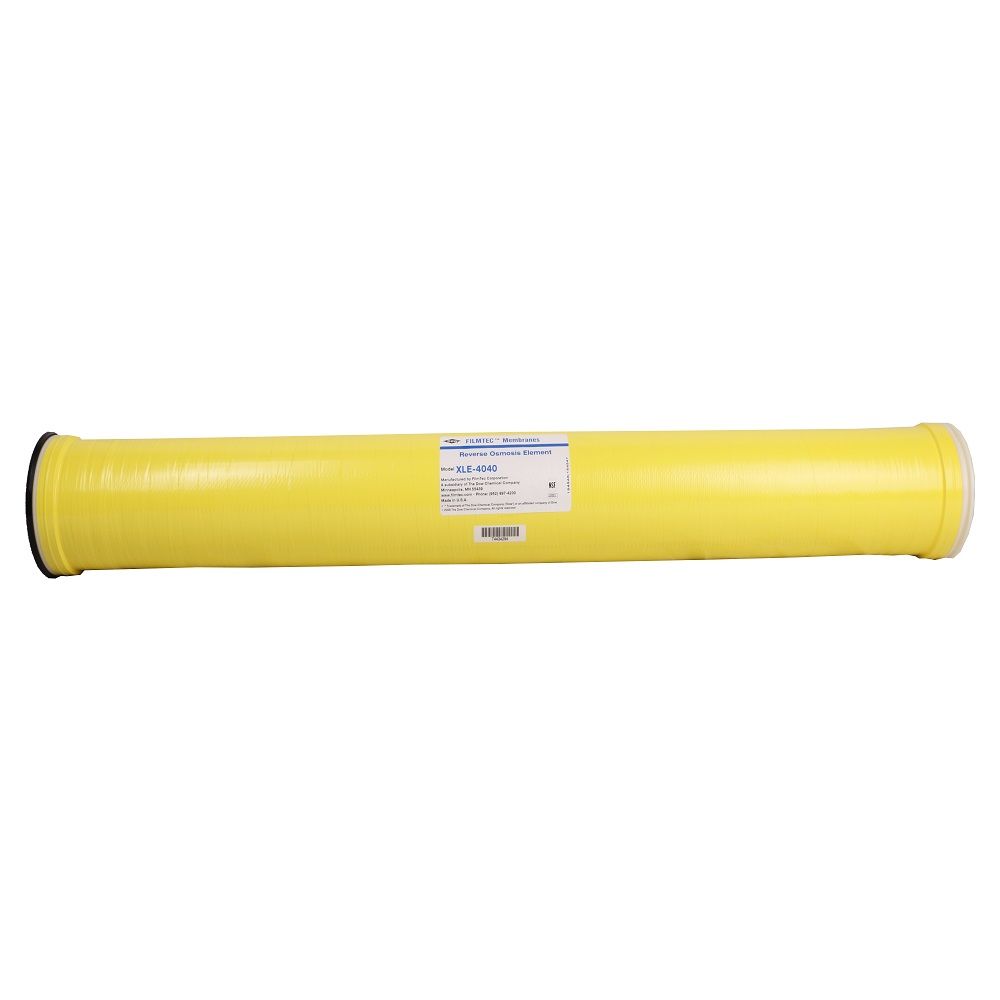

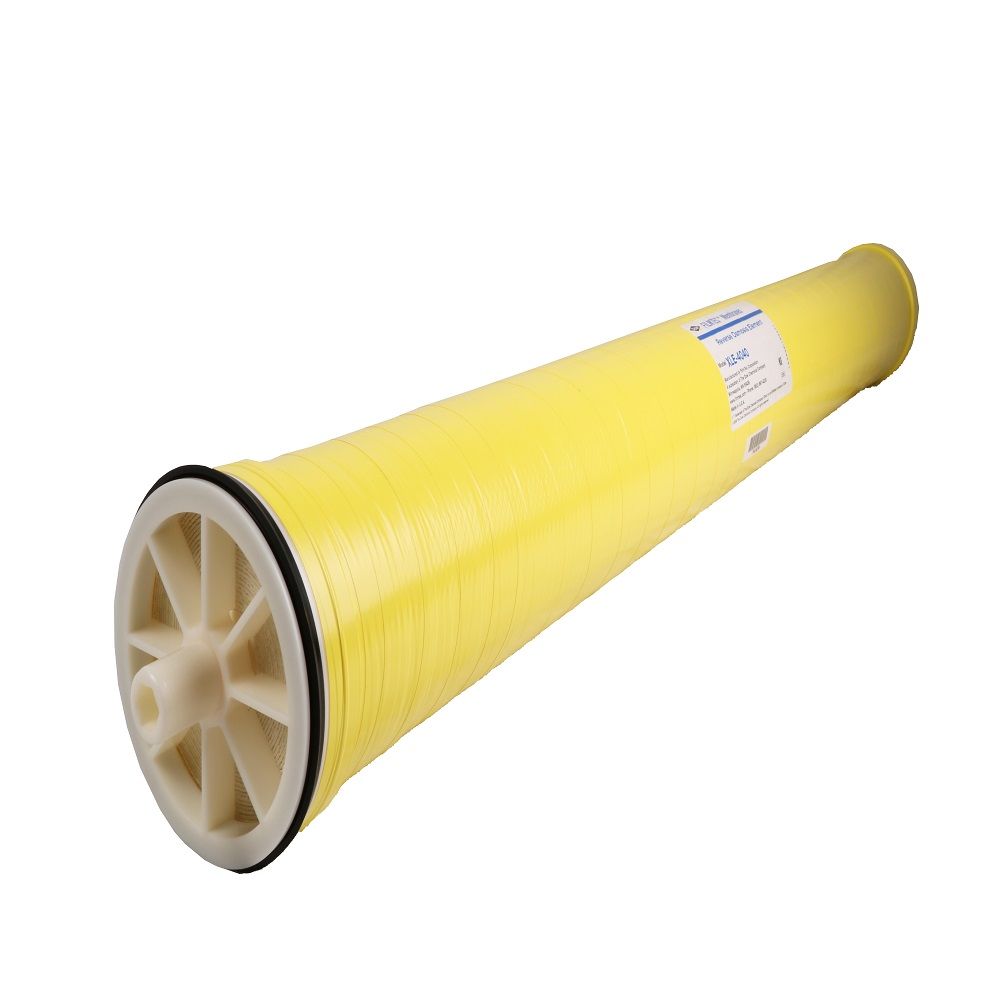

Filmtec XLE-4040 Tap Water Extra Low Energy 2600 GPD RO Membrane Element

Part Number: XLE-4040

Alt. Part Number: 154546

In Stock

out of stock

In Stock

$253.50

The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:
  • Up to 2600 gallon per day production
  • Up to 600 psig
  • Fits standard 4" housings or pressure vessels
  • Better system performance and economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
  • The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology




Weight & Dimensions

Box Quantity

1

Height (inches)

4.5

Length (inches)

40

Weight (lbs)

6.5

Width (inches)

5

Details

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

100 PSI

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film Composite

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

14 gpd (3.2)

Max Pressure Drop

13 PSI Differential

Max Pressure (Psi)

600 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

2,600 gpd (9.8

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.99

Cartridge Style

Drop-in

Diameter

3.9"

Product Length

40"


Filmtec




The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:
  • Up to 2600 gallon per day production
  • Up to 600 psig
  • Fits standard 4" housings or pressure vessels
  • Better system performance and economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
  • The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology



Weight & Dimensions

Box Quantity

1

Height (inches)

4.5

Length (inches)

40

Weight (lbs)

6.5

Width (inches)

5

Details

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

100 PSI

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film Composite

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

14 gpd (3.2)

Max Pressure Drop

13 PSI Differential

Max Pressure (Psi)

600 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

2,600 gpd (9.8

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.99

Cartridge Style

Drop-in

Diameter

3.9"

Product Length

40"
