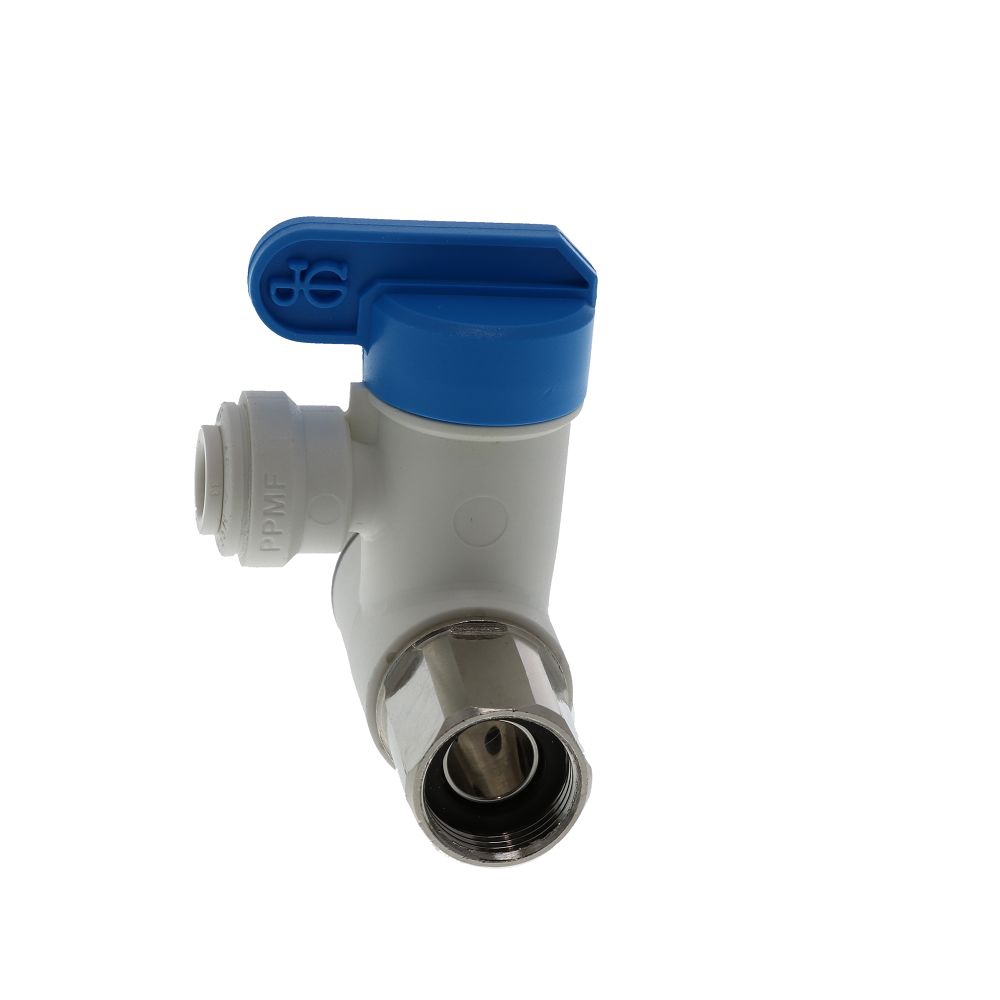

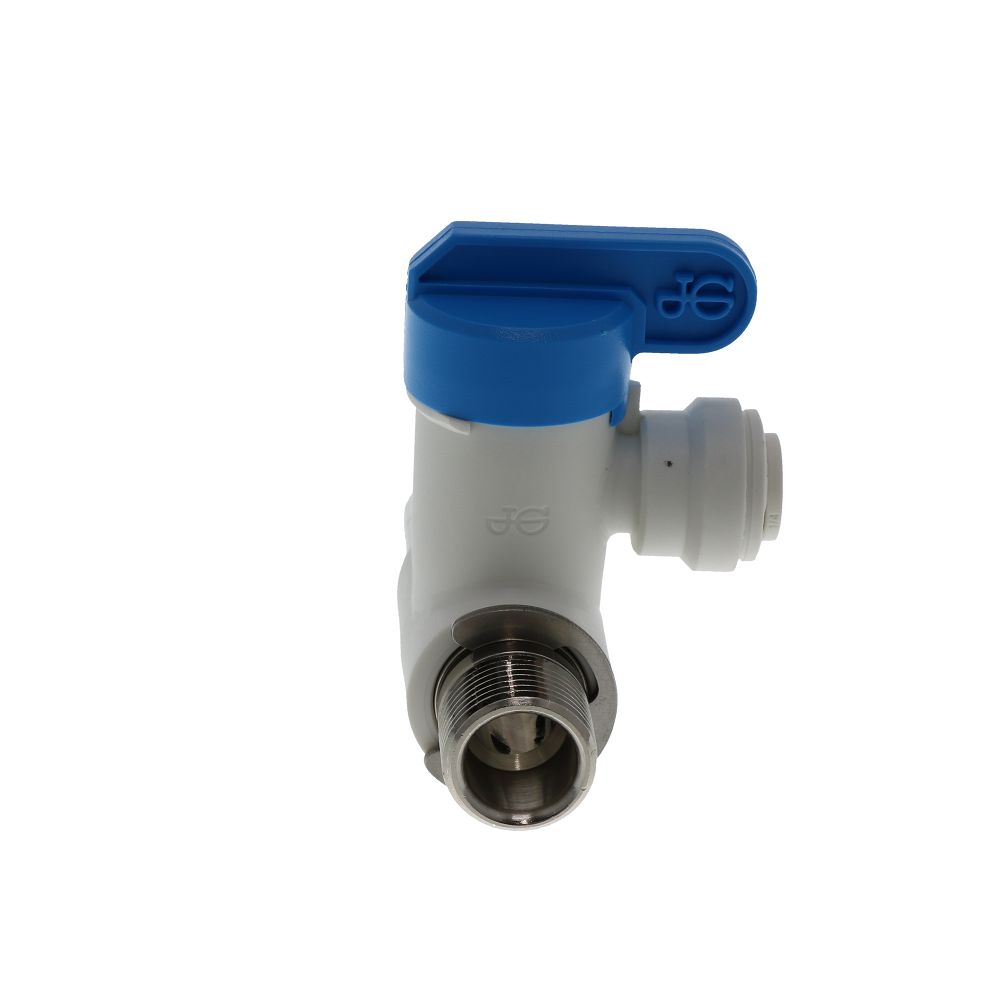

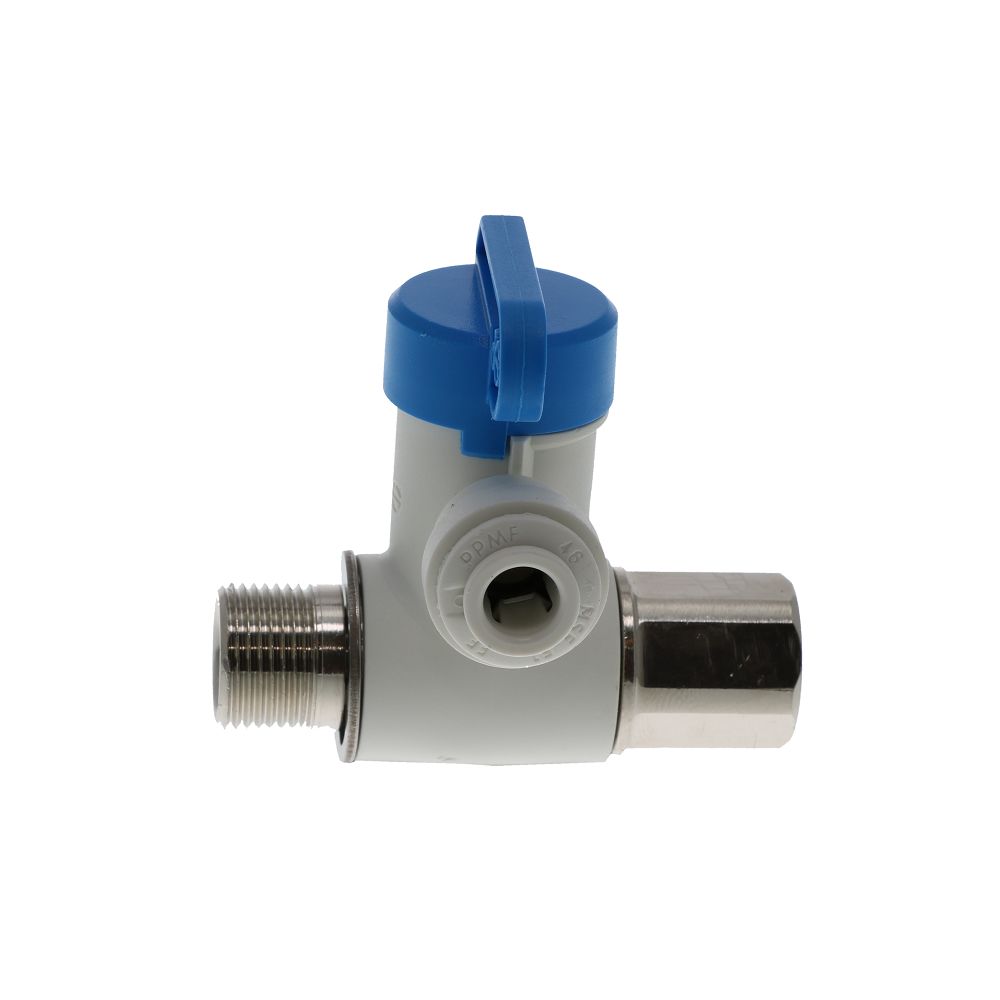

John Guest Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 1/4

4.8

(11 reviews)

Part Number: ASVPP1LF Alt. Part Number: PSABV4-BCP3, PI1912B

1 5

John Guest

John Guest Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 1/4

4.8

(11 reviews)

Part Number: ASVPP1LF Alt. Part Number: PSABV4-BCP3, PI1912B

MSRP: $19.04

$12.13

Quantity

Unit Price

Price

Savings

$12.13

—

$11.57

$347.29

150

$11.13

$1,670.76

300

$10.94

$3,284.40

Product variants

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

Expected Ship Date: December 17, 2025

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.89
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:

For use with plastic or copper OD sized tubing
For cold water supply use only
Threads onto 3/8 in compression chrome supply stop
Quarter turn to open or close
White Polypropylene body, EPDM seals
Lead Free materials
Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:

Max 150 psi at 70°F
Max 60 psi at 140°F

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”

Compatible with:

Hague®

200540

View Prop 65 Warning

Specifications

Product Details
Application	Water Supply
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	3/8" Compression
Push-In Size	1/4" OD
Series	PI
Size	3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	2.126 in.
Shipping Width	1.39 in.
Shipping Height	2.051 in.
Product Weight & Dimensions
Product Height	2.051 in.
Product Length	2.126 in.
Product Width	1.39 in.
Product Weight (lbs)	0.127

Product Details
Application	Water Supply
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	3/8" Compression
Push-In Size	1/4" OD
Series	PI
Size	3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	3.81

Product Details
Application	Water Supply
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	3/8" Compression
Push-In Size	1/4" OD
Series	PI
Size	3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	11 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Weight (lbs)	24.35

Product Details
Application	Water Supply
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	3/8" Compression
Push-In Size	1/4" OD
Series	PI
Size	3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	21.65 in.
Shipping Width	10.63 in.
Shipping Height	11.42 in.
Product Weight & Dimensions
Product Height	11.42"
Product Length	21.65"
Product Width	10.63"
Product Weight (lbs)	48.7

Downloads

John Guest Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 1/4 Manual

Reviews (11)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

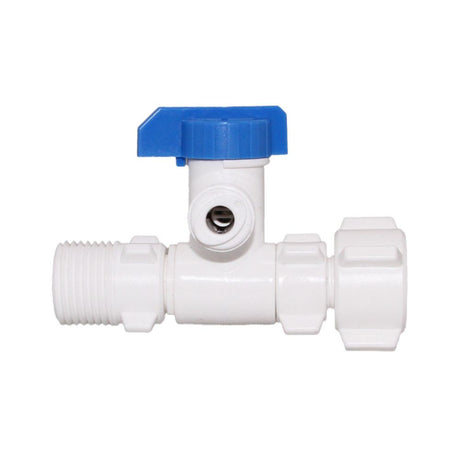

Facet	John Guest John Guest Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 1/4 4.8 Regular price From $12.13 Part #: ASVPP1LF Save up to 9% with bulk pricing Current Product	NeoFit NeoFit - Polypropylene Natural White Stop Valve Adapter 1/4" OD x 3/8" Comp Thread Regular price From $8.15 Part #: PSABV4-BCP3 Save up to 6% with bulk pricing View details	Neo-Pure Angle Stop Adapter 3/8" Compression x 1/4" QC Valve - 1/2" NPS Adapter Regular price From $7.43 Part #: ASBVA-0408 Save up to 41% with bulk pricing View details
