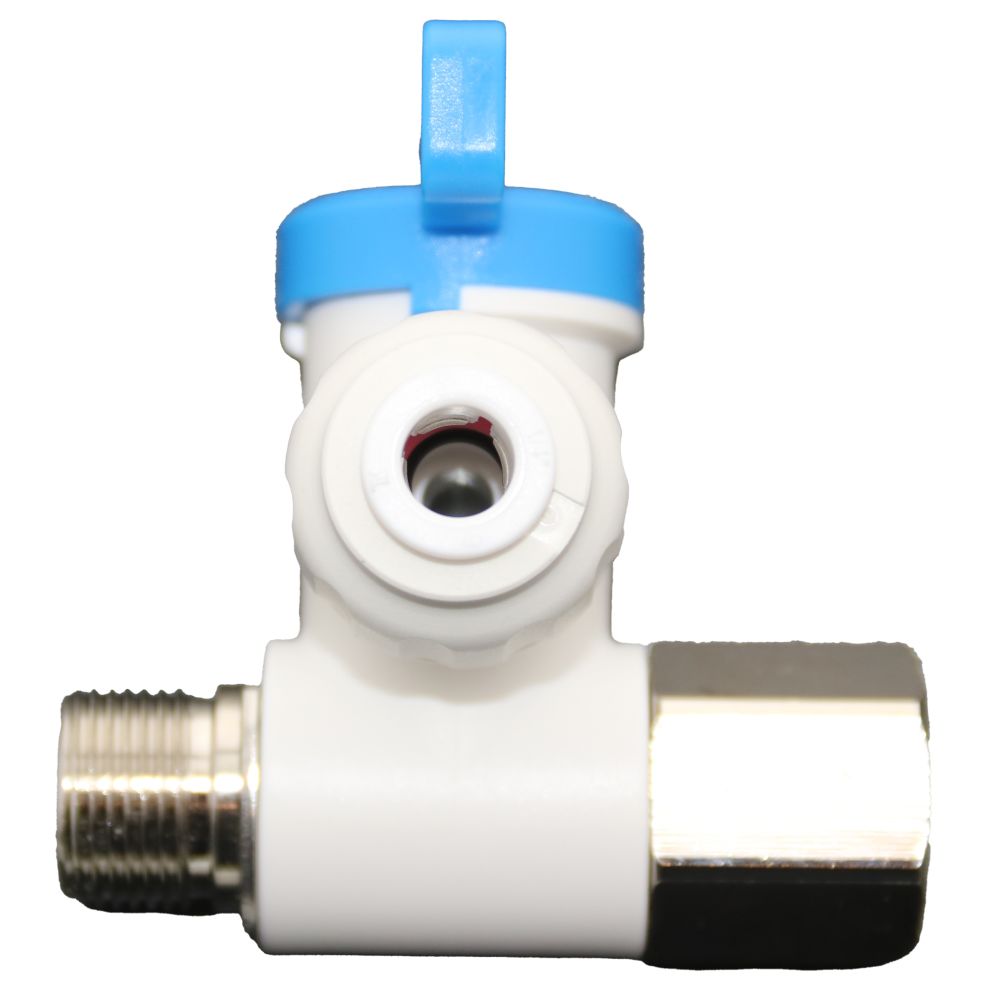

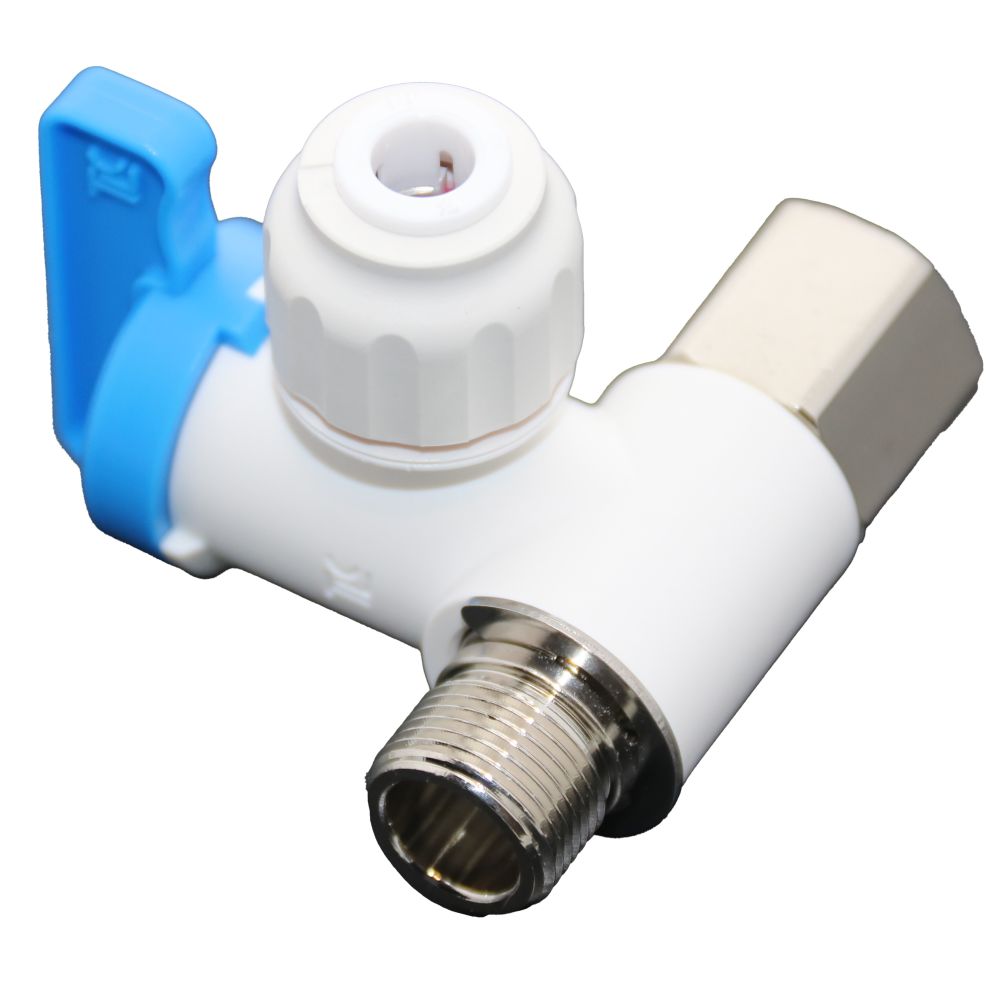

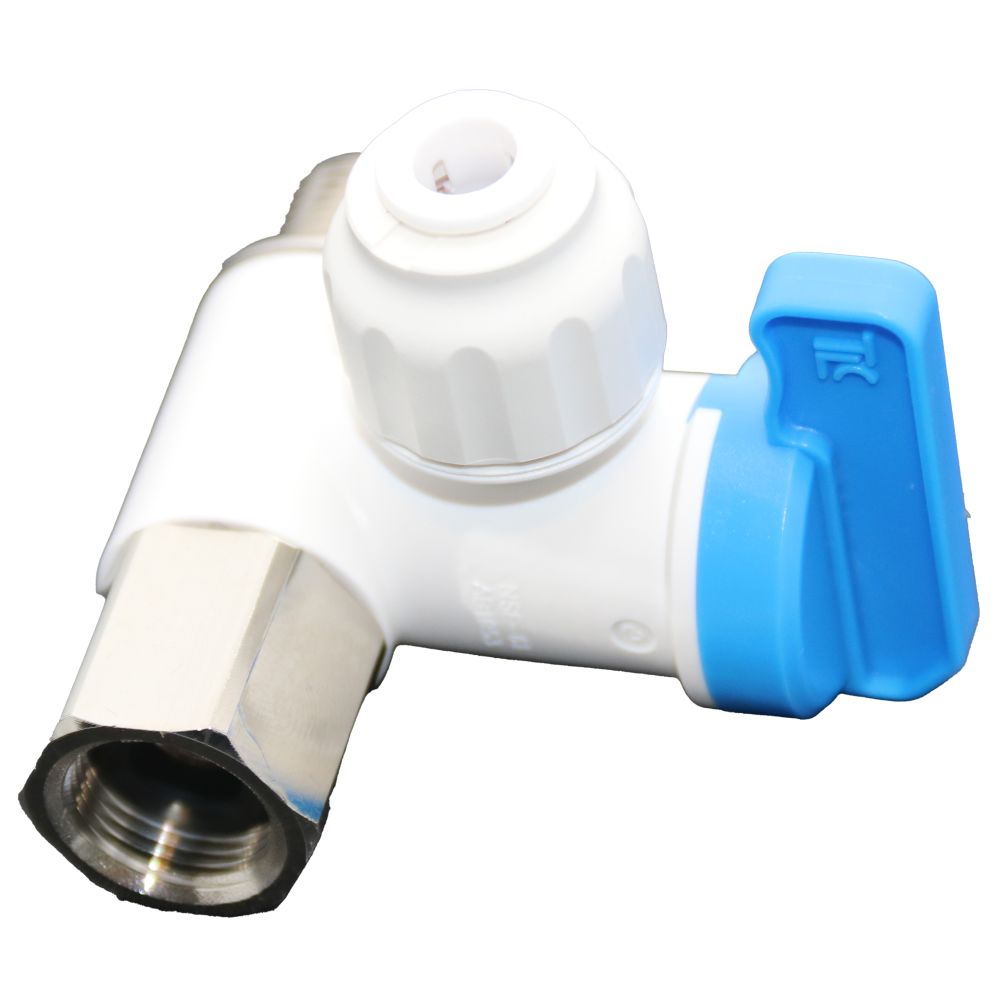

NeoFit - Polypropylene Natural White Stop Valve Adapter 1/4" OD x 3/8" Comp Thread

Part Number: PSABV4-BCP3
Product image 1
Product image 2
Product image 3
Your price:
Choose
Single
Bag of 5
Box of 50
similar items
The Neo-Fit Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in Natural White polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:
  • For use with plastic or copper OD sized tubing
  • For cold water supply use only
  • Threads onto 3/8 in compression chrome supply stop
  • Quarter turn to open or close
  • Natural White Polypropylene body, EPDM seals
  • Lead Free materials
  • Quick and easy connection/disconnection
  • NSF51 and NSF61 listed
  • Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:
  • Max 150 psi at 70°F
  • Max 60 psi at 140°F

Do Not Use these Valves:
  • In a partially open position to control flow
  • To provide a permanent termination
  • Without tubing assembled or plugged (or threaded connections sealed)
  • As a tap of “faucet


Fittings Comparison: Polypropylene White


Size

NEO: Working PSI @ Temp

JG: Working PSI @ Temp

 DM Fit: Working PSI@ Temp Mur-Lok: Working PSI@ Temp

1/4"

 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140F 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F

3/8"

 150psi @ 68F/ 60psi @ 150F

150psi @ 70F/ 60psi at 140F

 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F

1/2"

 150psi @ 68F/ 60psi @ 150F

150psi @ 70F/ 60psi at 140F

 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F

Certifications

NEO: NSF 51 & 61 Certified

JG: NSF 51 & 61 Certified

 DM Fit: NSF 51 & 61 Certified Mur-Lok: NSF 58 & 372 Certified




Size

NEO: Max Torque

JG: Max Torque

DM Fit: Max Torque

Mur-Lok: Max Torque

1/4"

1ft/lb  (1.5nm)

1ft/lb  (1.5nm)

1ft/lb  (1.5nm)

1ft/lb  (1.5nm)

3/8"

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)

1/2"

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)



California residents Prop 65 Warning
warning symbol WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
