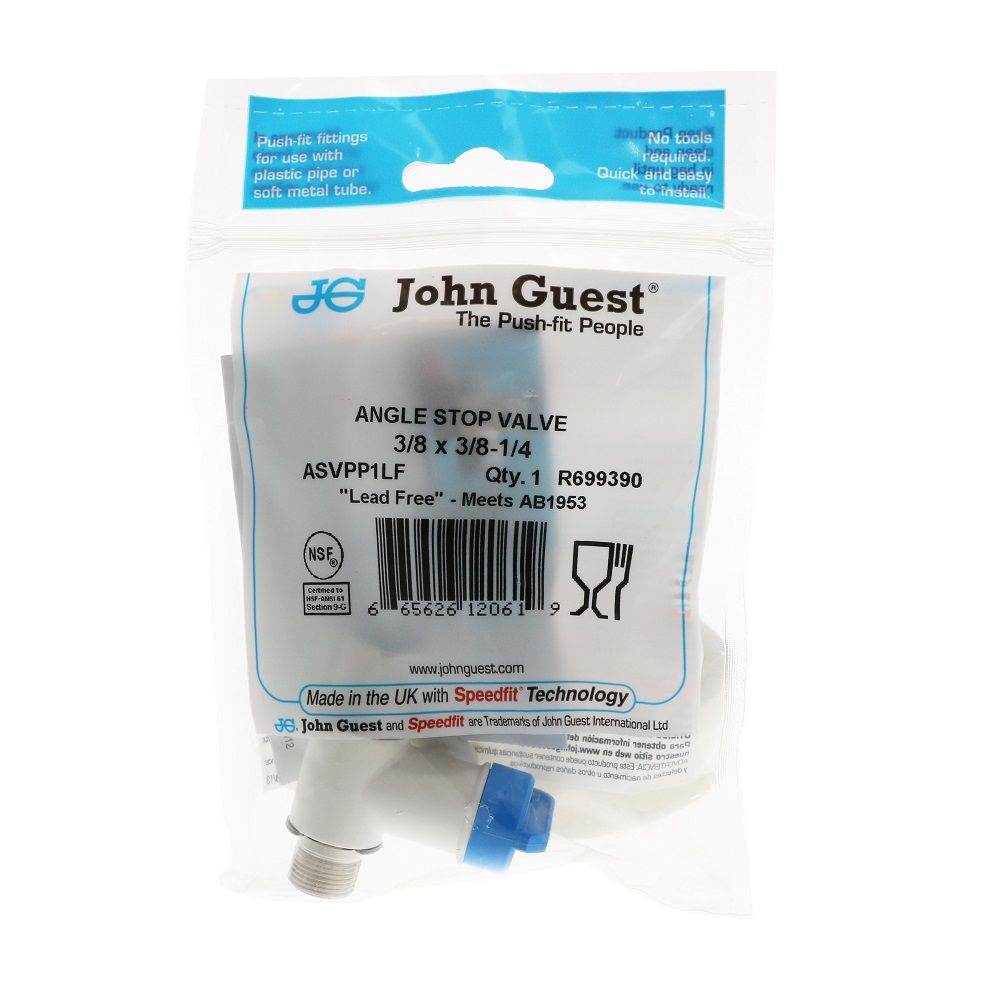

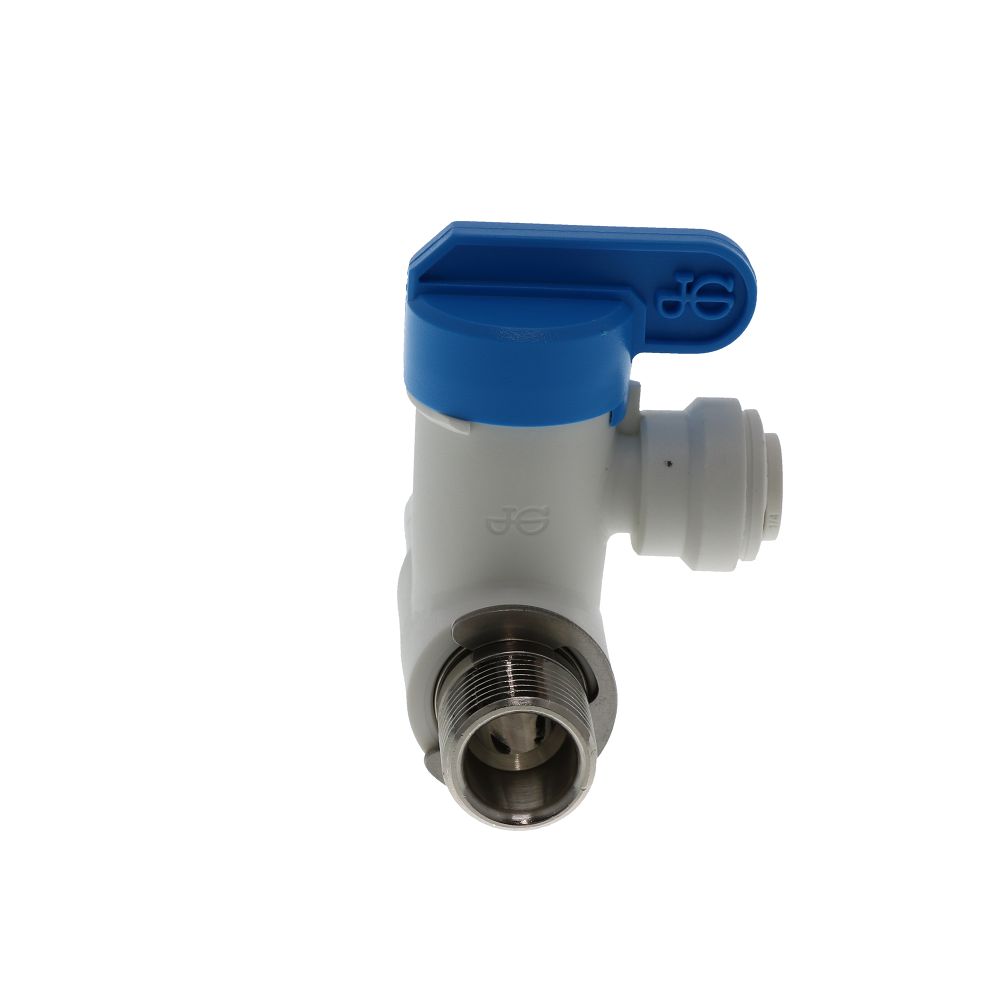

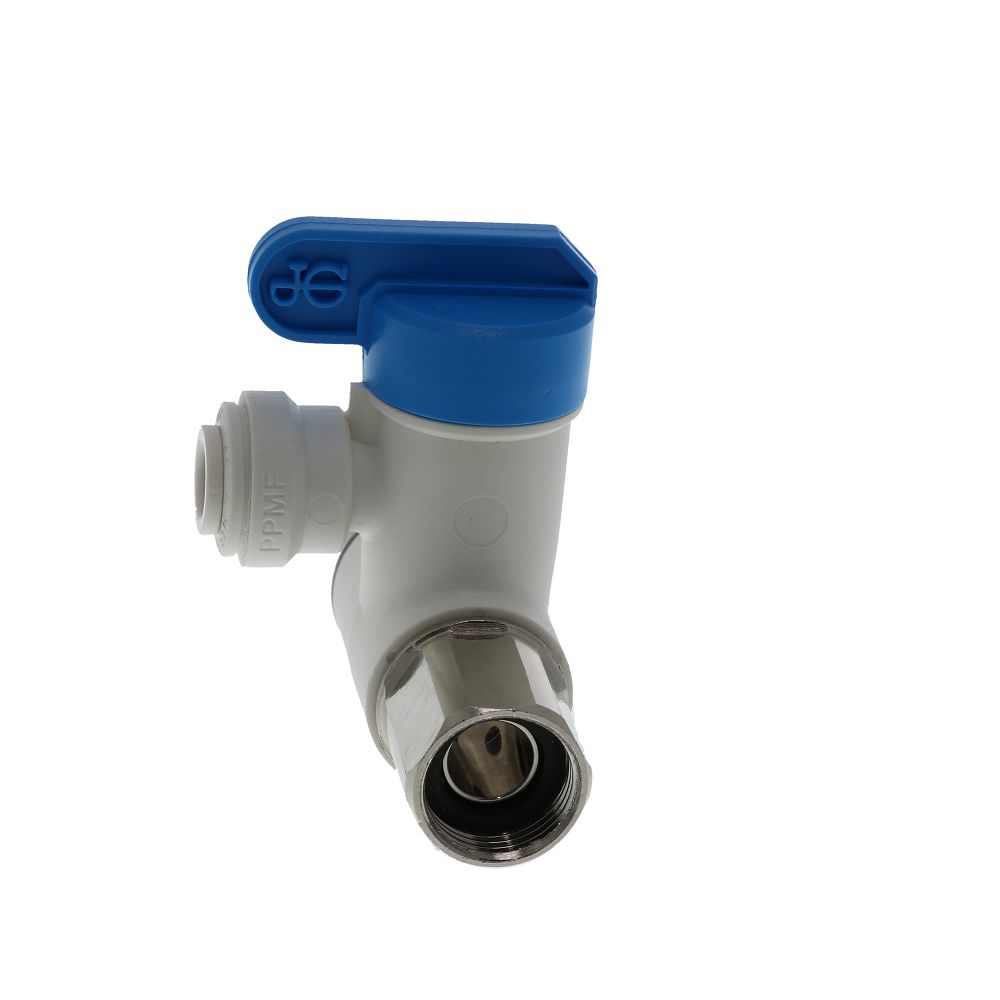

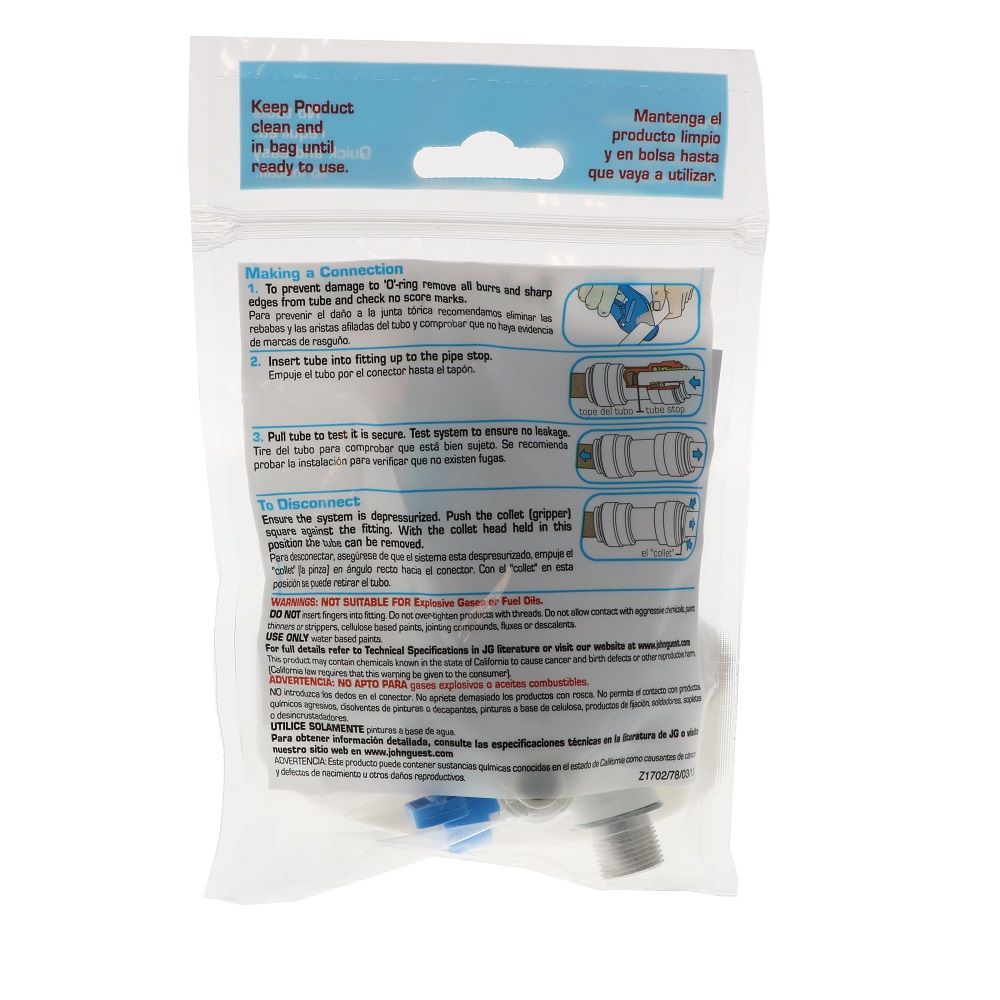

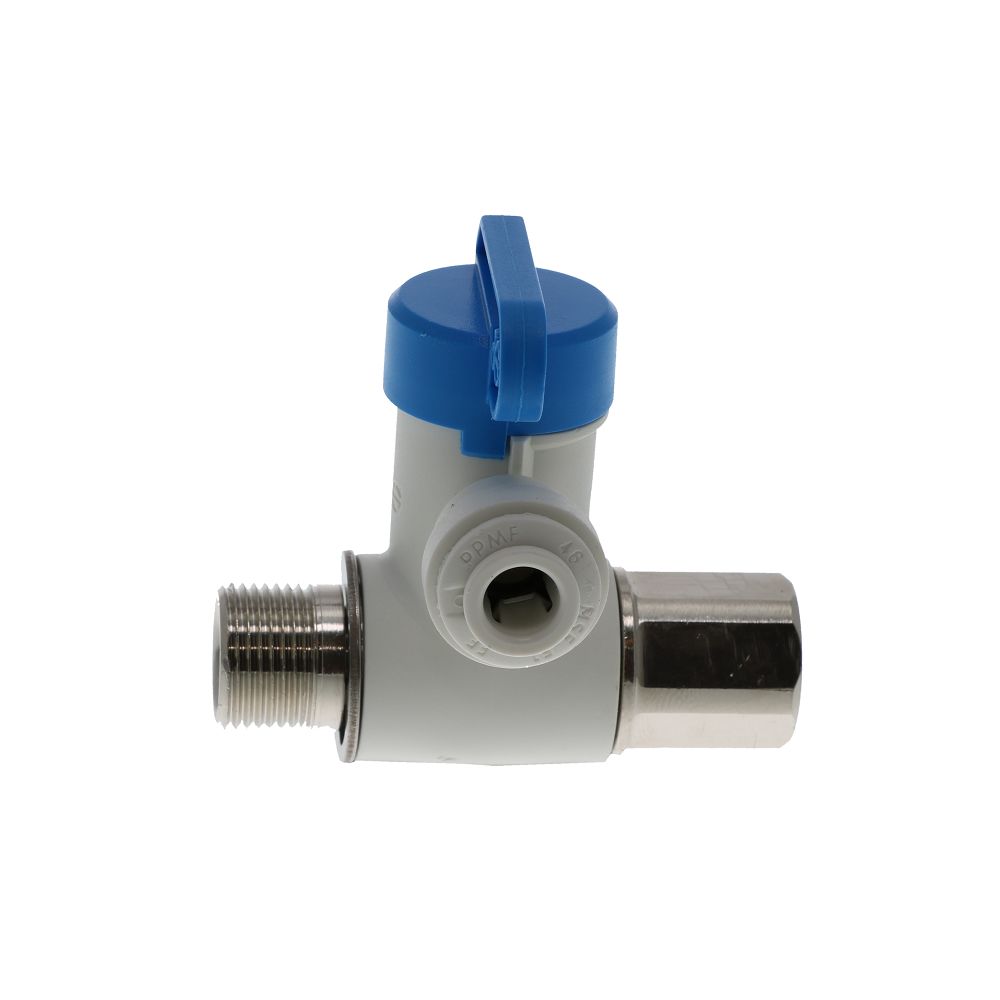

The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:

• For use with plastic or copper OD sized tubing
• For cold water supply use only
• Threads onto 3/8 in compression chrome supply stop
• Quarter turn to open or close
• White Polypropylene body, EPDM seals
• Lead Free materials
• Quick and easy connection/disconnection
• NSF51 and NSF61 listed
• Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:

• Max 150 psi at 70°F
• Max 60 psi at 140°F

Do Not Use these Valves:

• In a partially open position to control flow
• To provide a permanent termination
• Without tubing assembled or plugged (or threaded connections sealed)
• As a tap of “faucet”
