Hydrotech

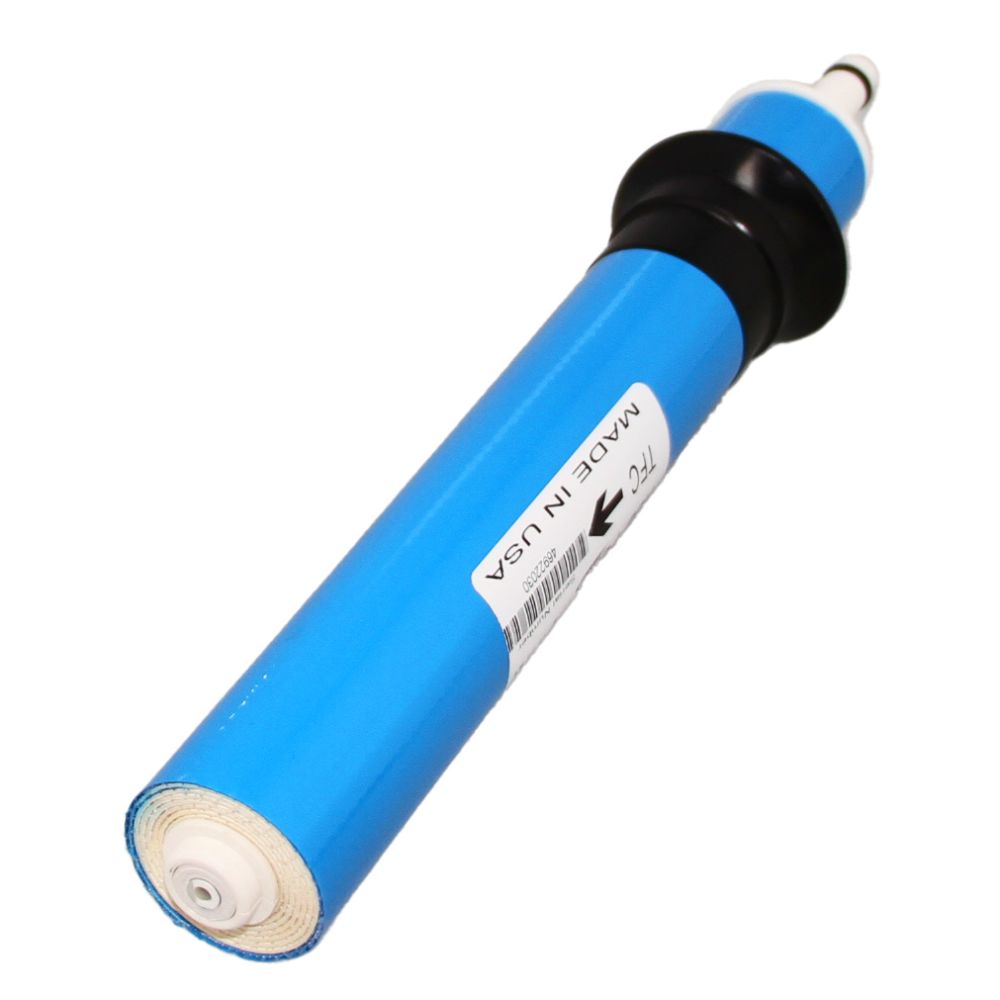

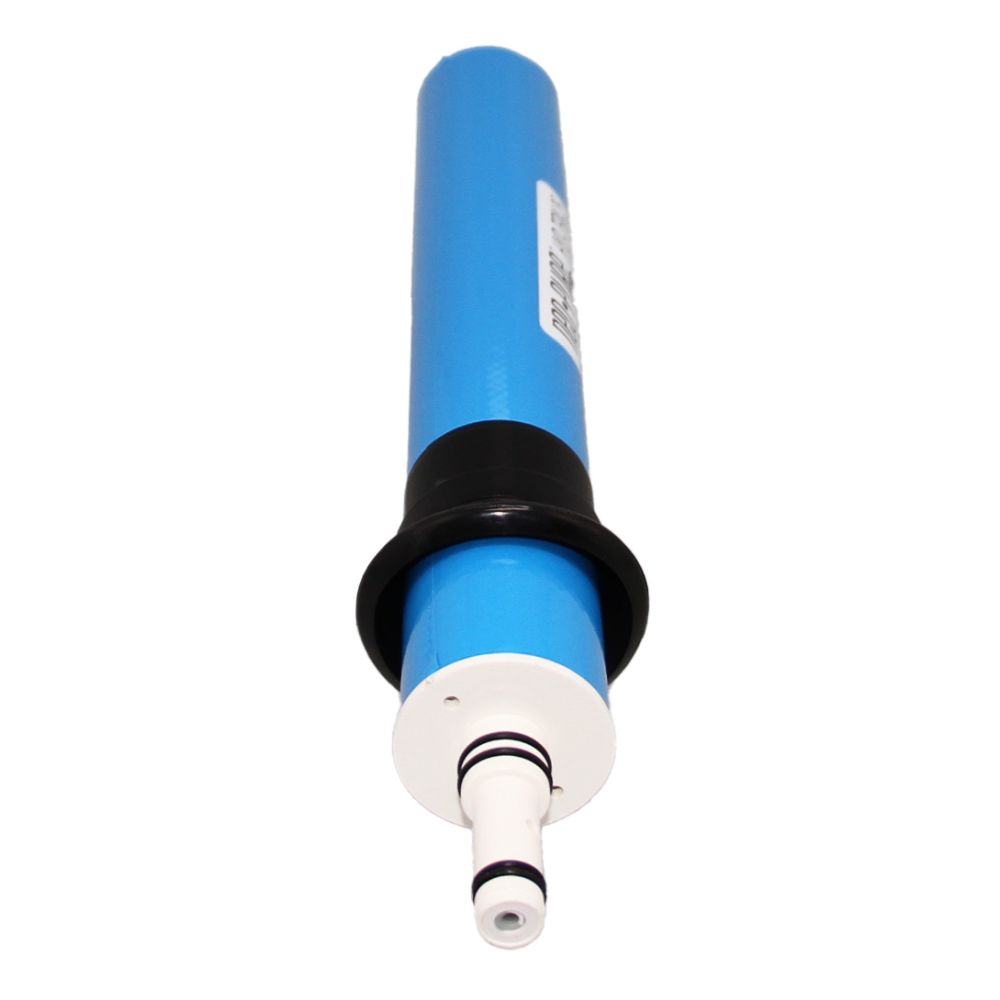

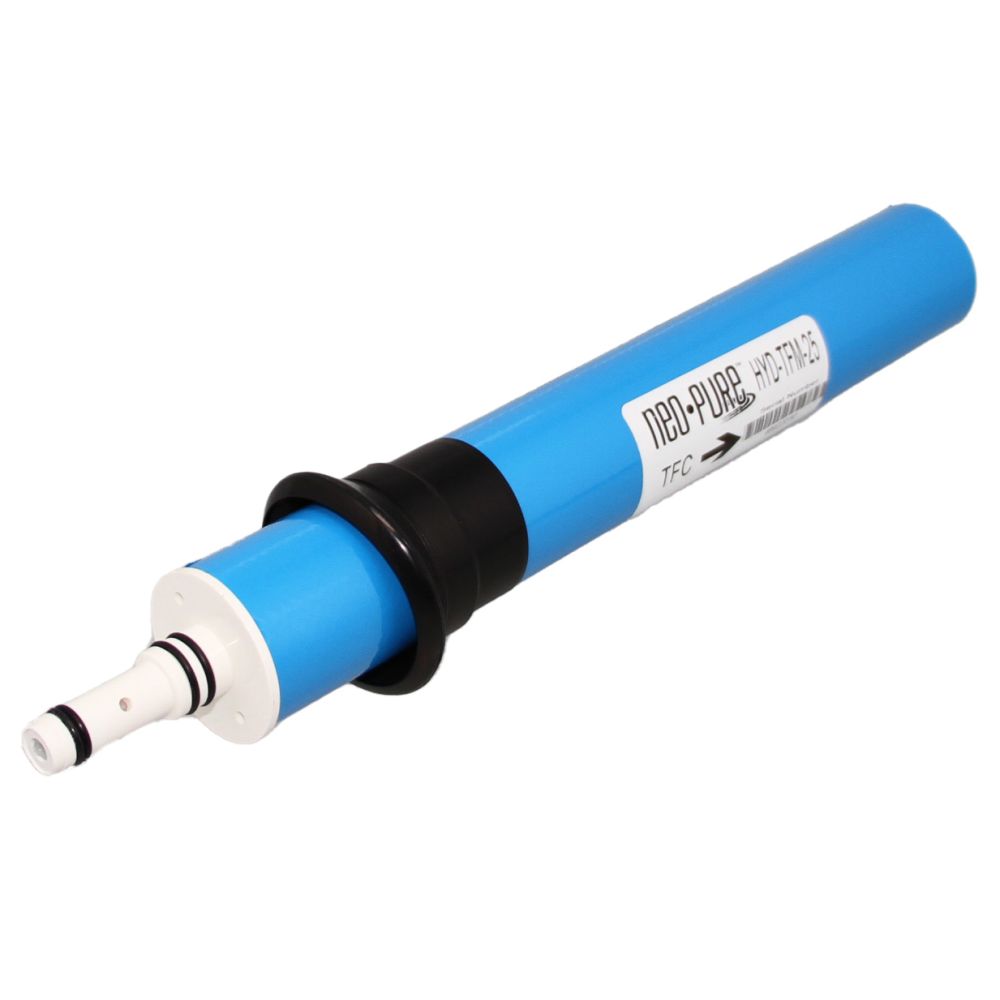

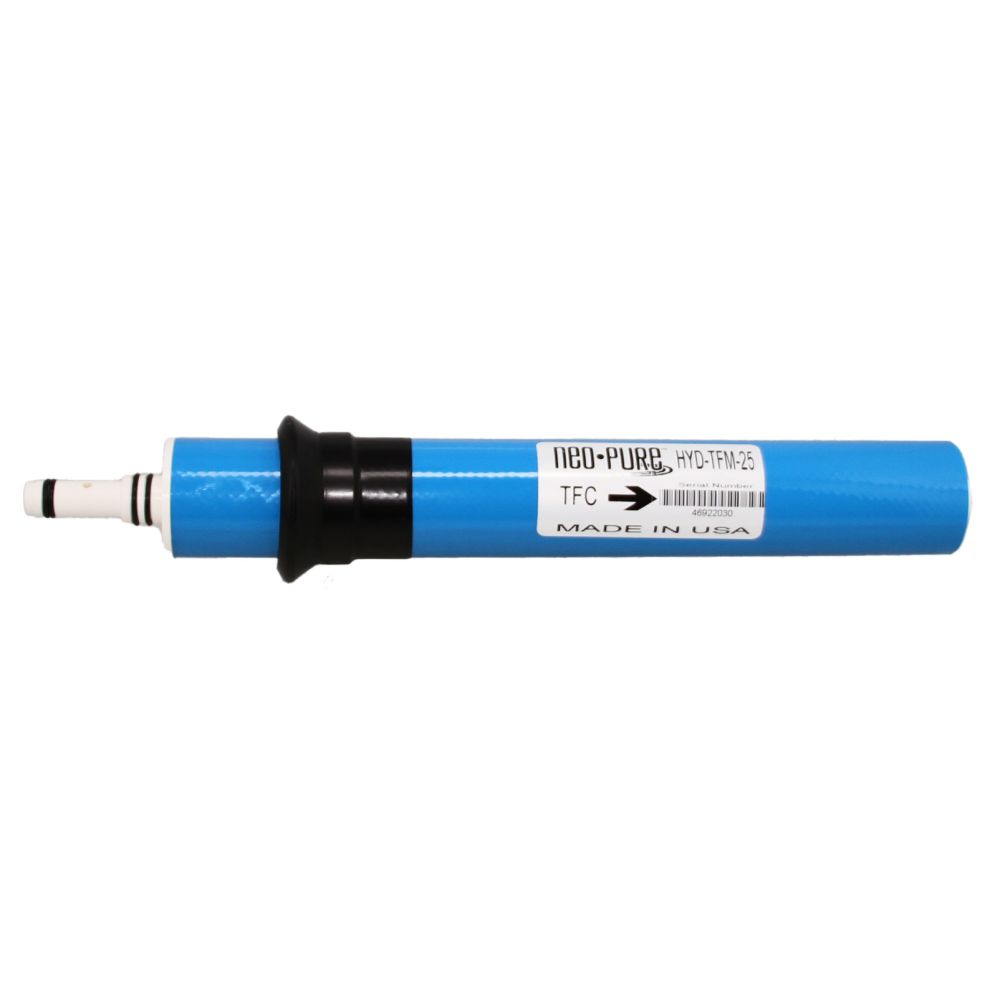

Neo-Pure HYD-TFM-25 TFC Reverse Osmosis Membrane 25 gpd

Part Number: HYD-TFM-25

Alt. Part Number: 33001068

In Stock

out of stock

In Stock

$56.47

The Neo-Pure HYD-TFM-25 Reverse Osmosis Membrane is a 25 gallon per day TFC membrane. It is compatible with a wide variety of RO systems, including the 1240 Series, E, M & Pro Systems, HT101, HT102, F-HT-25 and F-HTF-25 Series.

The HYD-TFM-25 uses pressure to force water molecules through the semi permeable thin film composite membrane the undesirable contaminants are washed away.

Specifications:
  • TFC (Thin Film Composite)
  • Flow Rate: 25 gallons per day
  • Easily identified by yellow and green tape band
  • Also known as Hydrotech S-FS-09 membrane
  • Packaged dry to extend shelf life indefinitely
  • NOTE: Do not freeze (store between 35 - 50˚F)
NOTE: A carbon prefilter must be used when used with chlorinated water

Neo-Pure HYD-TFM-25 Membrane is compatible with the following Hydrotech RO systems:
  • 101 Series
  • 102 Series
  • 1240 Series
  • 1240 E Series
  • 1240 M Series
  • 1240 Pro Series
  • F-HT-25
  • F-HTF-25



Compatible with:
HydrotechS-FS-07, 33001068
Sierra SpringsS-FS-07
US Pure Water ProductsS-FS-07

Weight & Dimensions

Length (inches)

12.25

Height (inches)

2

Width (inches)

2

Weight (lbs)

0.025

Details

Max Temp (°F)

100

Max Pressure (Psi)

120

Min Temp (°F)

40

Min Pressure (Psi)

30

Capacity

24-36 Months

Cartridge Style

Drop-In

Diameter

1-3/4"

Flow Rate

25 GPD

Inner/Outer Wraps

Tape

Material Of Construction

TFC (Thin Film Composite)

Chlorine Tolerance

<2 ppm

Direction

Outside - In

Max Feed Silt Density Index

5 SDI

Membrane Type

Spiral Wound

Ph Range

4.0-11.0

Max Tds Content

94% Rejection

Max Feed Water Turbidity

5 NTU



The Neo-Pure HYD-TFM-25 Reverse Osmosis Membrane is a 25 gallon per day TFC membrane. It is compatible with a wide variety of RO systems, including the 1240 Series, E, M & Pro Systems, HT101, HT102, F-HT-25 and F-HTF-25 Series.

The HYD-TFM-25 uses pressure to force water molecules through the semi permeable thin film composite membrane the undesirable contaminants are washed away.

Specifications:
  • TFC (Thin Film Composite)
  • Flow Rate: 25 gallons per day
  • Easily identified by yellow and green tape band
  • Also known as Hydrotech S-FS-09 membrane
  • Packaged dry to extend shelf life indefinitely
  • NOTE: Do not freeze (store between 35 - 50˚F)
NOTE: A carbon prefilter must be used when used with chlorinated water

Neo-Pure HYD-TFM-25 Membrane is compatible with the following Hydrotech RO systems:
  • 101 Series
  • 102 Series
  • 1240 Series
  • 1240 E Series
  • 1240 M Series
  • 1240 Pro Series
  • F-HT-25
  • F-HTF-25



Compatible with:
HydrotechS-FS-07, 33001068
Sierra SpringsS-FS-07
US Pure Water ProductsS-FS-07

Weight & Dimensions

Length (inches)

12.25

Height (inches)

2

Width (inches)

2

Weight (lbs)

0.025

Details

Max Temp (°F)

100

Max Pressure (Psi)

120

Min Temp (°F)

40

Min Pressure (Psi)

30

Capacity

24-36 Months

Cartridge Style

Drop-In

Diameter

1-3/4"

Flow Rate

25 GPD

Inner/Outer Wraps

Tape

Material Of Construction

TFC (Thin Film Composite)

Chlorine Tolerance

<2 ppm

Direction

Outside - In

Max Feed Silt Density Index

5 SDI

Membrane Type

Spiral Wound

Ph Range

4.0-11.0

Max Tds Content

94% Rejection

Max Feed Water Turbidity

5 NTU
